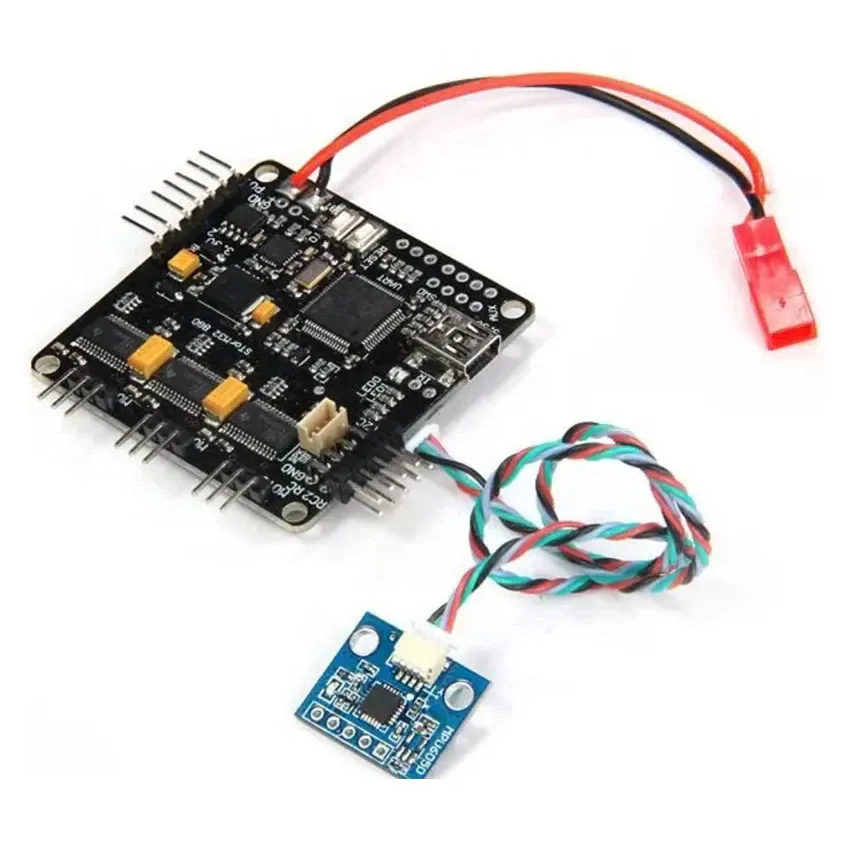

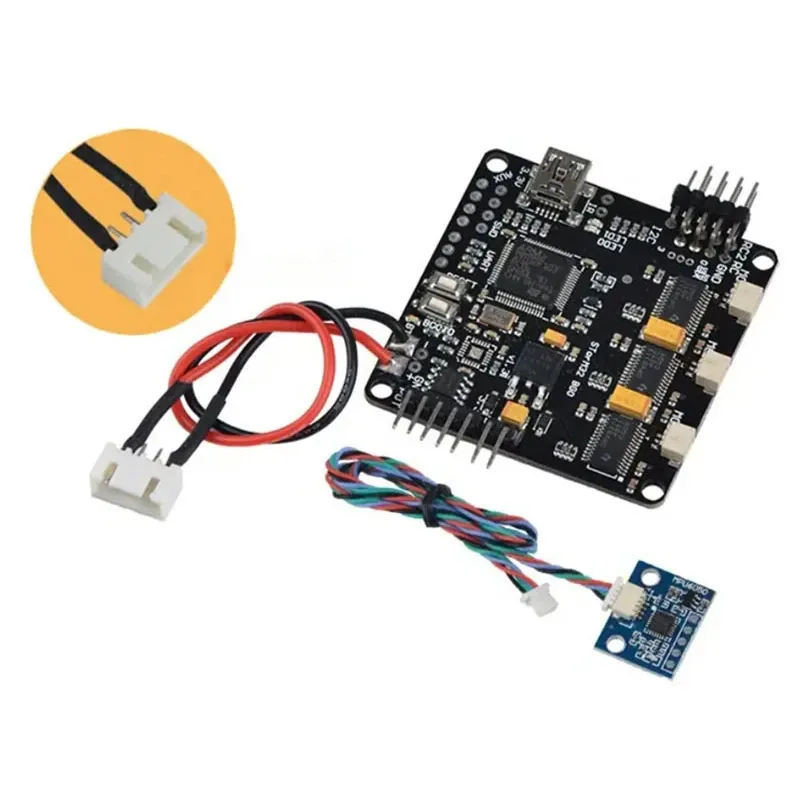

Storm32 BGC V1.3 F103RC 3-Axis Brushless Gimbal Controller Board
SKU GEN-STORM32-BGC-V13
Brand: Generic
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A 32-bit STorM32 BGC gimbal controller board, version V1.3 F103RC, for building or rebuilding 3-axis brushless camera gimbals on multirotors and camera rigs. It is built around an STM32F103 (or GD32F103) microcontroller and runs the NT firmware, which talks to the camera-side IMU over a serial link rather than I2C.
Key features
- 3-axis control: stabilises the pitch, roll and yaw brushless gimbal motors from one board.
- Serial NT IMU link: the IMU connects over a serial bus, avoiding the I2C errors that long gimbal wiring runs tend to cause.
- Firmware o323bgc v2.11e NT: the build for the V1.3 F103RC board, configured through the o323BGCTool software on a PC.
- 3S supply: runs from a 3S (12 V) power source.

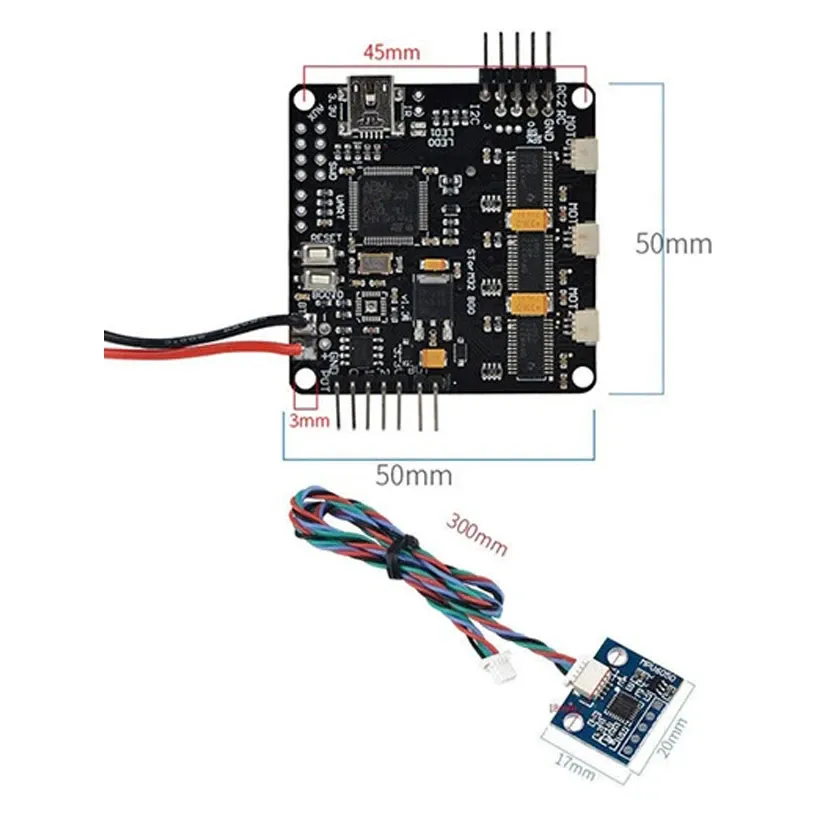

- Mounting: 50 x 50 mm board with M3 holes on a 45 mm pitch.
Specifications
- Version: V1.3_F103RC
- MCU: STM32F103 / GD32F103 (32-bit)
- Architecture: NT, serial IMU
- Firmware: o323bgc v2.11e NT
- Axes: 3
- Power supply: 3S (12 V)
- Board size: 50 x 50 mm
- Mounting holes: M3, 45 mm pitch
- In the box: 1 x controller board
The package holds the controller board only. Plan on a separate STorM32 NT IMU module for the camera plate, three brushless gimbal motors matched to your camera's weight, and the connecting cables. Balance the camera on all three axes before tuning: a well-balanced gimbal needs far less motor power and holds a steadier horizon.
| Brand | ReadyToSky, Generic |
|---|---|
| Axis | 3 |
| Made in India | No |
| Input Voltage | 3S |
