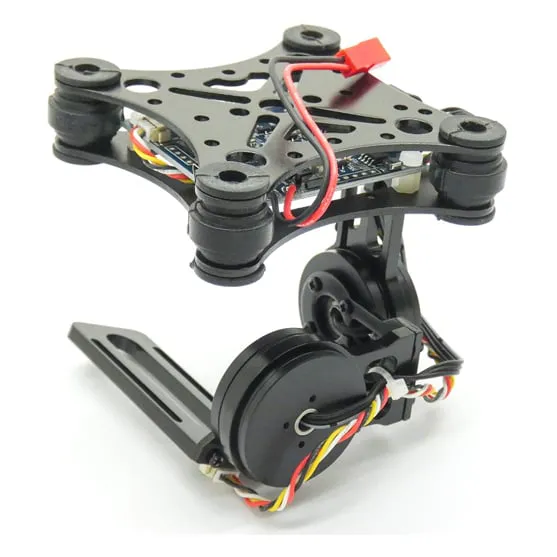

Lightweight 2-Axis Brushless Gimbal

This lightweight 2-axis brushless gimbal stabilises a GoPro-size action camera on a multirotor or other DIY UAV build. It comes complete: a CNC aluminium frame, two 2208 KV80 brushless gimbal motors and a BGC 3.0 controller board.

Key features

• CNC aluminium alloy frame, with motor protectors that also help the motors shed heat.
• Rubber anti-vibration balls isolate the camera from airframe vibration.
• Camera bracket with a retaining strap for GoPro HERO 3/3+/4-size action cameras.
• Two-axis design corrects pitch and roll; yaw follows the aircraft's own heading rather than being independently stabilised.
• Motors and controller come fitted: two 2208 KV80 brushless motors and a BGC 3.0 board (BGC 2.2 software).

Specifications

• Axis: 2
• Frame material: CNC aluminium alloy (black or silver, as available)
• Motors: 2x 2208 KV80 brushless gimbal motors
• Controller: BGC 3.0 (BGC 2.2 software)
• Power: 12 V (3S LiPo), JST XH 2.54 plug
• Camera: GoPro HERO 3/3+/4 and similar-size action cameras

Run it from a 3S (12 V) supply. Strap the camera in tightly and level it before you power the gimbal on, because a loose camera can upset the controller.
