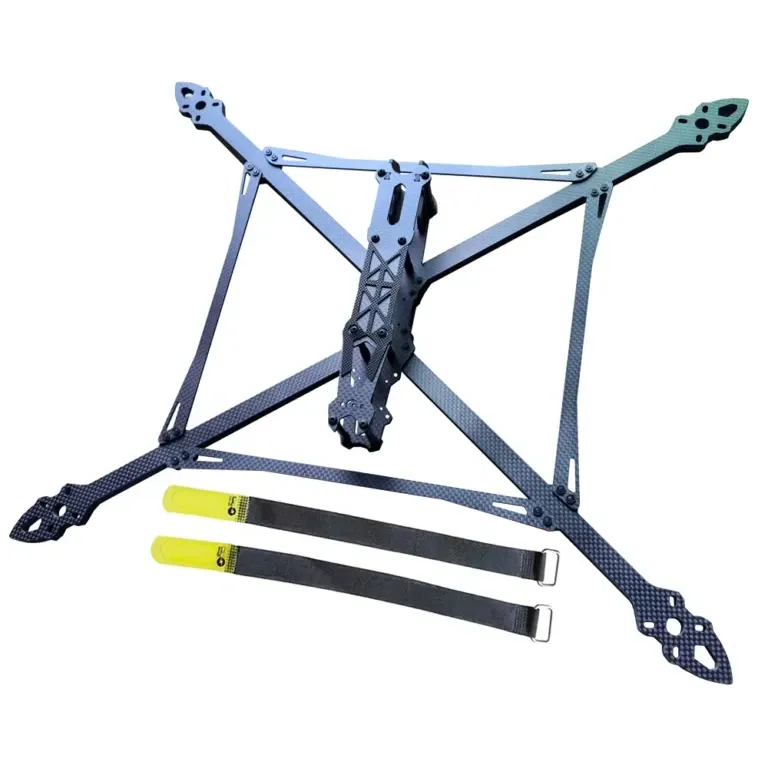

Mark4 V3 Pro 13 Inch 570mm Carbon Fiber Frame Kit

The Mark4 V3 Pro 13-inch is a 570 mm wheelbase 3K carbon fibre frame kit for large long-range, cinematic and heavy freestyle FPV quads running 13-inch propellers. It takes standard 20×20 and 30.5×30.5 mm electronics and a 19 mm micro camera, so analog and digital video setups both fit.

Key features

• 8 mm thick carbon fibre arms for stiffness under high-thrust 13-inch props

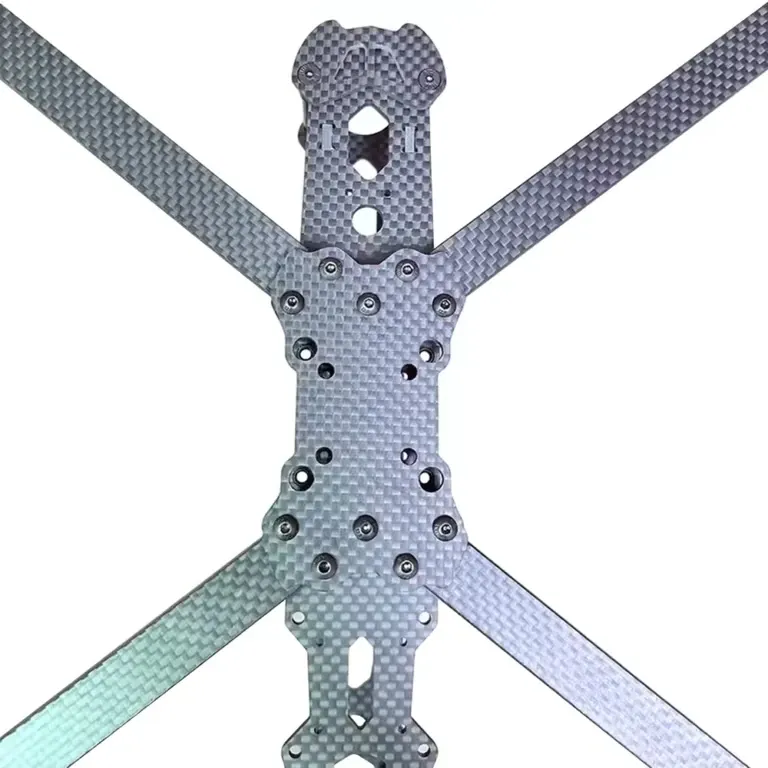

• 3 mm bottom plate carries landing and crash loads
• Flight controller/ESC stack and VTX mount on 20×20 or 30.5×30.5 mm hole patterns
• Side plates hold a 19 mm micro FPV camera
• Motor mounts drilled on a 30 mm spacing for M4 screws
• Kit includes plates, arms, standoffs, screws and nuts

Specifications

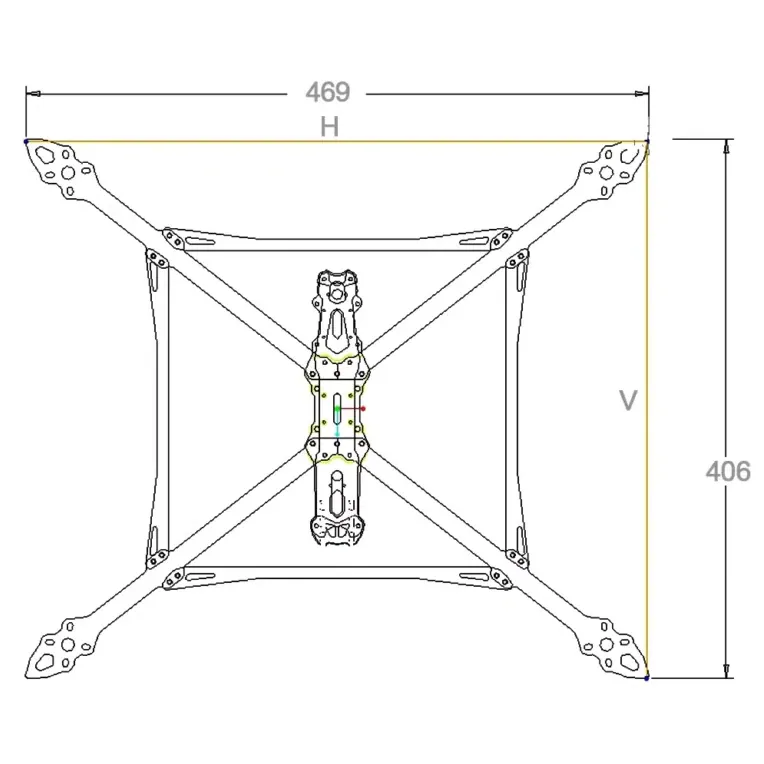

• Wheelbase: 570 mm
• Prop size: 13 inch
• Material: 3K carbon fibre
• Arm thickness: 8 mm
• Bottom plate: 3 mm
• Stack / VTX mounting: 20×20 mm and 30.5×30.5 mm
• Camera width: 19 mm (micro)
• Motor mounting: 30 mm spacing, M4

Before ordering motors, check that their base uses a 30 mm M4 bolt pattern and that the maker rates them for 13-inch props on your chosen cell count; the 30.5×30.5 mount leaves room for the larger 4-in-1 ESCs these builds need.
