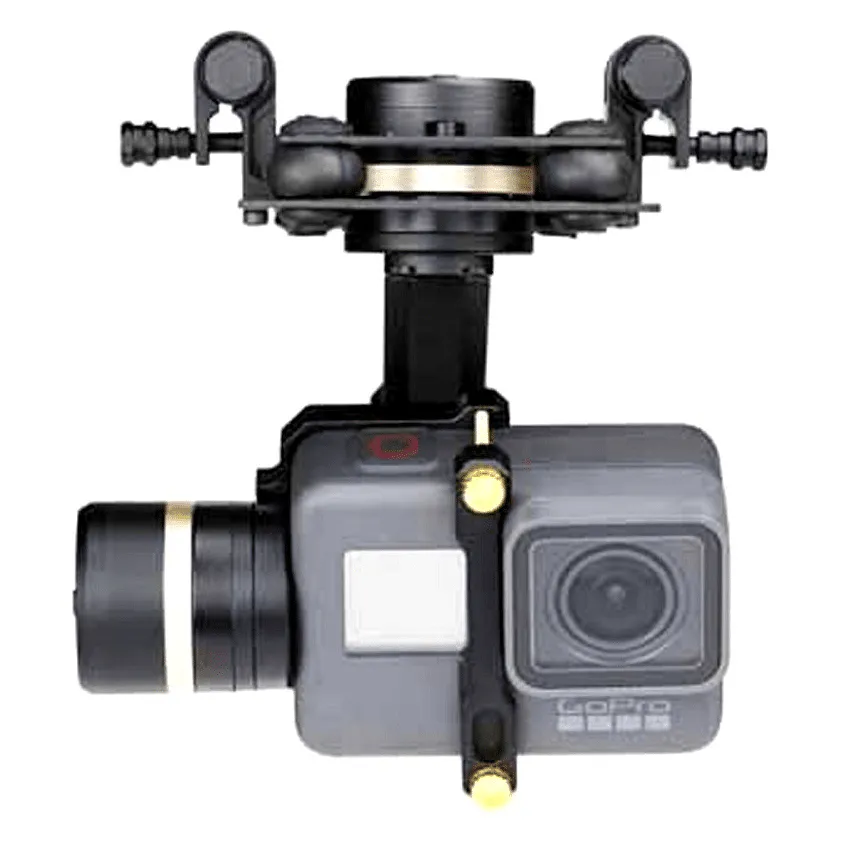

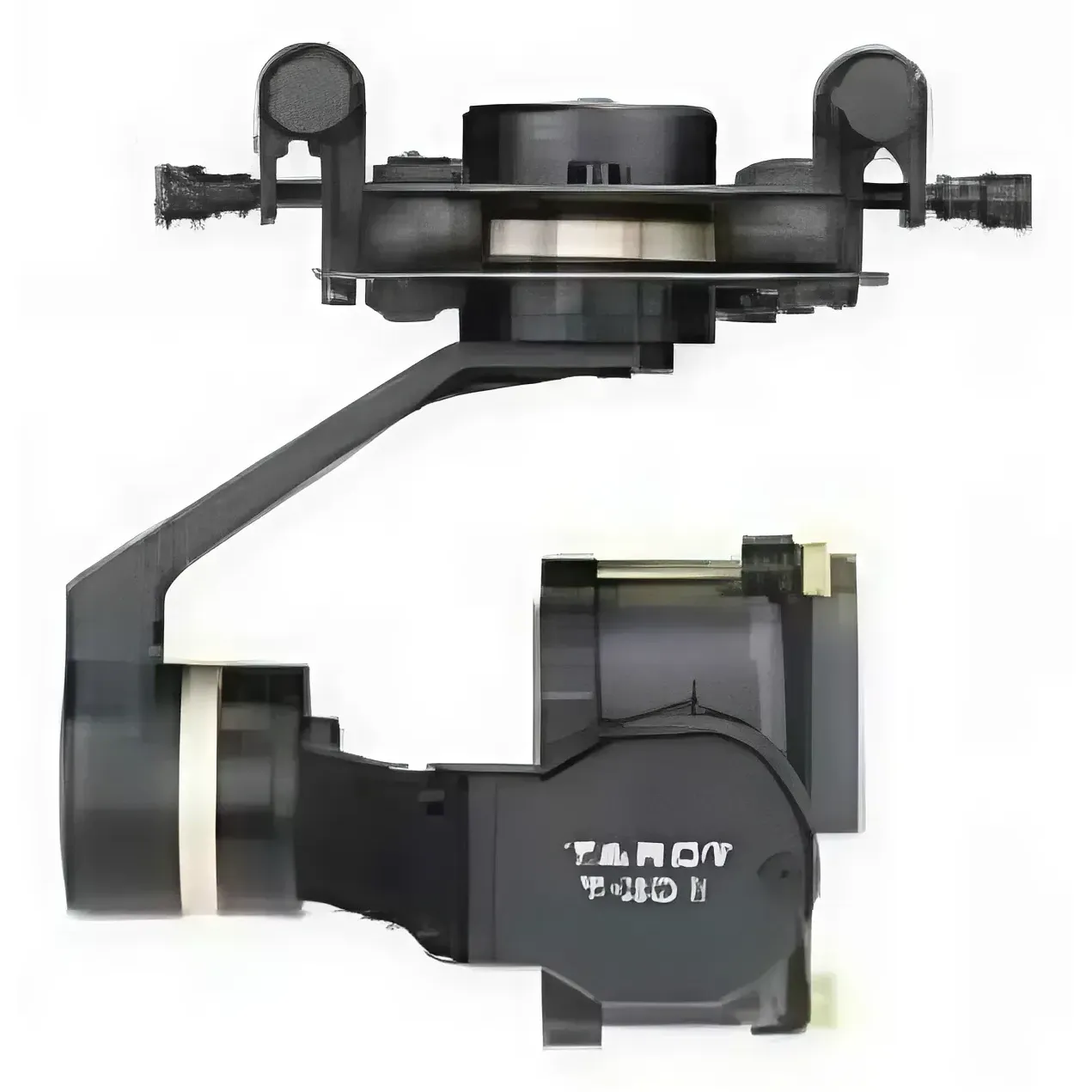

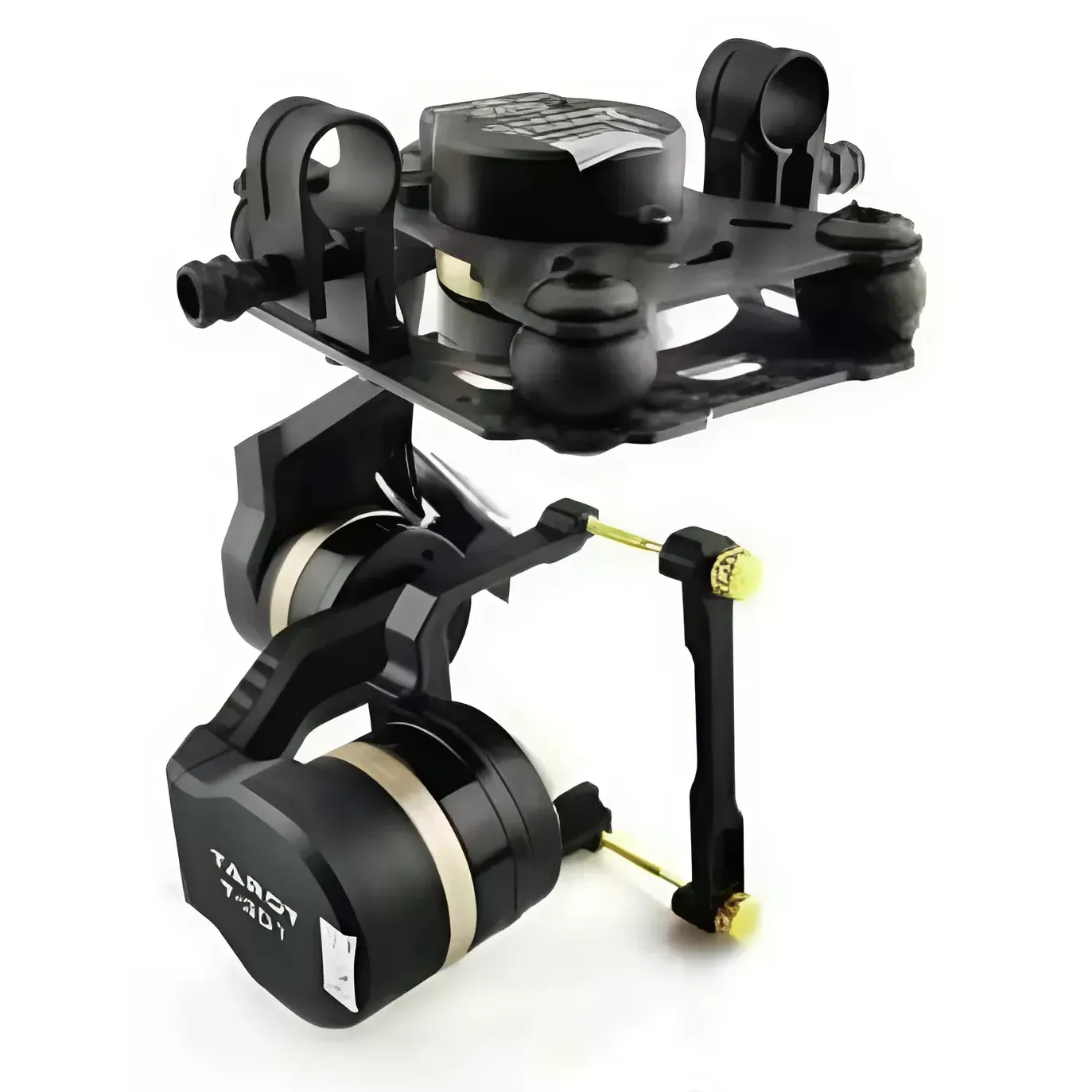

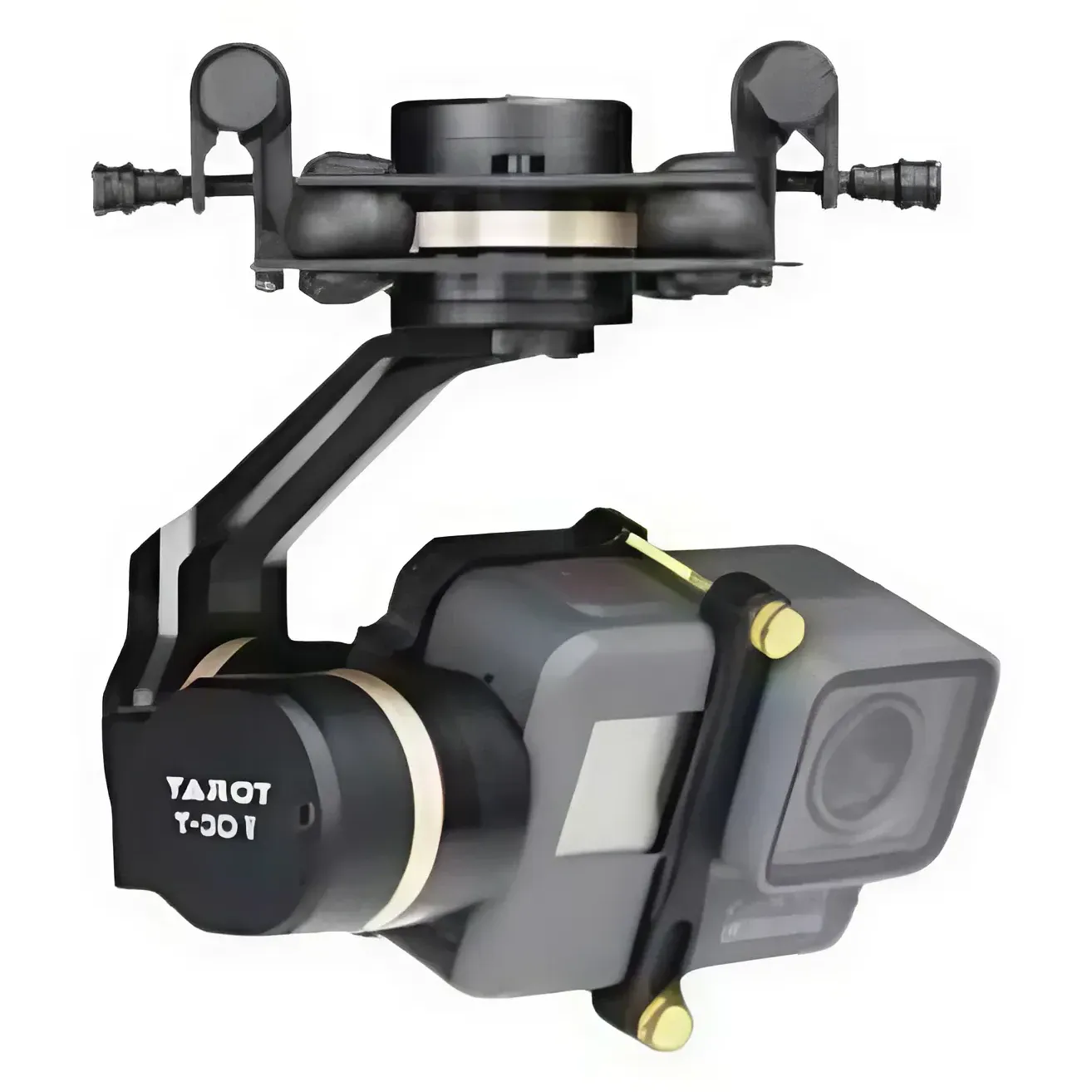

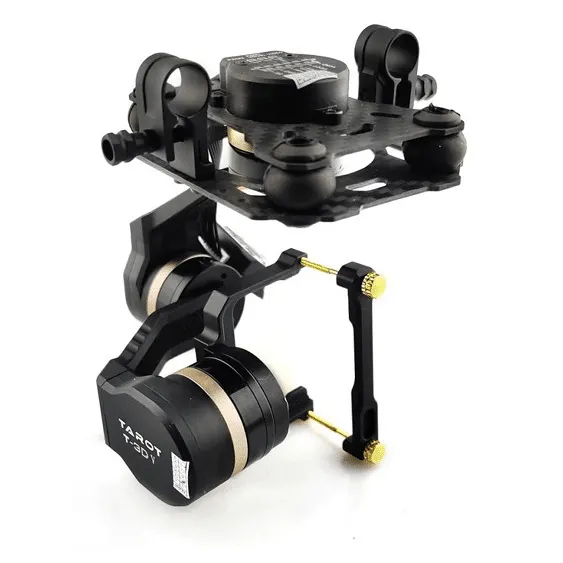

Tarot T-3D V 3-Axis Metal Brushless Gimbal for GoPro HERO5/6/7 TL3T05

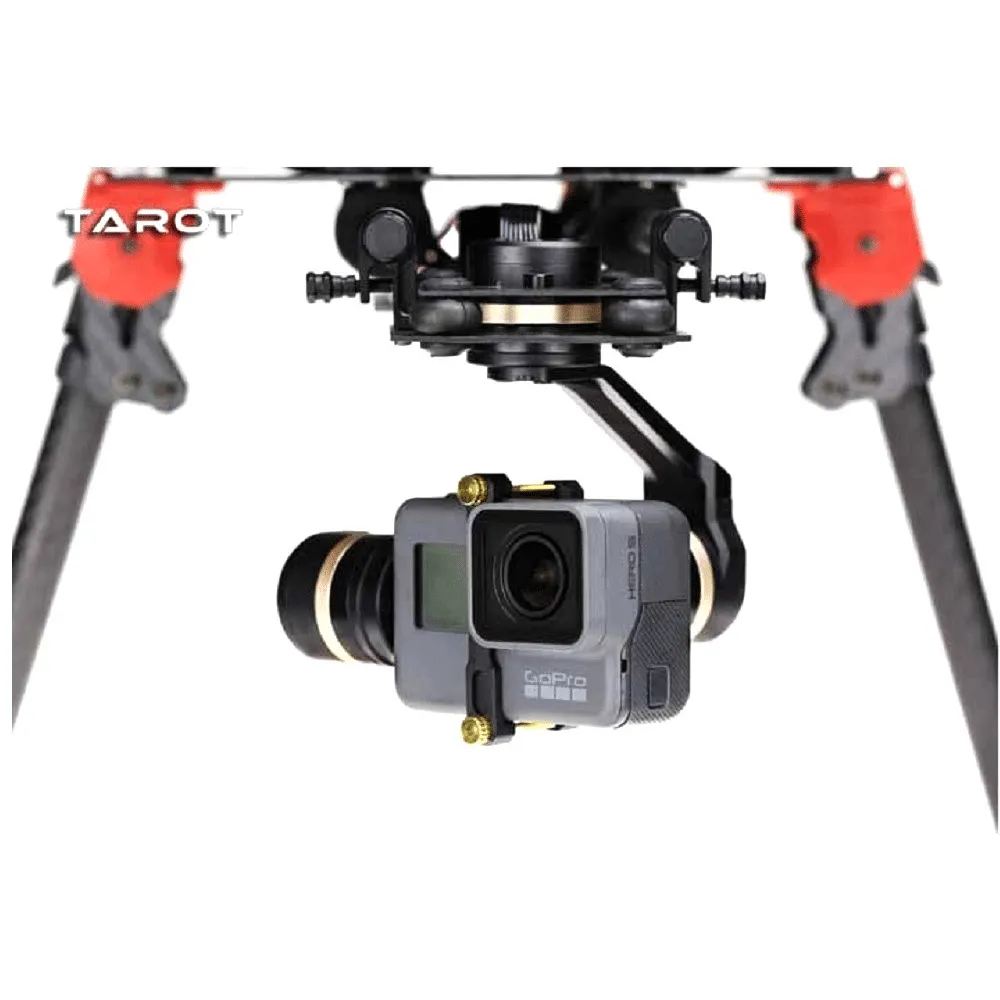

The Tarot T-3D V (TL3T05) is a three-axis metal brushless gimbal designed for the GoPro HERO5, HERO6 and HERO7, and it takes other action cameras with the same body shape and dimensions. CNC-machined from aluminium alloy, it suits camera multirotors that need smooth, level footage, and it mounts directly on Tarot airframes that use the 60 mm (eye-to-eye) mounting rail system.

Key features

• Pan, Tilt, Follow and FPV modes, each controllable from spare channels on your RC receiver
• Wide travel: ±330° pan, −135° to +45° tilt and ±48° roll
• ±0.02° attitude control accuracy from Tarot's gyro-based controller
• Firmware updates and setup through the included USB dongle and PC software (Windows only, no Mac version)
• Powers from the flight pack on 3S–6S LiPo (11–26 V)

Specifications

• Input voltage: 3S–6S LiPo (11–26 V)
• Operating current: 30 mA @ 25 V / 50 mA @ 12 V
• Stall current: 350 mA @ 25 V / 700 mA @ 12 V (0.7 A max)
• Attitude accuracy: ±0.02°
• Pan range: ±330°
• Tilt range: −135° to +45°
• Roll range: ±48°
• Dimensions: 60 × 75 × 100 mm (L × W × H)
• Mount: Tarot 60 mm eye-to-eye rail

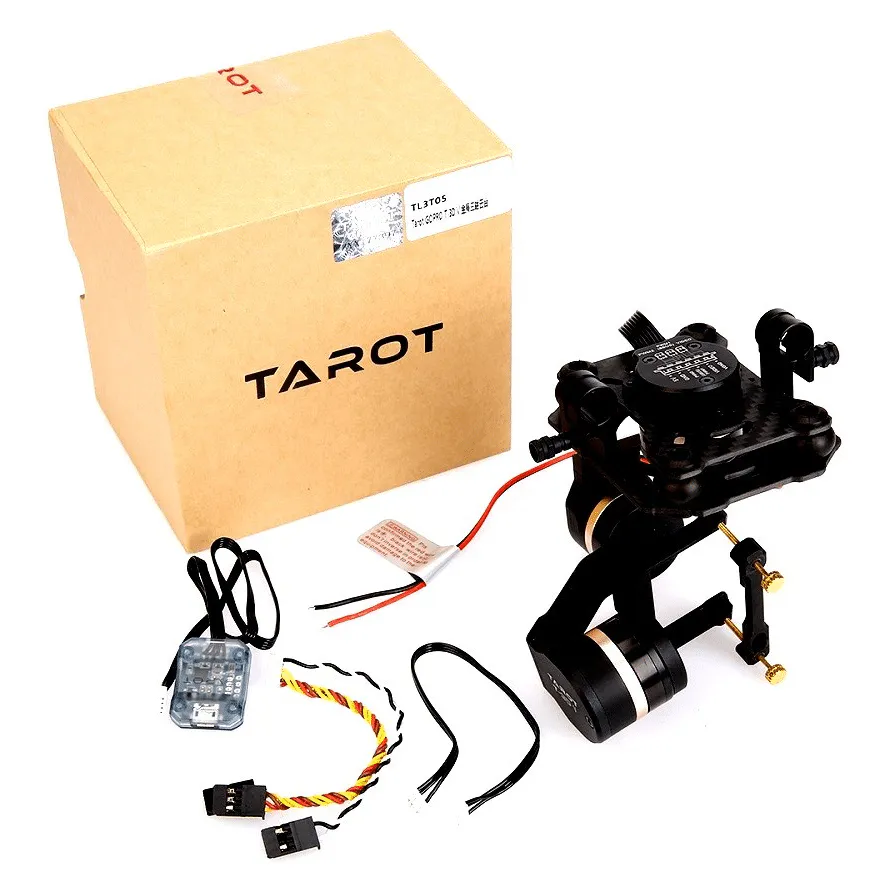

• In the box: 3-axis metal gimbal, gimbal control module, 8-pin cable, 5 V AV output cable, USB module, flight controller cable, user manual

The GoPro camera is not included. Check that your airframe carries the 60 mm rail, or plan an adapter plate, before ordering.
