Caddx GM2 FPV Gimbal

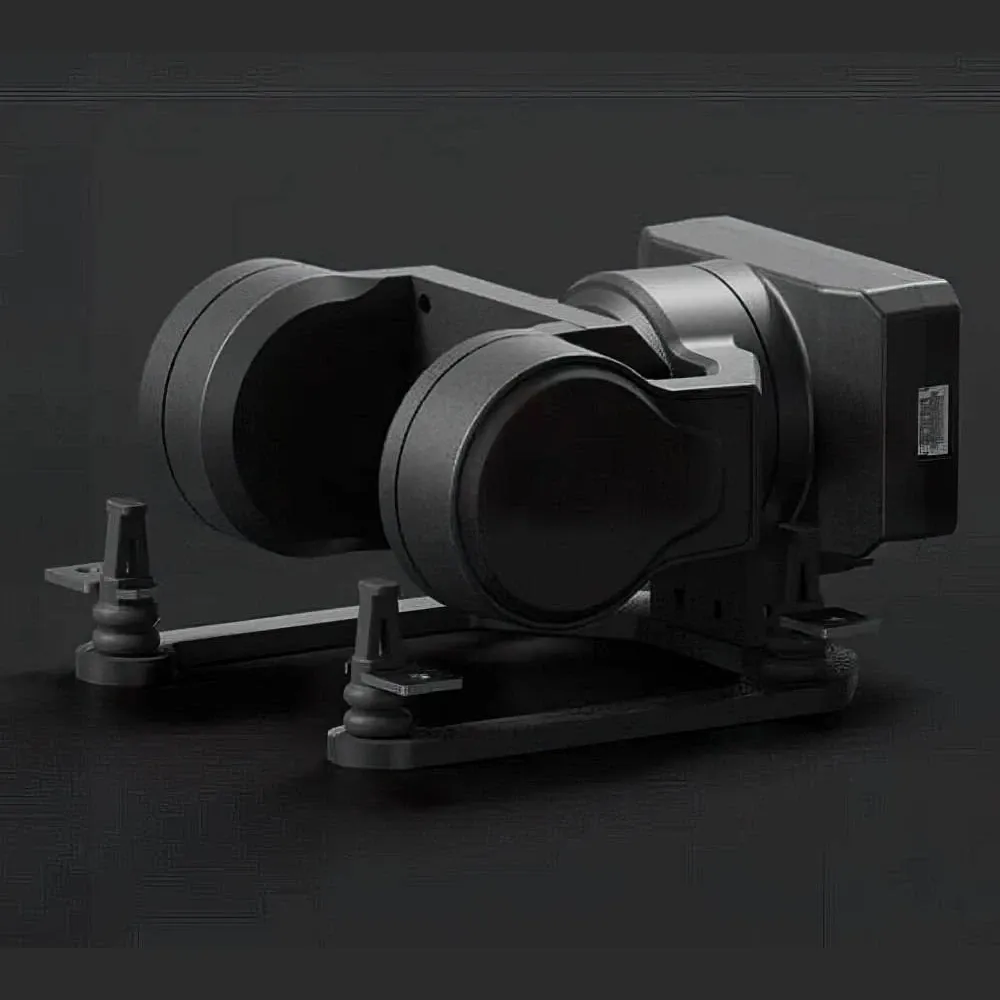

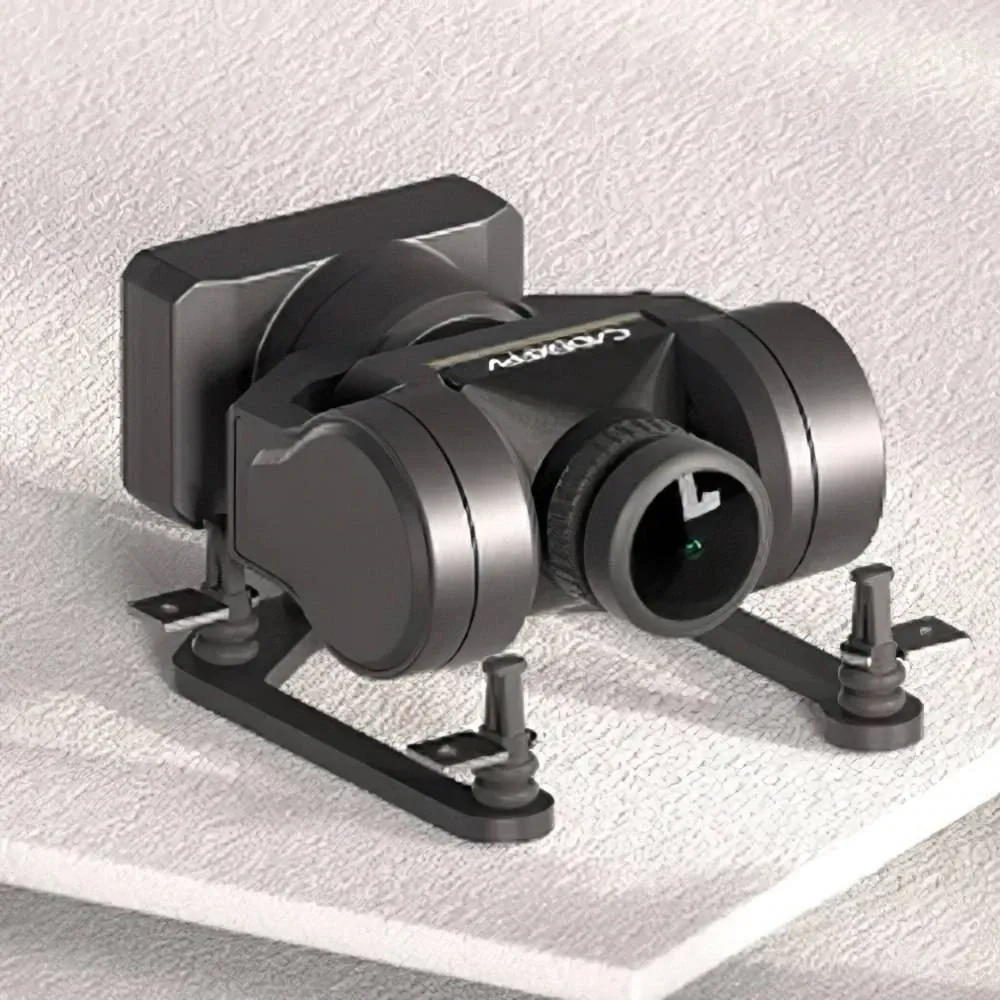

The Caddx GM2 is a two-axis camera gimbal built for Walksnail's Avatar HD digital system, letting a 19mm FPV camera pan and tilt with the pilot's head movement through the goggles for a genuine cockpit feel.

Key features

• Two-axis control covers ±120° of pitch and ±60° of roll, driven by PWM or UART from the goggles or flight controller.
• Head tracking works through Avatar HD goggles via a coaxial cable run to the VTX, with no separate receiver needed.
• Mechanical stabilisation smooths footage from vibration-prone fixed-wing and scale airframes.
• Compact 46.7 x 46.5 x 26.2mm body weighs just 30g, so it suits small FPV wings and cars as well as quads.

Specifications

• Axis: 2 (pitch, roll)
• Camera fit: 19mm FPV camera
• Rotational range: Pitch ±120°, Roll ±60°
• Max controllable speed: ±1500°/s
• Stabilisation accuracy: ±0.005°
• Control mode: PWM / UART
• Voltage: 7-26V
• Static power draw: 1.2 W
• Size: 46.7 x 46.5 x 26.2 mm
• Weight: 30 g
• In the box: gimbal and power cable (VTX sold separately)

This gimbal only works with Walksnail's V2, V2 Dual and Moonlight VTX modules — it is not compatible with the original V1, Mini 1S, Nano V3 or GT video transmitters.
