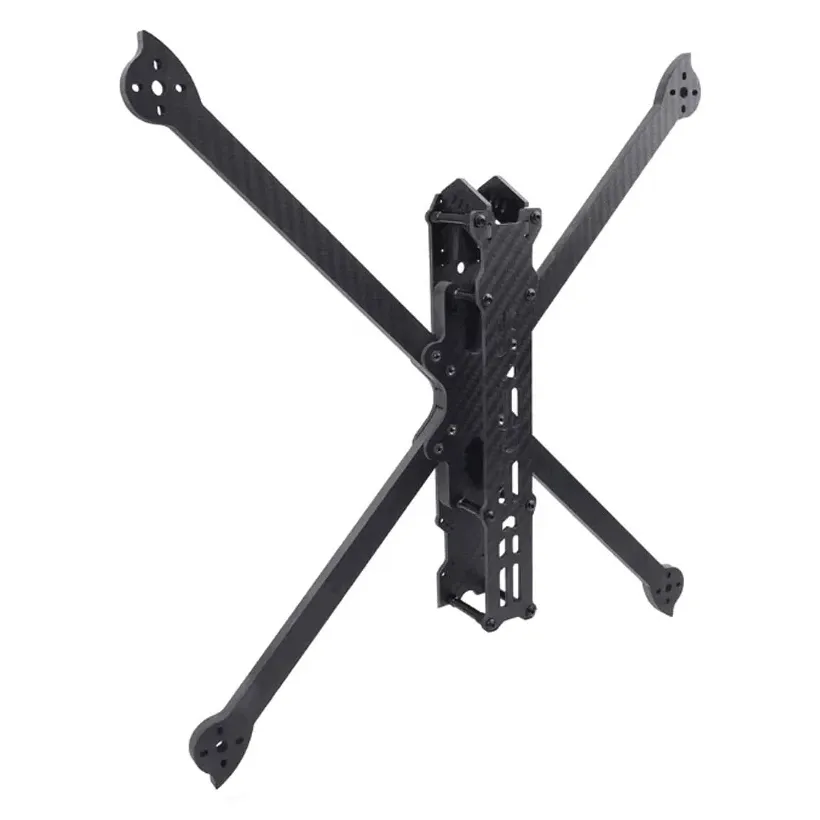

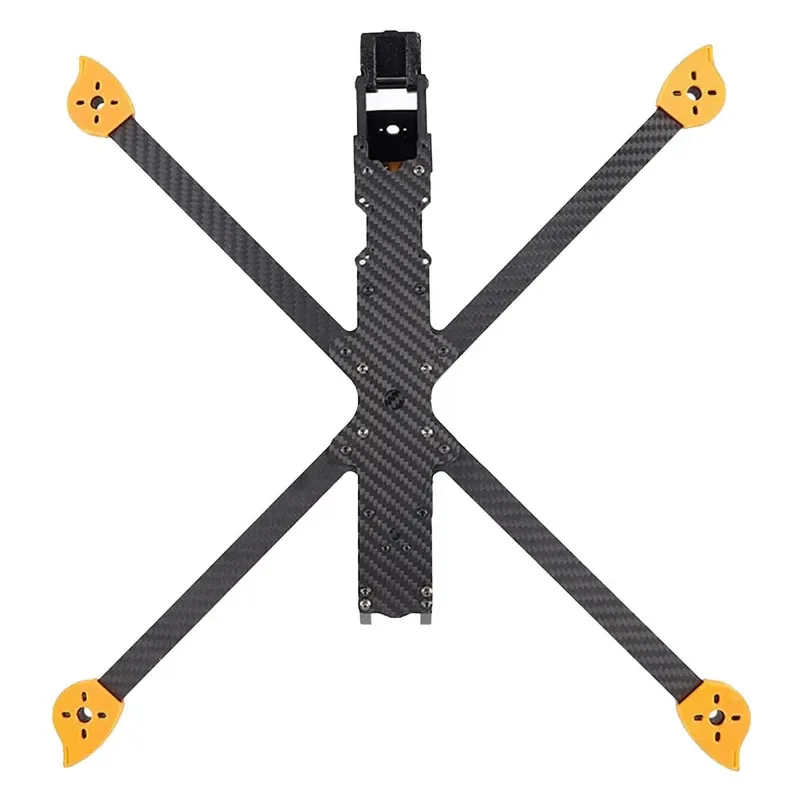

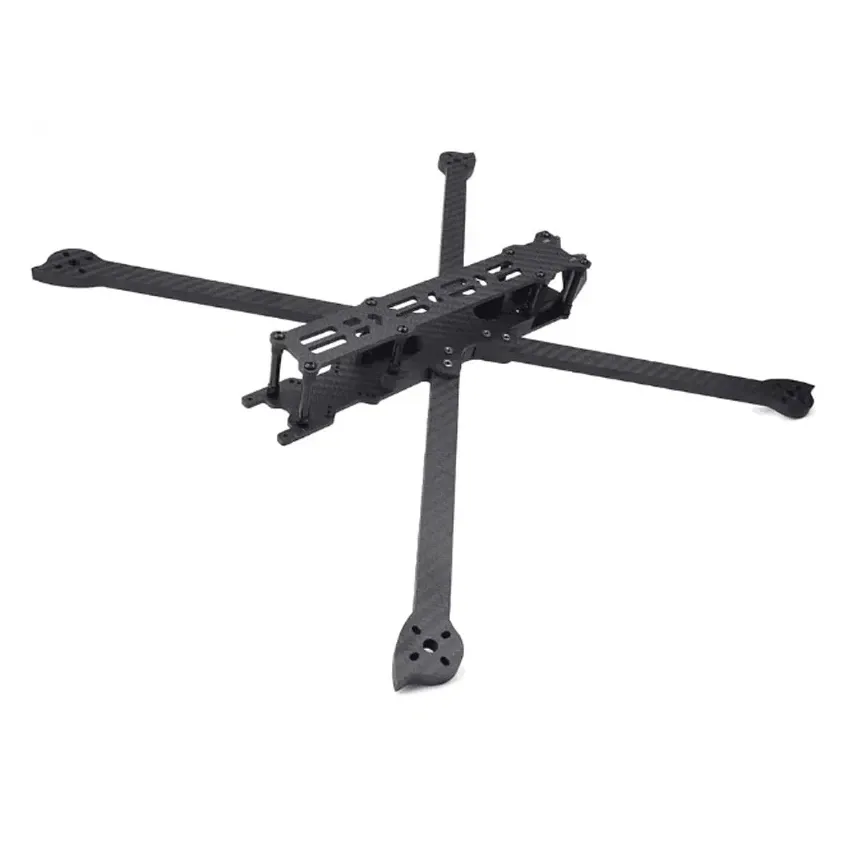

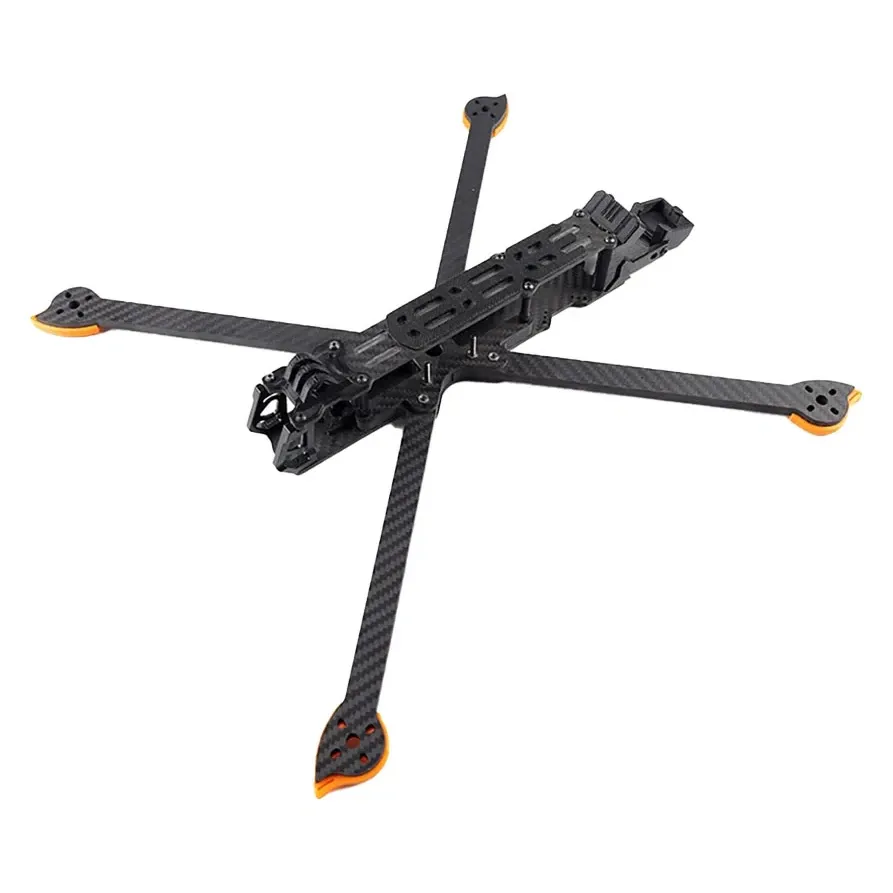

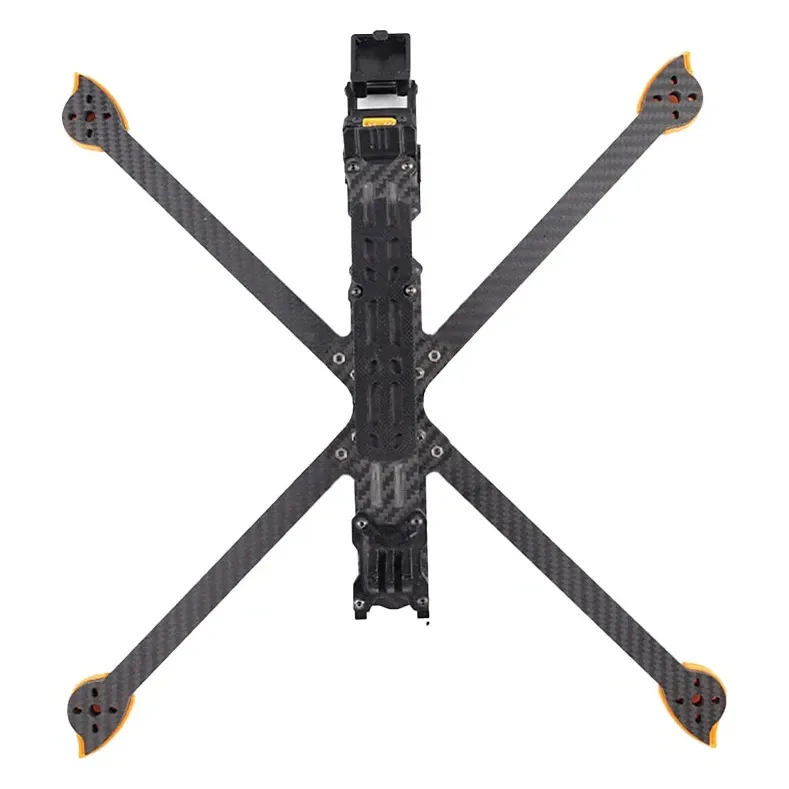

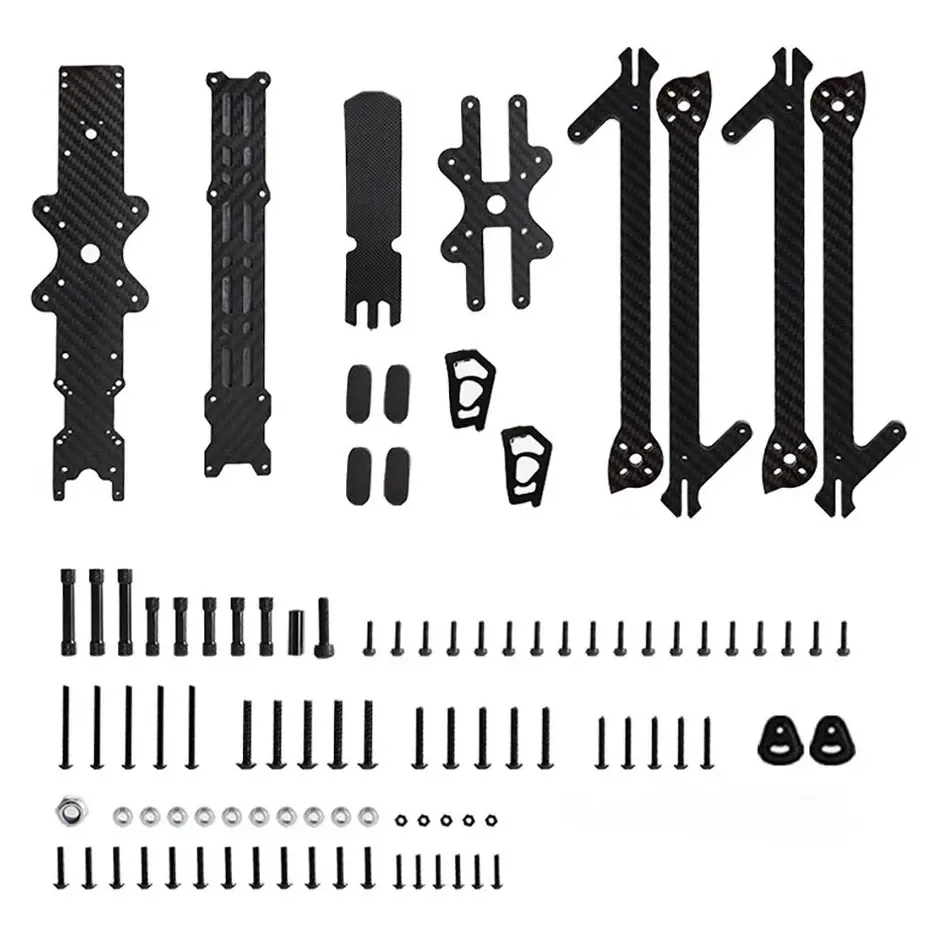

ReadyToSky XL10 420mm 10-Inch Carbon Fiber Long-Range Frame Kit

A 420mm-wheelbase 3K carbon fibre frame for 10-inch long-range FPV builds that carry larger packs or an action camera. Two versions are available, V6 and V7; both use 7mm arms with 3mm top and bottom plates and weigh around 280 g.

Key features

• 7mm carbon fibre arms keep the frame stiff under 10-inch props
• V6: True-X geometry with 30.5 x 30.5mm FC mounting and 16x16 / 19x19mm motor mounts
• V6: VTX mounting for 20x20, 25.5x25.5 and 30.5x30.5mm boards, designed to take a DJI O3 Air Unit or Caddx Vista plus a GoPro or DJI Action camera

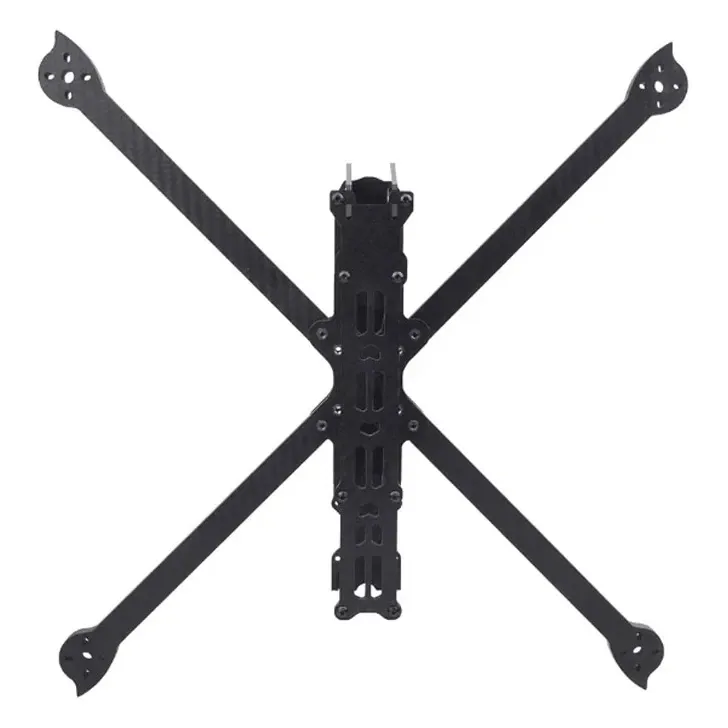

• V7: 7mm centre plate, 2.5mm side plates and 3mm carbon ferrules, with press nuts built into the mid plate
• Camera mount for 19mm-wide FPV cameras (V6 takes 19–20mm)

Specifications

• Wheelbase: 420 mm
• Prop size: 10 inch
• Material: 3K carbon fibre
• Arm thickness: 7 mm
• Top / bottom plates: 3 mm
• Weight: approx. 280 g
• Frame size (V6): 217 x 297 x 35 mm
• Frame size (V7): 296 x 296 mm

Motors, flight stack, props and video system are not included. 10-inch builds usually run 28xx to 31xx motors, so check your motor's bolt pattern against the version you choose.
