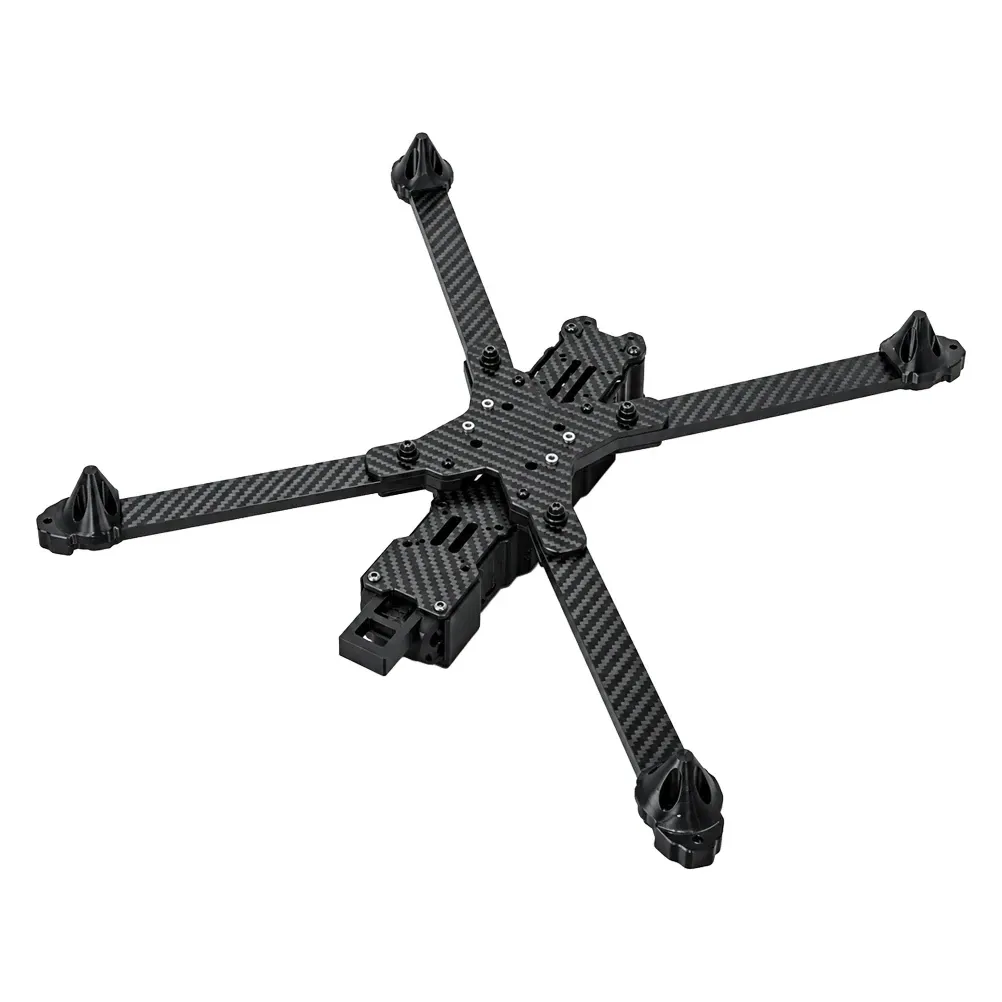

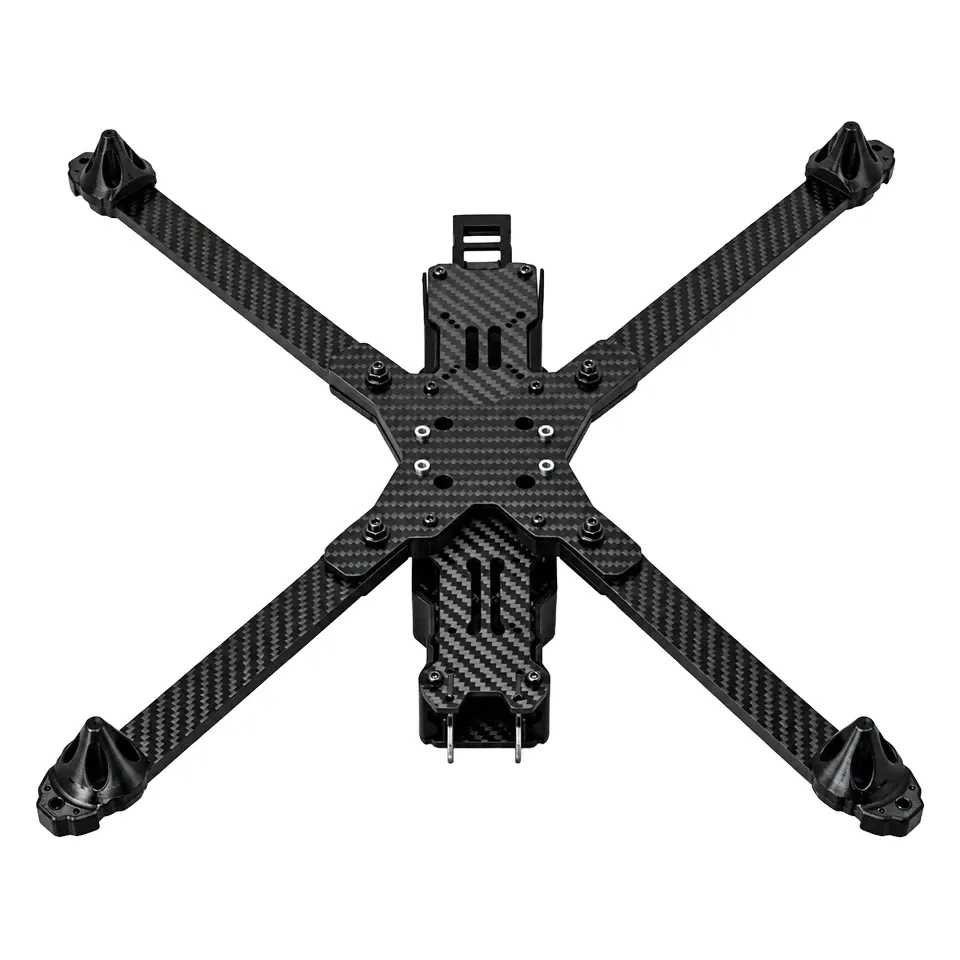

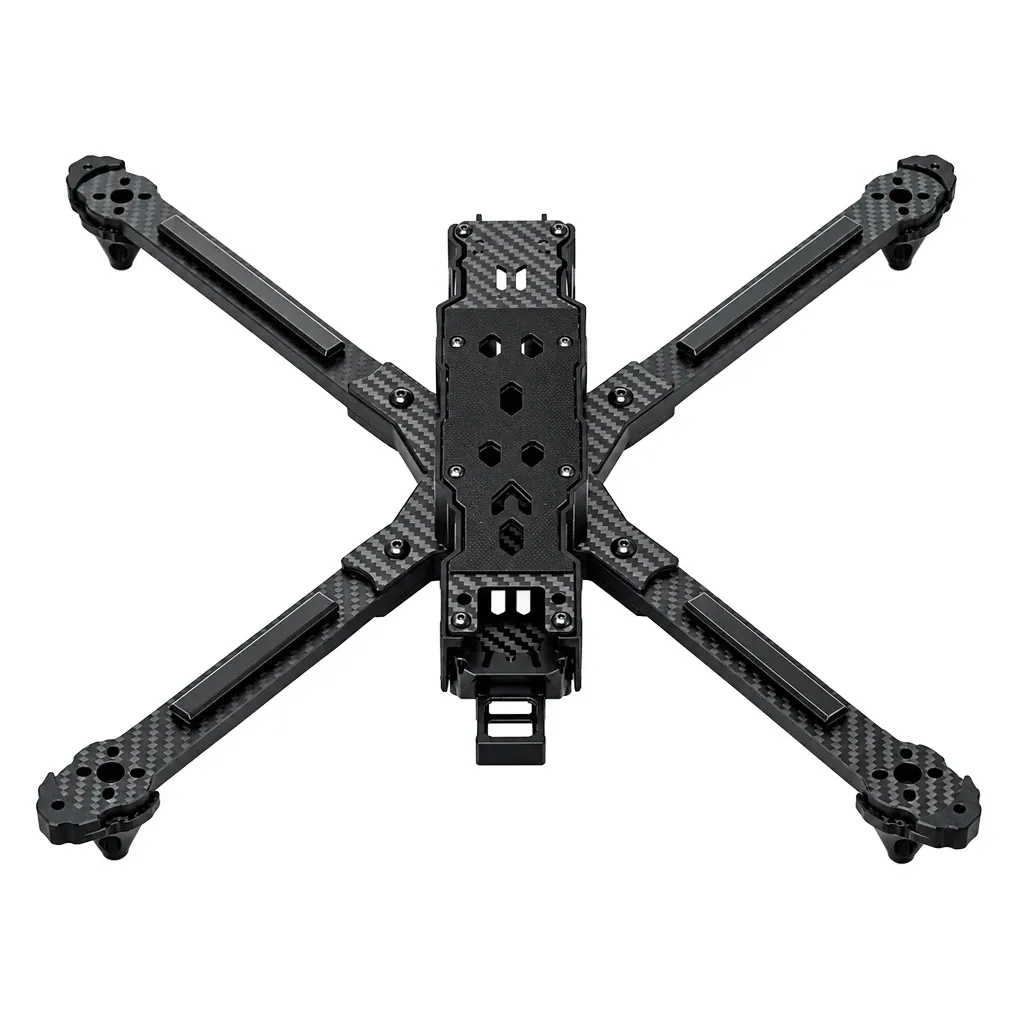

Simplifly 10 Inch X Lite FPV Freestyle Frame Kit (440mm)

The Simplifly X Lite is a 10-inch frame kit for freestyle and cinematic FPV builds that want the reach and lift of 10-inch props. Its 440 mm wheelbase combines carbon fibre plates with CNC aluminium front arms, and the same kit builds as either a True X or a Squashed X.

Key features

• Two layouts from one kit: assemble it True X or Squashed X to suit how you fly.
• CNC aluminium front arms add rigidity at the nose of the frame.
• Camera bay: takes 19-22 mm wide FPV cameras, with lens protection that helps cut camera shake.
• Motor mounting: M3 holes on 16 mm and 19 mm patterns.
• Build hardware included: printed O3 air-unit side plates, an XT90E-M connector mount, 25 mm aluminium standoffs, battery straps, anti-slip mats and wire protectors.

Specifications

• Wheelbase: 440 mm
• Max prop size: 10 inch
• Configuration: True X or Squashed X
• Material: carbon fibre, CNC aluminium front arms
• Camera width: 19-22 mm
• Motor mounting: M3, 16 mm / 19 mm
• Standoffs: 8 x M3 x 25 mm aluminium
• Battery straps: 2 x 20 x 320 mm

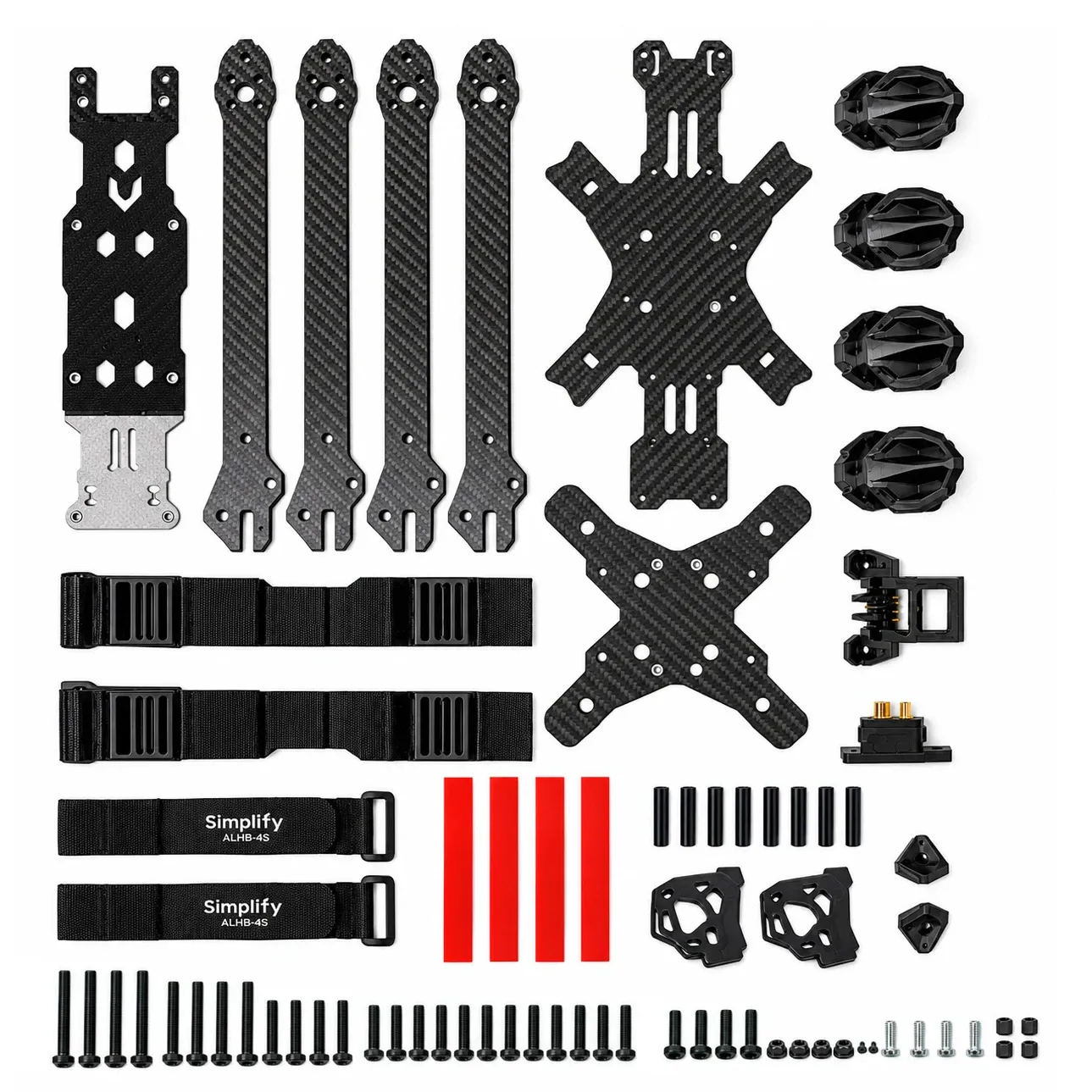

In the box: top, bottom and base plates, four arms, two camera side plates, printed left and right O3 side plates and camera mounts, the full M2/M3/M5 screw and nut set, two battery straps and two front anti-slip mats. Plan the build around 10-inch props, motors on a 16 mm or 19 mm M3 pattern and an XT90 main battery lead to use the connector mount.
