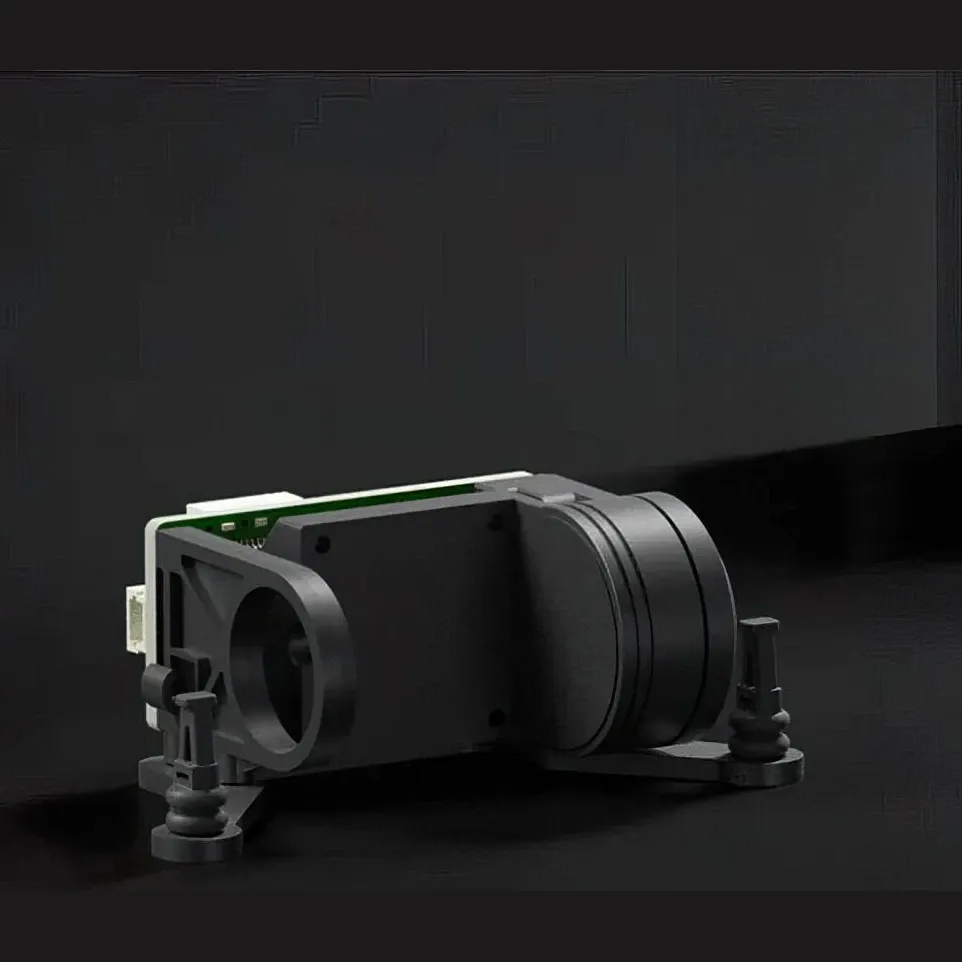

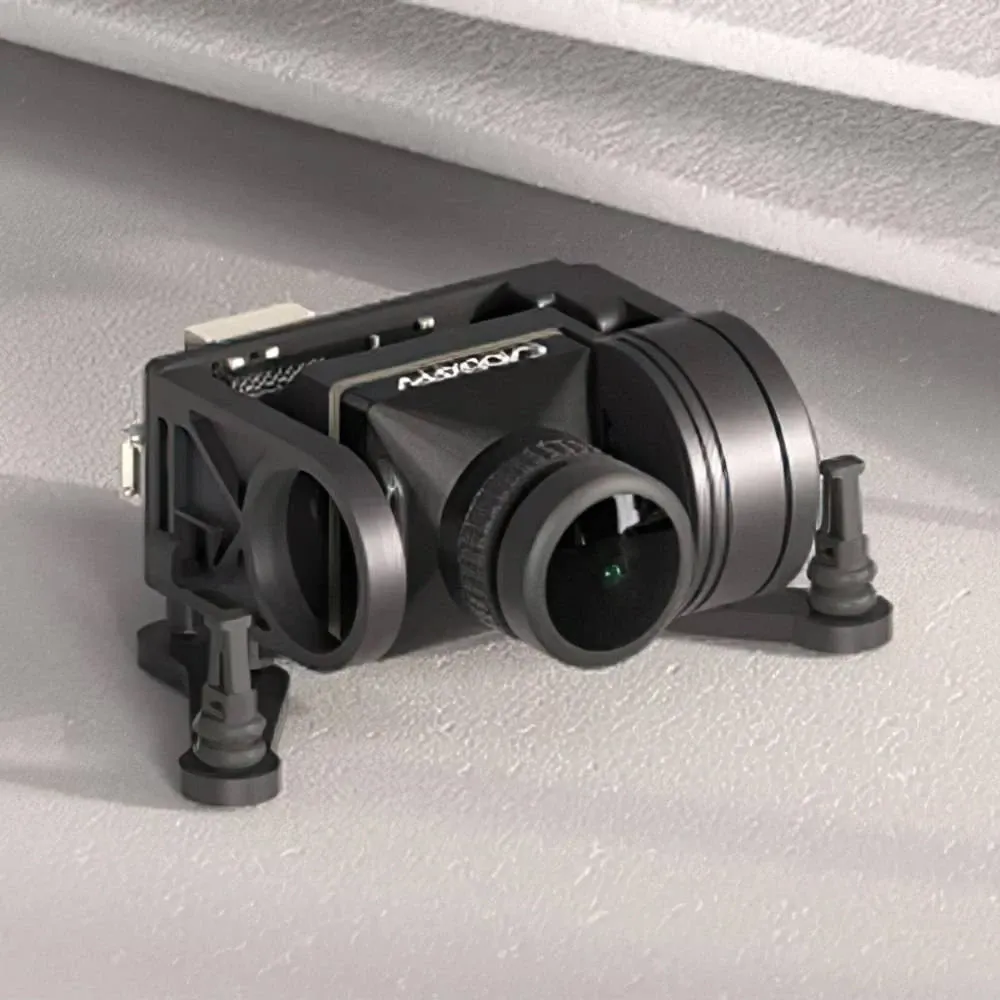

Caddx GM1 FPV Gimbal

The Caddx GM1 is a single-axis, head-tracking gimbal for FPV cameras that pairs with Walksnail Avatar goggles to bring pitch-following control to fixed-wing and custom FPV builds. It carries a 19mm FPV camera and pans through the pitch axis so the picture follows the pilot's head movement in the goggles.

Key features

• Single-axis pitch stabilisation with a ±120° controllable range, ±1500°/s max speed and ±0.005° stabilisation accuracy.
• Head-tracking control over PWM or UART lets the goggles' head movement drive the gimbal in real time.
• Compact 32.2 x 38.1 x 20.5mm housing weighs just 16g and runs on 7-26V at 1W static power draw.
• Ships with a coaxial power cable; the VTX and camera are bought separately.

Specifications

• Camera compatibility: 19mm FPV camera (Avatar/Ascent series)
• Pitch range: ±120°
• Max controllable speed: ±1500°/s
• Size: 32.2 x 38.1 x 20.5mm
• Weight: 16g
• Voltage: 7-26V

Works only with Walksnail V2 VTX, V2 VTX Dual and Moonlight VTX — it is not compatible with V1 VTX, Mini 1S, Nano V3 or GT VTX.
