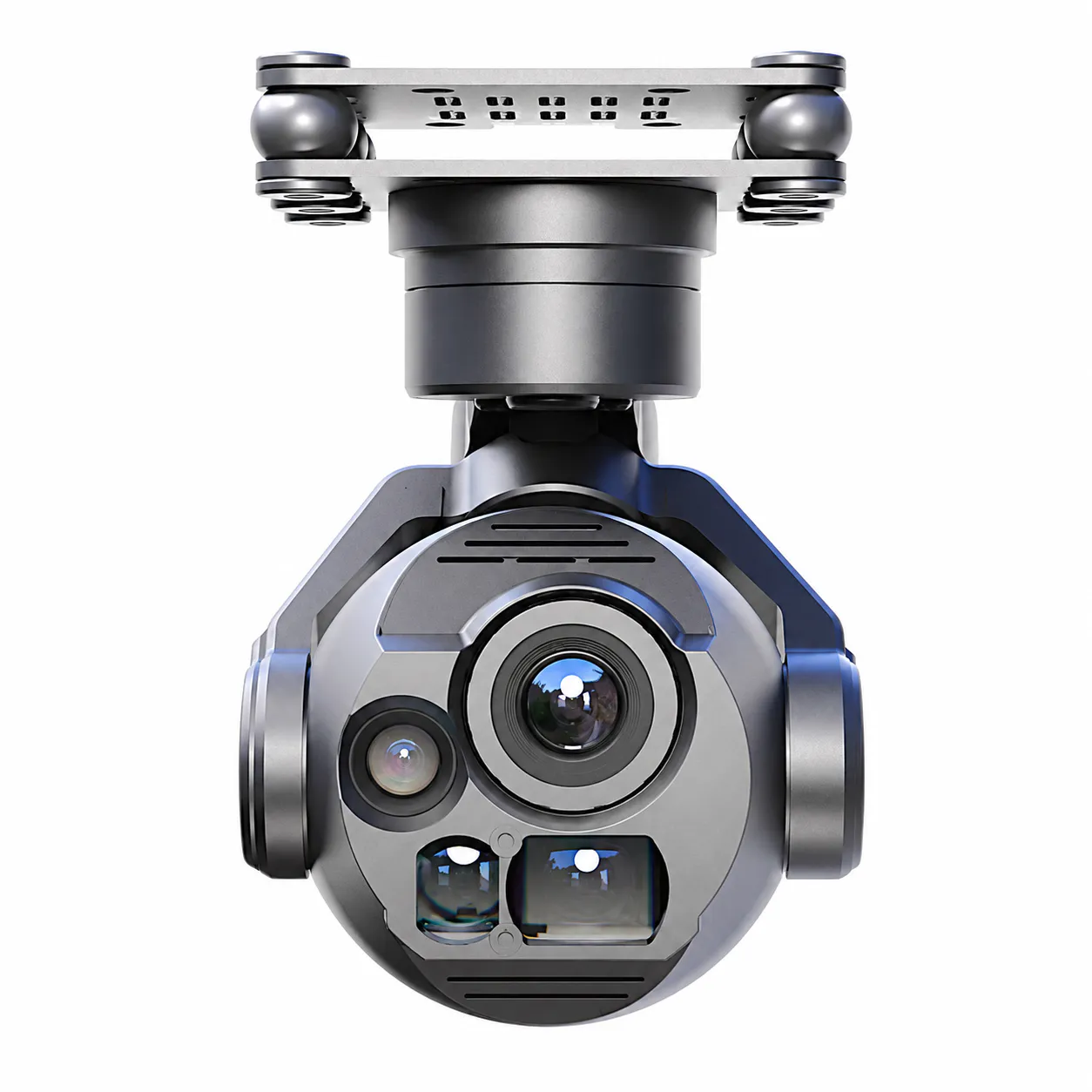

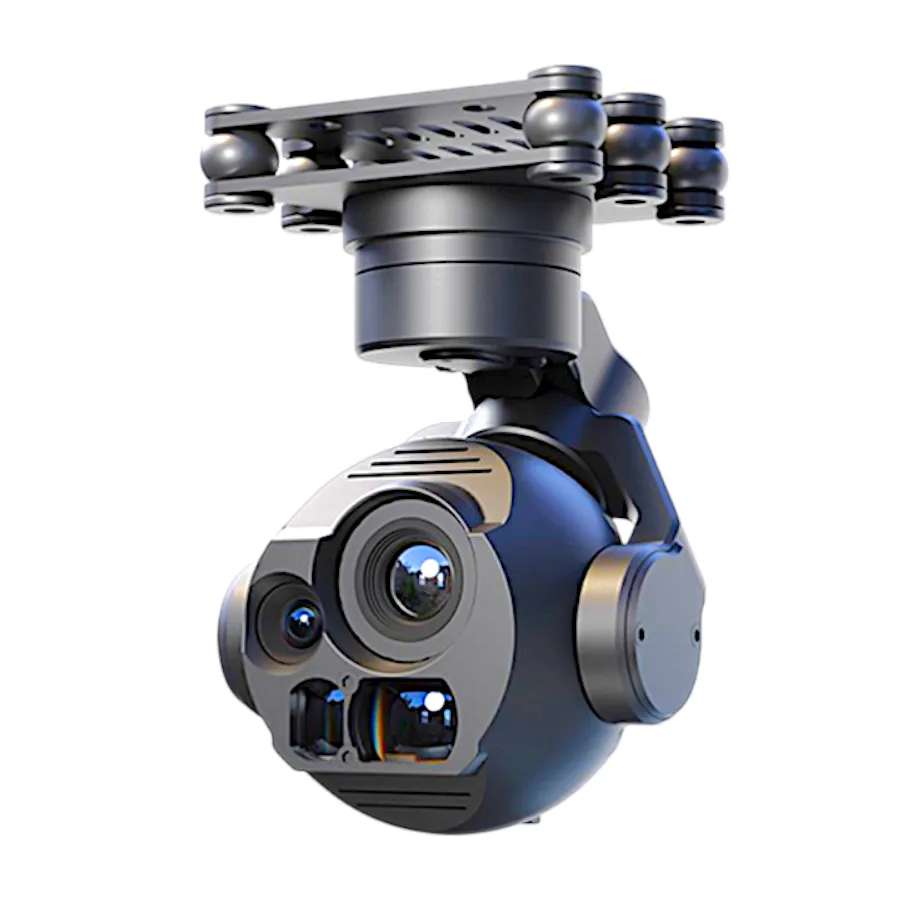

Skydroid C13 Triple-Sensor 3-Axis AI Tracking Gimbal Camera

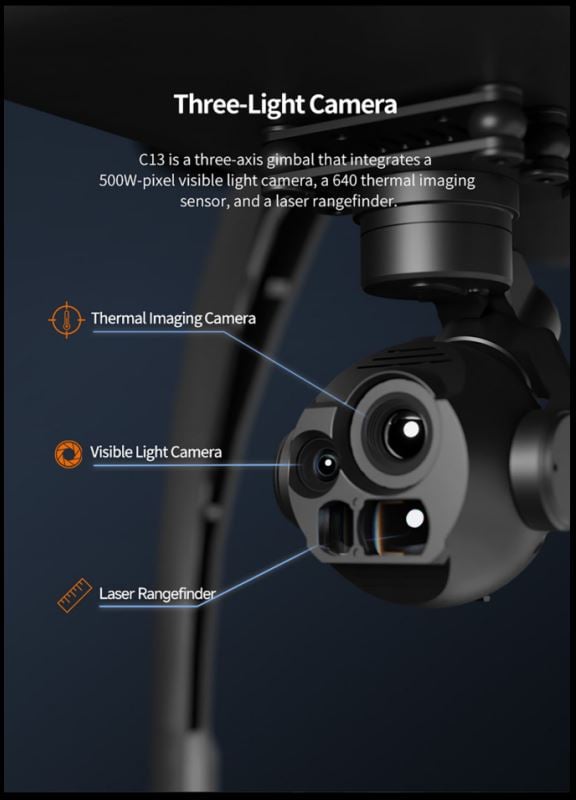

The Skydroid C13 is a triple-sensor payload that pairs a visible-light camera with a thermal imager and a laser rangefinder on a 3-axis stabilised gimbal, built for inspection, surveillance and search-and-rescue drones.

Key features

• 5MP visible camera records up to 2K video (2880 x 1620) with a distortion-free lens
• 30x digital zoom for identifying targets without closing distance
• 640 x 512 thermal imaging sensor for heat-signature detection by day or night
• Laser rangefinder measures target distance from 5 m to 1000 m
• AI target locking and tracking keeps a moving subject centred automatically

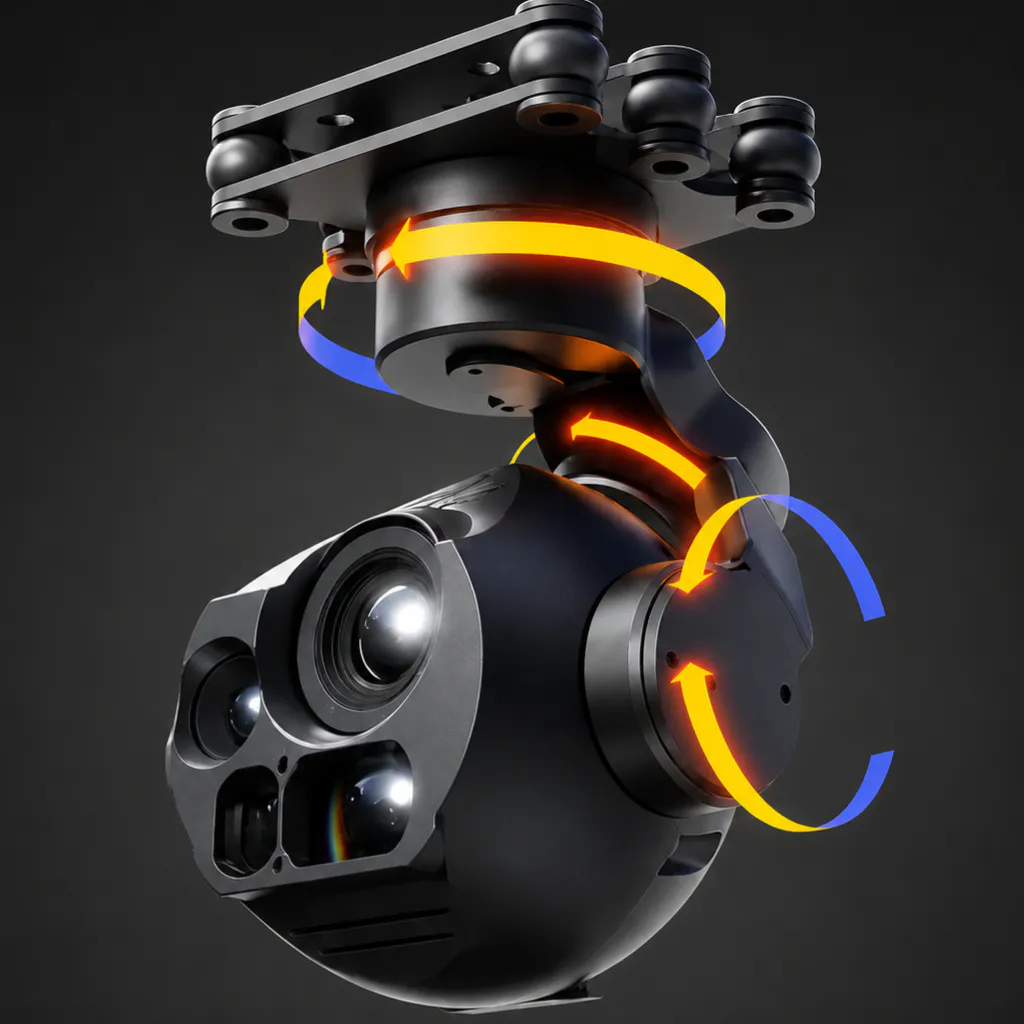

• 3-axis industrial-grade stabilisation with RTSP network output for streamable footage

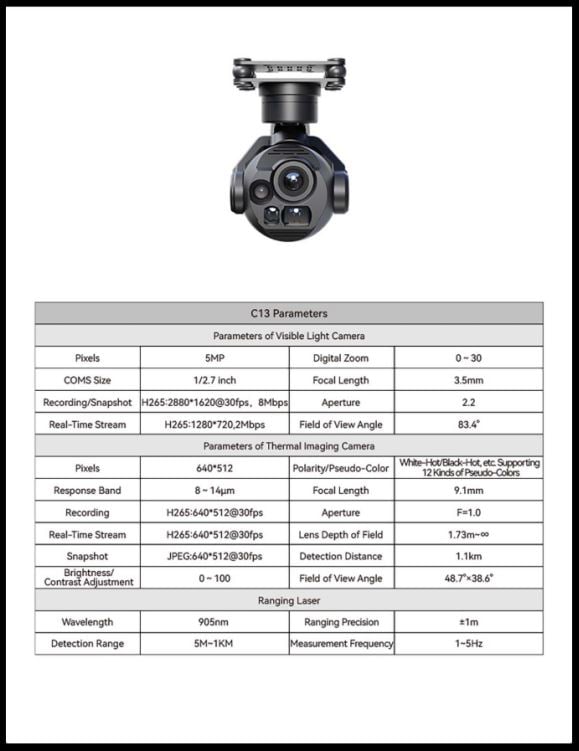

Specifications

• Visible Camera: 5MP, up to 2880x1620 video
• Digital Zoom: 30x
• Thermal Sensor: 640x512
• Laser Rangefinder: 5-1000 m
• Stabilisation: 3-axis gimbal
• Visible sensor and lens: 1/2.7-inch CMOS, 3.5 mm, F2.2, 83.4 degree field of view
• Thermal lens: 9.1 mm, F1.0, 48.7 x 38.6 degree field of view, 8-14 um band
• Rangefinder accuracy: +/-1 m (905 nm laser)
• Video output: network port, RTSP stream

Suits mapping, inspection and public-safety platforms that need visible, thermal and distance data from a single gimbal payload rather than three separate cameras.
