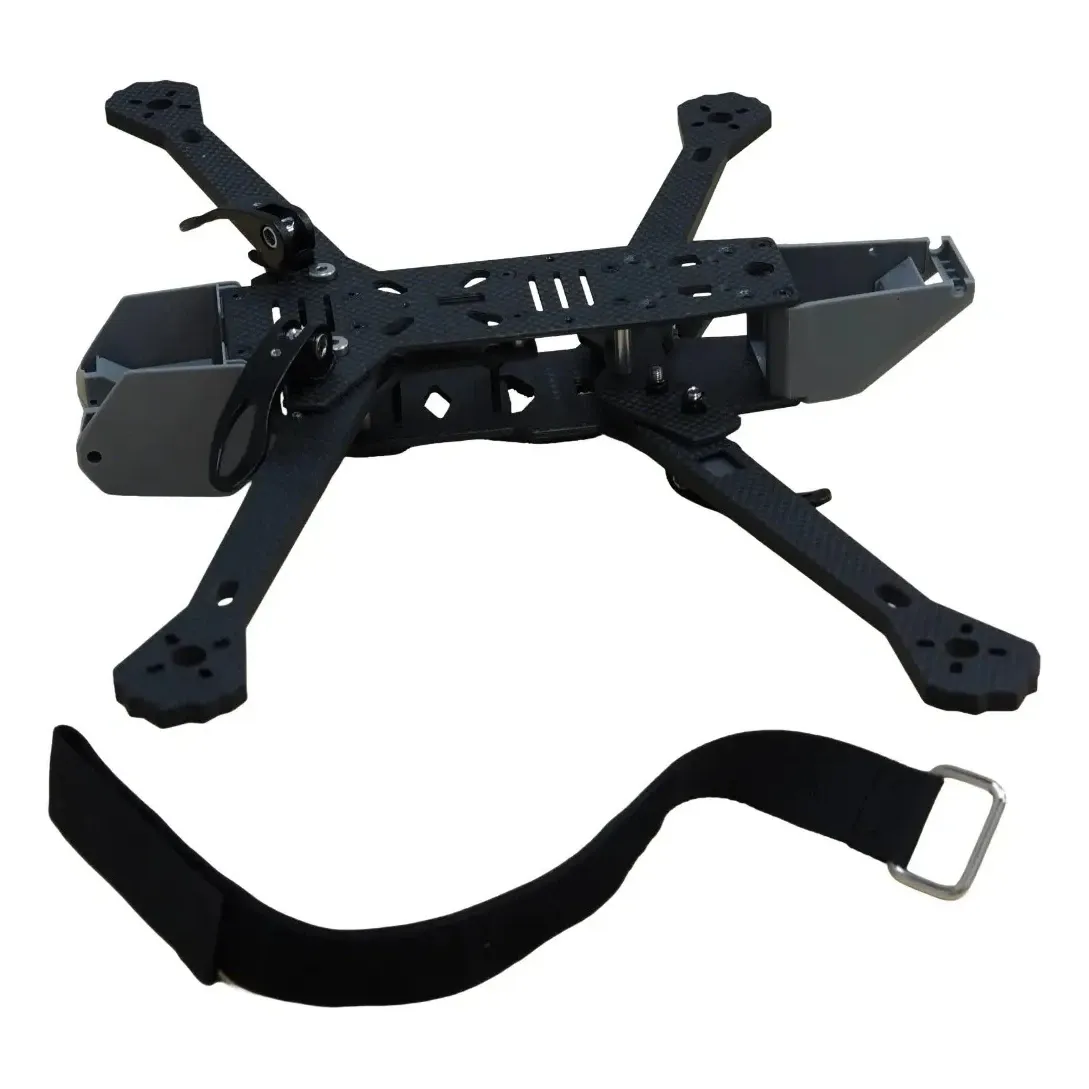

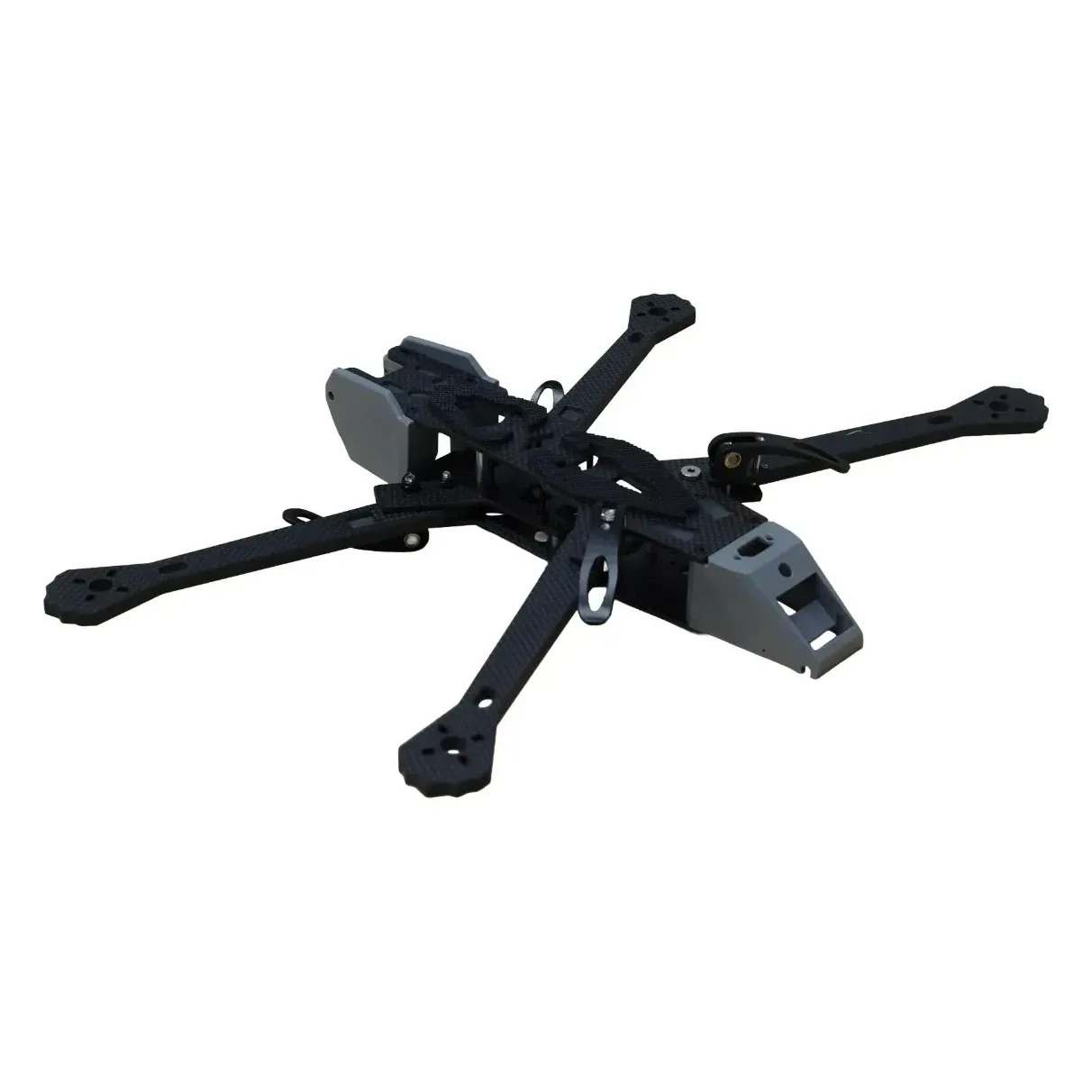

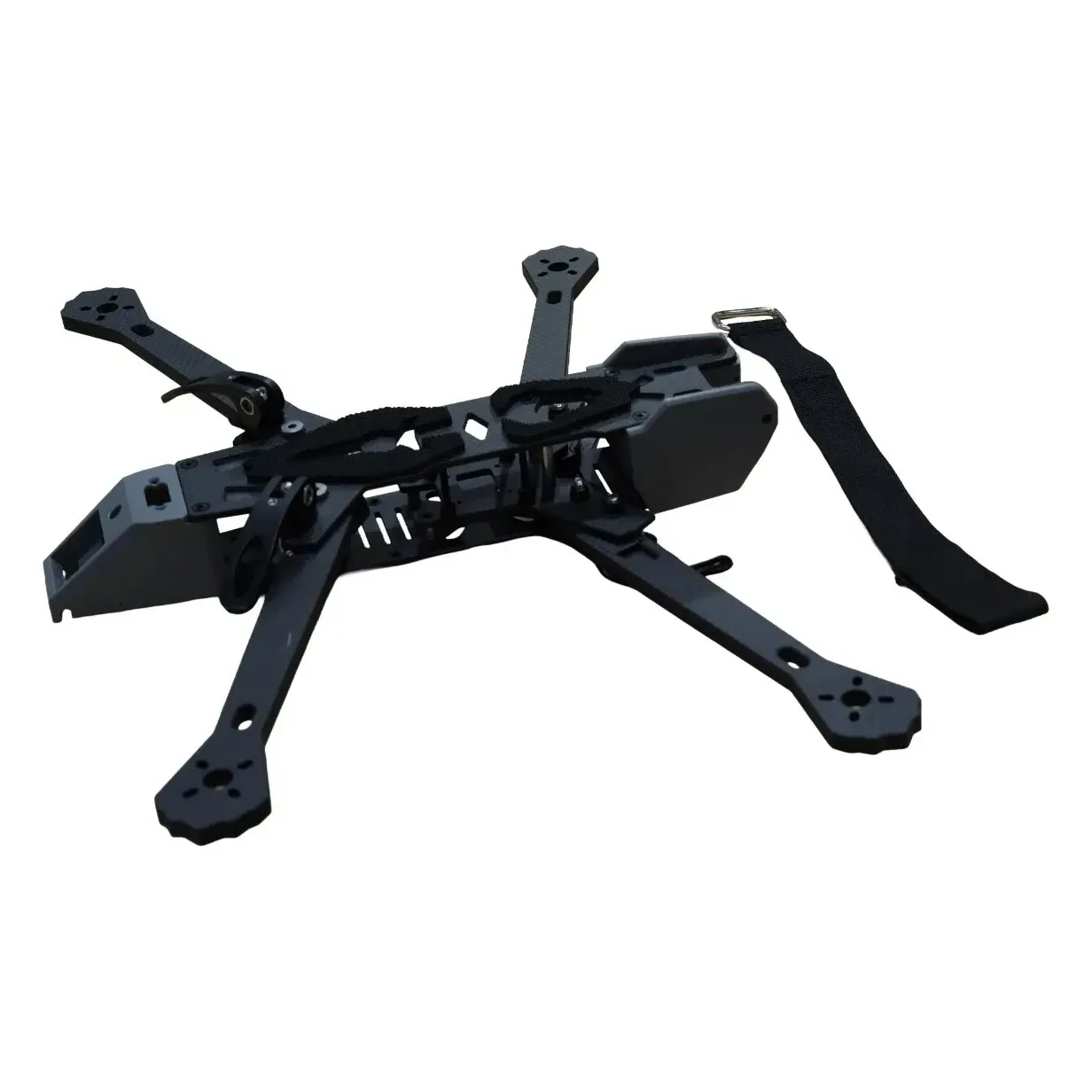

Mark4 10 Inch 427mm Folding Carbon Fiber Frame Kit

Folding Mark4-pattern carbon fibre frame kit for 10-inch props, with a wheelbase of about 427mm. It suits long-range cruisers, heavier HD rigs and pilots moving up from 7-inch who want room for bigger motors and larger packs, and the arms fold down for transport.

Key features

• Takes 10-inch propellers on a wheelbase of about 427mm.
• 3K-class carbon fibre plates with thick arms and a top, mid and bottom plate stack to cut flex and vibration.
• 30.5 × 30.5mm flight-controller mounting, with VTX holes in both 20 × 20 and 30.5 × 30.5mm.
• Camera mount sized for 19mm micro FPV cameras.
• Room for ESC stacks, wiring, battery straps and large LiPo packs.

Specifications

• Prop size: 10-inch
• Wheelbase: About 427mm
• Material: 3K-class carbon fibre
• Top plate: About 2mm
• Mid and bottom plates: About 3mm
• FC mounting: 30.5 × 30.5mm
• VTX mounting: 20 × 20 / 30.5 × 30.5mm
• Camera width: 19mm

The motor bolt pattern and hardware kit contents are not published, so check your motors' mounting pattern against the arms before you buy.
