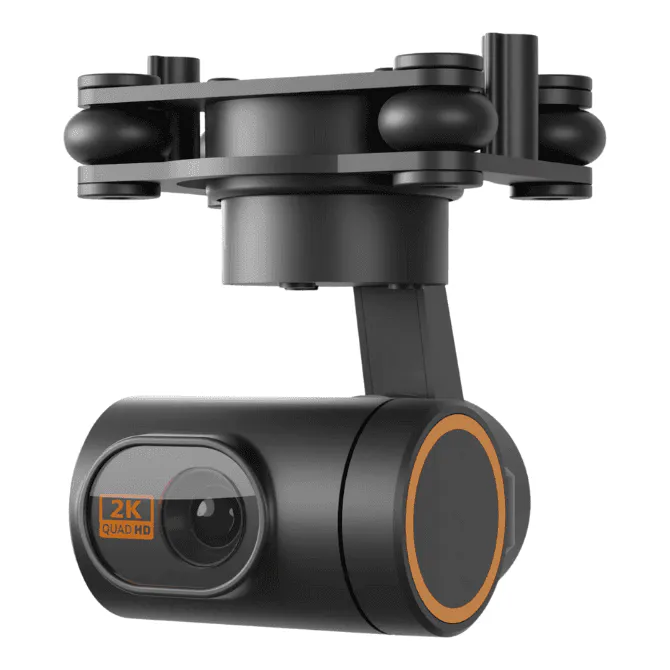

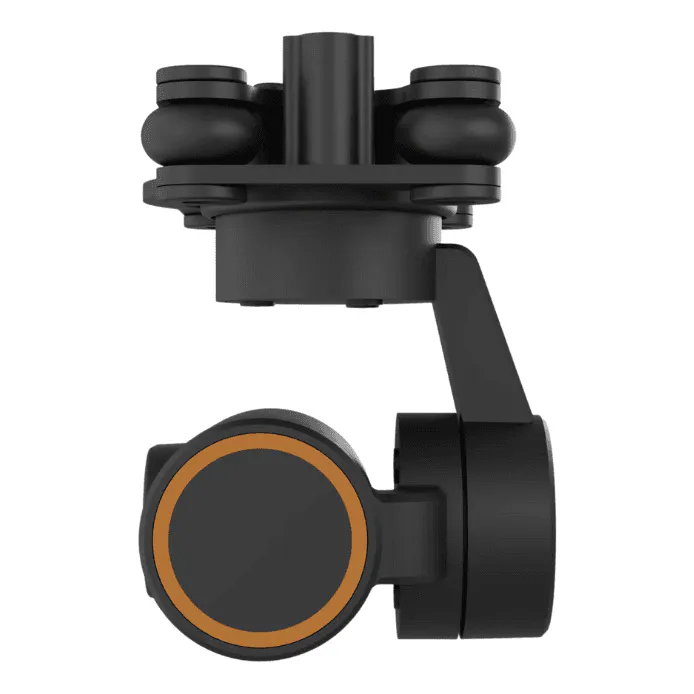

Skydroid C10 Pro Three-Axis Gimbal Camera

The Skydroid C10 Pro is a 3-axis mechanically stabilised gimbal camera engineered specifically for industrial, agricultural, and heavy-lift drones using the Skydroid transmission ecosystem. It interfaces directly with your onboard Skydroid receiver to stream smooth, vibration-free high-definition video directly to ground stations like the H12 Pro, H16 and H20, eliminating the need for a separate video transmitter.

Key features

• 3-axis mechanical stabilisation (pitch, roll, and yaw) isolates footage from heavy multirotor vibrations.

• Plug-and-play wiring directly to Skydroid receivers handles both power and digital video data.

• Rugged, enclosed housing protects the lens and gimbal motors from dust and moisture on agricultural sprayer rigs.

Specifications

• Stabilisation: 3-Axis mechanical (Pitch, Roll, Yaw)

• Video resolution: 1080p HD at 25 fps

• Sensor: 1/2.7-inch

• Focal length: 2.4 mm effective

• Working voltage: 7.2-72 V

• Working current: 210 mA

• Dimensions: 51 x 43.3 x 61.7 mm

• Weight: 61 g

• Compatible systems: Skydroid H12 Pro, H16, H20, H30

This camera is a drop-in payload upgrade for builders outfitting large-scale custom platforms with a Skydroid control link, offering a clean, professional-grade inspection feed with minimal configuration.
