ReadyToSky XL9 390mm 9-Inch Carbon Fiber Long-Range FPV Frame Kit

A 390mm-wheelbase carbon fibre frame for 9-inch long-range and cruising FPV builds. Two versions are offered: the standard XL9 with carbon plates on aluminium standoffs, and the XL9 V2 in True-X geometry with a top-mounted battery and 3K full carbon construction.

Key features

• 4mm carbon fibre arms on both versions; the V2's arms are individually replaceable
• 30.5 x 30.5mm flight controller mounting for full-size FC and ESC stacks
• XL9: 23mm of frame space between the plates, room for a two-board stack

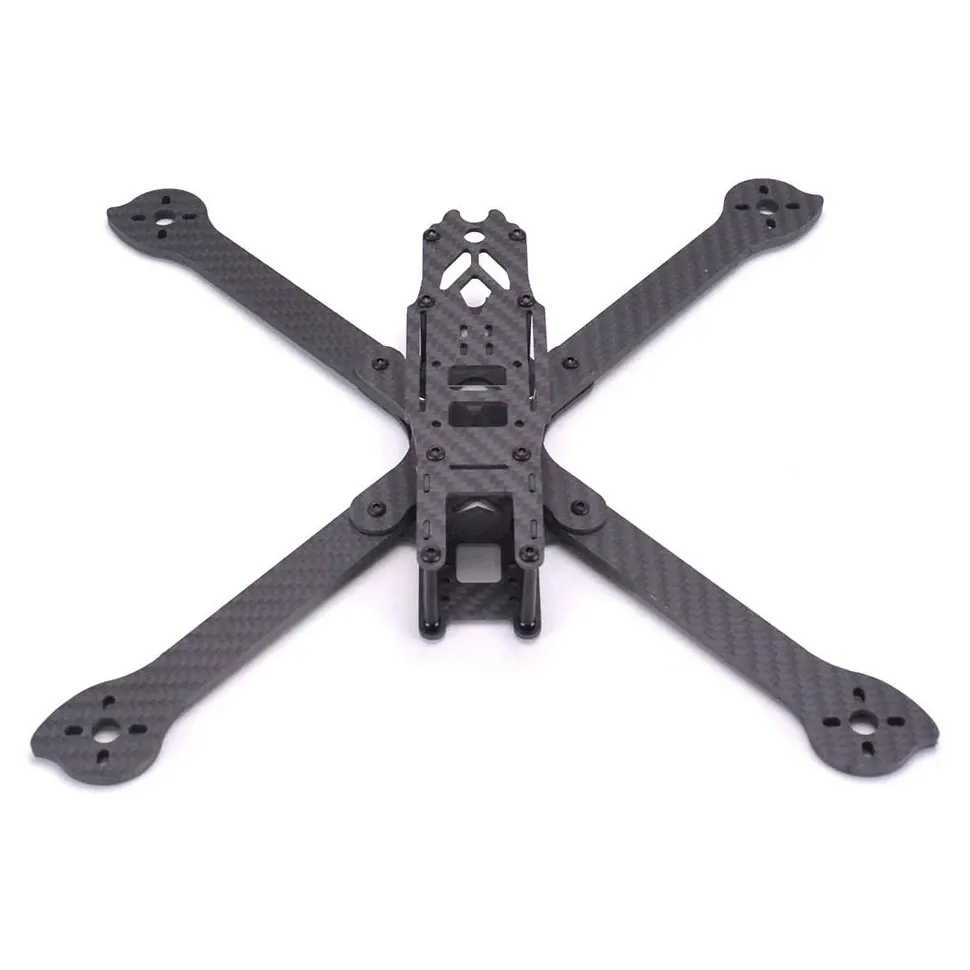

• XL9 V2: True-X layout for even handling on roll and pitch, with the battery on top to balance the centre of gravity
• XL9 recommended power: 2212–2306 motors and 30–60 A ESCs

Specifications

• Wheelbase: 390 mm
• Prop size: 9 inch
• Arm thickness: 4 mm
• Plates: 2 mm centre plate (XL9); 2 mm top and bottom plates (XL9 V2)
• Material: Carbon fibre with aluminium standoffs (XL9); 3K full carbon fibre (XL9 V2)
• FC mounting: 30.5 x 30.5 mm
• Frame space: 23 mm (XL9)

Motors, flight stack, props and video system are not included. Choose the standard XL9 for a conventional stack-and-standoff build, or the V2 if you want True-X handling and replaceable arms.
