Mark4 V3 Pro 15 Inch 680mm Carbon Fiber Frame Kit
SKU MARK4-V3-PRO-15IN
Package: Frame Kit
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

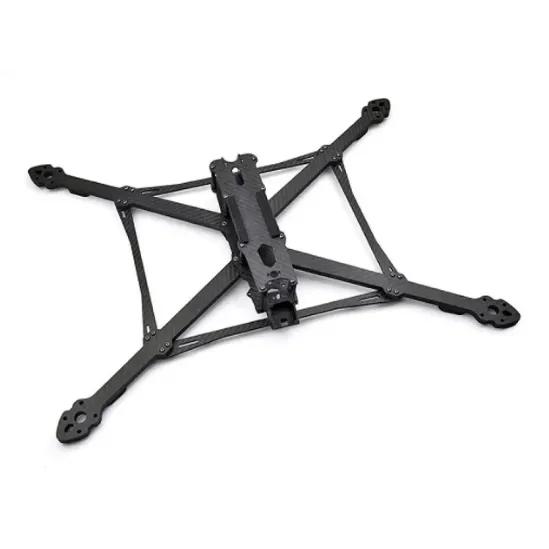

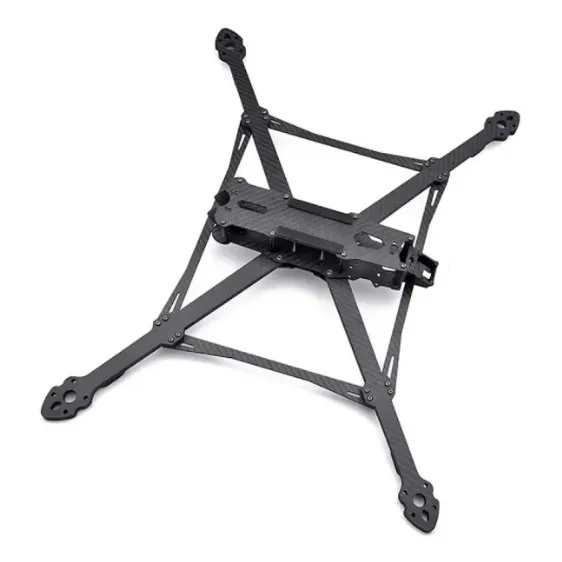

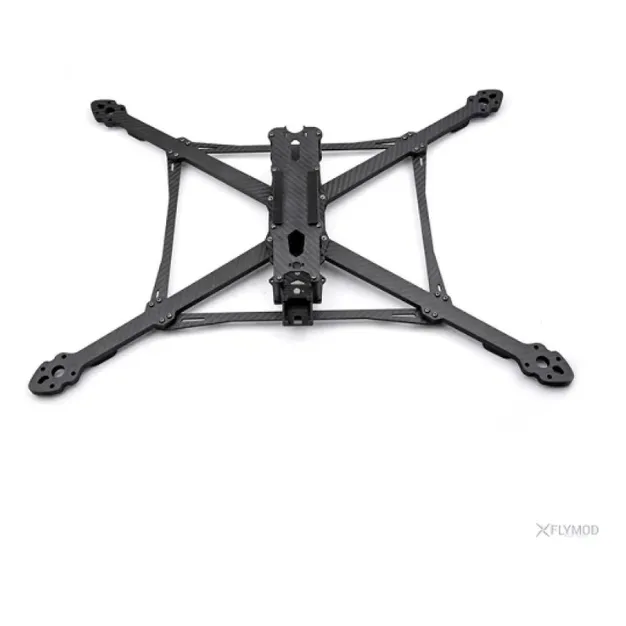

The Mark4 V3 Pro 15-inch is a 680mm-wheelbase carbon frame kit for long-range and heavy-camera quads swinging 15-inch props. It takes the familiar Mark4 layout and scales it up with 8mm arms tied together for stiffness, for builders after endurance, payload or cinematic flying.
Key features
- 3K T300 carbon fibre with 8mm arms interconnected to reduce flex under load
- 21 x 21mm motor pattern with 4mm (M4) holes, sized for 4215, 4218 and 4312-class motors
- Stack and VTX bays both accept 20 x 20 and 30.5 x 30.5mm boards
- 19mm micro camera mounts in 2.5mm carbon side plates
- Rear VTX space suits analog or digital video systems

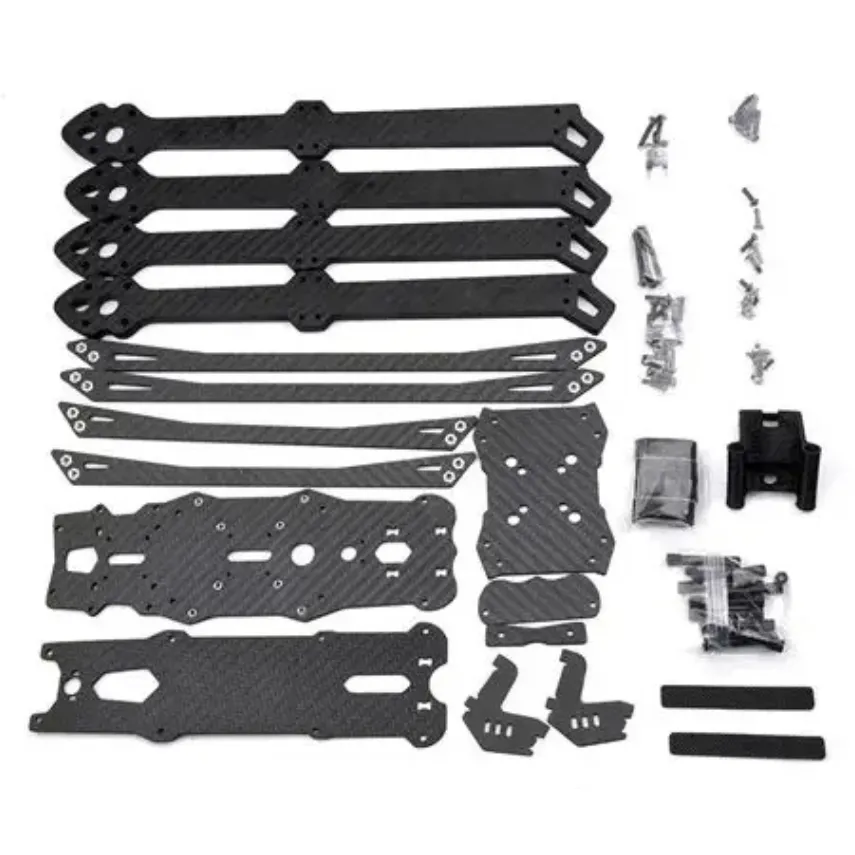

- Choose the bare frame kit or the kit with 3D-printed parts
Specifications
- Wheelbase: 680mm
- Max prop: 15-inch
- Arm thickness: 8mm
- Top plate: 2mm
- Bottom plate: 3mm
- Lower fixed plate: 3mm
- Camera side plates: 2.5mm
- Front and rear lip plates: 2.5mm
- Surrounding reinforcement: 3mm
- Camera mount: 19mm
- FC / VTX mounting: 20 x 20mm, 30.5 x 30.5mm
- Motor mounting: 21 x 21mm, 4mm holes
- Material: 3K T300 carbon fibre
Check your motors use a 21 x 21mm pattern with 4mm screws before ordering; smaller 16 x 16 or 19 x 19mm motors will not bolt on directly.
| Prop Size | 15" |
|---|---|
| Brand | Generic |
| Made in India | No |
| Mounting Size | 20x20, 30.5x30.5 |
| Motor Mount | 21x21mm |
| Camera Size | 19mm |
| Wheelbase | 680 mm |
| Arm Thickness | 8 mm |
