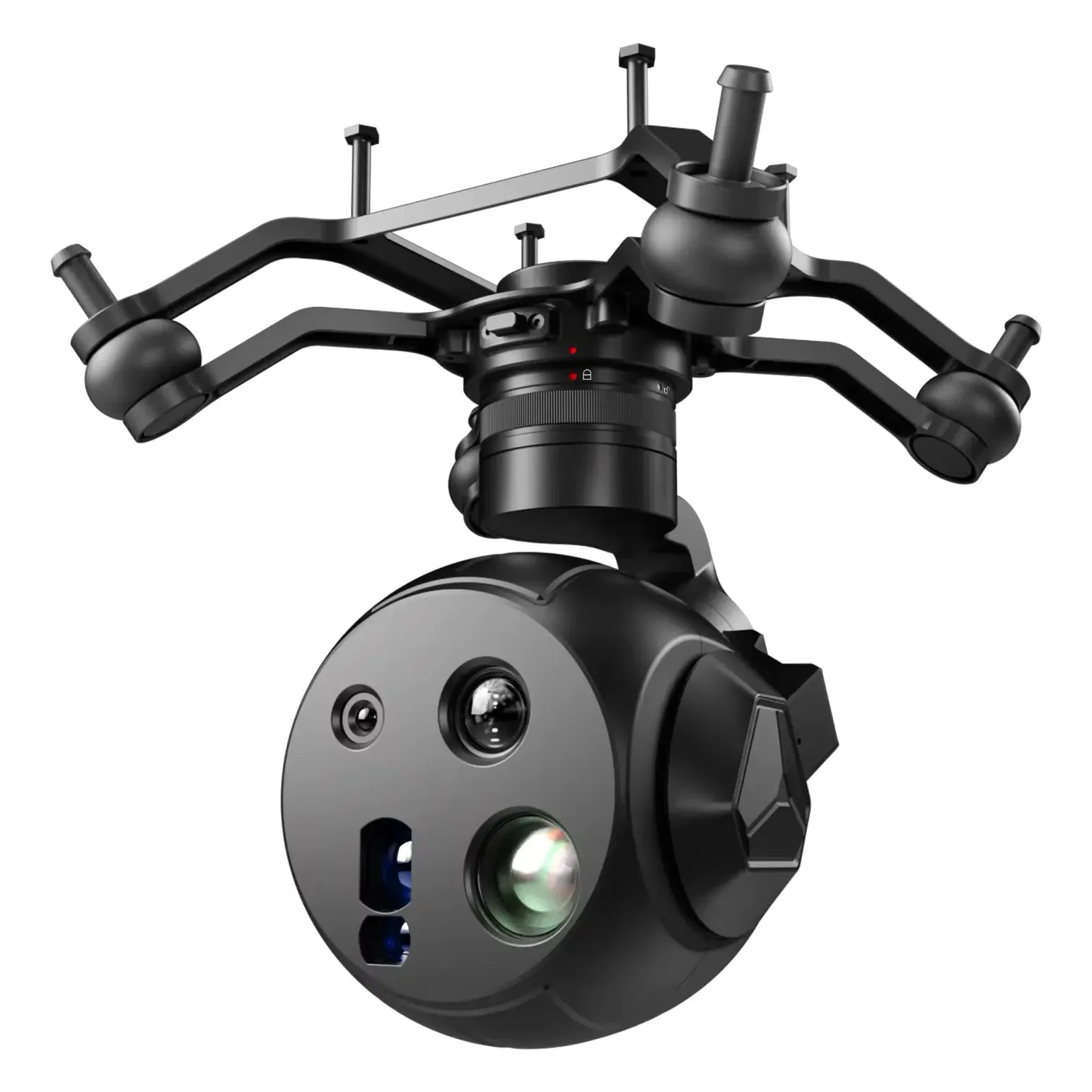

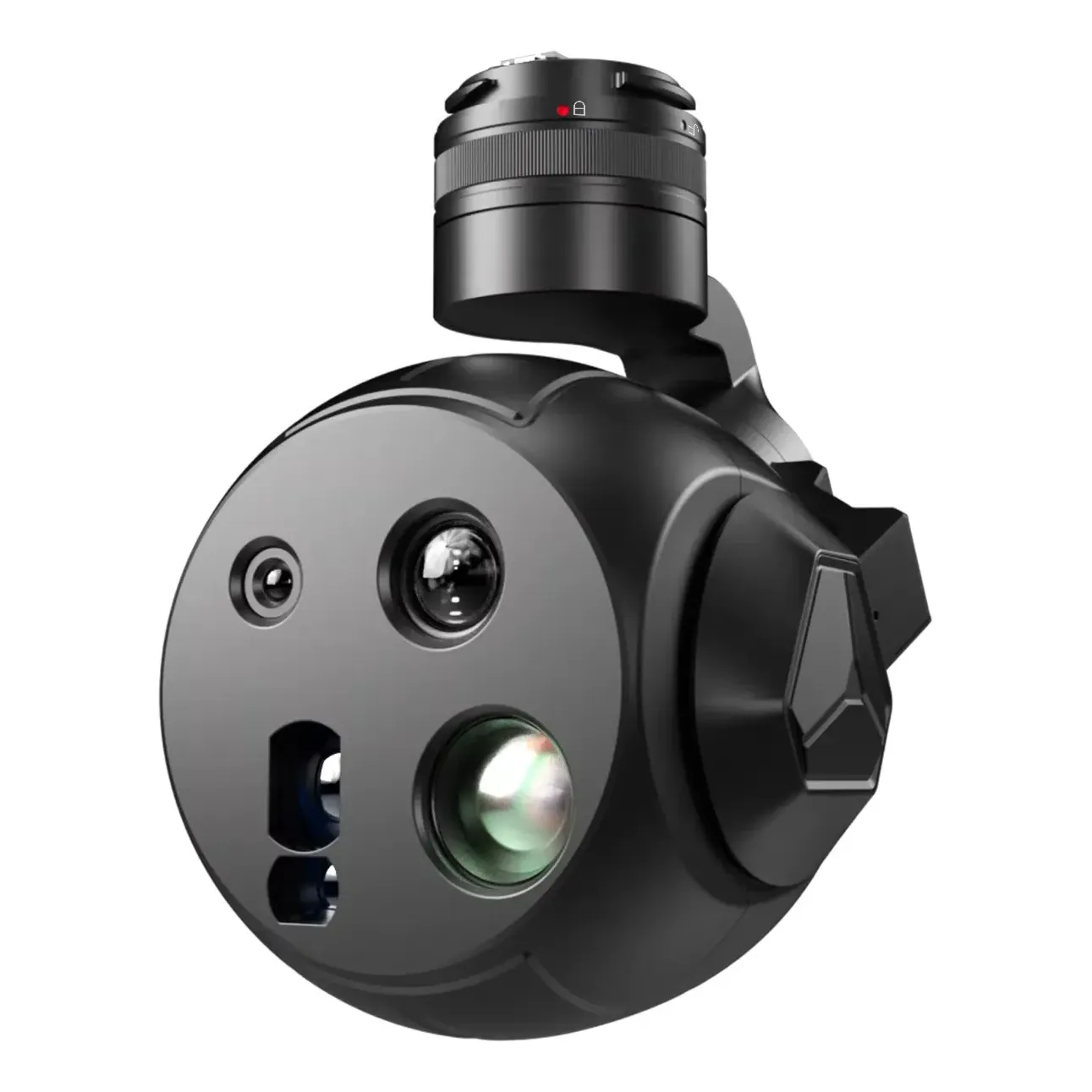

Reebot UniPod MT11 Four-Sensor AI Gimbal Camera Pod

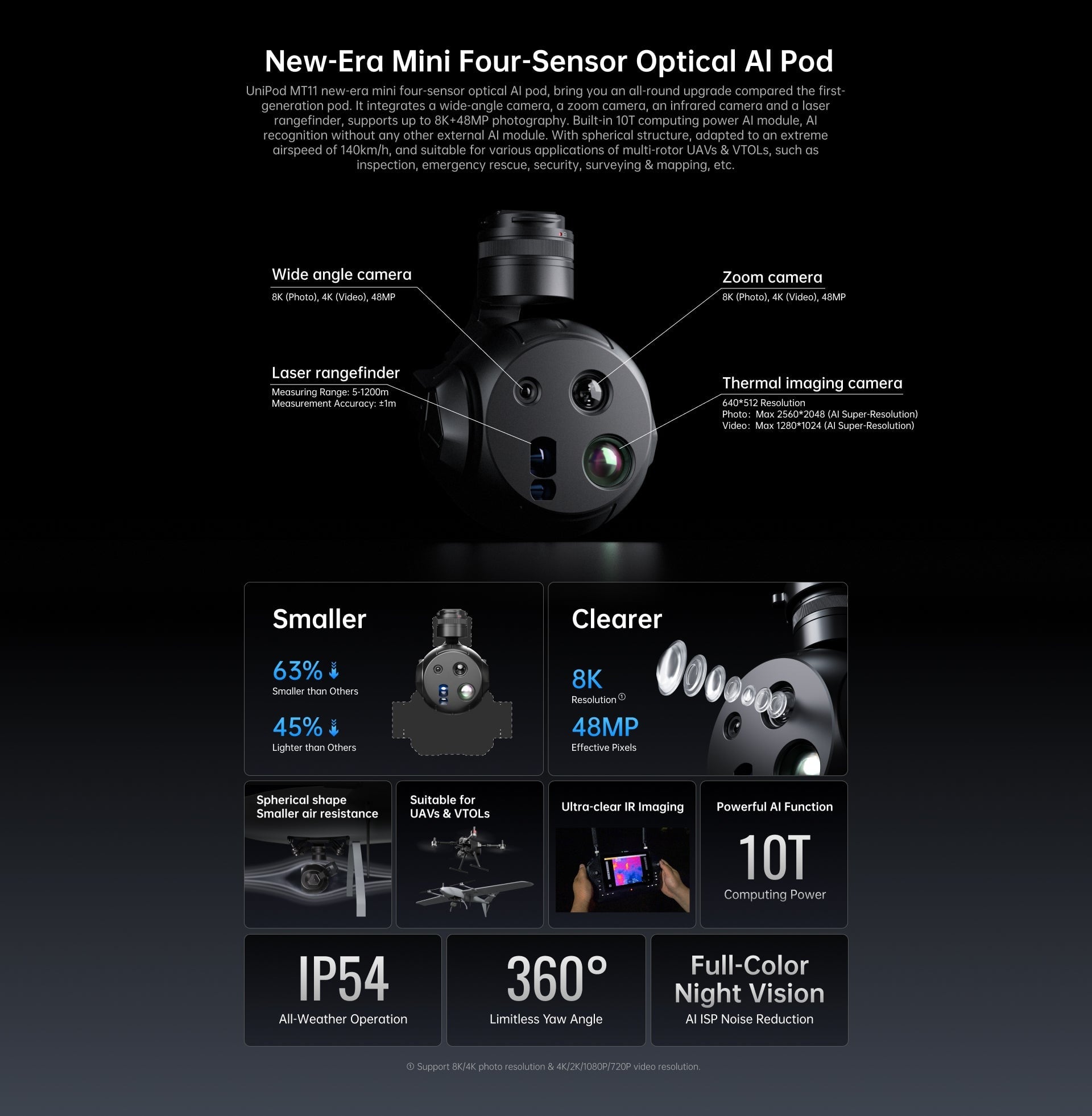

The Reebot UniPod MT11 is a compact four-sensor AI camera pod for multirotors and VTOL aircraft, combining zoom, wide-angle and thermal cameras with a laser rangefinder on a 3-axis gimbal. It suits professional inspection and surveillance payloads where one pod has to do the work of several.

Key features

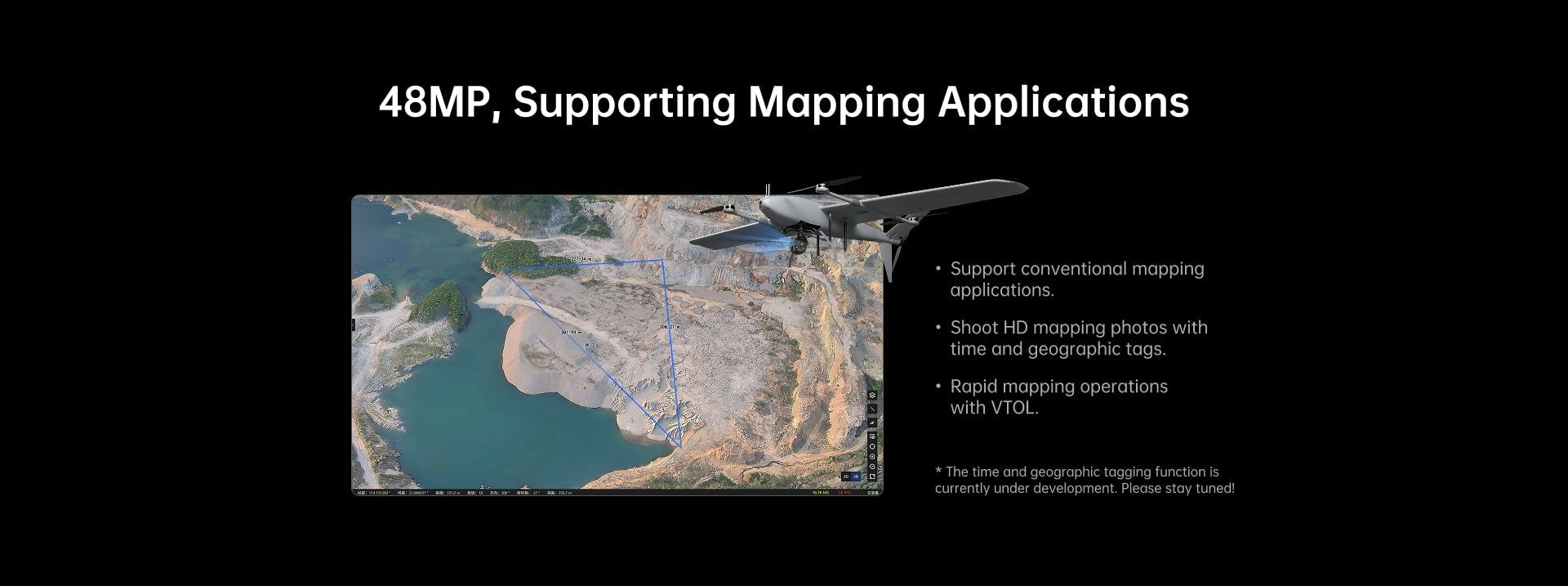

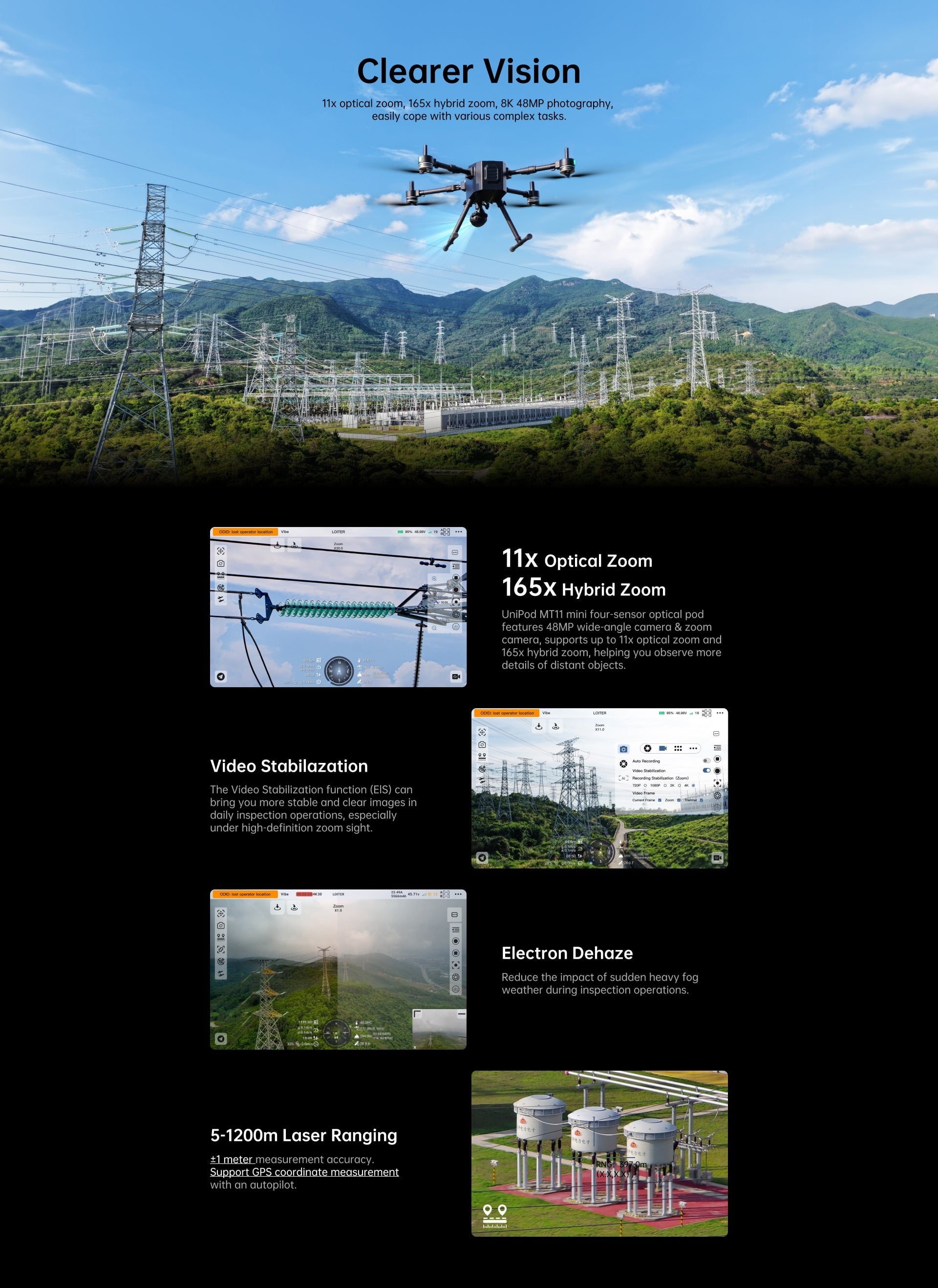

• Zoom camera: 1/2-inch 48 MP sensor with 11× optical and 165× hybrid zoom, 4K30 video and 8K 48 MP stills.

• Wide-angle camera: 1/2-inch 48 MP sensor with an 84° field of view.

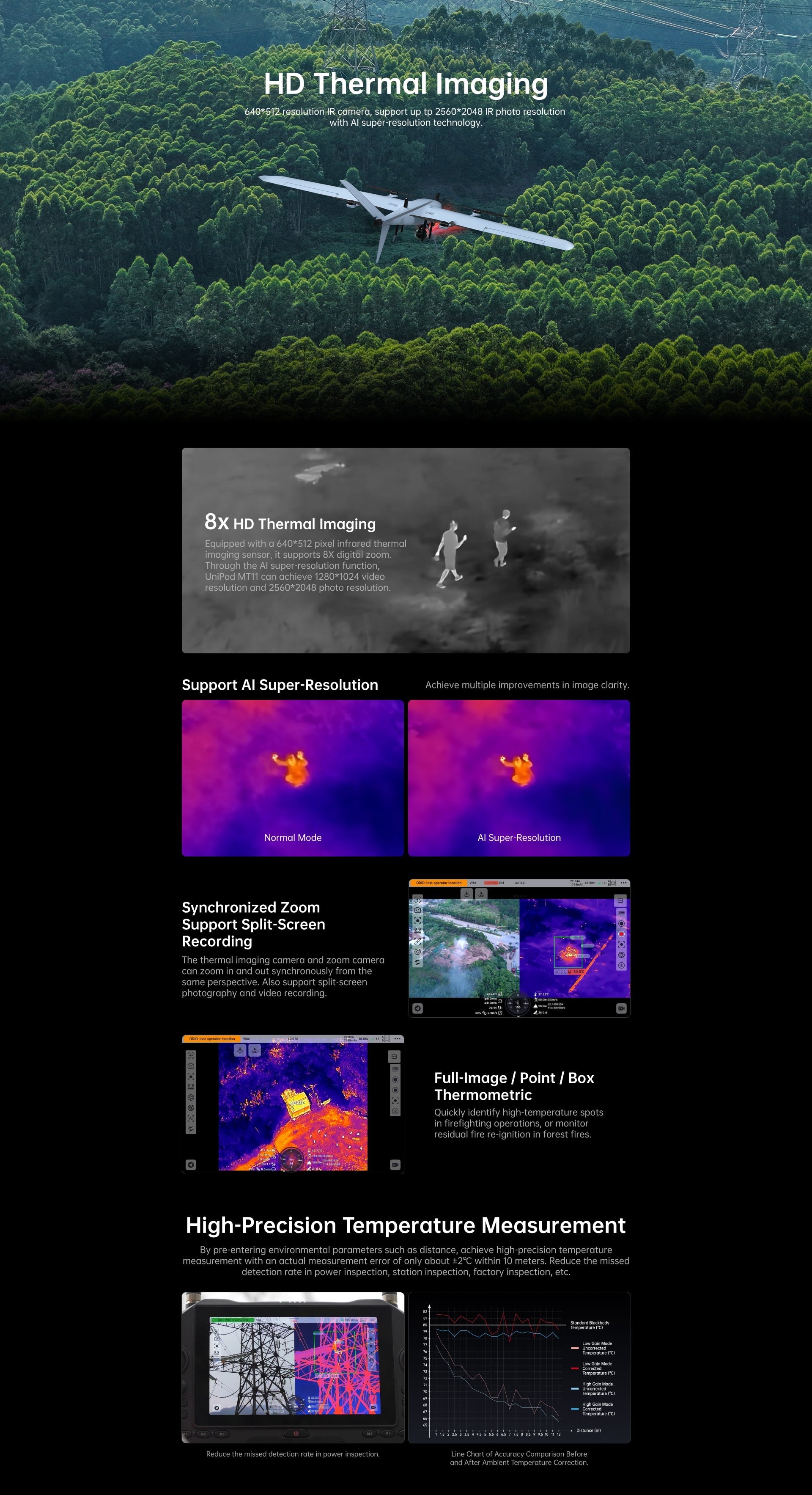

• Thermal camera: 640 × 512 at 8–14 μm, 8× digital zoom, ±2 °C accuracy in high-gain mode.

• Laser rangefinder: 5–1200 m at ±1 m, with GPS coordinate measurement of the target.

• Onboard AI: built-in 10T computing module for real-time object and temperature recognition without an external companion computer.

• Gimbal: 3-axis stabilisation with pitch from −90° to +20°, unlimited 360° yaw, ±0.01° jitter and EIS on video.

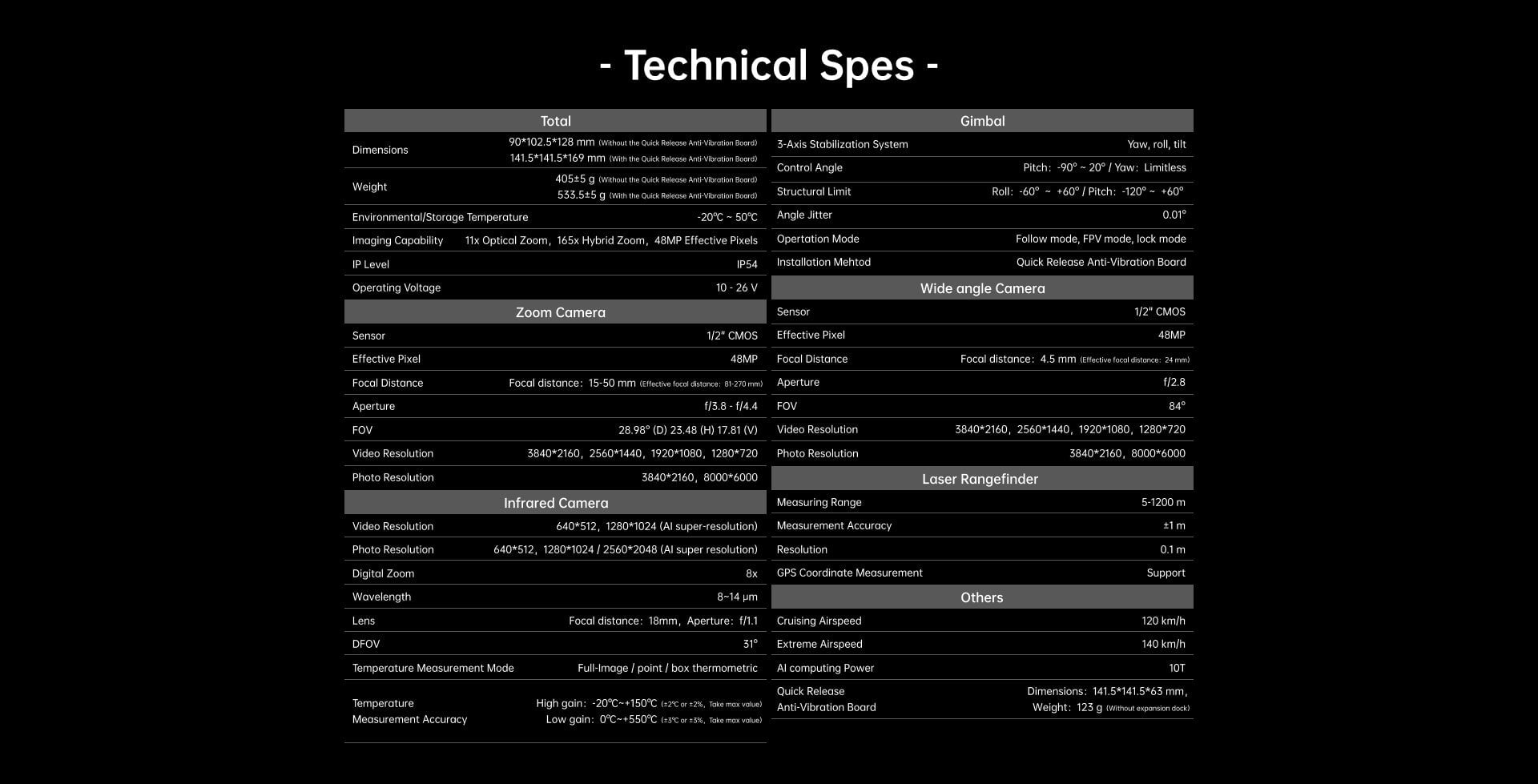

Specifications

• Input voltage: 10–26 V (3S–6S)

• Video output: Ethernet, RTSP with primary and secondary streams

• Control: S.Bus; ArduPilot 4.4.4 or later

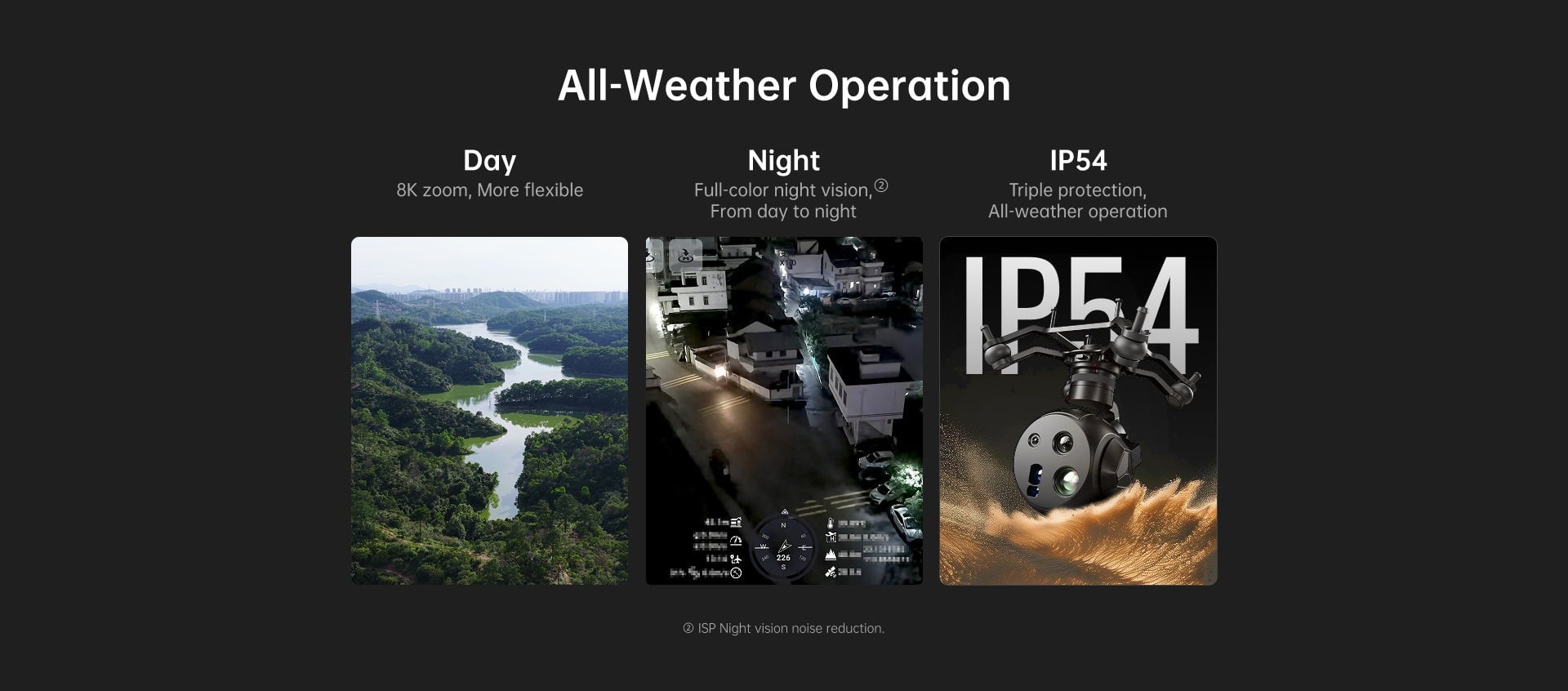

• IP rating: IP54

• Operating temperature: −20 to 50 °C

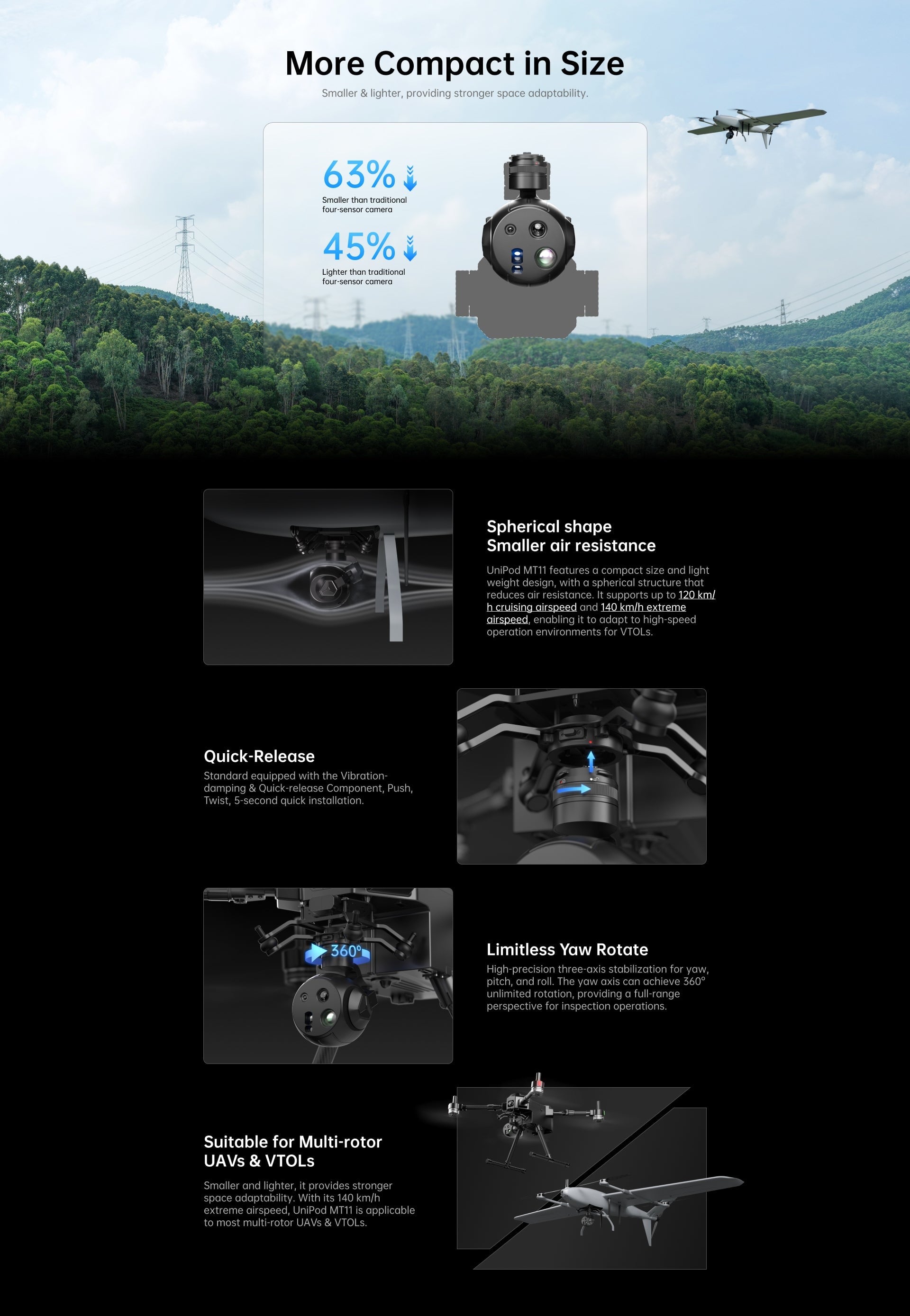

• Airspeed: 120 km/h cruise, 140 km/h maximum

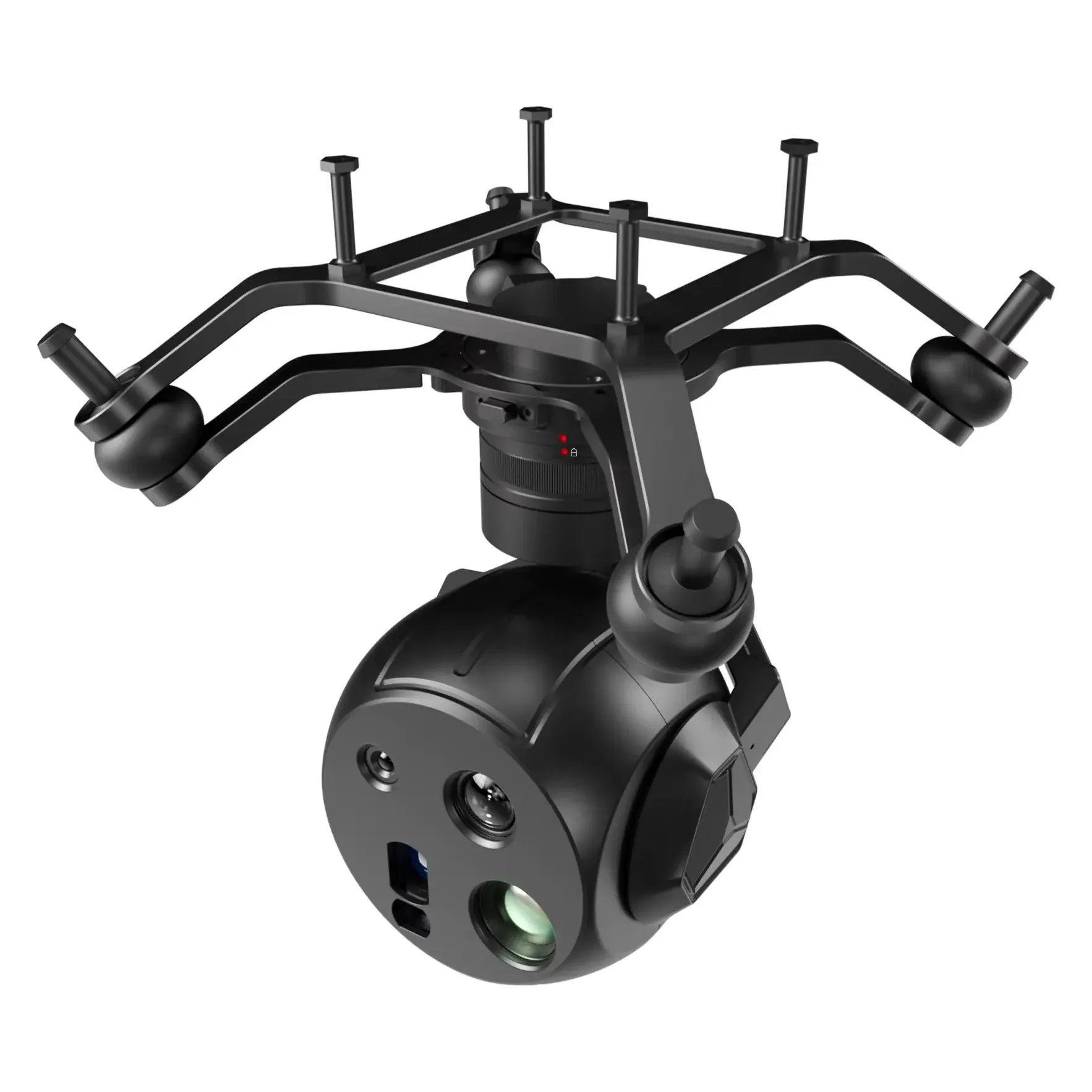

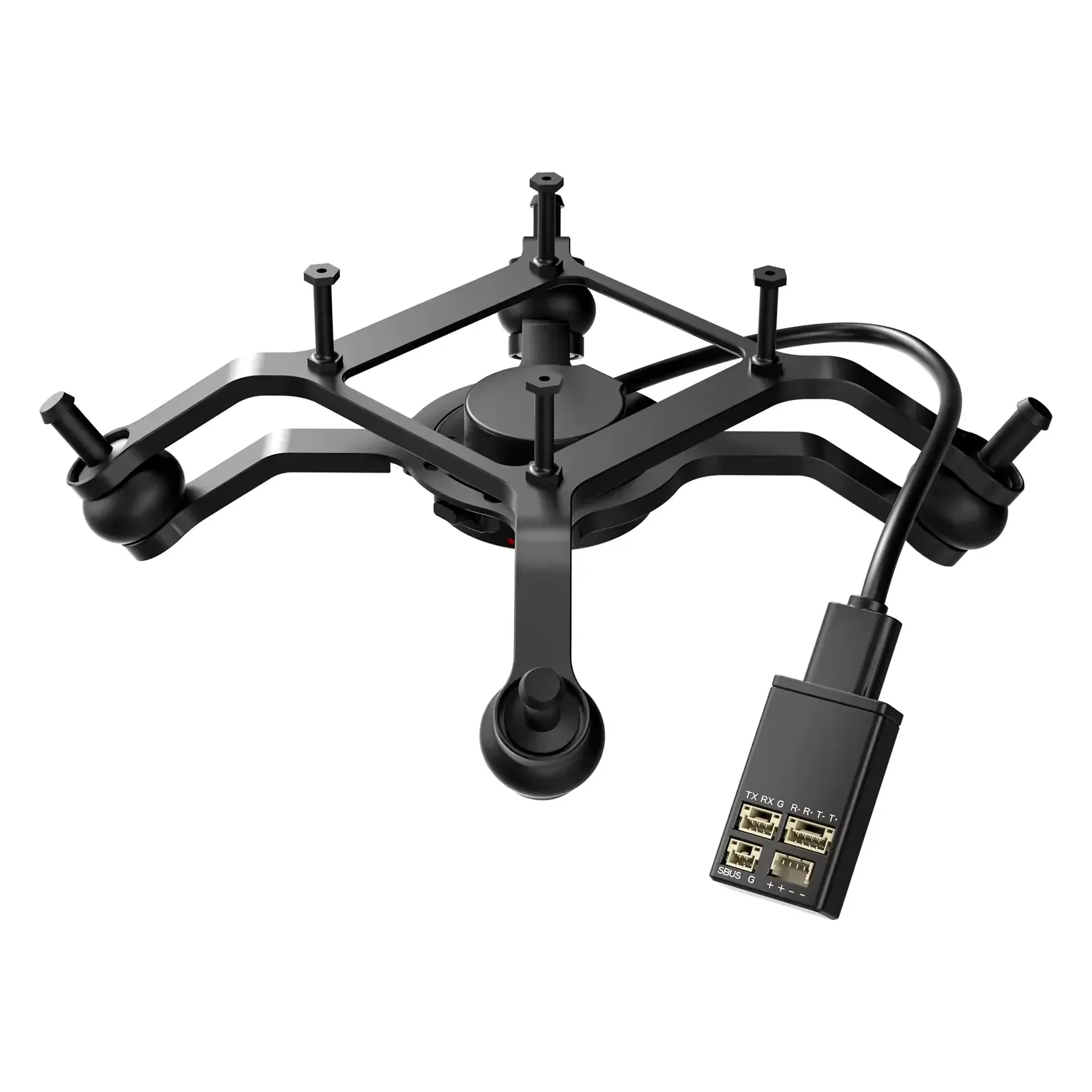

• Quick-release board: 123 ± 5 g, push-and-twist mount with vibration damping

The included quick-release board also accepts SIYI ZT30 and ZR30 pods, but older ZT30/ZR30 boards will not take the MT11, so budget for the new board when upgrading an existing airframe.
