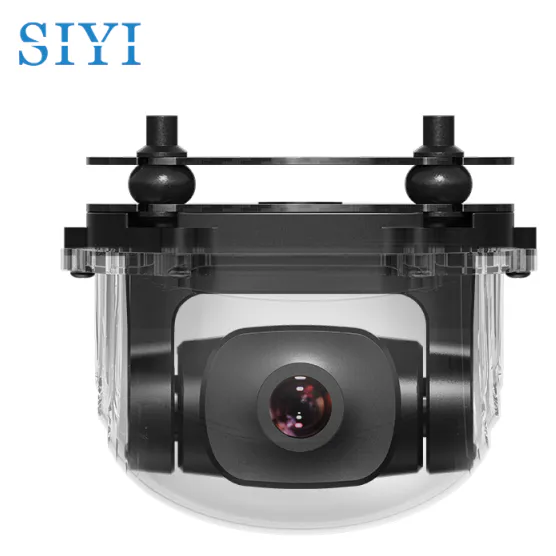

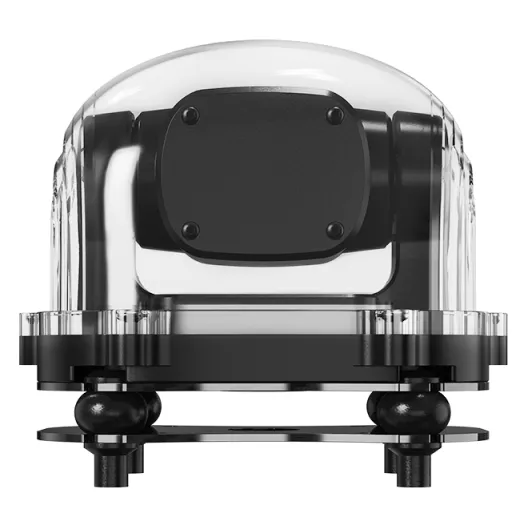

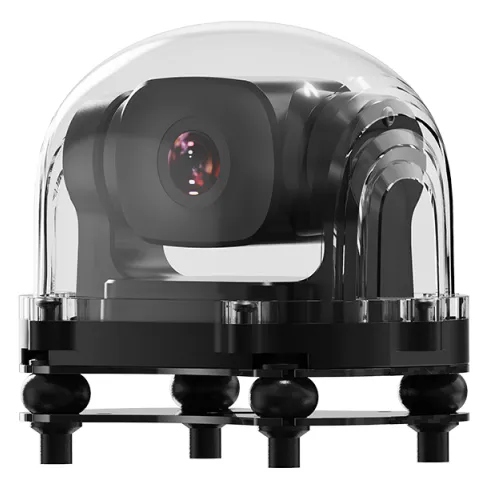

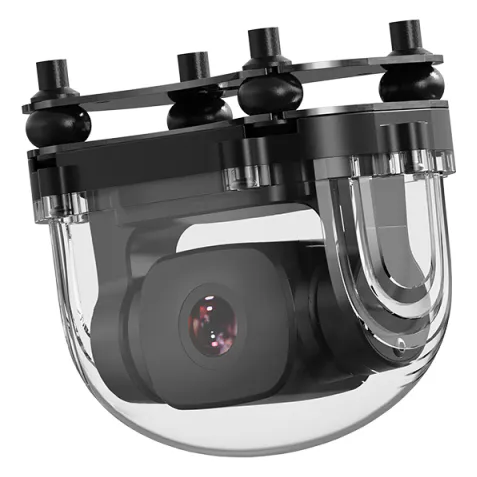

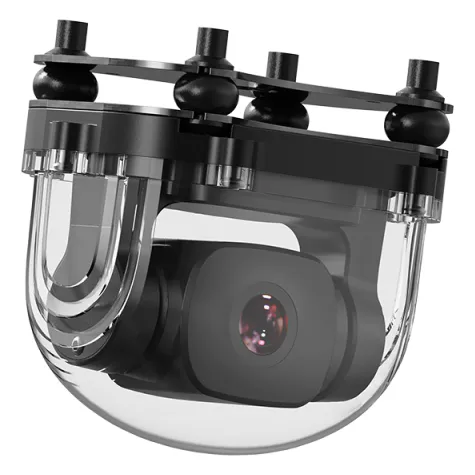

SIYI A2 Mini Ultra Wide Angle FPV Gimbal Camera

The SIYI A2 Mini is a single-axis tilt gimbal camera engineered for enterprise, agricultural, and inspection drones operating over SIYI digital IP video links such as the HM30 or MK15. Equipped with an ultra-wide 160-degree field of view and a 1080p Starlight sensor, it delivers excellent situational awareness and clear video transmission even in challenging low-light environments.

Key features

• Integrated single-axis tilt (pitch) mechanism for active vertical camera control in flight

• 1080p Starlight CMOS sensor ensures enhanced visibility during dawn, dusk, or night operations

• Ultra-wide 160-degree FOV lens captures a broader flight perspective for safer navigation

• IP67 waterproof and dustproof housing provides reliable operation in harsh weather conditions

• Supports inverted upside-down installation with automatic image flipping

• Seamless plug-and-play integration with SIYI Ethernet-based digital video transmitters

Specifications

• Resolution: 1080p

• Aspect Ratio: 16:9

• Field of View: 160°

• Sensor Type: Starlight CMOS, 1/2.7-inch, 2 MP effective

• Gimbal Axis: Single-axis (Tilt)

• Controllable pitch: -90° to +25°

• Ingress Protection: IP67

• Video Interface: Ethernet / IP

• Control input: S.Bus / PWM

• Working voltage: 12 V (peak power 12 W)

• Working temperature: -10 to 50 C

• Dimensions: 65 x 43 x 50 mm

• Weight: 85 g

• Compatible air units: SIYI MK32, MK32E, MK15, MK15E, HM30

This camera is an ideal FPV and situational awareness upgrade for agricultural platforms, search-and-rescue rigs, or any commercial heavy-lift build requiring a durable, weather-resistant camera with dynamic pitch control.
