SIYI ZT30 4K 8MP 30X Optical 180X Hybrid Zoom Gimbal Camera

The SIYI ZT30 is a professional-grade optical gimbal camera designed for heavy-lift drones, aerial inspection, surveillance, and mapping missions. With 30X optical zoom and 180X hybrid zoom, it delivers long-range target acquisition and detail capture from altitude. The four-sensor array and 4K 8MP imaging make it suitable for industrial, agricultural, and search-and-rescue builds where stabilised, high-magnification video is critical.

Key features

• 30X optical zoom with 180X hybrid zoom for extended-range detail and target tracking

• 4K video at 8 megapixels — sharp imaging for inspection, mapping, and documentation

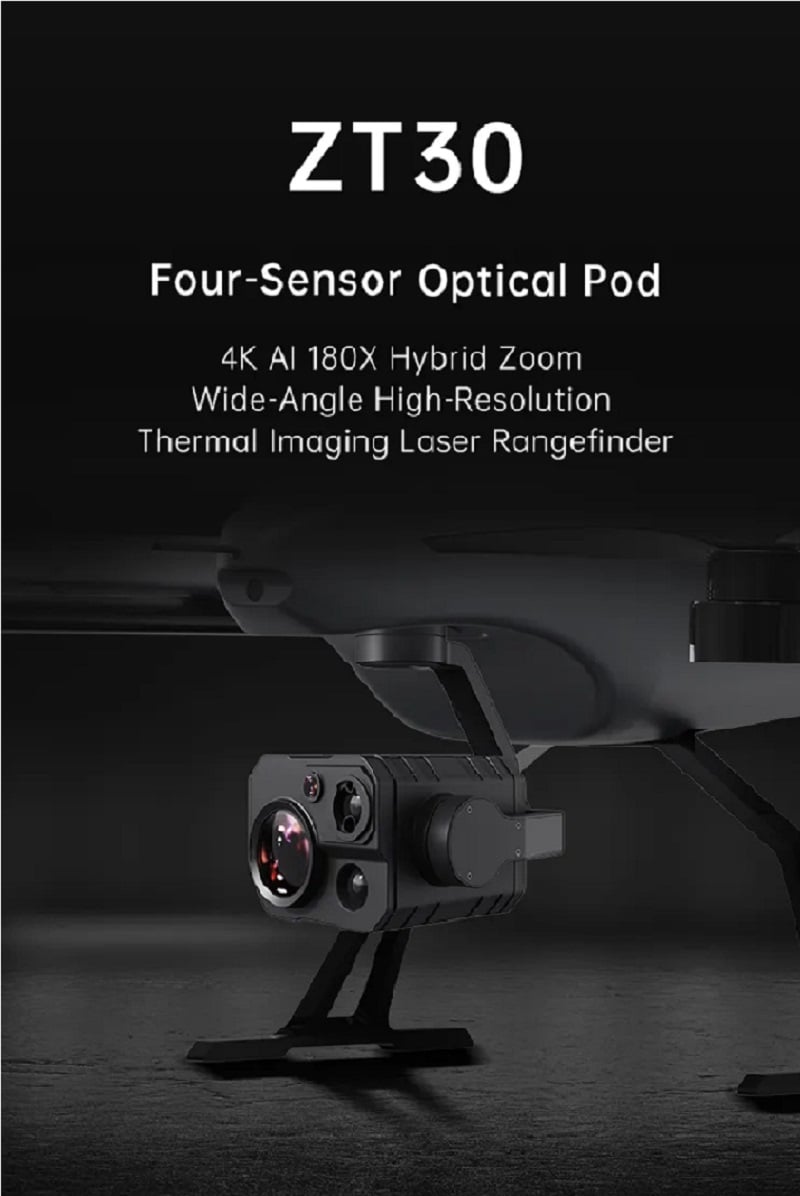

• Four-sensor system: zoom camera, 640 x 512 radiometric thermal camera, 4 MP wide-angle camera and laser rangefinder in one pod

• Stabilised gimbal mount — smooth footage over long-distance flights and variable wind

• Built for heavy-lift and cinelifter platforms carrying payloads over 1 kg

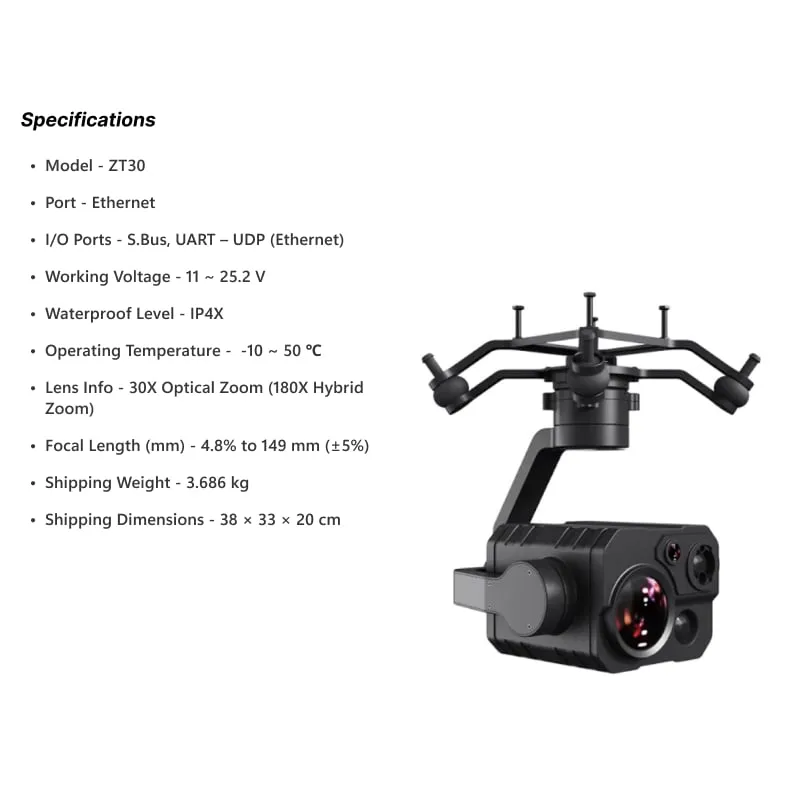

Specifications

• Resolution: 4K

• Sensor: 8 MP

• Optical Zoom: 30×

• Hybrid Zoom: 180×

• Sensors: 1/2.7-inch 8 MP zoom camera, 640 x 512 uncooled VOx thermal camera (2X digital zoom, -20 to +550 C measuring range), 1/2.8-inch 4 MP wide-angle camera, laser rangefinder (5-1200 m)

• Zoom lens: 4.8-149 mm, F1.3-F4.8

• Gimbal range: pitch -90 to +25 degrees, roll +/-45 degrees, yaw unlimited

• Input voltage: 11-25.2 V (3-6S)

• Power consumption: 9 W average, 20 W peak

• Video output: Ethernet

• Control input: S.Bus, UART, Ethernet UDP

• Waterproof rating: IP4X

• Dimensions: 182 x 140 x 134.5 mm (including quick-release anti-vibration claw)

• Weight: 870 g (including quick-release anti-vibration claw)

Pair with X-Class frames, agricultural rigs, or long-endurance platforms where zoom range and image quality justify the payload. Mounting and control integration depend on your flight controller and gimbal control protocol — confirm compatibility before ordering.
