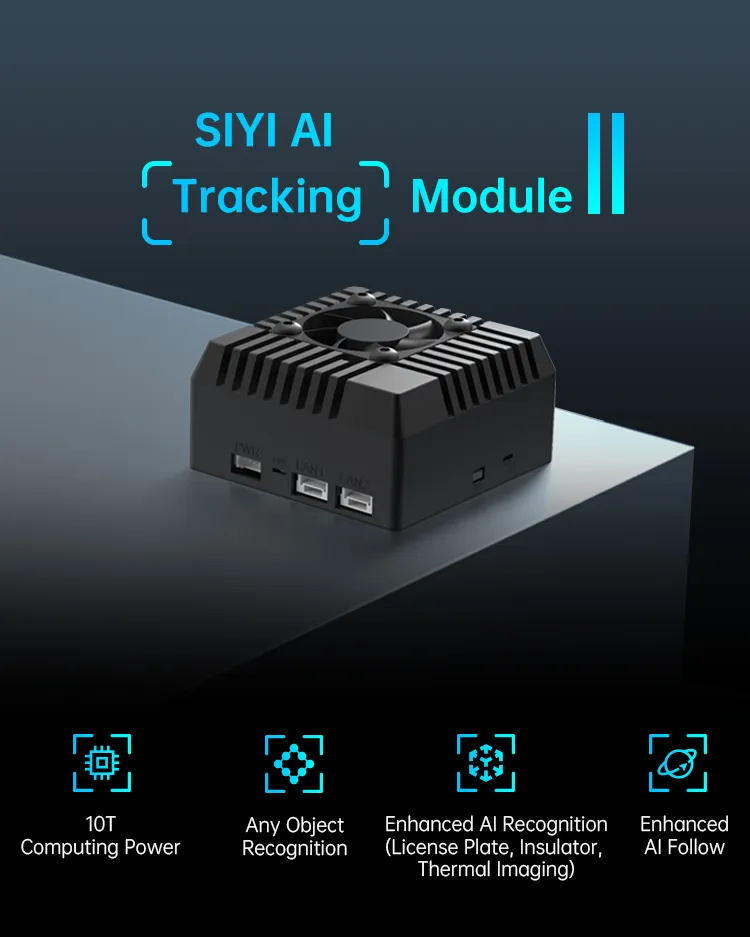

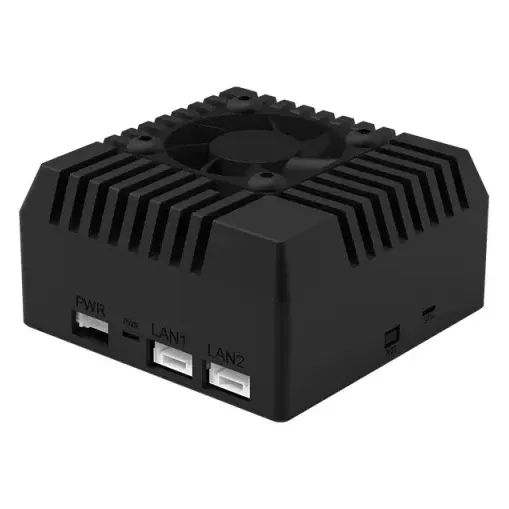

SIYI AI Tracking Module II 10T for Gimbal Cameras

The SIYI AI Tracking Module II is an onboard AI processor that gives SIYI gimbal cameras real-time object recognition, target lock and automatic follow. With 10 TOPS of INT8 computing power it runs detection and tracking in the air, so the operator can lock a person, vehicle or boat and let the gimbal keep it centred. It is aimed at surveillance, inspection, search and rescue, agriculture and forestry drones that already carry a SIYI optical pod.

Key features

• Works with the SIYI ZT30, ZT6, ZR30, ZR10 and A8 mini gimbal cameras.

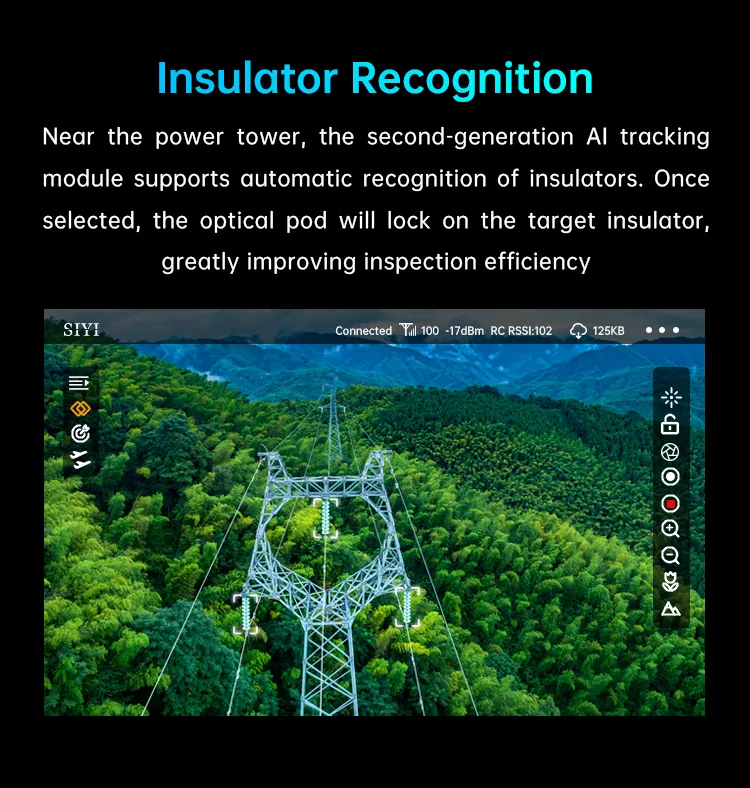

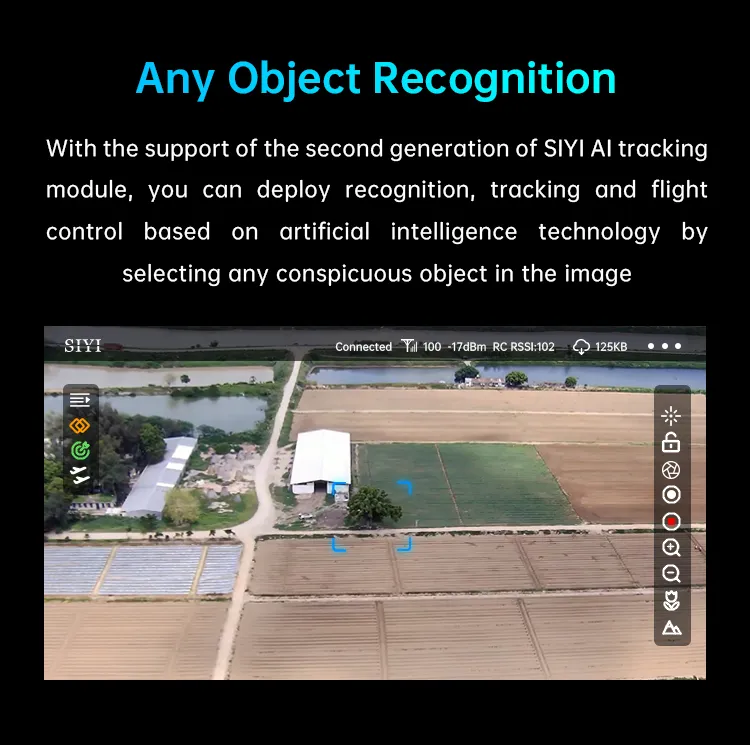

• Recognises people, vehicles, boats and power-line insulators, plus any conspicuous object you select on screen; reads and highlights licence plates.

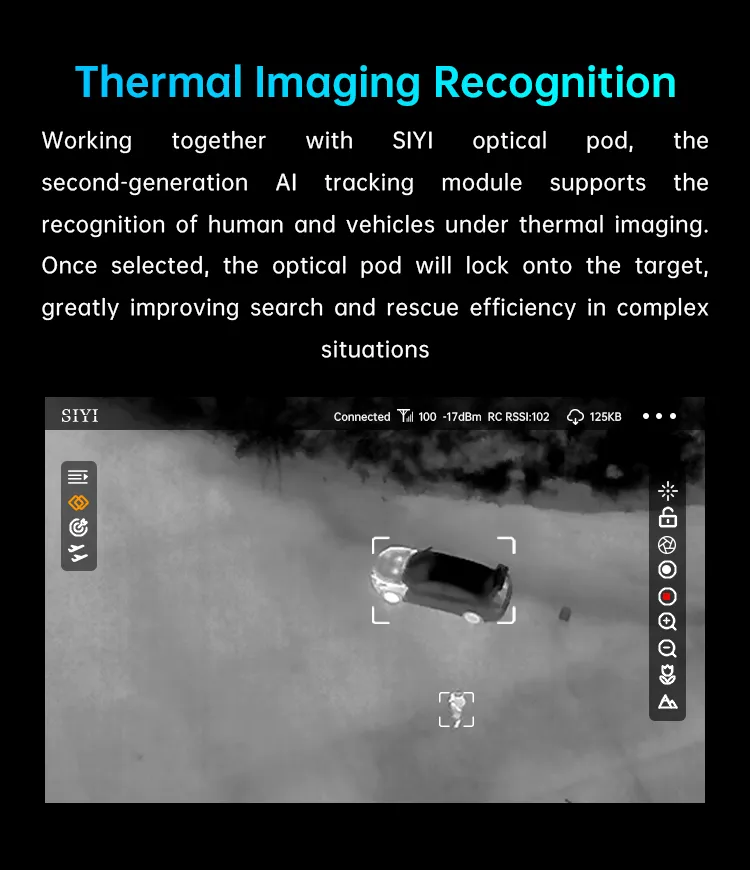

• Human and vehicle detection also works on thermal imagery.

• Gimbal collaboration: lock target, auto zoom and centre target, with automatic re-acquisition when a lost target re-enters the frame.

• AI Follow mode works with the flight controller for guided target-follow flight.

• Draws 8W from a 3S–6S supply.

Specifications

• Computing power: 10 TOPS (INT8)

• Recognition accuracy: 95% (SIYI rating)

• Video codec: H.264 / H.265

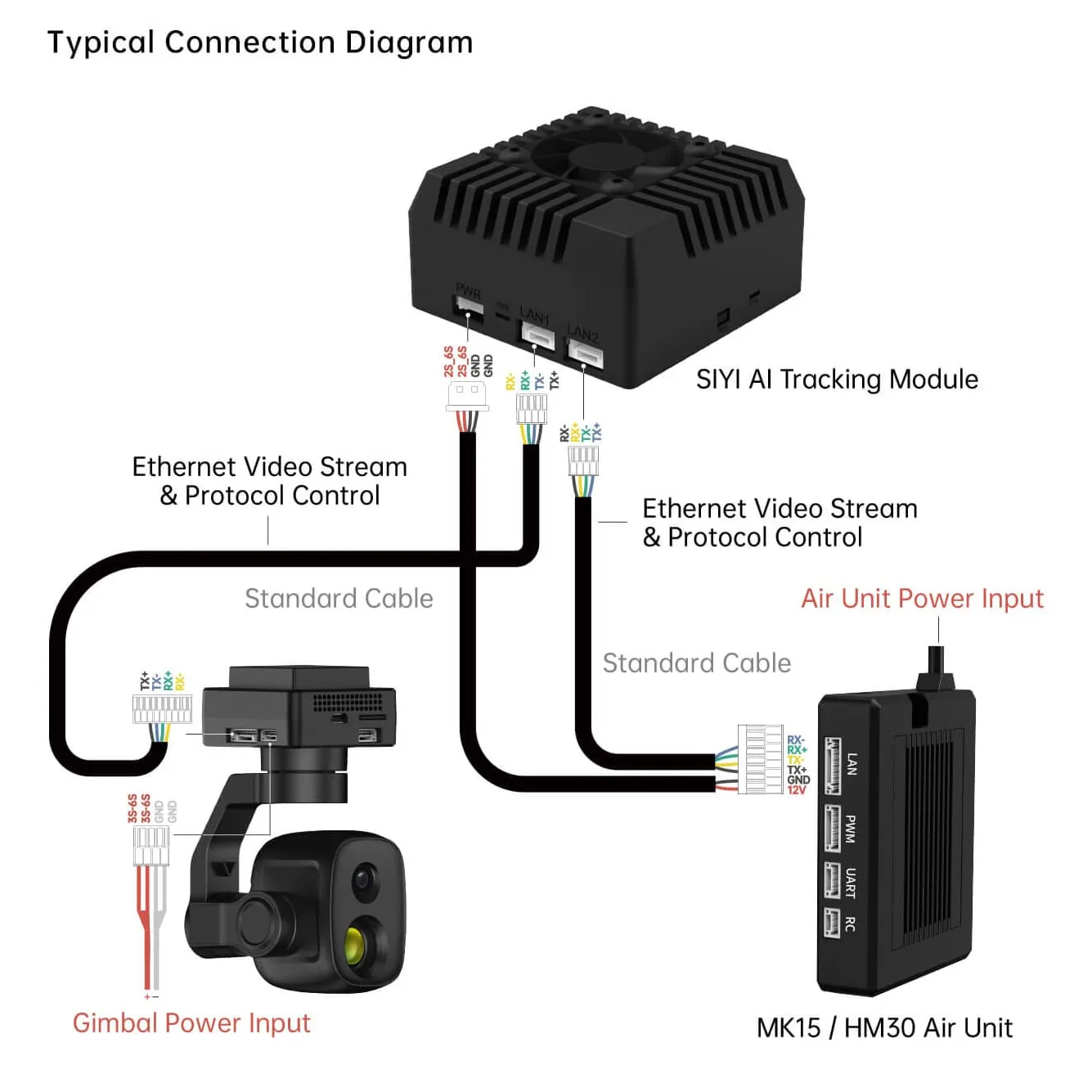

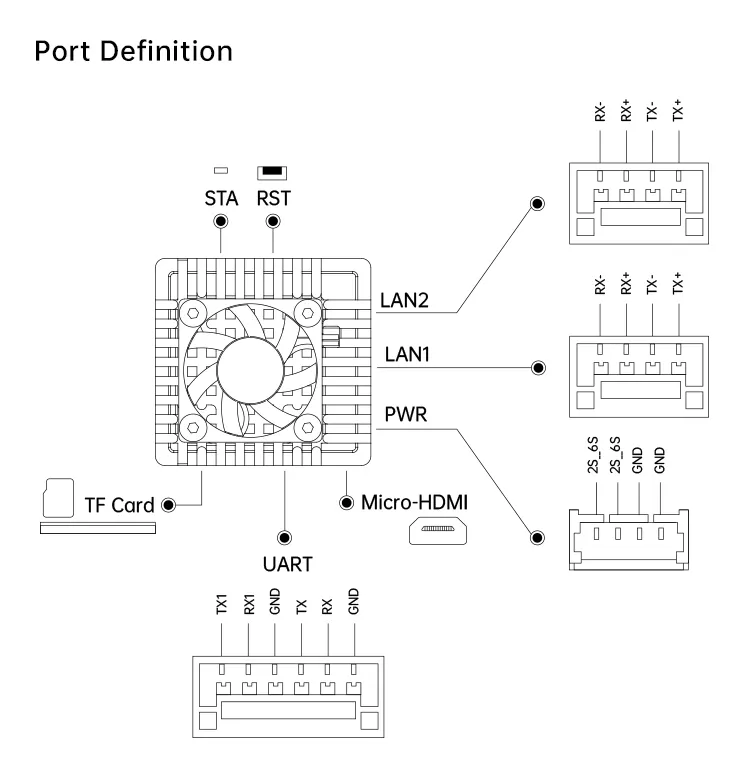

• Input voltage: 11–25.2V (3S–6S)

• Power consumption: 8W

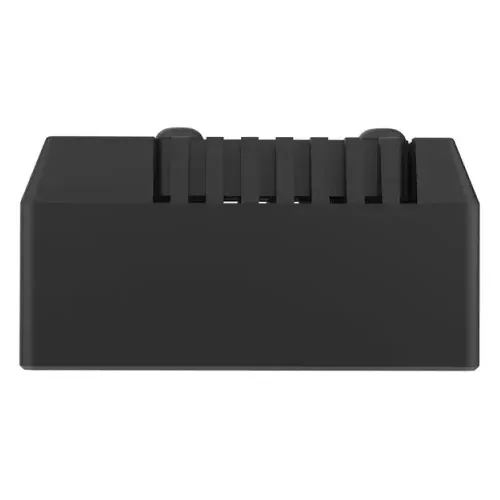

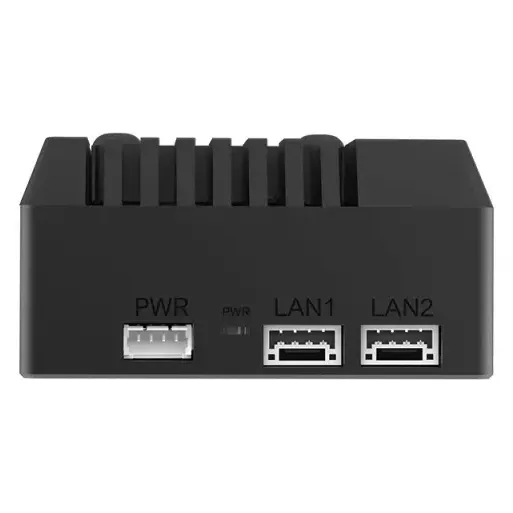

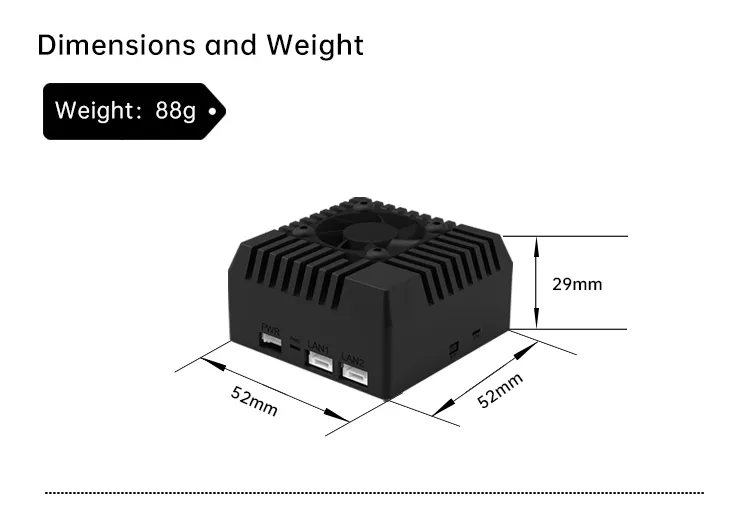

• Dimensions: 52 × 52 × 29mm

• Weight: 88g

• Operating temperature: −10 to 50°C

• Compatible cameras: ZT30, ZT6, ZR30, ZR10, A8 mini

Check that your camera is on the list above before ordering, and allow an extra 88g and 8W in the payload and power budget.
