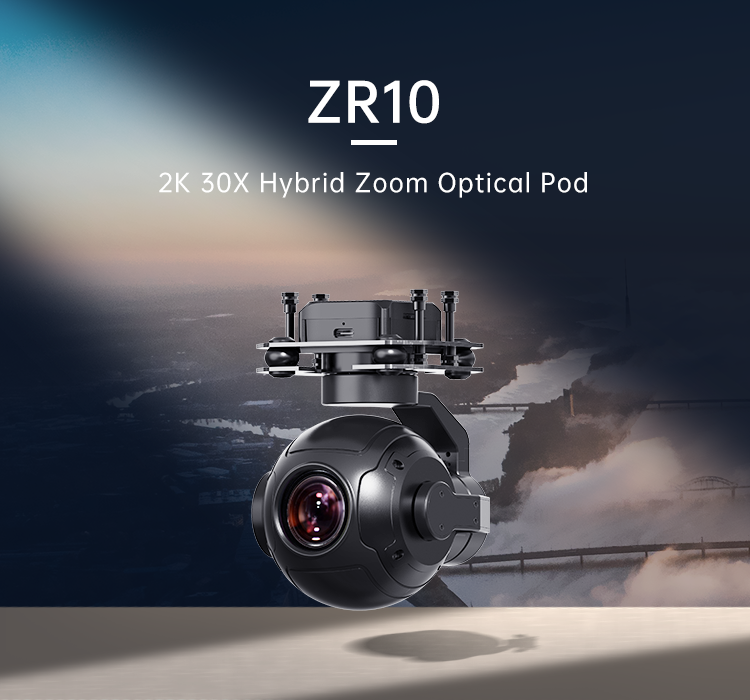

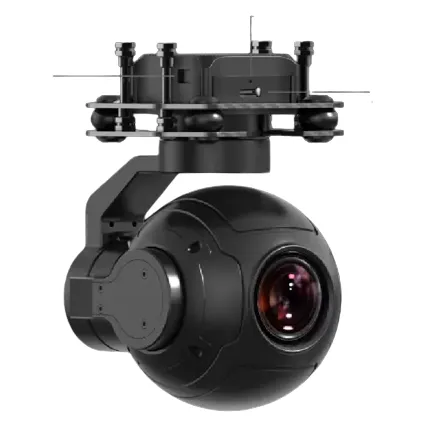

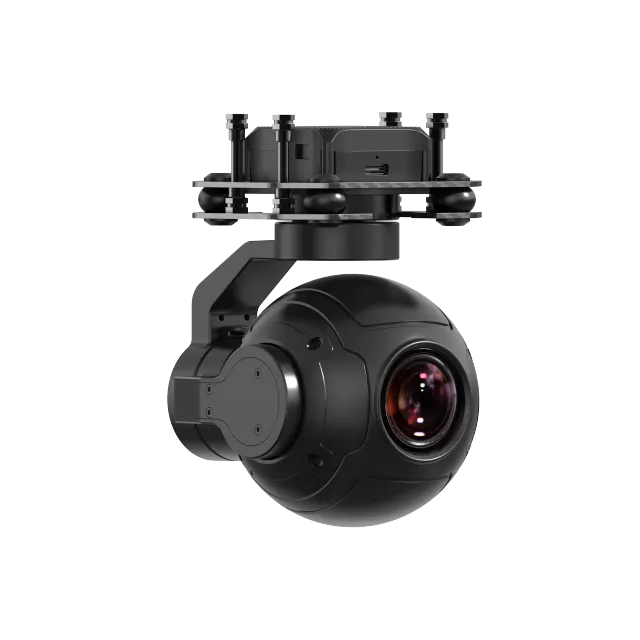

SIYI ZR10 2K 30x Hybrid Zoom Gimbal Camera

The SIYI ZR10 is a 3-axis stabilised gimbal camera with 10x optical (30x hybrid) zoom, built for FPV and UAV platforms that need a controllable, zoomable view for inspection, monitoring or long-range tracking rather than a fixed wide-angle feed.

Key features

• 10x optical zoom with 30x hybrid zoom lets you tighten in on distant subjects without flying closer.
• 1/2.7-inch 4MP CMOS sensor records 2K (2560x1440) video at 30fps to a MicroSD card up to 128GB.

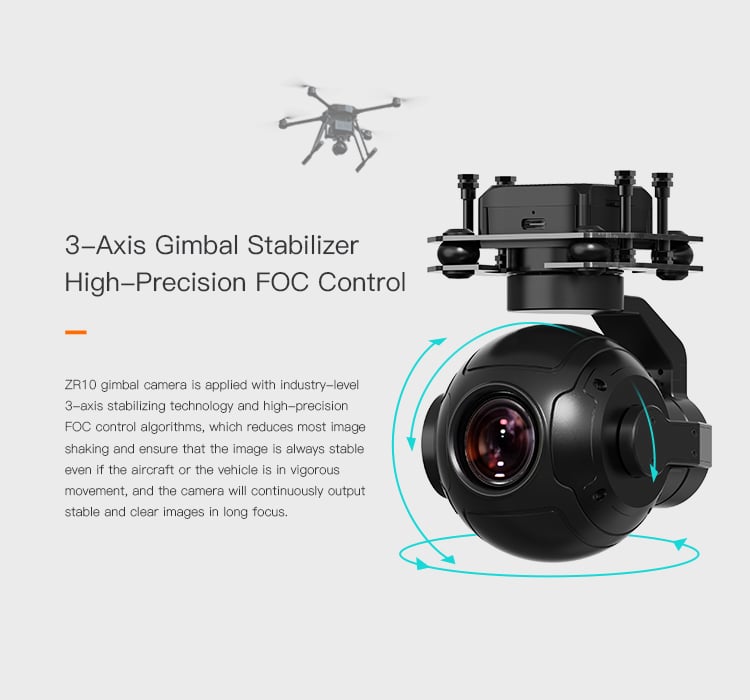

• 3-axis stabilisation holds an angular vibration range of just ±0.01° for a steady feed in flight.

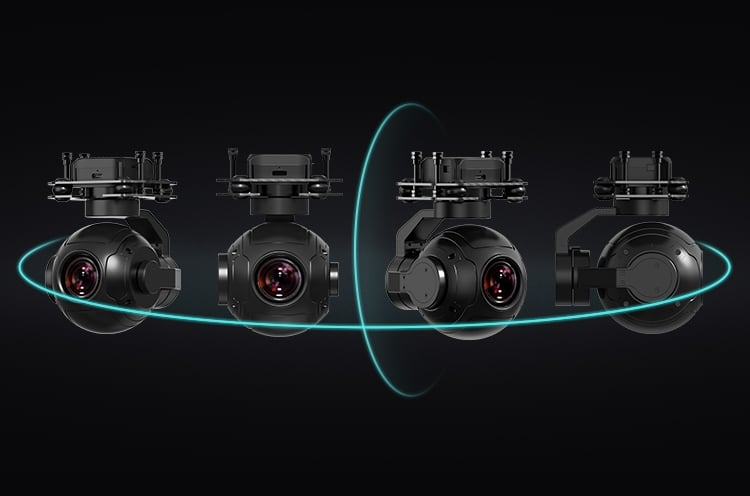

• Controllable pitch runs -90° to +25° (mechanical range -135° to +45°) and yaw -45° to +45° (mechanical -90° to +90°).

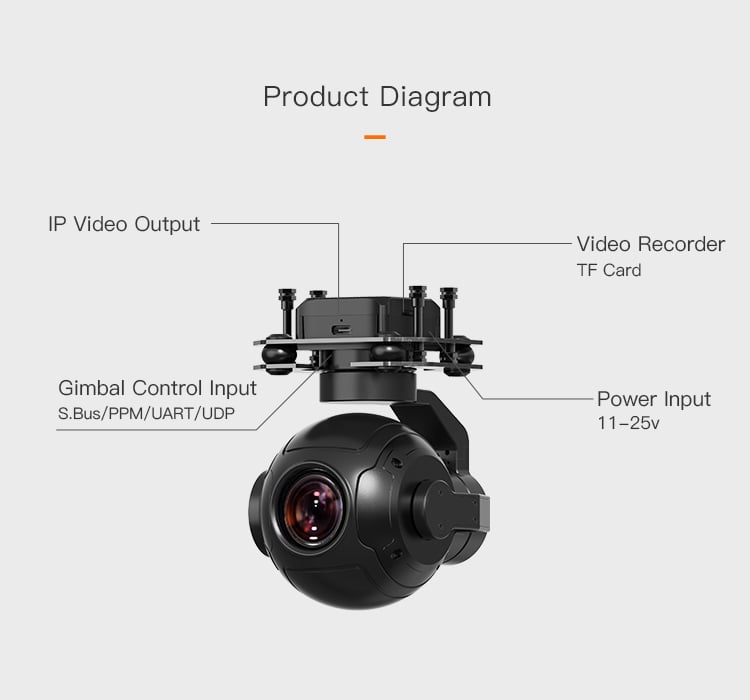

• Accepts S.Bus, PPM, UART or UDP control input and outputs video over Ethernet for a reliable link.

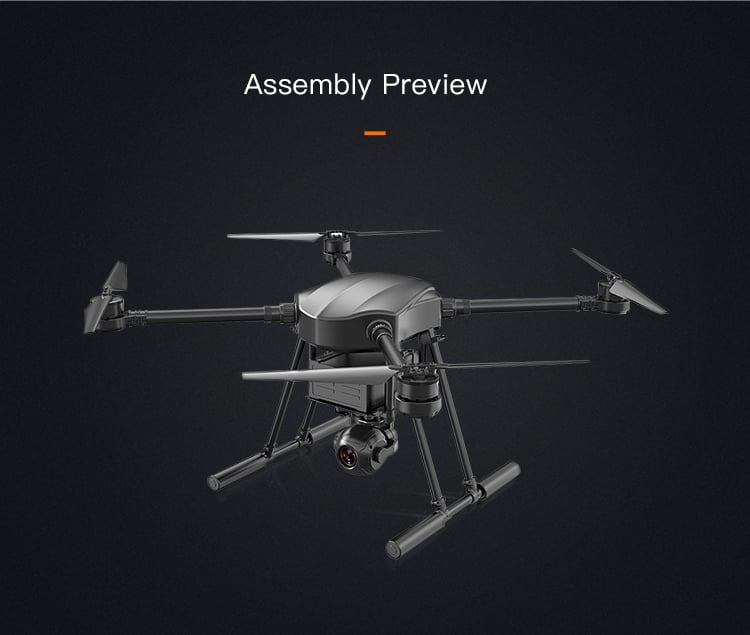

• Compatible with ArduPilot and PX4 (MAVLink) flight stacks for integration on UGV, USV and UAV payloads.

Specifications

• Zoom: 10x optical, 30x hybrid
• Sensor: 1/2.7-inch CMOS, 4MP effective
• Video: 2K (2560x1440) at 30fps, 12Mbps
• Aperture: F1.8-F2.5
• Focal length: 5.15mm-47.38mm
• Minimum focus distance: 200mm
• Field of view: 79.5° diagonal, 71.5° horizontal
• Storage: MicroSD Class 10, up to 128GB (FAT32)
• Working voltage: 11-25.2 V
• Working temperature: -10 to 50 C
• Protection rating: IP4X
• Dimensions: 121 x 101 x 78 mm
• Weight: 381 g

Suits builds that already carry the power, mounting space and control link for a gimbal payload, rather than a standard fixed FPV camera.
