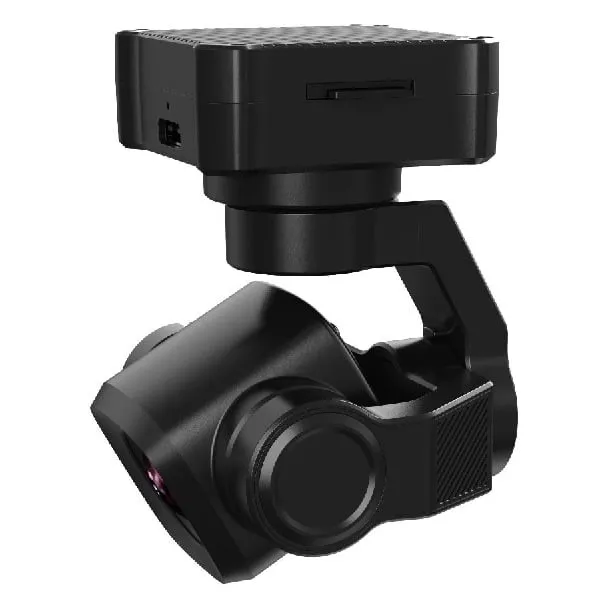

SIYI A8 Mini 4K 6X Digital Zoom 3-Axis Gimbal Camera
₹27,099Incl. GST
SKU SIYI-A8MINI
Brand: SIYIThermal: NoAxis: 3Made in India: No
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

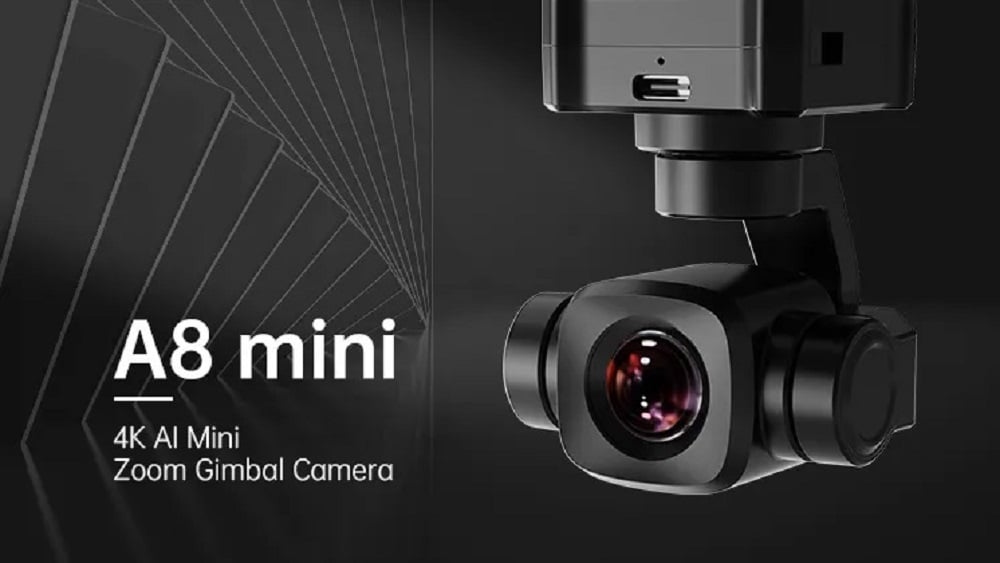

The SIYI A8 mini is a lightweight, 3-axis gimbal camera that brings 4K imaging to commercial multirotors without the weight penalty of full-size payloads. Weighing 95g, it captures ultra-high-definition video with up to 6X digital zoom, suiting aerial inspection, search and rescue, and enterprise builds running ArduPilot or PX4.
Key features
- Lightweight 95g payload footprint suited for compact enterprise or long-range VTOL frames
- 3-axis mechanical stabilisation for smooth, jitter-free video across a -135° to +45° pitch range
- Records 4K (4096x2160) video at 25fps alongside 8-megapixel stills on a 1/1.7-inch Sony sensor
- 6X digital zoom on a fixed 21mm-equivalent lens allows detailed remote inspection
- Flexible video output routing via Ethernet, Micro-HDMI, or CVBS
- Native control integration with ArduPilot and PX4 via UART and S.Bus
- AI object identification and tracking, with HDR and starlight low-light imaging
Specifications
- Input voltage: 11-25.2 V (3-6S LiPo)
- Weight: 95 g
- Dimensions: 55 x 55 x 70 mm
- Sensor: 1/1.7" Sony, 8 MP effective
- Video resolution: 4K @ 25fps / 1080p @ 25fps
- Zoom: 6X digital
- Gimbal axes: 3 (Pitch, Roll, Yaw)
- Gimbal range: pitch -135 to +45 degrees, yaw +/-160 degrees, roll +/-30 degrees
- Power consumption: 5 W average, 12 W peak
- Waterproofing: IP4X
- Video output: Ethernet, Micro-HDMI, CVBS
- Control interface: S.Bus, UART, Ethernet UDP/TCP
- Supported firmware: ArduPilot, PX4
This payload suits fixed-wing VTOLs, agriculture drones, or compact quadcopters that need high-resolution inspection footage while keeping payload weight to a minimum.
| Brand | SIYI |
|---|---|
| Thermal | No |
| Axis | 3 |
| Made in India | No |
| Weight | 95 g |
| Input Voltage | 3–6S |
