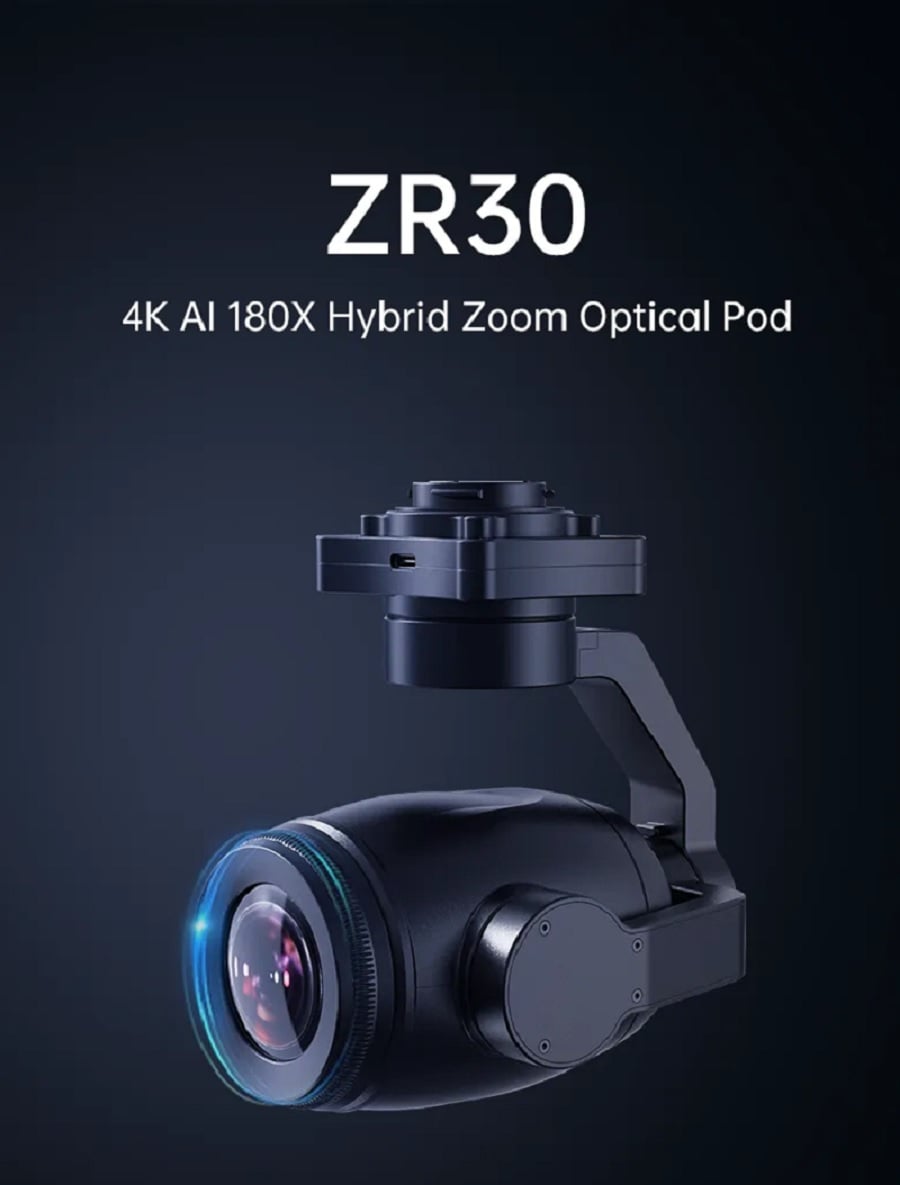

SIYI ZR30 4K 30x Optical Zoom 3-Axis Gimbal Camera

The SIYI ZR30 is an enterprise-grade 3-axis gimbal camera designed for inspection, surveillance, and heavy-lift UAVs. Built around a 1/2.8-inch Sony CMOS sensor, it delivers clear 4K footage and handles extreme long-range visual tasks through its powerful 30x optical zoom mechanism.

Key features

• Massive reach: Combines a 30x optical zoom with up to 180x digital zoom for precise detail retrieval at safe standoff distances.

• High-resolution imaging: Captures 4K video at 30 fps and 8.5-megapixel stills with excellent low-light performance.

• Advanced stabilisation: A brushless 3-axis gimbal ensures rock-solid tracking and footage retention during aggressive flight manoeuvres or high winds.

• Flexible integration: Interfaces seamlessly with commercial flight controllers via S.Bus, UART, and Ethernet (UDP/TCP).

Specifications

• Sensor: 1/2.8" Sony CMOS (8.5 MP)

• Video resolution: 4K @ 30 fps, 1080p @ 60/30 fps

• Zoom: 30x optical, 180x digital

• Input voltage: 11–25.2 V (3-6S)

• Control interfaces: S.Bus, UART, UDP, TCP

• Video output: Ethernet, Micro-HDMI

• Weight: 689 g

• Dimensions: 132 x 100 x 149 mm

Fully compatible with ArduPilot and PX4 ecosystems, the ZR30 is an ideal payload for search-and-rescue, power line inspection, and agricultural monitoring platforms.
