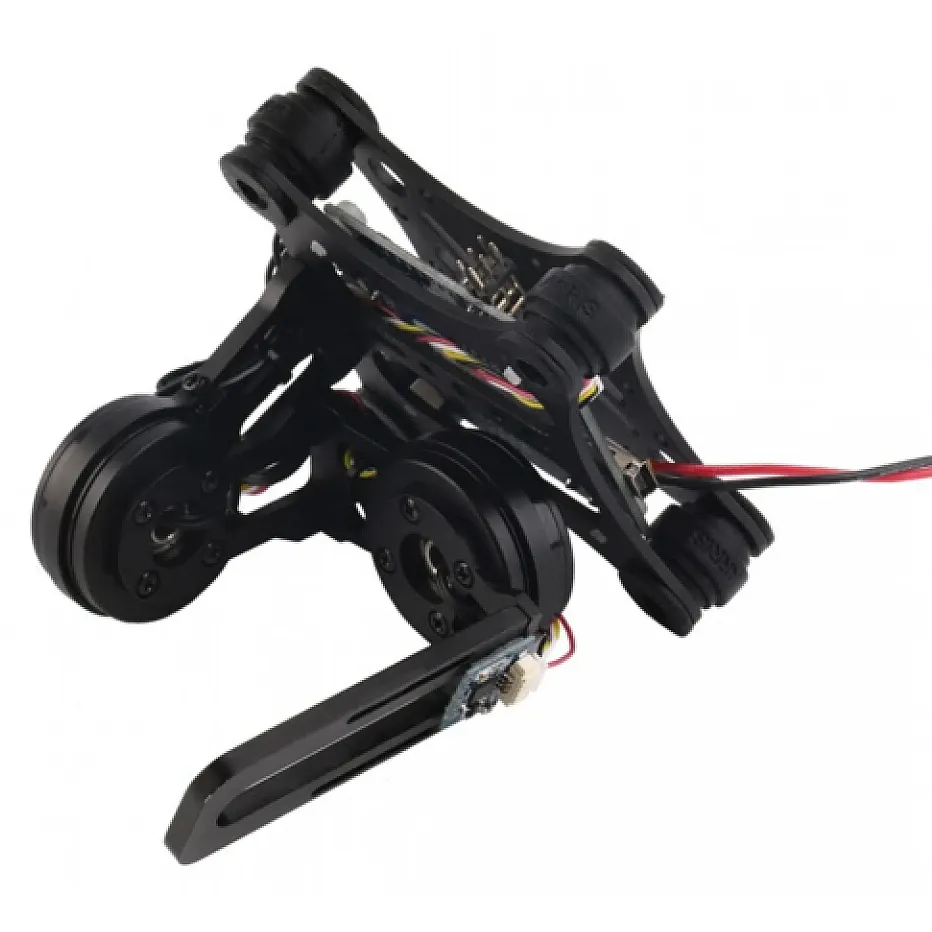

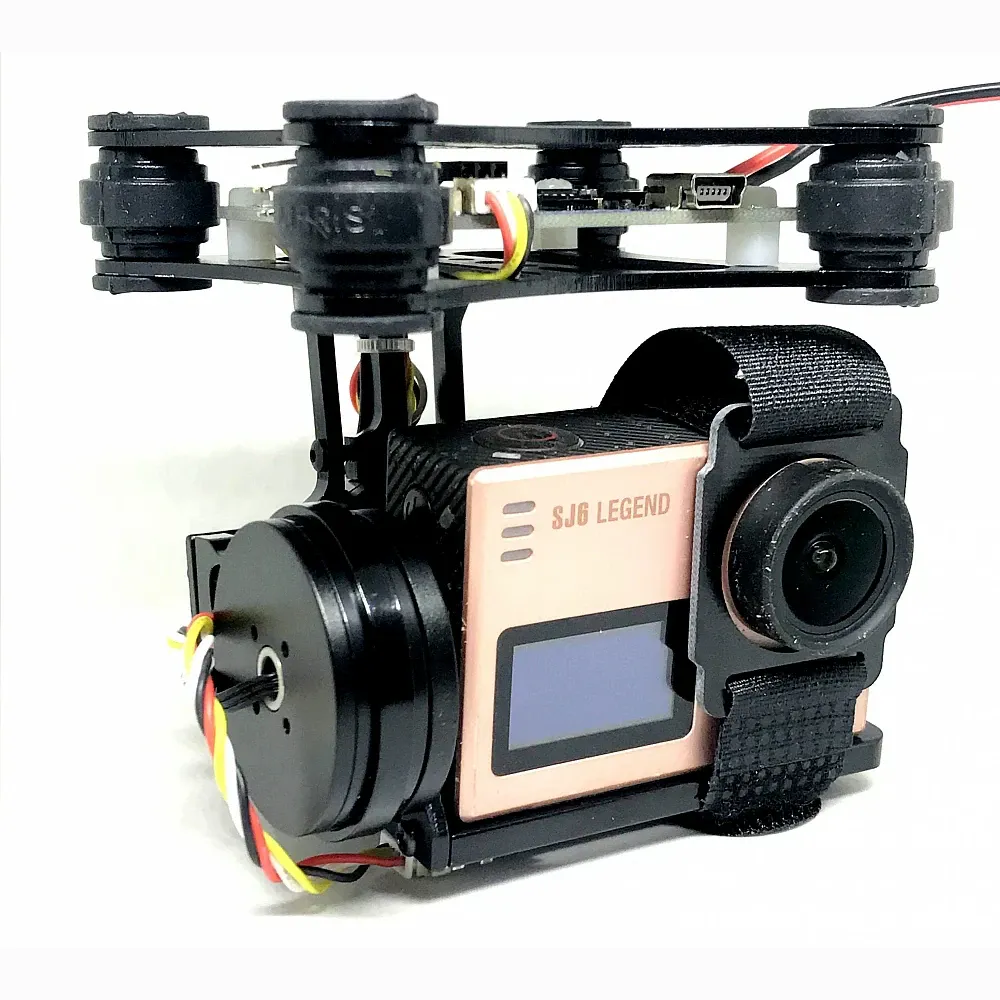

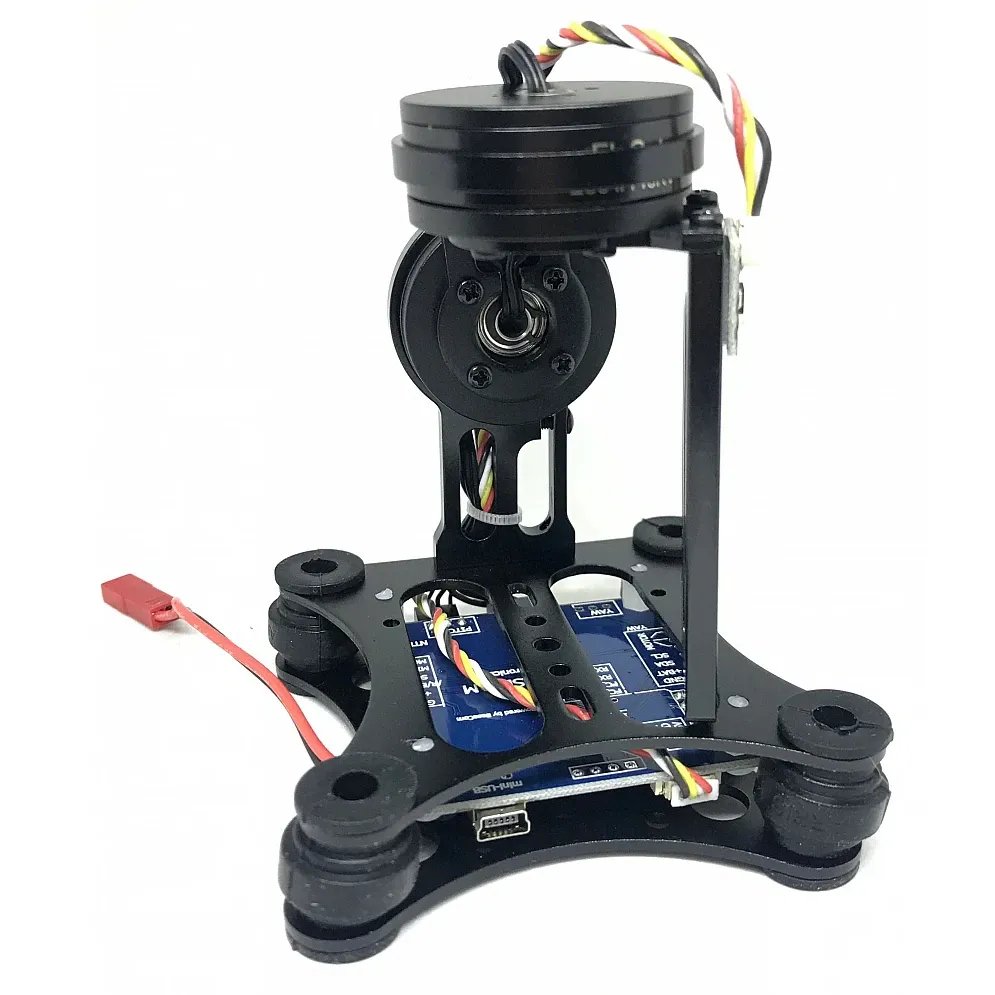

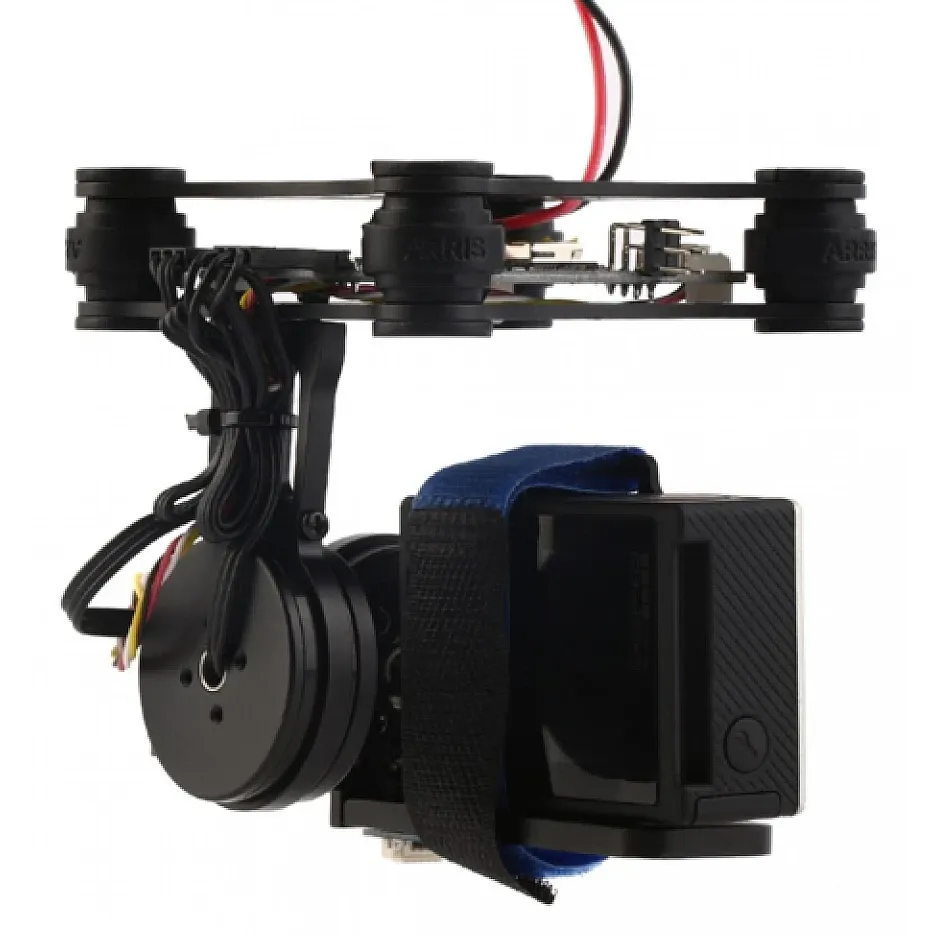

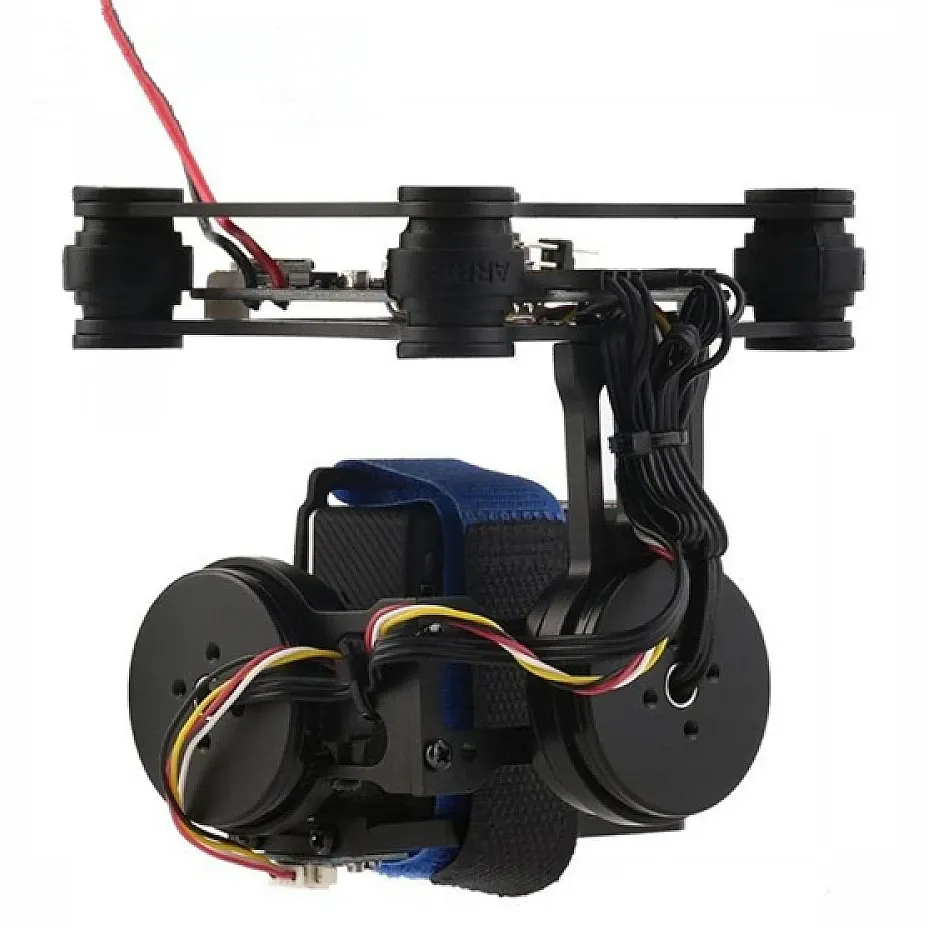

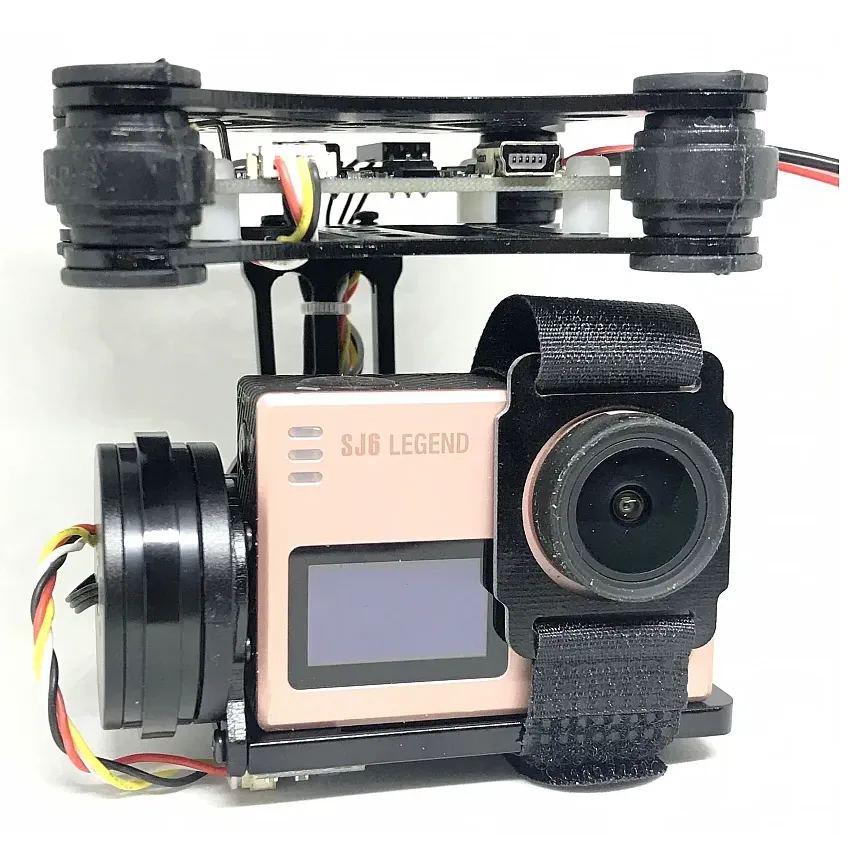

2-Axis Brushless Camera Gimbal with Controller and 2208 Motors

Ready-assembled two-axis brushless gimbal that stabilises a small action camera under a multirotor, holding pitch and roll level while yaw follows the aircraft. The motors come fitted and the controller is already soldered, programmed and set up, so it only needs mounting, a camera and power.

Key features

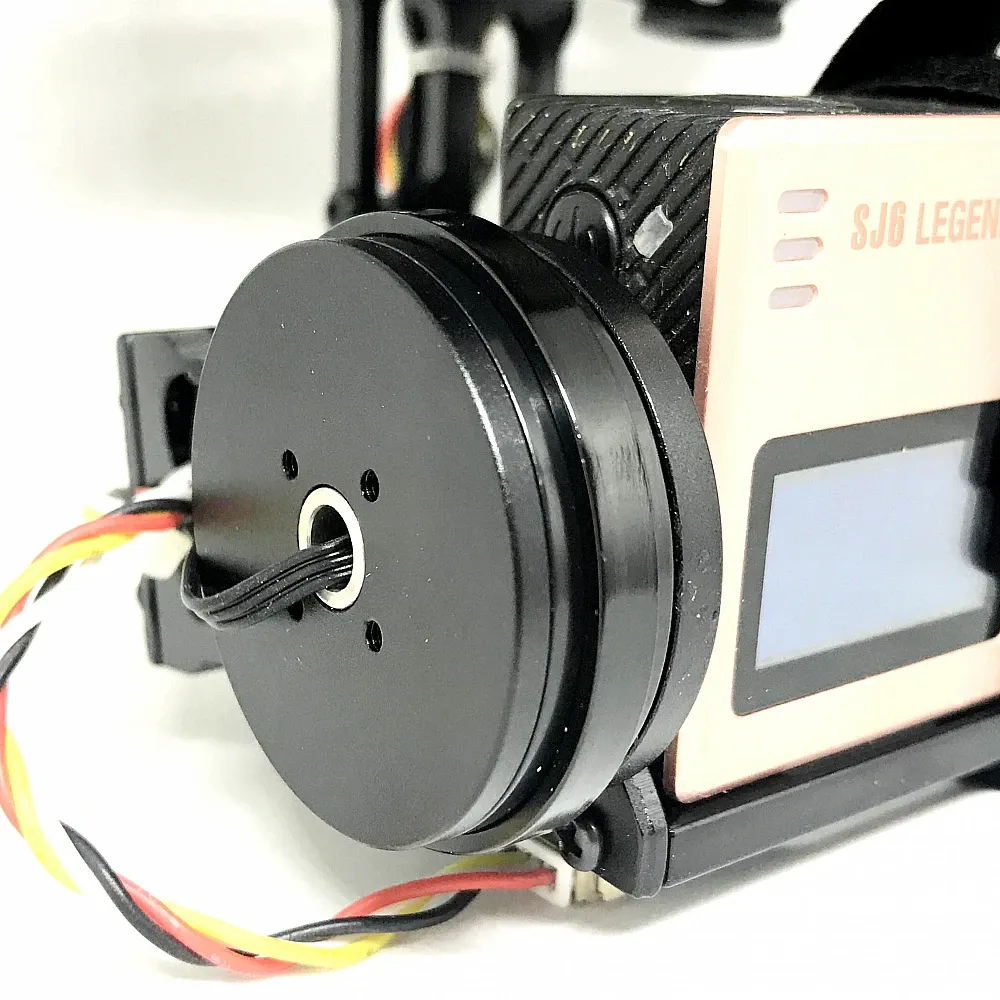

• Two 2208 brushless motors in direct drive, with motor protectors that also aid heat dissipation
• CNC aluminium alloy frame, simple in structure and light
• Adjustable anti-vibration rubber balls isolate the camera from frame vibration
• Controller ships preloaded with default firmware and settings
• Mounts on the supplied 10mm rail hooks or bolts straight to the frame on spacers

Specifications

• Axes: 2 (pitch and roll)
• Motors: 2 × 2208 brushless, direct drive
• Frame: CNC aluminium alloy
• Mounting: 10mm rail hooks or frame spacers
• In the box: assembled gimbal with both motors, gimbal controller (soldered and programmed)

To calibrate, fit the camera, fix the gimbal under the frame or on a flat surface and power it up, then leave it untouched for about a minute until it beeps; it will not calibrate held in your hand. Do not flash or update the controller firmware, as newer firmware can break the PC connection. Camera not included.
