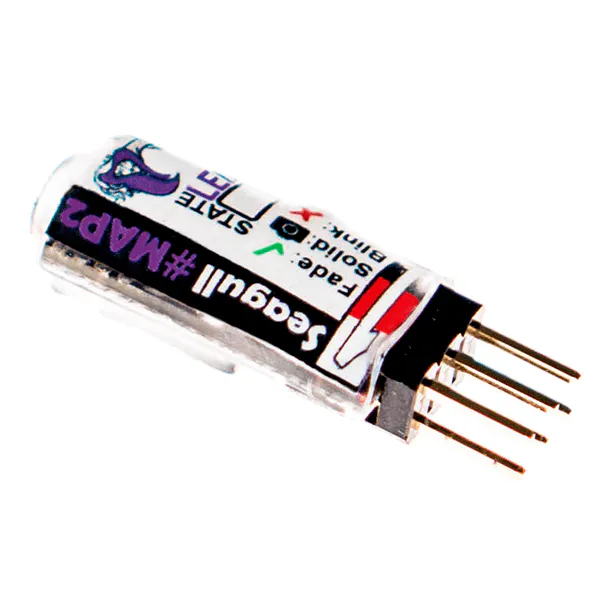

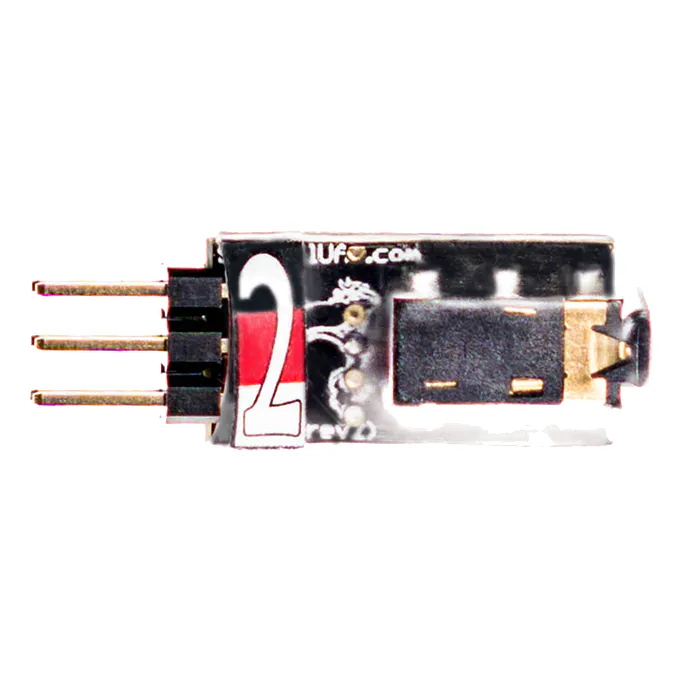

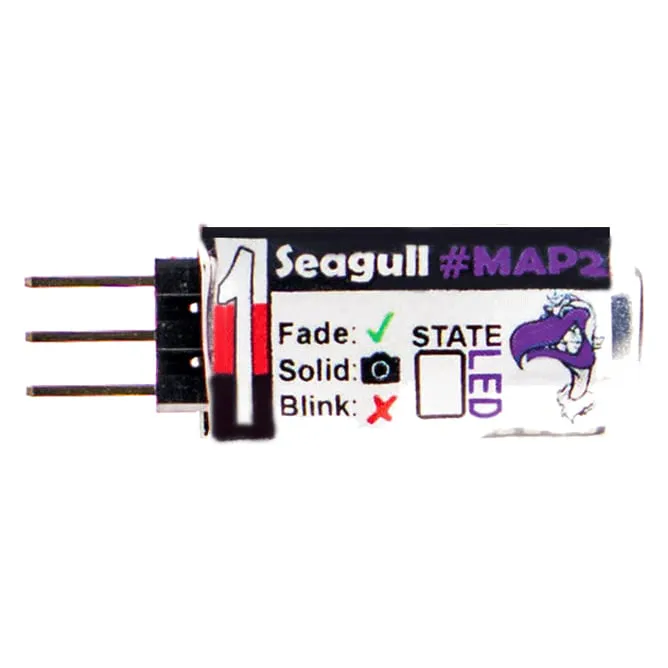

Seagull UAV MAP2 Camera Controller

Seagull #MAP2 is a compact camera trigger for mapping, survey and aerial photography drones, letting a flight controller or RC transmitter fire the camera shutter automatically or on demand.

Key features

• Triggers Sony, Nikon, Olympus, Canon and other camera brands over a standard PWM signal
• AF-T mode pre-focuses before triggering; IS-T fires as soon as focus locks
• Timelapse mode releases the shutter at a set interval; Keep-alive mode stops a Sony QX1 powering off
• Works with Pixhawk 1/2.1, Pixracer, APM 2.5/2.6, DJI Wookong, DJI A2/A3 and other flight controllers with camera support
• Tiny 28.6 x 10.3 x 7.7mm board weighing just 1.6g, around 12g complete with cables
• Runs from 3.5–5.5V (5V recommended) at 21.75mA maximum draw

Specifications

• Weight: 1.6g (about 12g with cables)
• Dimensions: 28.6 x 10.3 x 7.7mm
• Input voltage: 3.5–5.5V
• Current draw: 21.75mA max
• Input signal: R/C PWM, 1000–2000μs

Includes two 30cm servo cables, so it wires straight into a receiver channel or a flight controller's camera output.
