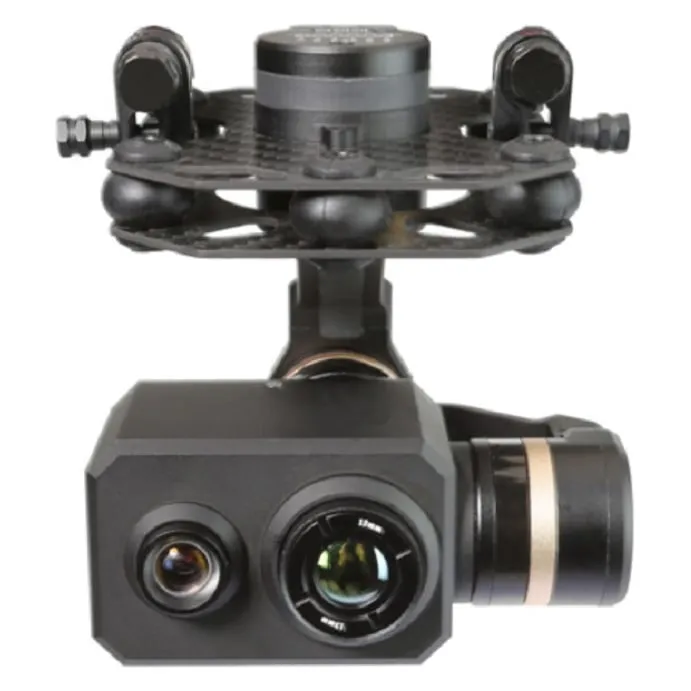

Tarot TL3T21 3-Axis Dual-Sensor Gimbal Camera (640x512 Thermal)

The Tarot TL3T21 is a professional 3-axis stabilized dual-sensor gimbal designed for enterprise, inspection, and search-and-rescue UAV platforms. By integrating a high-resolution 640x512 thermal imaging core with a high-definition visible-light camera, it allows pilots to seamlessly monitor heat signatures and visual details in real time without carrying multiple independent payloads.

Key features

• Integrates a 640x512 uncooled thermal sensor alongside a high-definition visible camera for comprehensive dual-spectrum aerial monitoring.

• Advanced 3-axis mechanical stabilization ensures smooth, jitter-free footage during high-speed forward flight or turbulent conditions.

• Supports multiple thermal colour palettes to highlight specific temperature profiles for accurate field analysis.

• Designed for seamless integration with standard flight controllers, accepting conventional PWM signals for precise pitch, roll, and yaw control.

Specifications

• Thermal resolution: 640x512

• Stabilization: 3-axis (pitch, roll, yaw)

• Control protocols: PWM

• Sensor payload: Uncooled thermal & visible light

• Visible camera: 1280 x 720

• Thermal optics: 33 x 26 degree field of view, 12 um pixel pitch, athermalised focus, 50 Hz

• Video output: analogue AV (PAL); no onboard recording

• Input voltage: 3-6S LiPo (11-26 V)

• Rotation range: pan +/-125 degrees, tilt -120 to +80 degrees

• Control accuracy: +/-0.02 degrees

• Construction: CNC-machined aluminium alloy

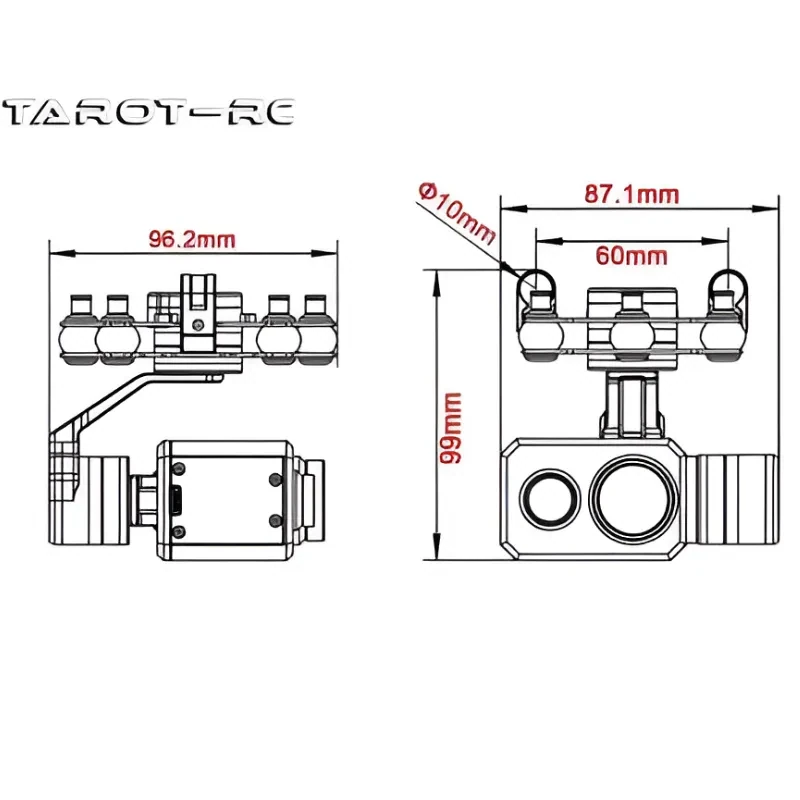

• Dimensions: 96 x 80 x 99 mm

Ideal for heavy-lift multirotors and VTOL fixed-wing builds deployed in power line inspections, night-time surveillance, and agricultural surveying where dual-spectrum imaging is a strict requirement.
