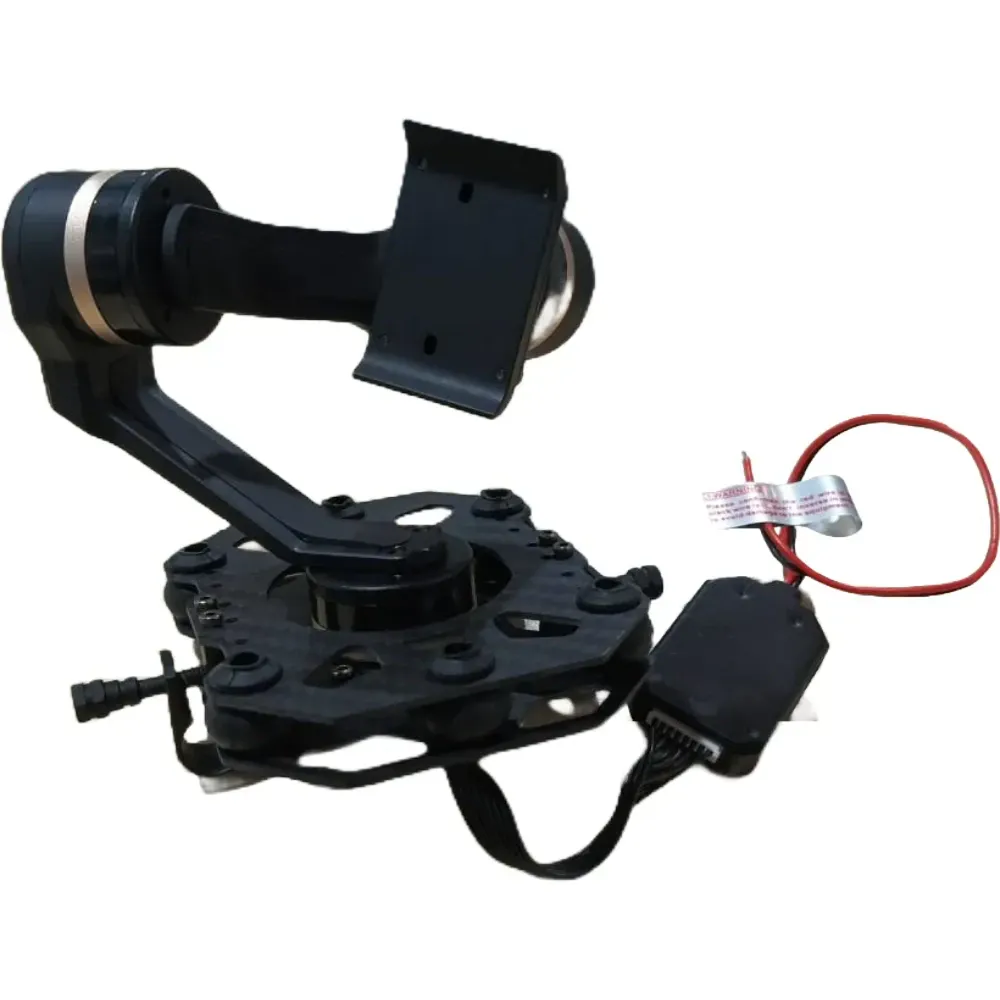

Tarot TL03FLIR 3-Axis Thermal Imaging Gimbal for FLIR Vue PRO

Tarot TL03FLIR is a metal three-axis gimbal for FLIR Vue PRO thermal cameras. It suits drone payloads that need stabilised thermal imaging during flight.

Key features

• Three-axis stabilisation: The gimbal is built to keep the supported camera stabilised across three axes.
• Thermal payload support: Intended for aerial thermal imaging applications.
• FLIR Vue PRO compatibility: Designed specifically around FLIR Vue PRO thermal cameras.
• Metal construction: The metal body provides the stated structural platform for the camera mount.

Specifications

• Axes: 3
• Camera: FLIR Vue PRO 320 / 640 thermal camera (not included)
• Construction: Metal
• Application: Thermal imaging
• Input voltage: 3-6S LiPo (11-26 V)
• Working current: 30 mA at 25 V / 50 mA at 12 V
• Control accuracy: +/-0.02 degrees
• Rotation range: pan +/-125 degrees, tilt -120 to +80 degrees, roll +/-50 degrees
• Max rotation speed: +/-200 degrees/s on each axis
• Receiver input: S-Bus, PPM, DSM
• Modes: Pan Follow and FPV, built-in IMU control module
• Dimensions: 85 x 100 x 101 mm (with camera)
• Weight: 310 g

The listed camera compatibility is FLIR Vue PRO; verify mounting and payload integration before pairing the gimbal with another camera.
