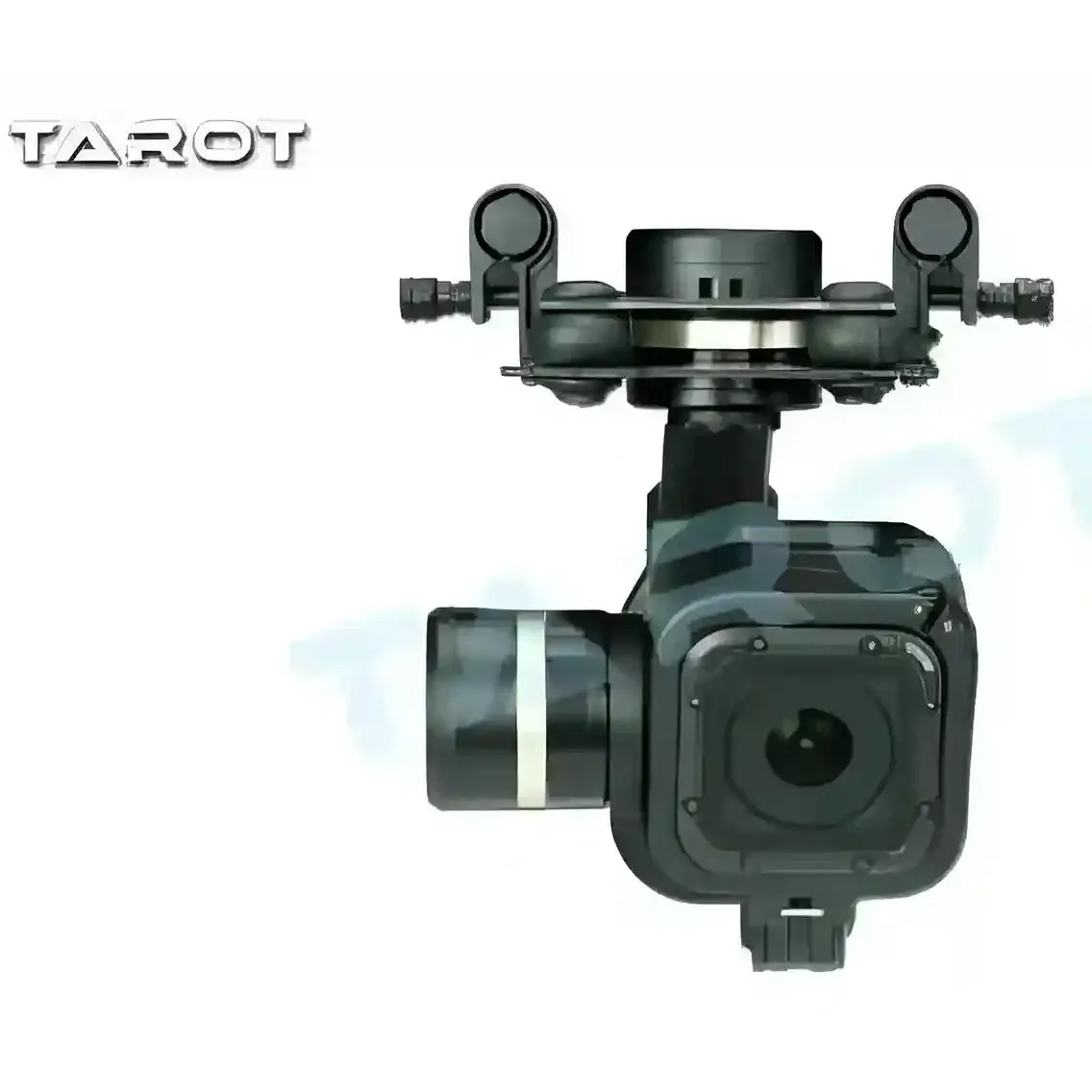

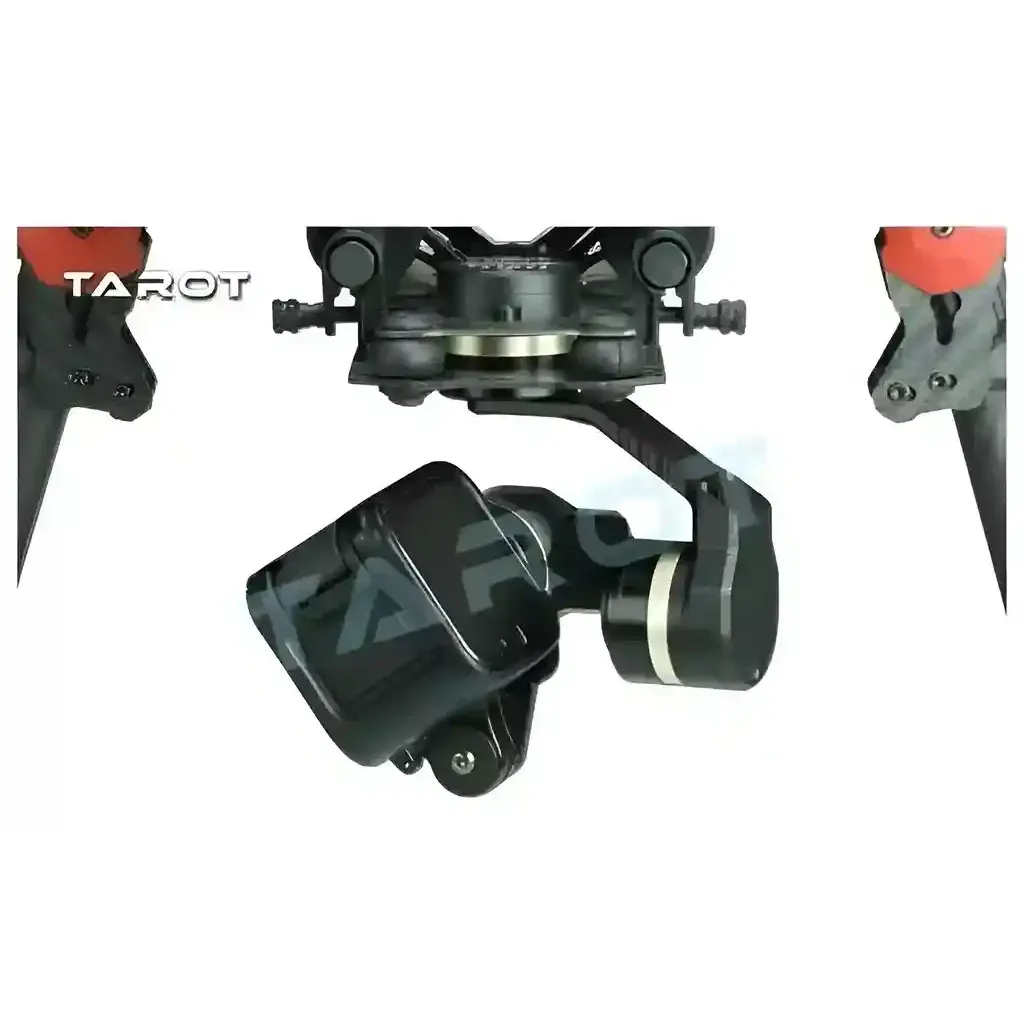

Tarot T-3D Metal 3-Axis Brushless Gimbal for GoPro 4 Session TL3T02

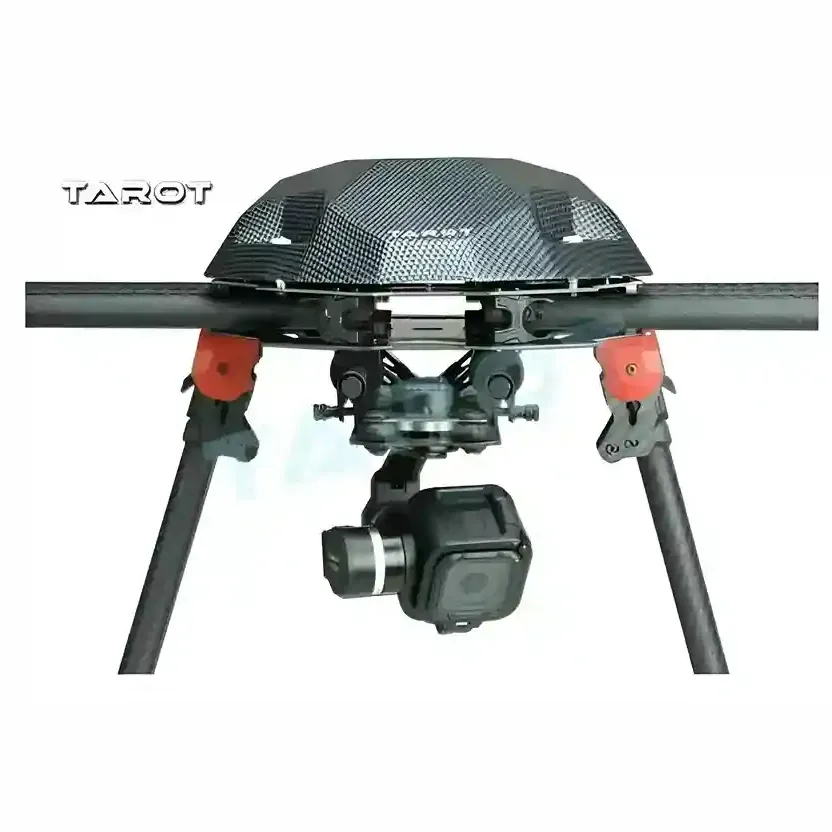

The Tarot T-3D (TL3T02) is a three-axis brushless gimbal built for the compact GoPro HERO4 Session, and it also fits the identically sized HERO Session. Its CNC-machined aluminium alloy frame stays light while holding the camera steady on multirotors flown for aerial photography, videography, survey and inspection work.

Key features

• Stabilises pan, tilt and roll to remove vibration and unwanted camera movement, even during aggressive manoeuvres
• Three operating modes: Follow (PF), Lock (AL) and FPV, so camera behaviour can match the flight
• Runs directly from a 3S–6S LiPo flight pack (11–26 V) with a low power draw
• Integrated Tarot servo drive module with ±0.02° attitude control accuracy

Specifications

• Axes: 3 (pan, tilt, roll)
• Camera: GoPro HERO4 Session / HERO Session
• Input voltage: 3S–6S LiPo (11–26 V)
• Operating current: 30 mA @ 25 V / 50 mA @ 12 V
• Stall current: 350 mA @ 25 V / 700 mA @ 12 V
• Attitude accuracy: ±0.02°

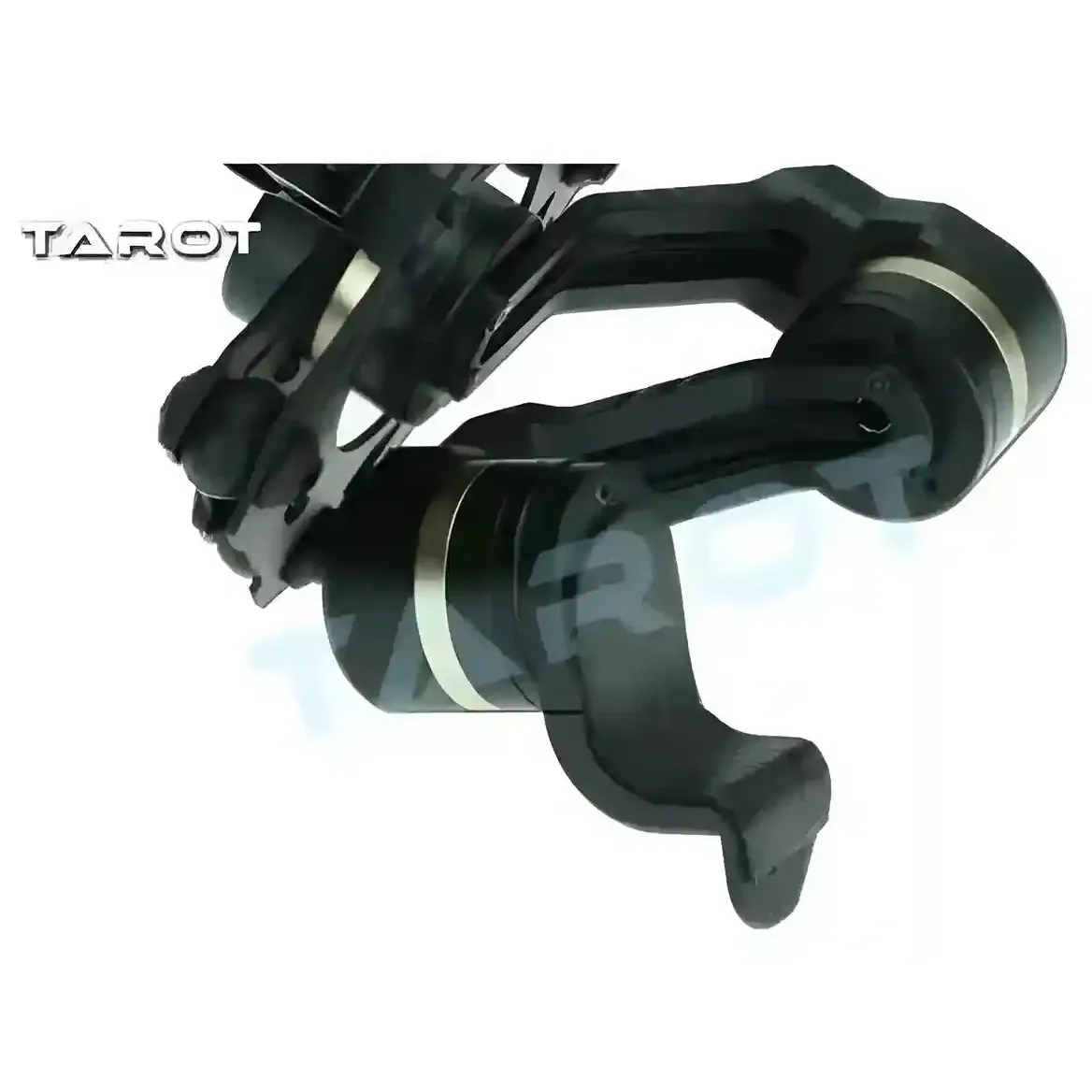

• Construction: CNC-machined aluminium alloy

The gimbal is supplied without a camera. Because it accepts 11–26 V, it can share the flight battery on any 3S–6S airframe with no separate regulator.
