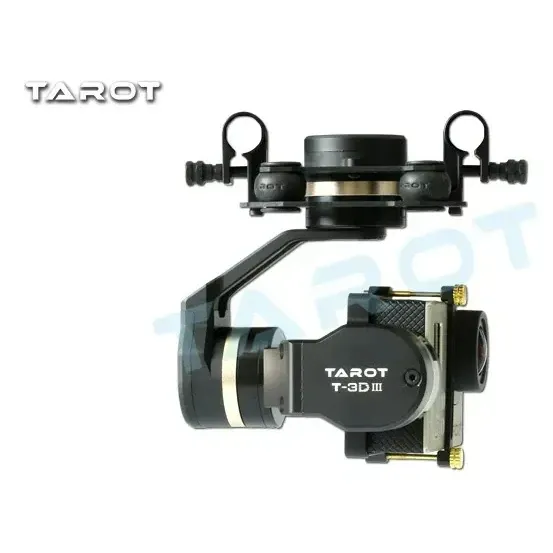

Tarot T-3D III 3-Axis Metal Gimbal for GoPro HERO3/3+/4 TL3T01

The Tarot T-3D III (TL3T01) is a full-metal three-axis brushless gimbal for GoPro HERO3, HERO3+ and HERO4 cameras, developed as an upgrade of the earlier T4-3D. It suits multirotors that need stabilised action-camera footage, and runs directly from a 3–6S flight battery.

Key features

• Fully CNC-machined ribbed structure for low weight with high rigidity, at 160 g complete
• Built-in Tarot servo drive module with ±0.02° attitude control accuracy
• Three modes: attitude lock (AL), point-follow (PF) and first-person (FPV)
• Accepts S.Bus, PPM or DSM receiver input for remote control, with settings adjusted through a computer interface
• Quick-install cradle shaped for the GoPro body

Specifications

• Compatible cameras: GoPro HERO3, HERO3+, HERO4
• Input power: 3–6S LiPo (11–26 V)
• Control accuracy: ±0.02°
• Max rotation speed: ±200°/s on pan, tilt and roll
• Pan range: ±330°
• Tilt range: -135° to +45°
• Roll range: ±48°
• Receiver input: S.Bus / PPM / DSM
• Operating temperature: -20°C to +50°C
• Dimensions: 60 × 75 × 100 mm
• Weight: 160 g

Only the HERO3, HERO3+ and HERO4 are listed as compatible; HERO5 and later bodies are a different size, so check your camera model before ordering.
