Tarot T4-3D Dual Suspension 3-Axis Gimbal for GoPro HERO3/4 TL3D02

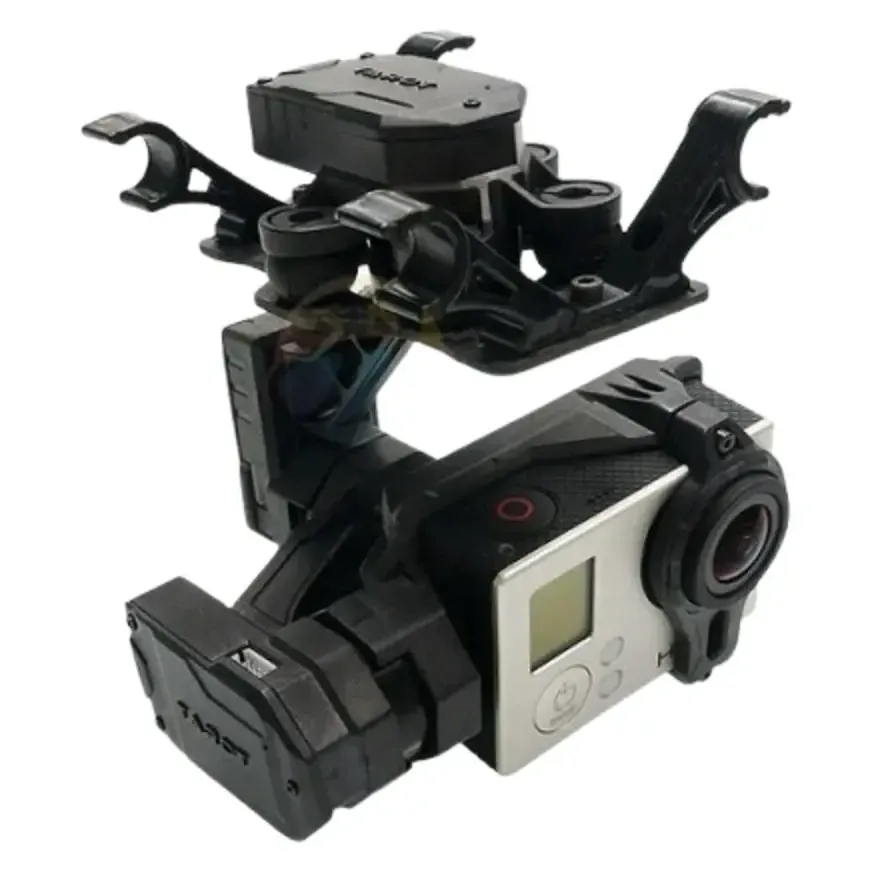

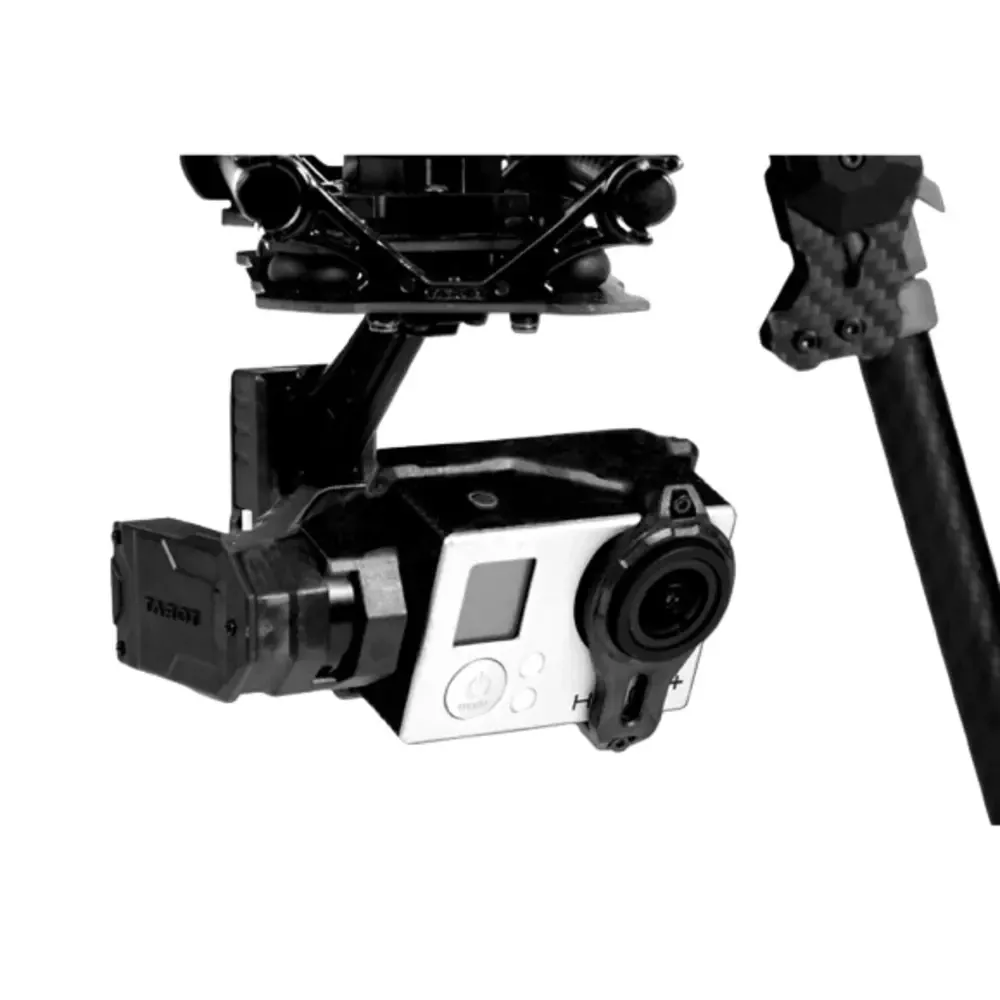

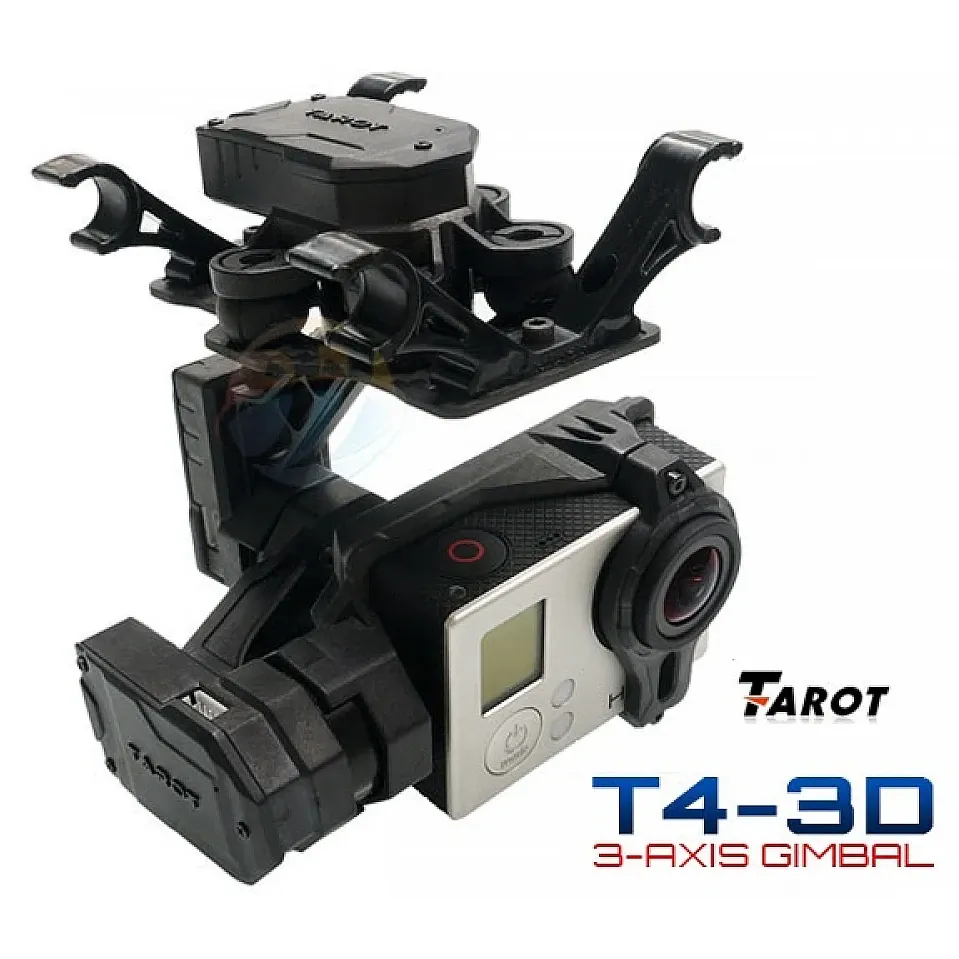

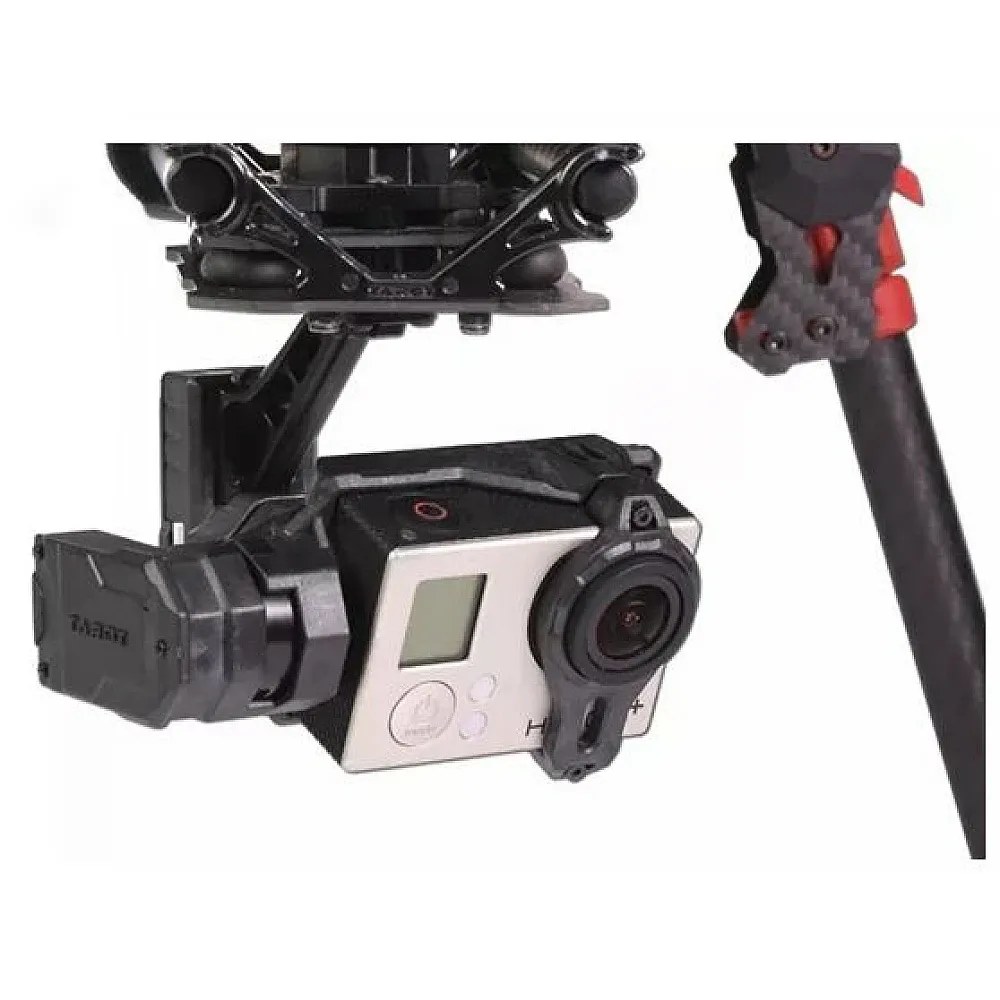

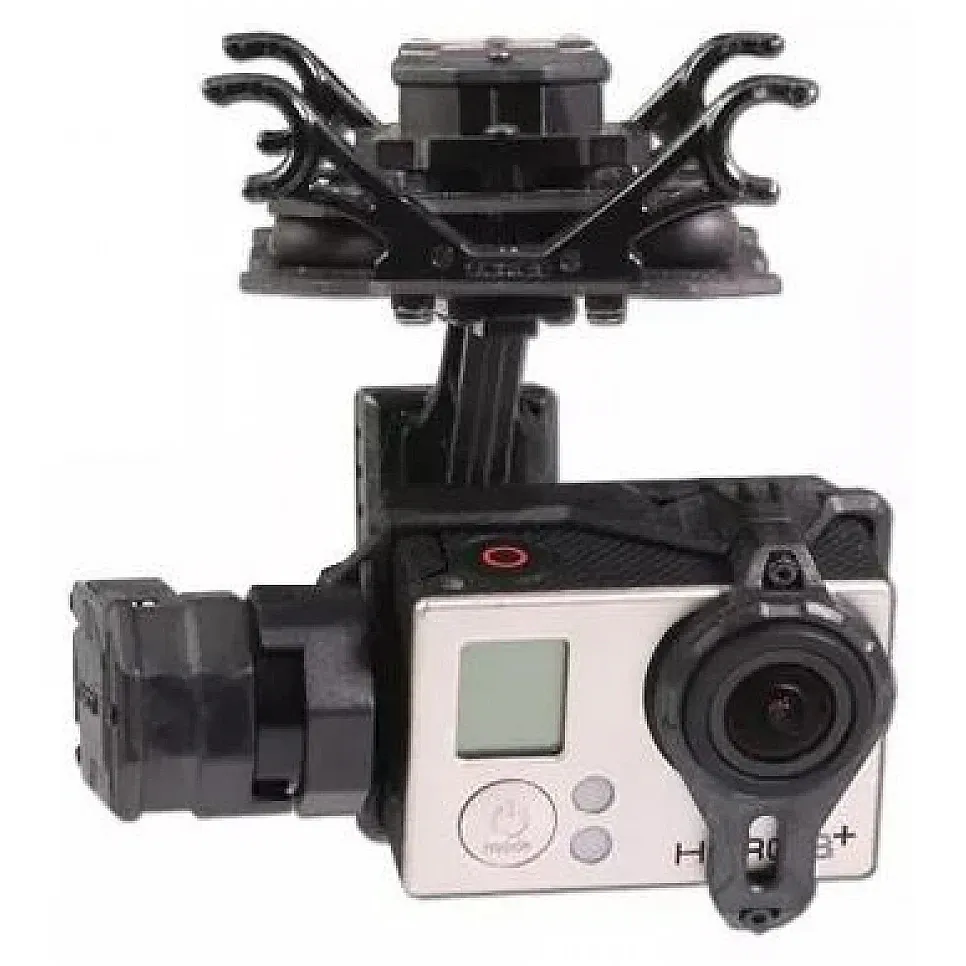

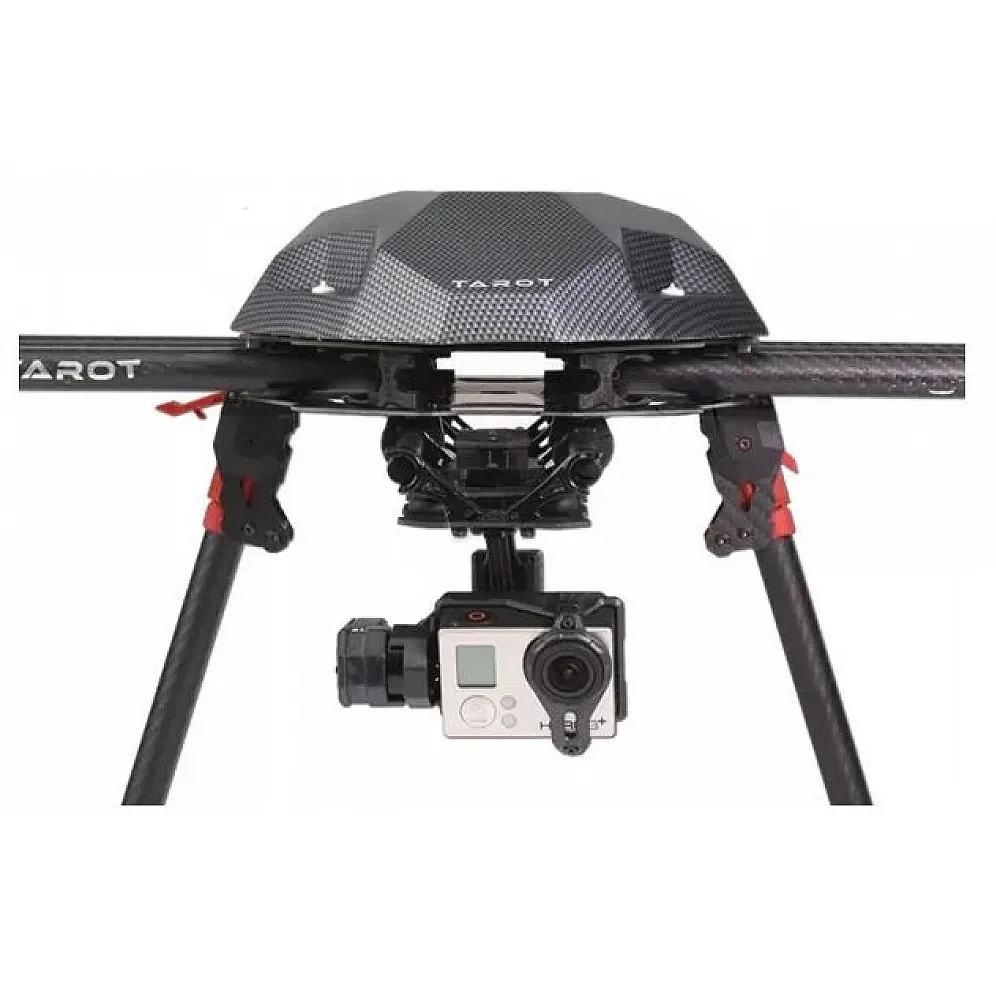

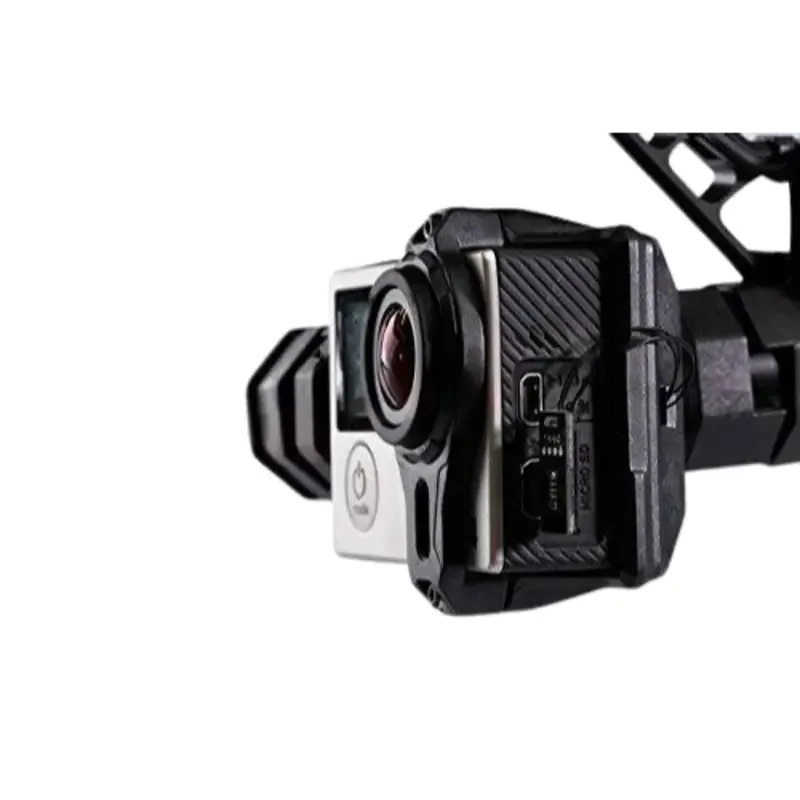

The Tarot T4-3D (TL3D02) is a self-stabilising three-axis gimbal for the GoPro HERO3, HERO4 and cameras of the same size. A dual shock-absorber suspension isolates the camera from airframe vibration, and the aluminium, carbon fibre and plastic structure keeps it to about 201 g. It suits multirotors, fixed-wing aircraft and helicopters flown for aerial video and photography.

Key features

• Built-in independent IMU module and Tarot's dedicated gimbal servo drive module
• Point-follow (PF) and first-person view (FPV) modes; axis speed follows how fast you move the stick
• Works with conventional PWM, S-Bus and DSM receivers
• AV output interface to pass the camera's video to a transmitter
• Power and signal wires run inside the structure; firmware upgradable through the Windows PC interface

Specifications

• Input voltage: 2S–6S LiPo (battery not included)
• Angle control accuracy: ±0.02°
• Max tilt speed: ±200°/s
• Tilt range: −120° to +15°
• Operating current: 30 mA @ 25 V / 50 mA @ 12 V
• Stall current: 350 mA @ 25 V / 700 mA @ 12 V
• Operating temperature: −20 °C to 50 °C
• Weight: approx. 201 g

The tilt range favours forward and downward views rather than looking up. No camera is included; fit a HERO3, HERO4 or a same-size action camera.
