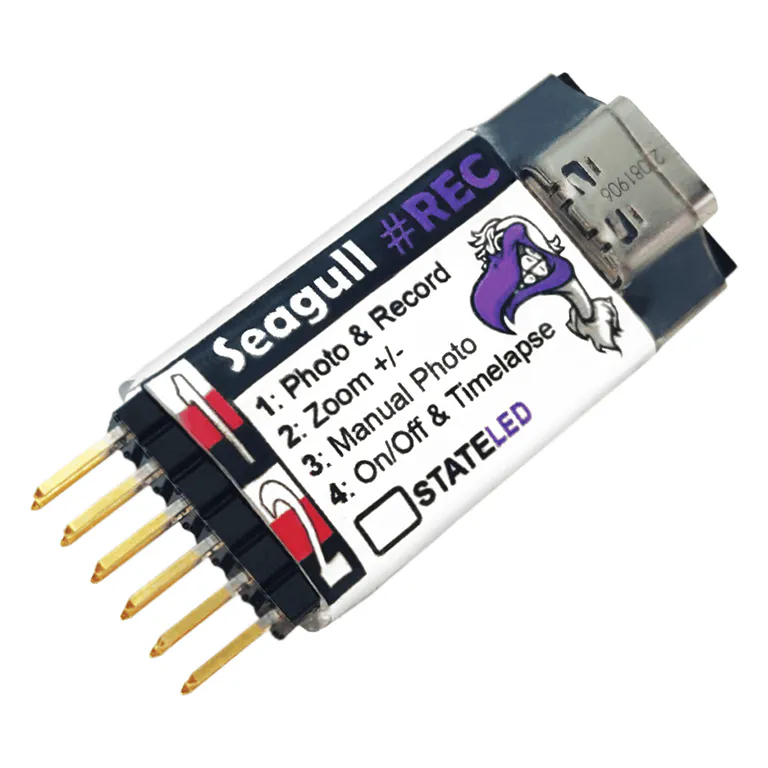

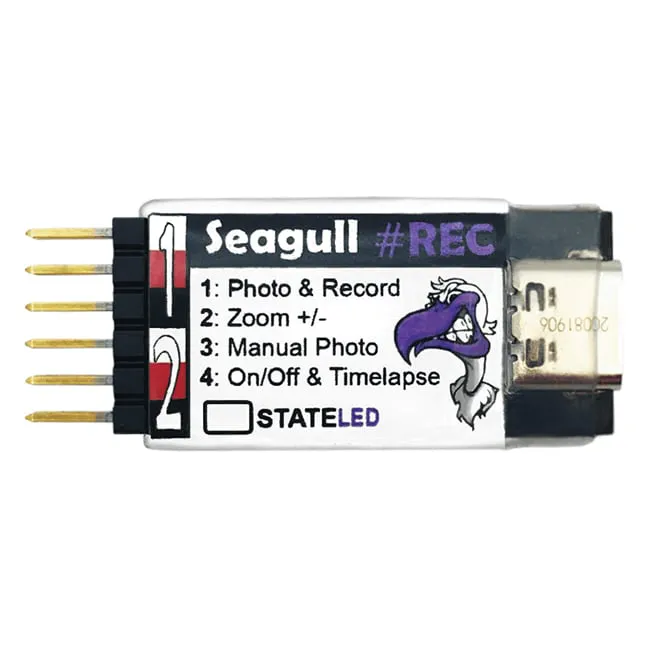

Seagull UAV #REC Camera Controller

The Seagull UAV #REC Camera Controller links a flight controller or RC receiver to a Sony MULTI-equipped camera, giving remote control over recording and photo functions during aerial photography and mapping flights.

Key features

• Controls video record start/stop, zoom, auto and manual photo modes, camera power and timelapse on compatible Sony cameras.
• Accepts a standard RC PWM servo signal (1000-2000us) from a receiver or flight controller channel.
• Works with Pixhawk and DJI flight controllers, plus standard RC radio systems.
• Wide 3.6-16V input range, with 5V recommended; can also be powered directly from the camera.
• Compact and light at 41 x 17.5 x 6.1mm and 4g, for easy fitting into a UAV camera bay.

Specifications

• Dimensions: 41 x 17.5 x 6.1mm
• Weight: 4g
• Input voltage: 3.6-16V (5V recommended)
• Current draw: 25mA average

Confirm your camera's MULTI-port compatibility and wire the input channel correctly before relying on it during a flight.
