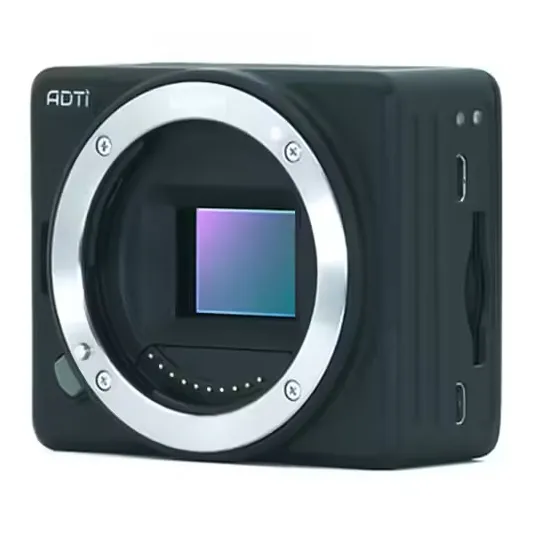

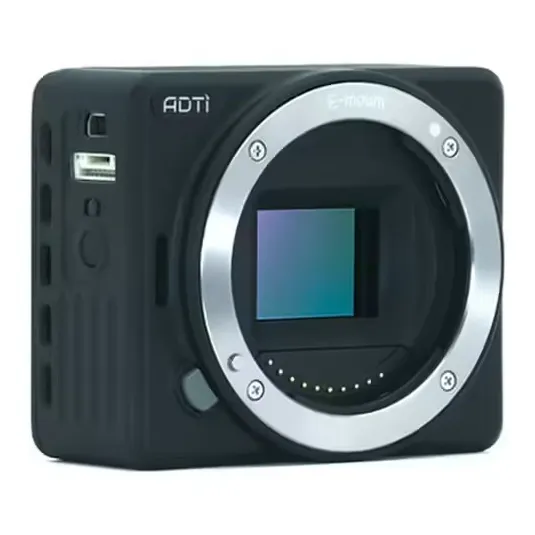

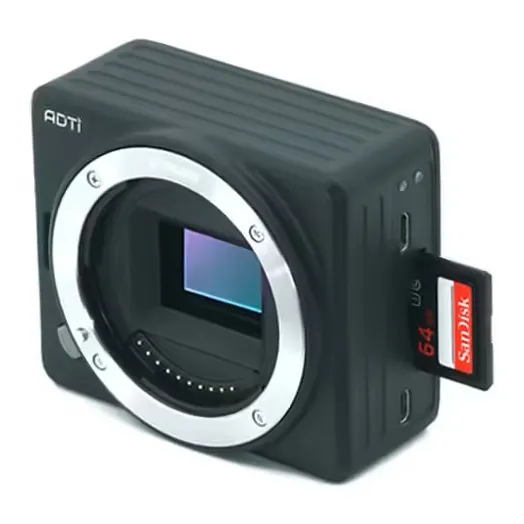

ADTi 20MP 20L V1 APS-C Drone Mapping Camera

The ADTi 20L V1 is a compact 20MP APS-C mapping camera for survey, agriculture and infrastructure-inspection drones. At 108 g it suits small multirotors and fixed-wing mappers where every gram of payload counts.

Key features

• Sony 20MP APS-C CMOS: 23.2 × 15.4 mm sensor with an approximate 4.25 µm pixel pitch.
• Sony E lens mount: takes ADTi's lightweight 16, 25 and 35 mm APS-C lenses as well as its full-frame range, so you can choose a focal length for your target ground sampling distance.
• Active cooling fan: keeps the camera from overheating on long mapping missions.
• Direct battery power: accepts 10–25 V DC from a LiPo or Li-ion pack.
• Gimbal-ready: compatible with the Gremsy Mio 2-axis and 3-axis gimbals.

Specifications

• Sensor: Sony CMOS, APS-C, 20MP effective
• Sensor size: 23.2 × 15.4 mm (357.3 mm²)
• Pixel pitch: approx. 4.25 µm

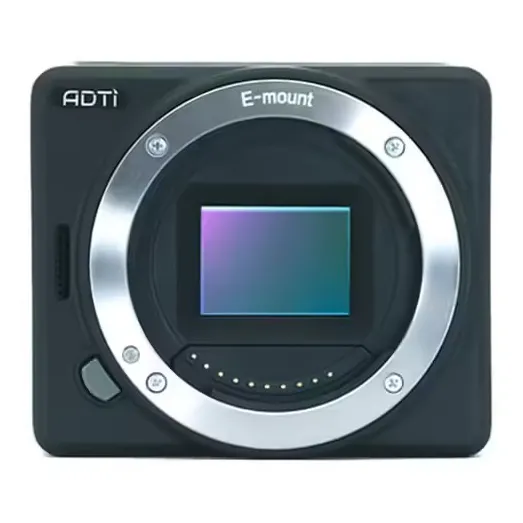

• Lens mount: Sony E
• Focus: autofocus and manual, 25 cm to infinity
• Power input: 10–25 V DC
• Recommended capture interval: 1.5 s
• Operating temperature: −10 to 40 °C
• Weight: 108 g
• Dimensions: 73 × 62 × 36 mm

Plan flight speed and trigger distance around the 1.5-second capture interval to keep the forward overlap your photogrammetry software needs. Settle the lens and gimbal before ordering, since focal length sets both ground sampling distance and total payload weight.
