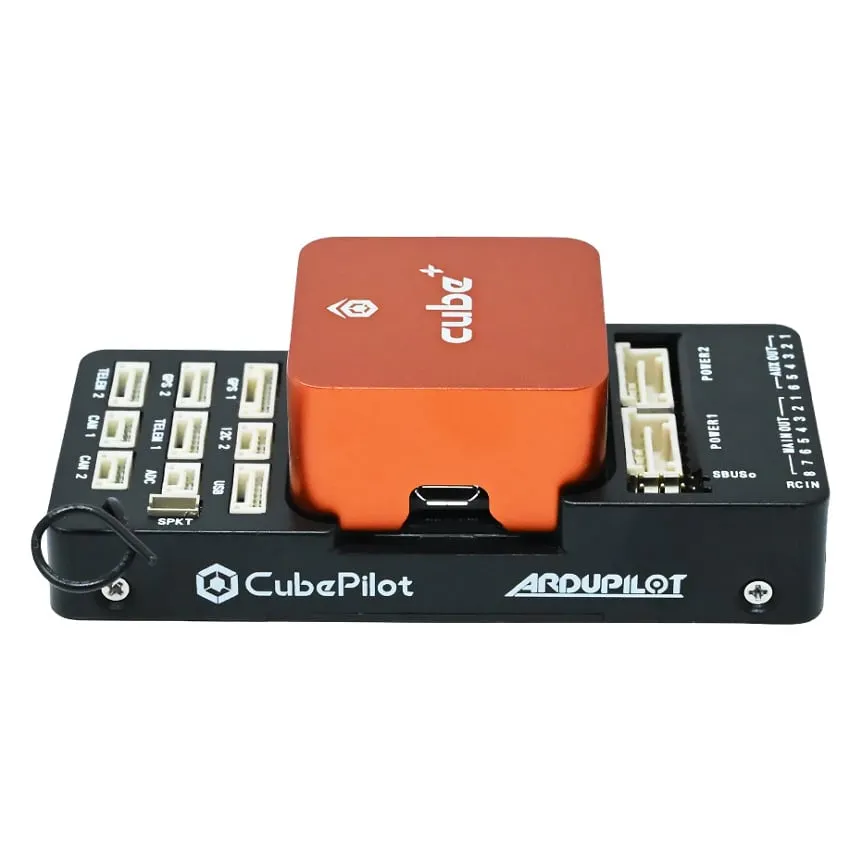

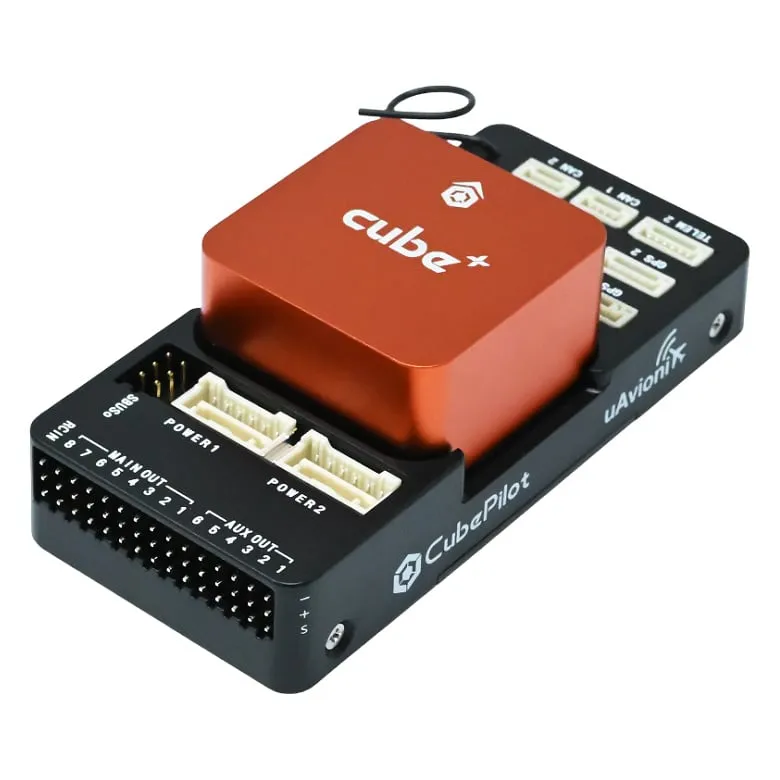

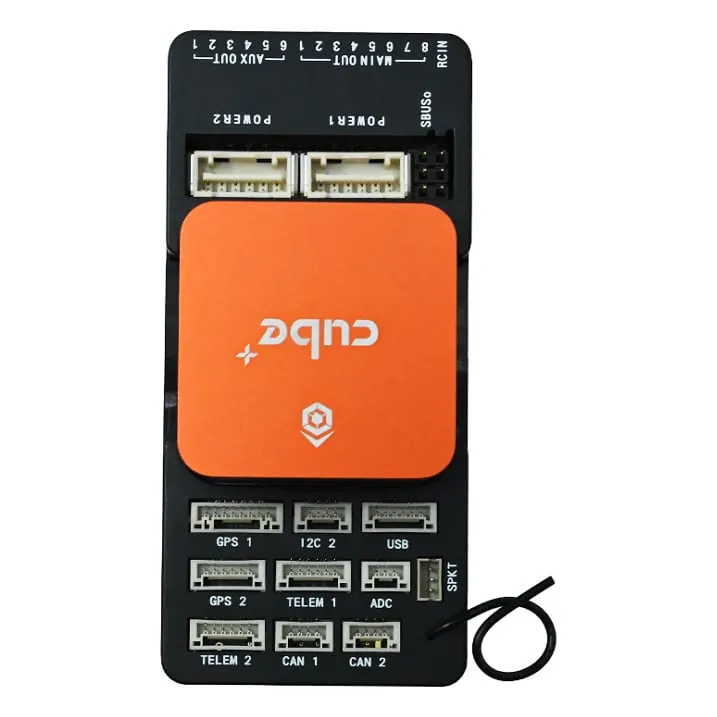

CubePilot Cube Orange+ Standard Set with ADS-B Carrier Board

The CubePilot Cube Orange+ Standard Set is a professional-grade flight controller ecosystem built for heavy-lift commercial drones, autonomous VTOLs, and agricultural UAVs. Driven by a high-performance dual-core H7 processor, it excels at handling complex autonomous missions and heavy peripheral loads. The included carrier board integrates an active uAvionix ADS-B receiver, reading 1090MHz broadcast signals from manned aircraft to enable automatic avoidance manoeuvres and secure your UAV in shared airspace.

Key features

• Dual-core STM32H757 processor (400MHz) ensures ample computational headroom for complex ArduPilot and PX4 scripting.

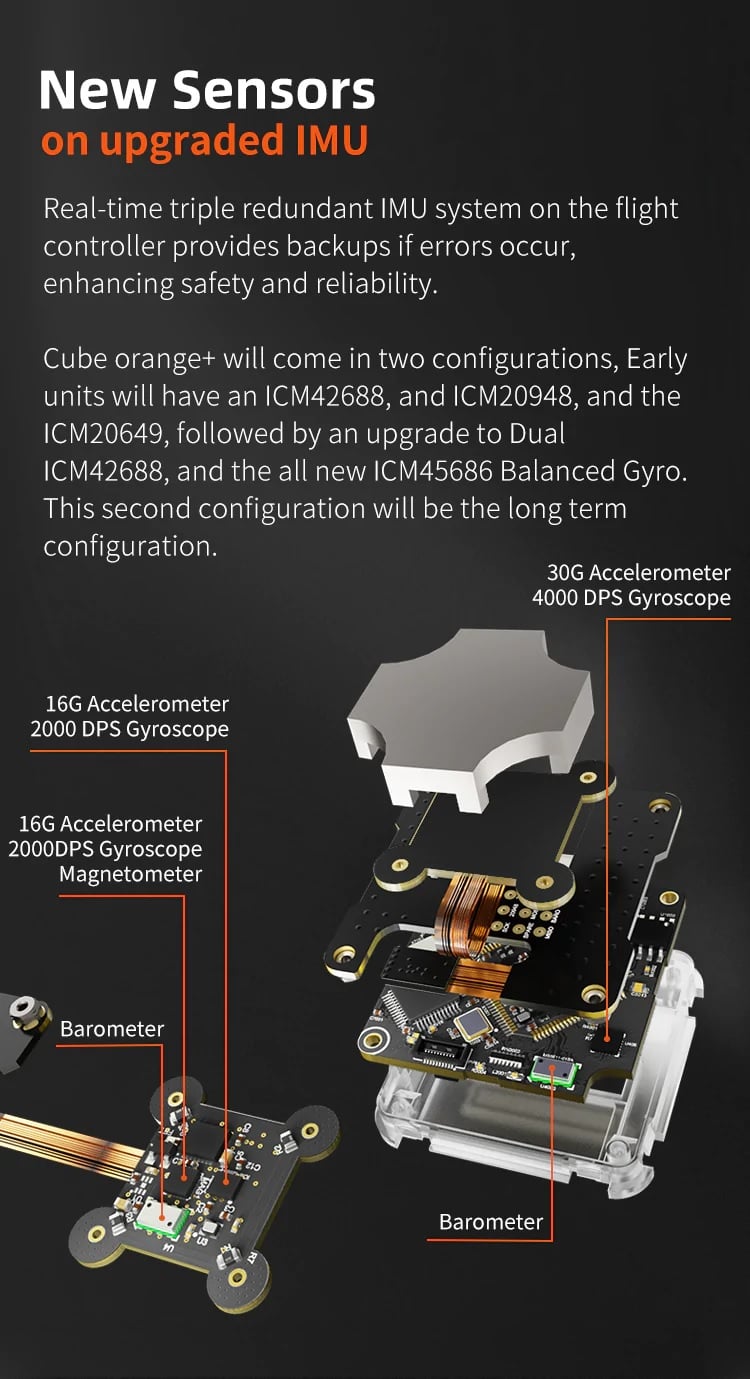

• Triple-redundant, vibration-isolated IMU system with active heating guarantees consistent sensor data in extreme temperatures and high-vibration airframes.

• Integrated 1090MHz uAvionix ADS-B receiver provides real-time situational awareness of nearby manned aviation.

• Extensive external connectivity including dual CAN bus ports for reliable integration of RTK GPS modules and smart batteries.

Specifications

• Processor: STM32H757 Dual-core Cortex-M7

• Sensors: Triple redundant IMUs, Dual MS5611 barometers

• Compass: built-in

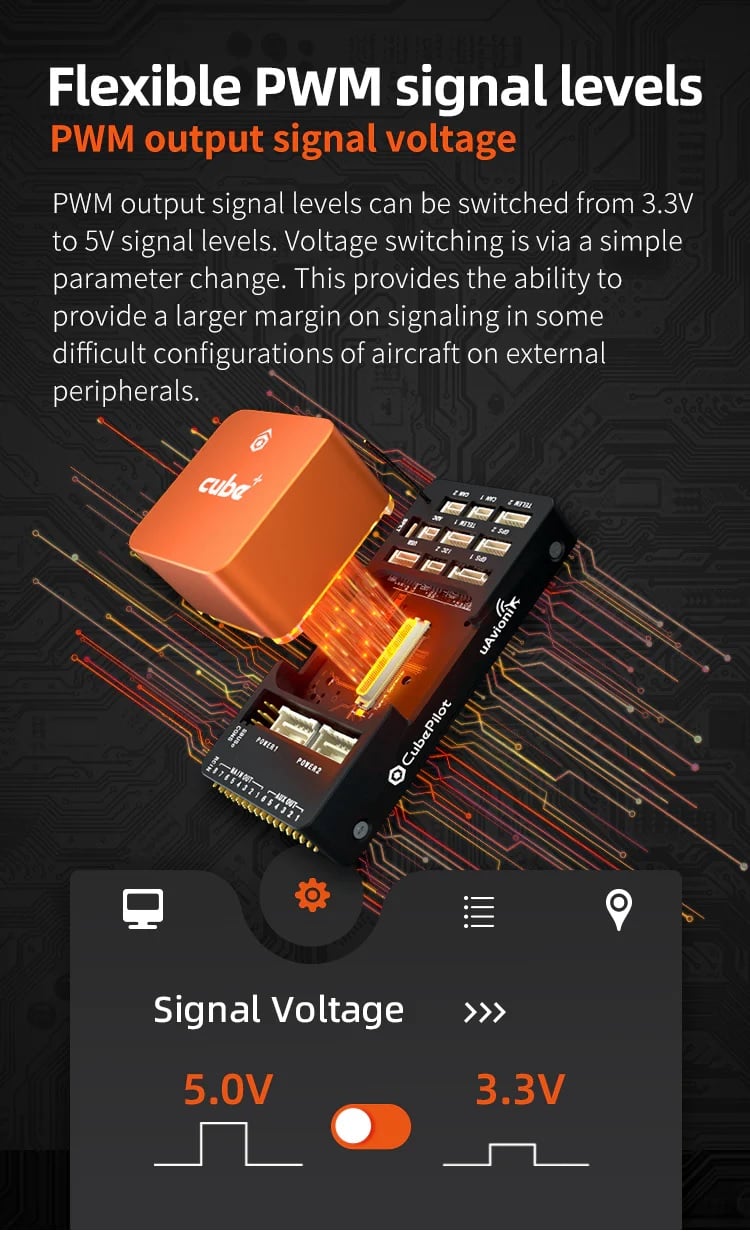

• Output channels: 14 PWM outputs

• Carrier board I/O: UART, I2C, SPI, dual CAN, ADC

• RC input: PPM, SBUS, DSM

• Power input: 4.1-5.7 V, 2.5 A

• Operating temperature: -10 to 55 °C

• Cube size: 38.4 x 38.4 x 22 mm

• Carrier board size: 94 x 44.3 x 7.3 mm

• Housing: CNC aluminium alloy cube, ABS carrier board; not waterproof

• Supported firmware: ArduPilot, PX4

• Airspace safety: 1090MHz ADS-B In (uAvionix)

• In the box: Cube Orange+, ADS-B carrier board, Power Brick Mini and cable, I2C board, buzzer cable, 2x CAN cables, GPS1 cable, micro USB cable, 2x I2C cables, 4x mounting screws, 3M stickers

This system is the definitive choice for enterprise builders and commercial operators where hardware redundancy, sensor stability, and regulatory airspace compliance are mission-critical requirements.
