Skydroid S2 Flight Controller Avionics Package (BMI088, 2-18S)

The Skydroid S2 is a flight control avionics package for industrial unmanned craft: multirotors from 3 to 8 axes, fixed-wing, VTOL fixed-wing, ground vehicles and boats. It pairs an automotive-grade BMI088 IMU with an LPS22HB barometer and accepts 2S–18S power, so one controller platform covers anything from a small survey quad to a heavy agricultural sprayer.

Key features

• BMI088 inertial sensor with low noise and drift, and stable behaviour across temperature changes
• Up to 12 PWM outputs for large multirotors and fixed-wing control surfaces

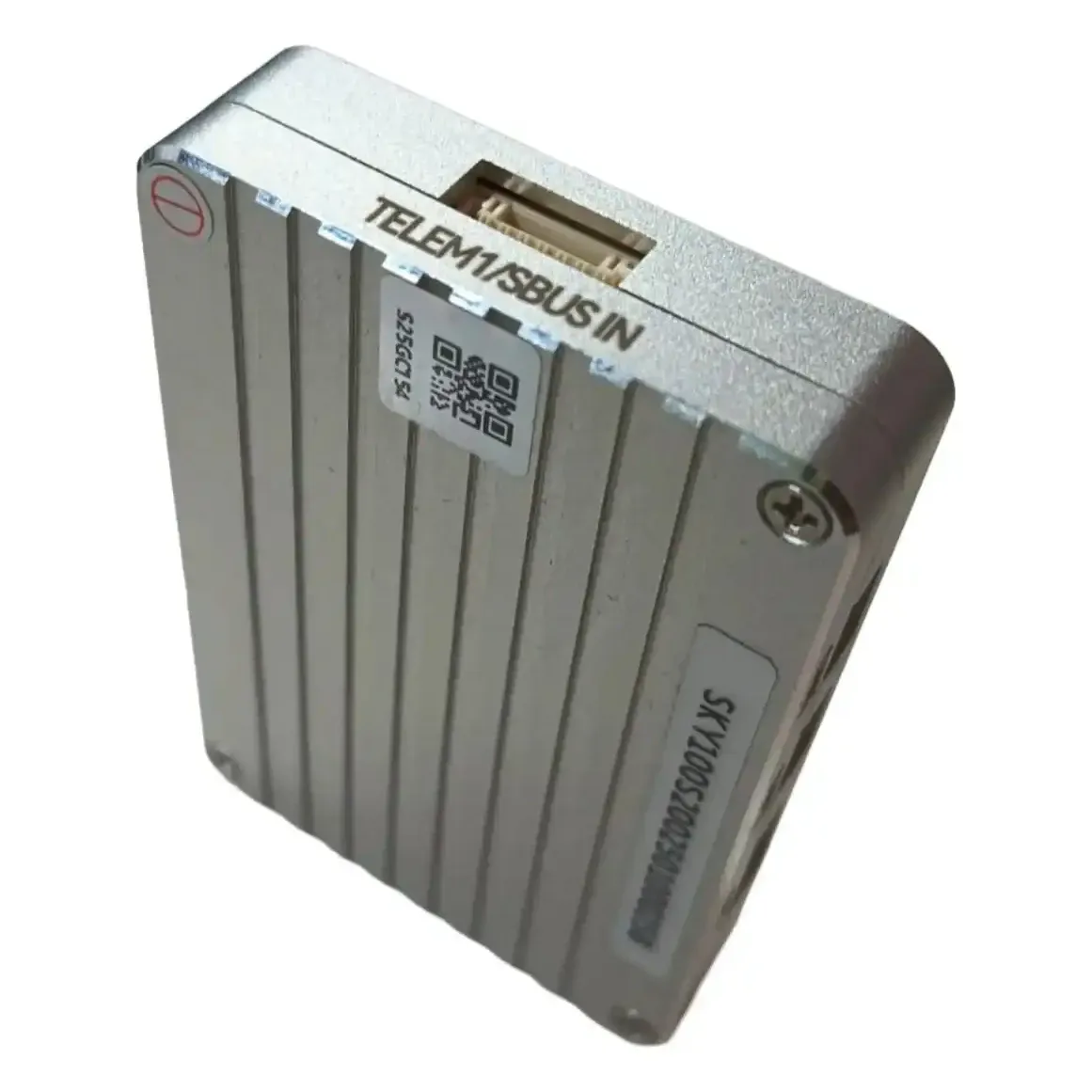

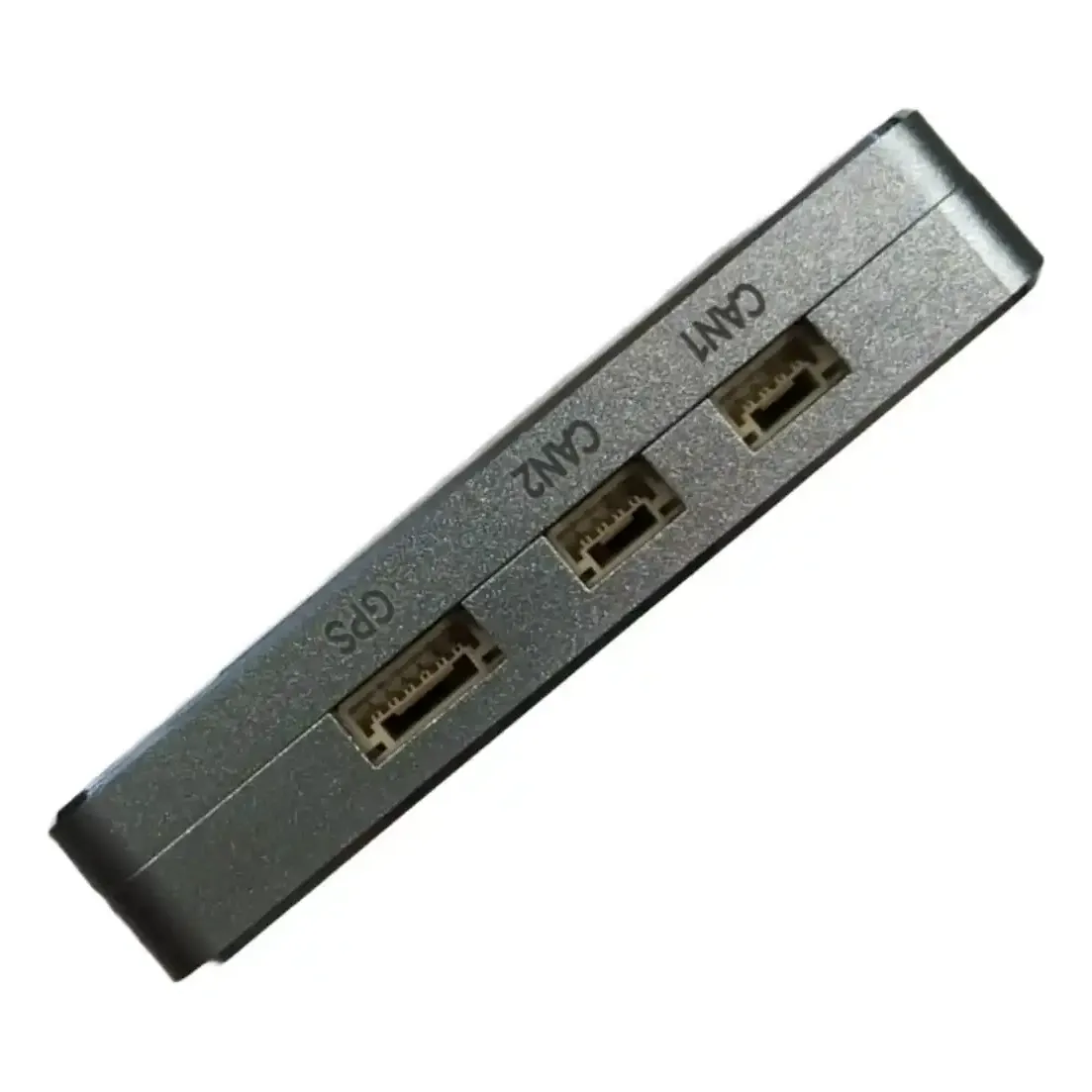

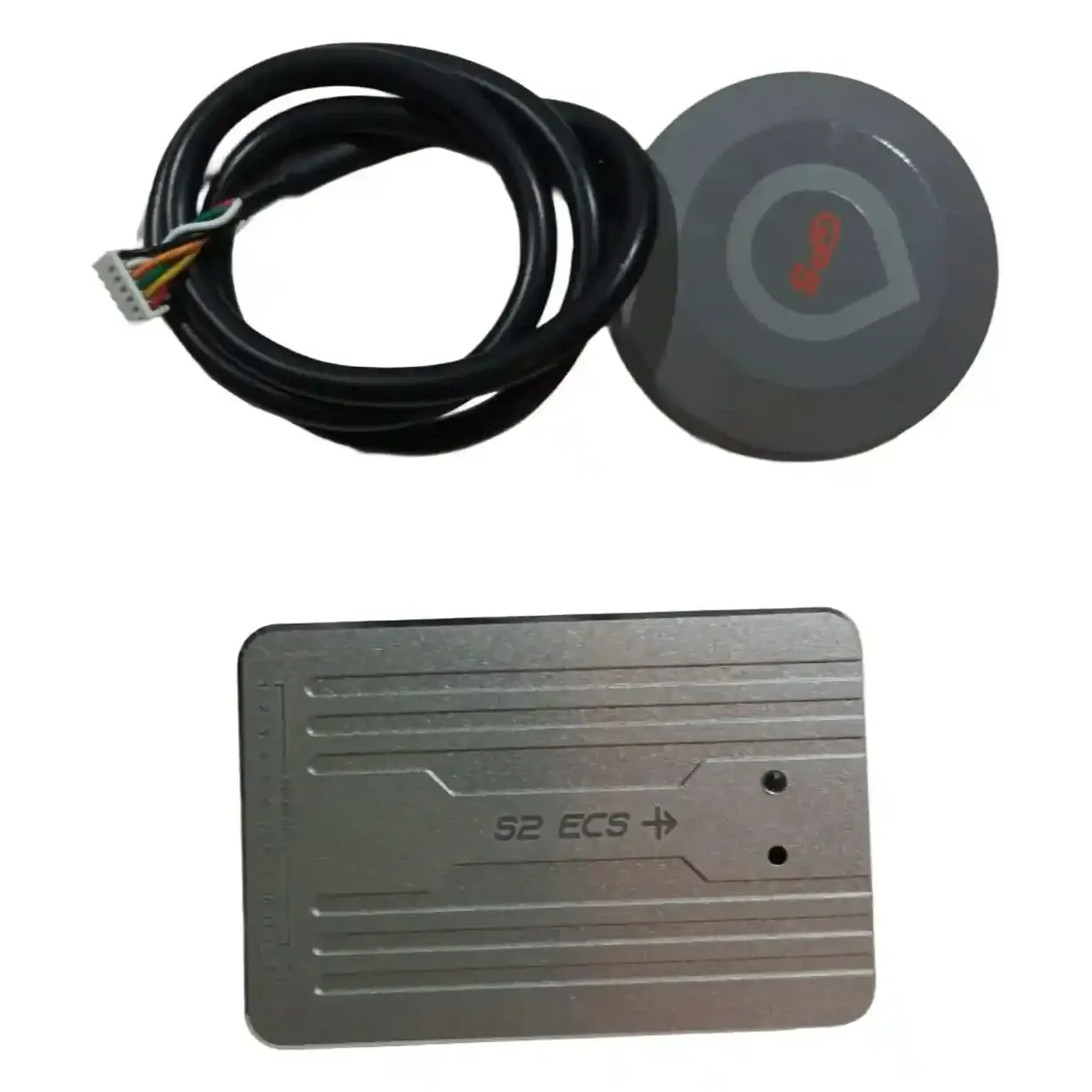

• SBUS input and output, GPS/compass serial port, two data-link ports, CAN1 and CAN2, an obstacle-avoidance interface and Type-C
• Works with any receiver that offers an S.Bus output and a data-transmission port
• Multiple built-in protection functions; set up and tuned in the Skydroid Fly ground-station app
• Open platform for secondary development

Specifications

• Processor: CKS32F407
• IMU: BMI088
• Barometer: LPS22HB
• PWM outputs: up to 12
• Power input: 2S–18S
• USB voltage: 5 ± 0.3V
• Dimensions: 68 × 47 × 13 mm
• Weight: 56 g

Building something smaller? The S2 mini keeps the same IMU and barometer in a 37 × 37 mm package with 6 PWM outputs and 2S–6S input.
