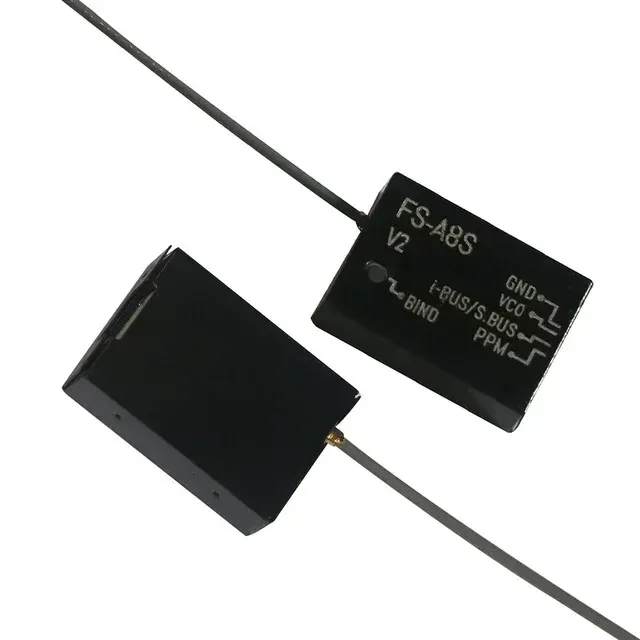

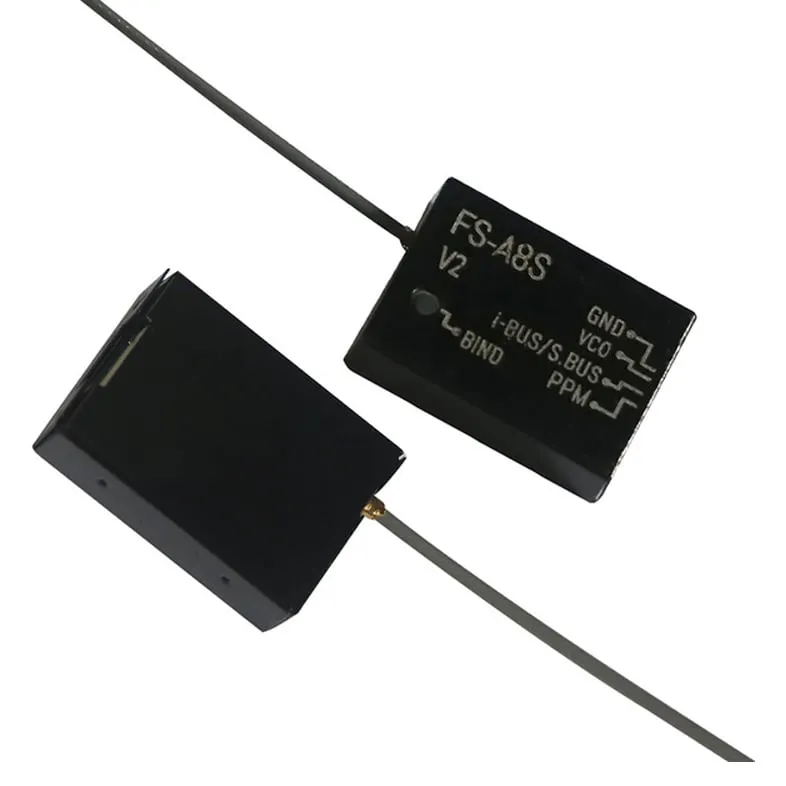

FlySky FS-A8S 2.4GHz 8CH Mini Receiver (Rev 2)
SKU FLYSKY-FS-A8S-REV2
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The FlySky FS-A8S Rev 2 is a mini 2.4 GHz receiver for multirotors and small FPV quads flown on AFHDS 2A FlySky radios such as the FS-i6, FS-i6X, FS-i6S and FS-i10. It is a one-way link with no telemetry, and it hands every channel to the flight controller over a single serial wire.
Key features

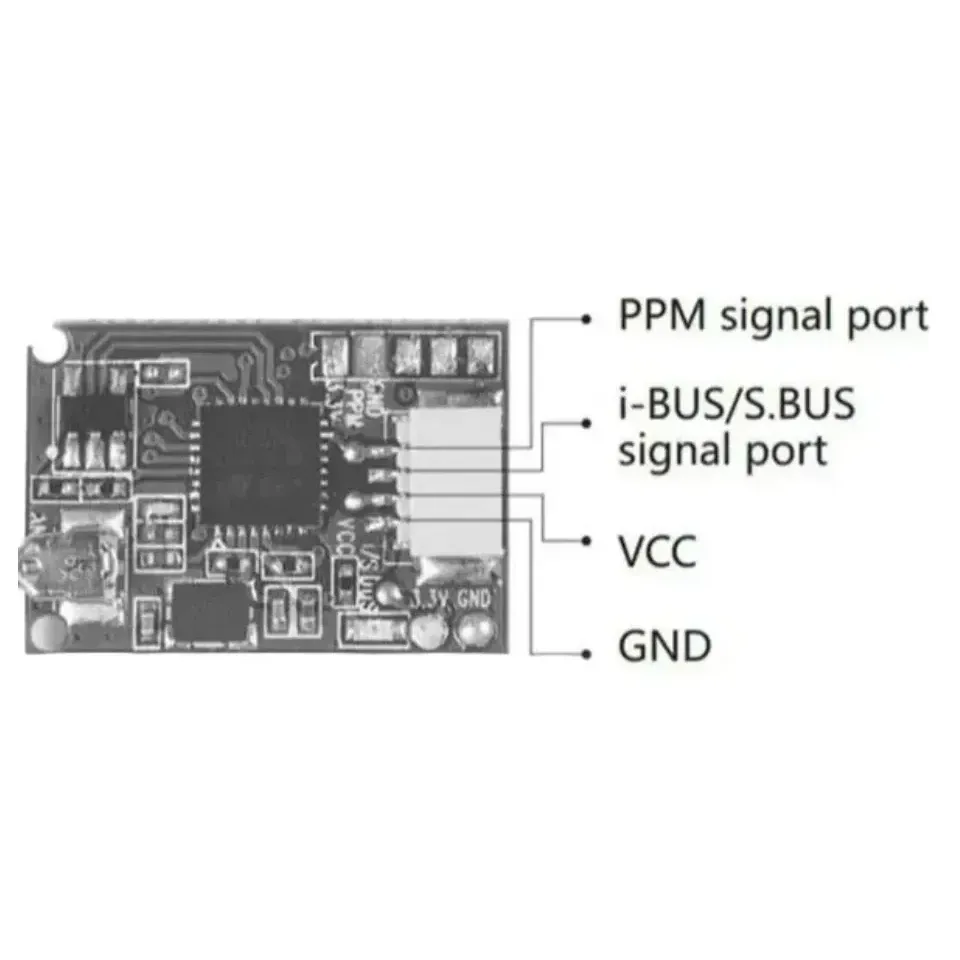

- Three output modes on one 3-pin port: PPM (8 channels), i-BUS (up to 18 channels) and S.BUS
- 20 x 14 x 5.3 mm board that fits micro and toothpick builds
- 4.0-8.4 V supply range at about 40 mA, so a 5 V pad on the flight controller powers it
- Under 15 ms channel delay and -92 dBm receive sensitivity
- Connecting cable included for wiring to the flight controller
Specifications
- Protocol: AFHDS 2A
- RF range: 2.408-2.475 GHz, 135 bands
- Bandwidth: 500 kHz
- Modulation: GFSK
- Sensitivity: -92 dBm
- Outputs: PPM, i-BUS, S.BUS
- Channels: 8 (PPM), 18 (i-BUS)
- Supply voltage: 4.0-8.4 V
- Current draw: 40 mA
- Rated control range: about 300 m
- Telemetry: None
- Dimensions: 20 x 14 x 5.3 mm
In Betaflight or INAV, connect the signal wire to a free UART RX pad and select i-BUS (or S.BUS) as the serial receiver protocol; i-BUS passes the most channels. Radios limited to first-generation AFHDS cannot bind to it.
| RC Protocol | AFHDS 2A |
|---|---|
| Made in India | No |
| Brand | FlySky |
| Frequency | 2.4GHz |
| Channels | 18 |
| Output Protocol | PPM, iBUS, SBUS |
