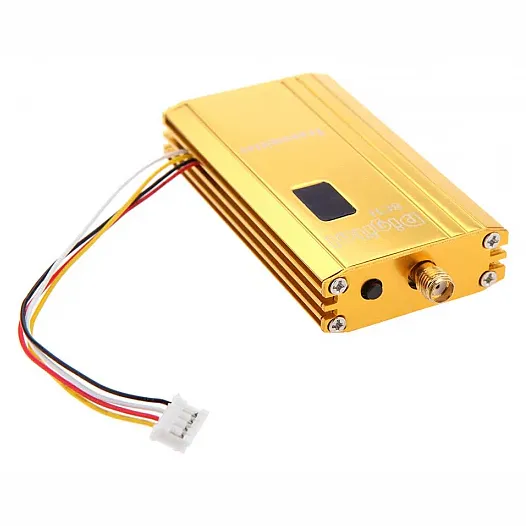

1.2GHz 2W 8CH FPV Audio/Video Transmitter

2W analog audio/video transmitter on the 1.2GHz band for long-range FPV aircraft, ground vehicles and wireless camera links. This is the transmitter only; pair it with a 1.2GHz receiver tuned to the same channel.

Key features

• 2W (2000mW) output on 8 channels from 1080 to 1360 MHz
• Digital frequency-locked loop keeps the selected channel locked without drift
• Sends composite video plus audio, so it accepts CCD and FPV cameras, DVR outputs and other AV sources
• Runs on 12V DC at 500mA
• Quoted range of 1–5 km in open space with the stock antenna and 5–20 km with a high-gain directional antenna (theoretical figures; about 80 m inside buildings)

Specifications

• Output power: 2W (2000mW)
• Channels: 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360 MHz
• Input: 12V DC, 500mA
• Antenna connector: SMA
• Dimensions: 73 × 41 × 14 mm
• Weight: 113 g

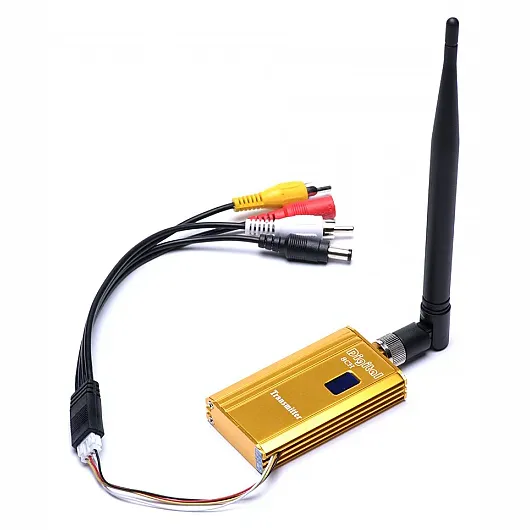

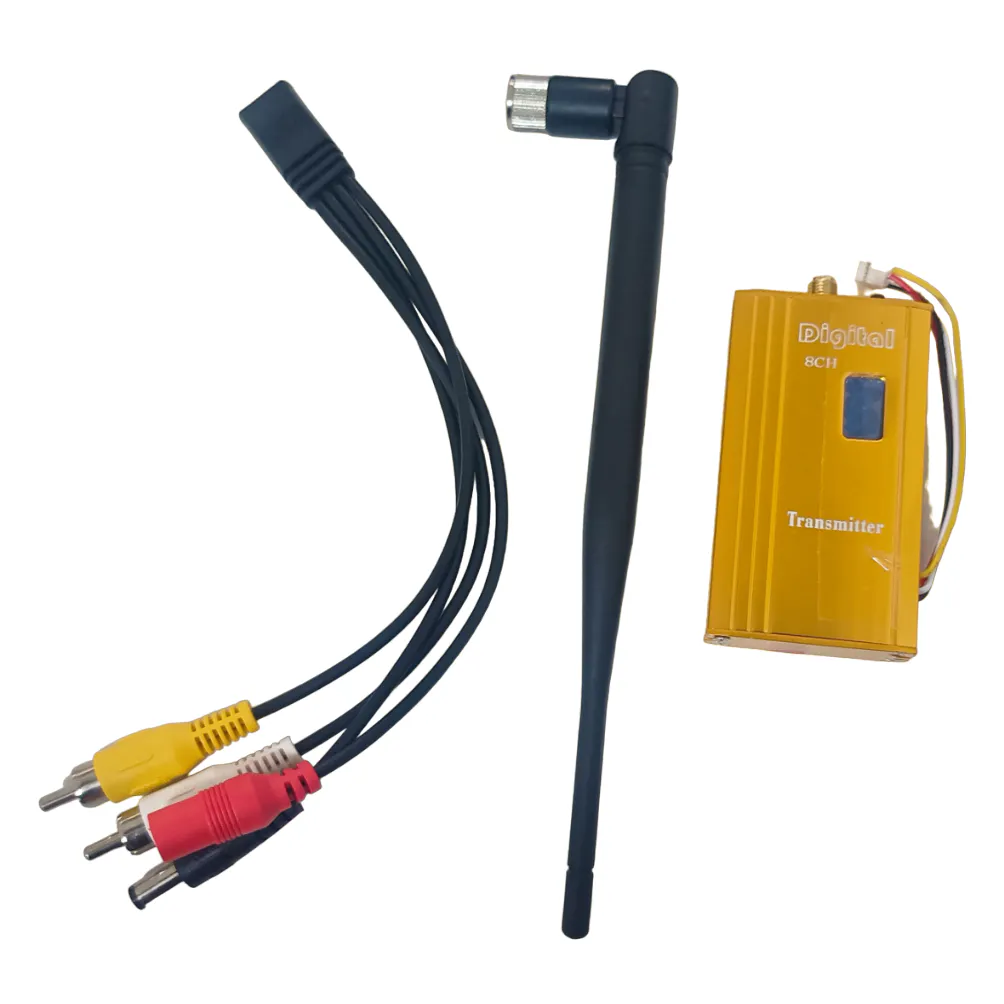

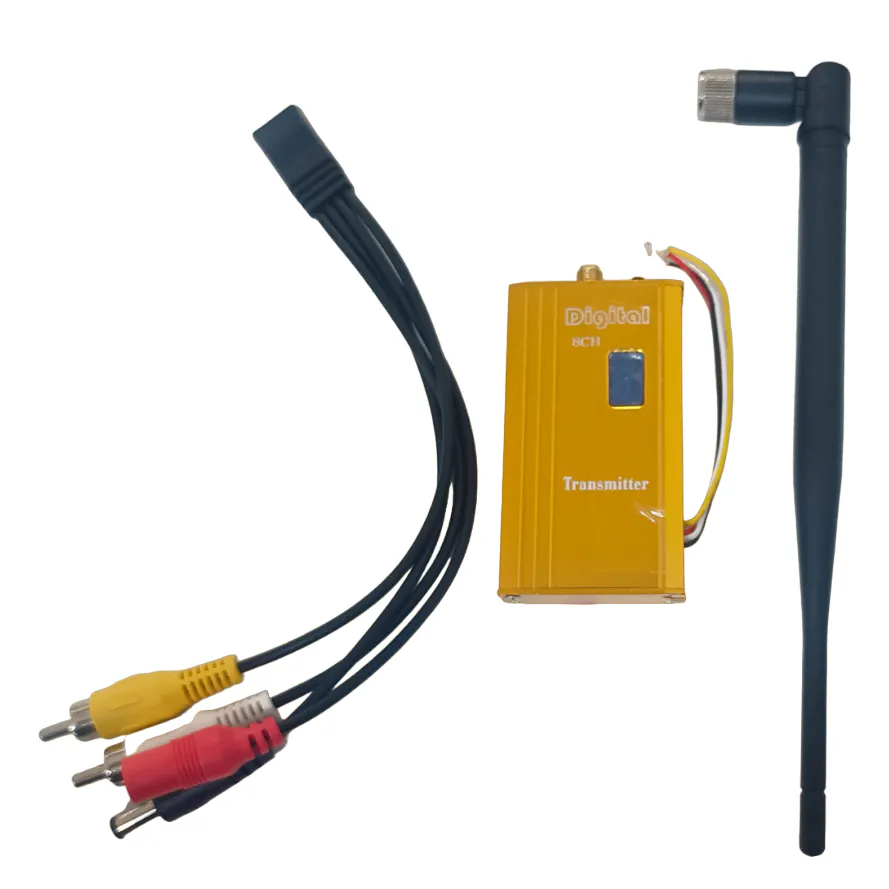

• In the box: transmitter, antenna, AV conversion cable

Power it from a 3S pack or a regulated 12V rail and never switch it on without the antenna fitted, as a 2W output stage can be damaged running into an open connector. Keep it and its antenna away from the GPS module, because the 1.2GHz channels sit close to the GPS L2 band at 1227.6 MHz.
