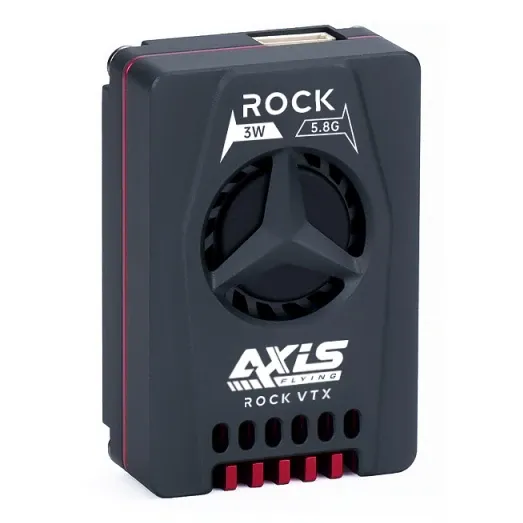

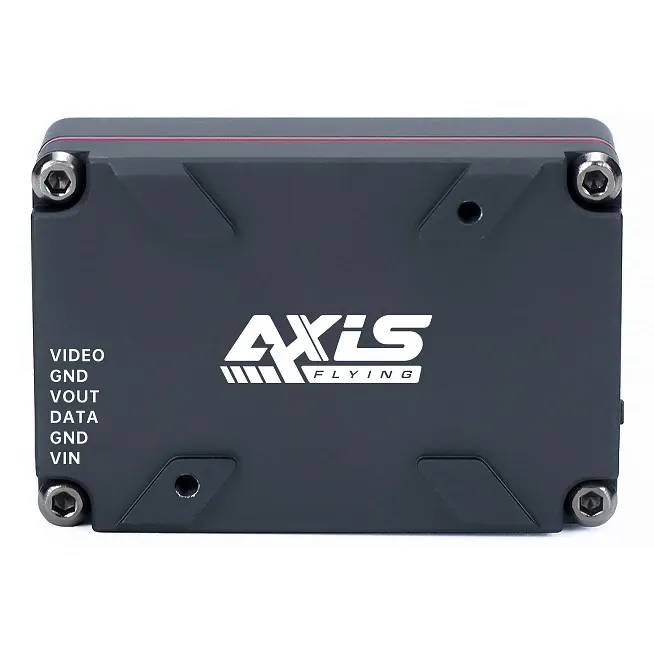

Axisflying ROCK 5.8GHz 3W Analog VTX with Mic

The Axisflying ROCK is a high-power 5.8GHz analog video transmitter reaching 3W, with a built-in microphone and its own cooling fan. It is aimed at long-range, mountain-surfing and obstacle-penetration analog builds on 2-6S where a standard 1W VTX runs out of signal.

Key features

• Six power levels: 25mW, 400mW, 800mW, 1.5W, 2.5W and 3W, so you can stay low on the bench and step up in the air.

• 40 channels across 5 bands on 5.8GHz.

• Built-in fan keeps temperatures stable during long flights at high output.

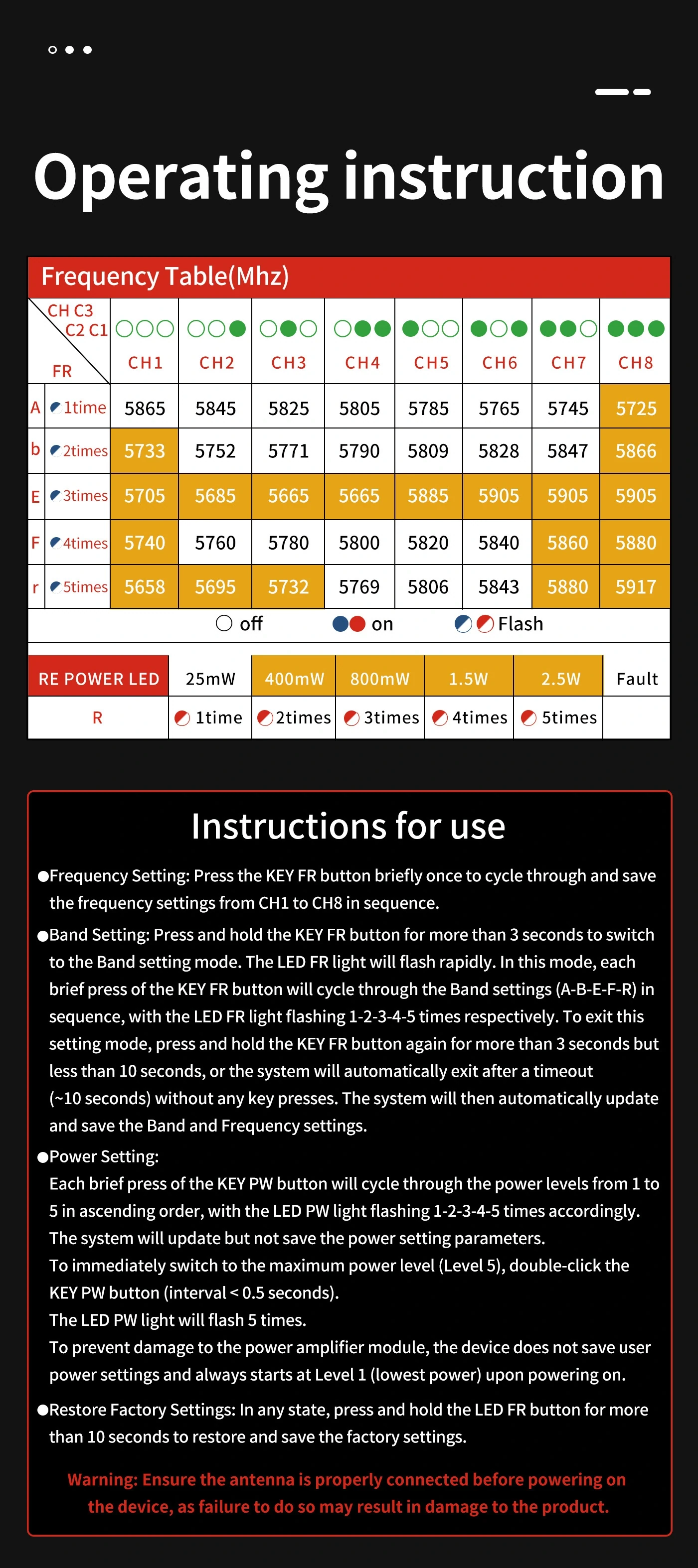

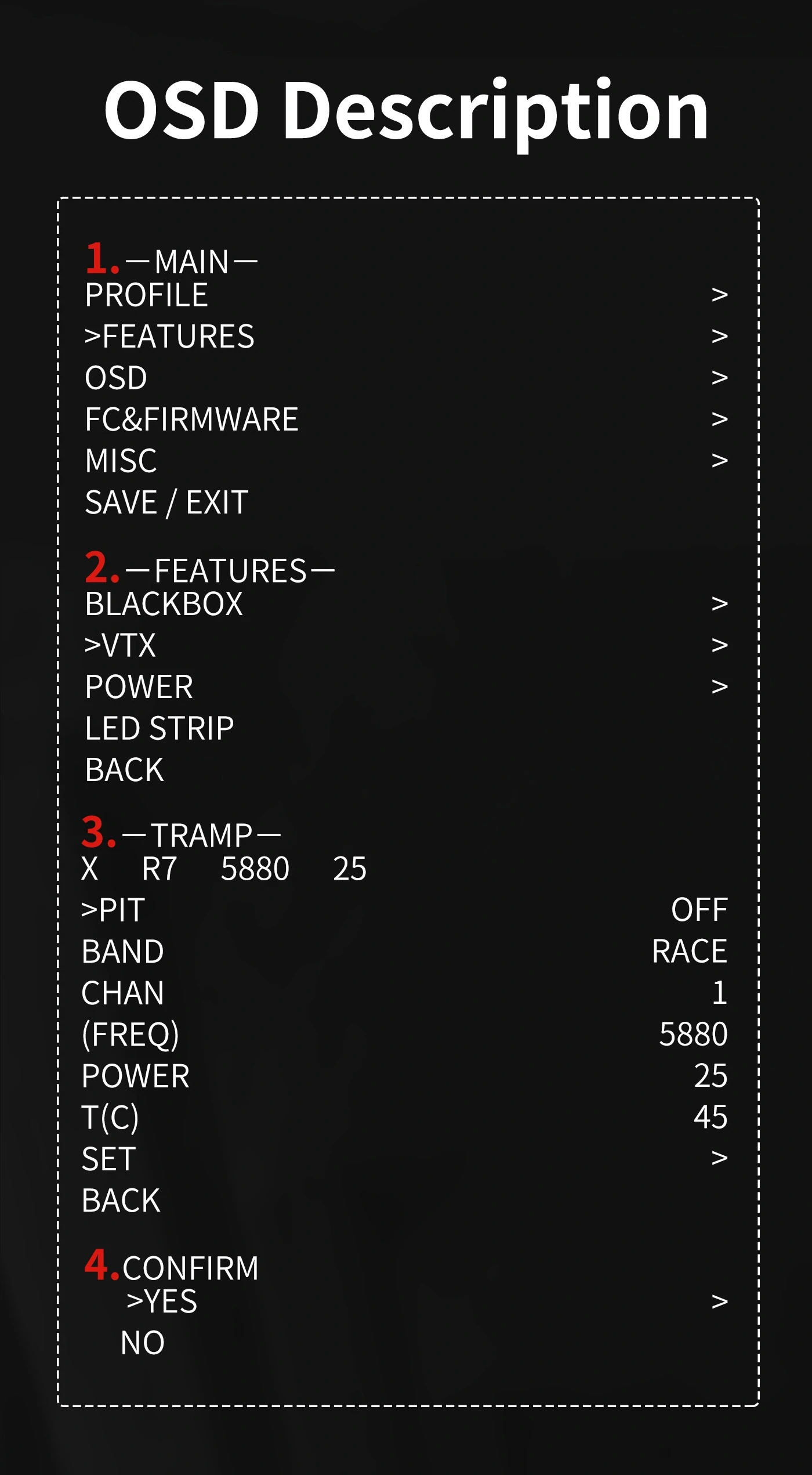

• Adjustable by buttons or through the OSD from the flight controller.

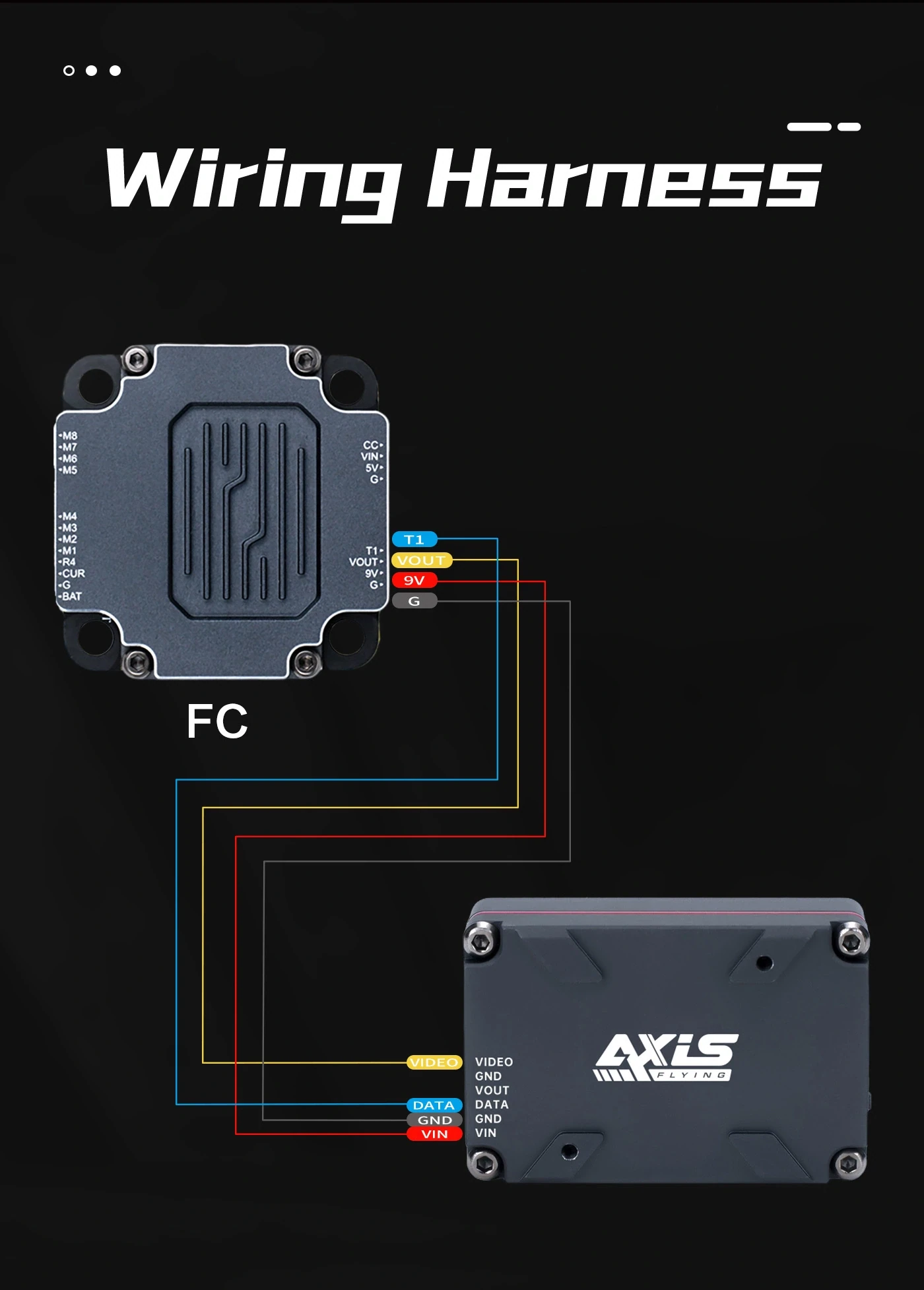

• MMCX antenna port, with an MMCX-to-SMA adapter pigtail and a VTX-to-FC cable included.

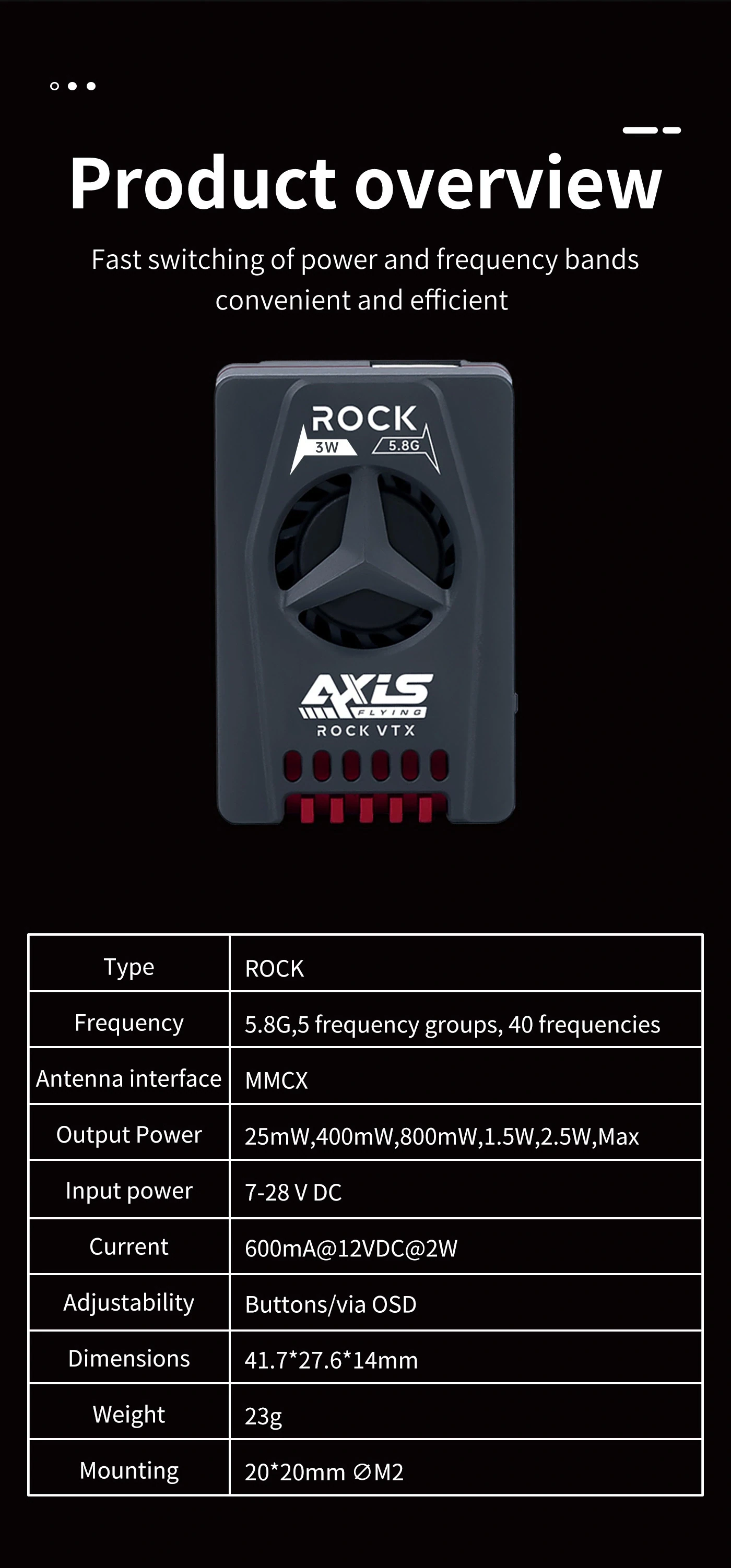

Specifications

• Frequency: 5.8GHz, 5 bands, 40 channels

• Output power: 25mW / 400mW / 800mW / 1.5W / 2.5W / 3W

• Input voltage: 7-28V DC (2-6S)

• Current draw: 600mA at 12V, 2W output

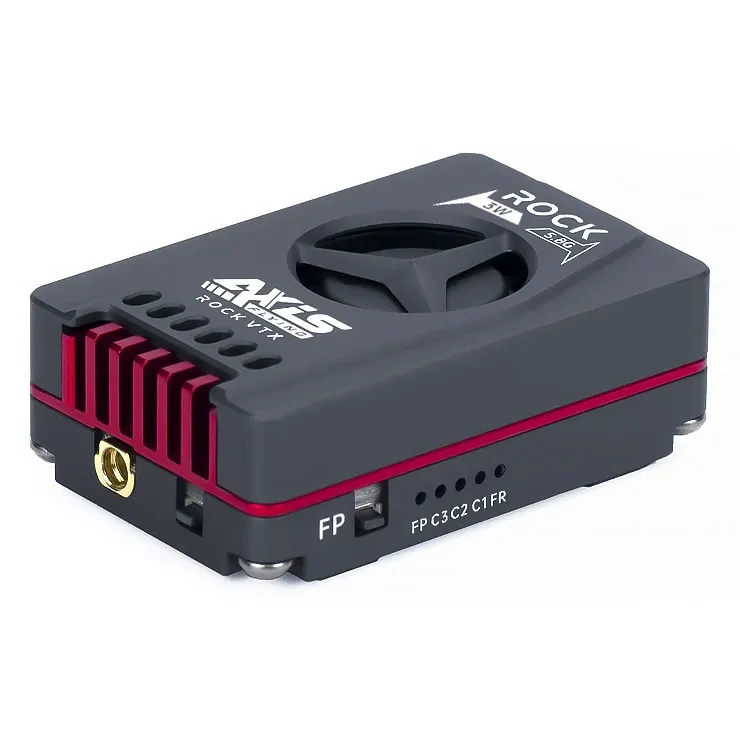

• Antenna connector: MMCX

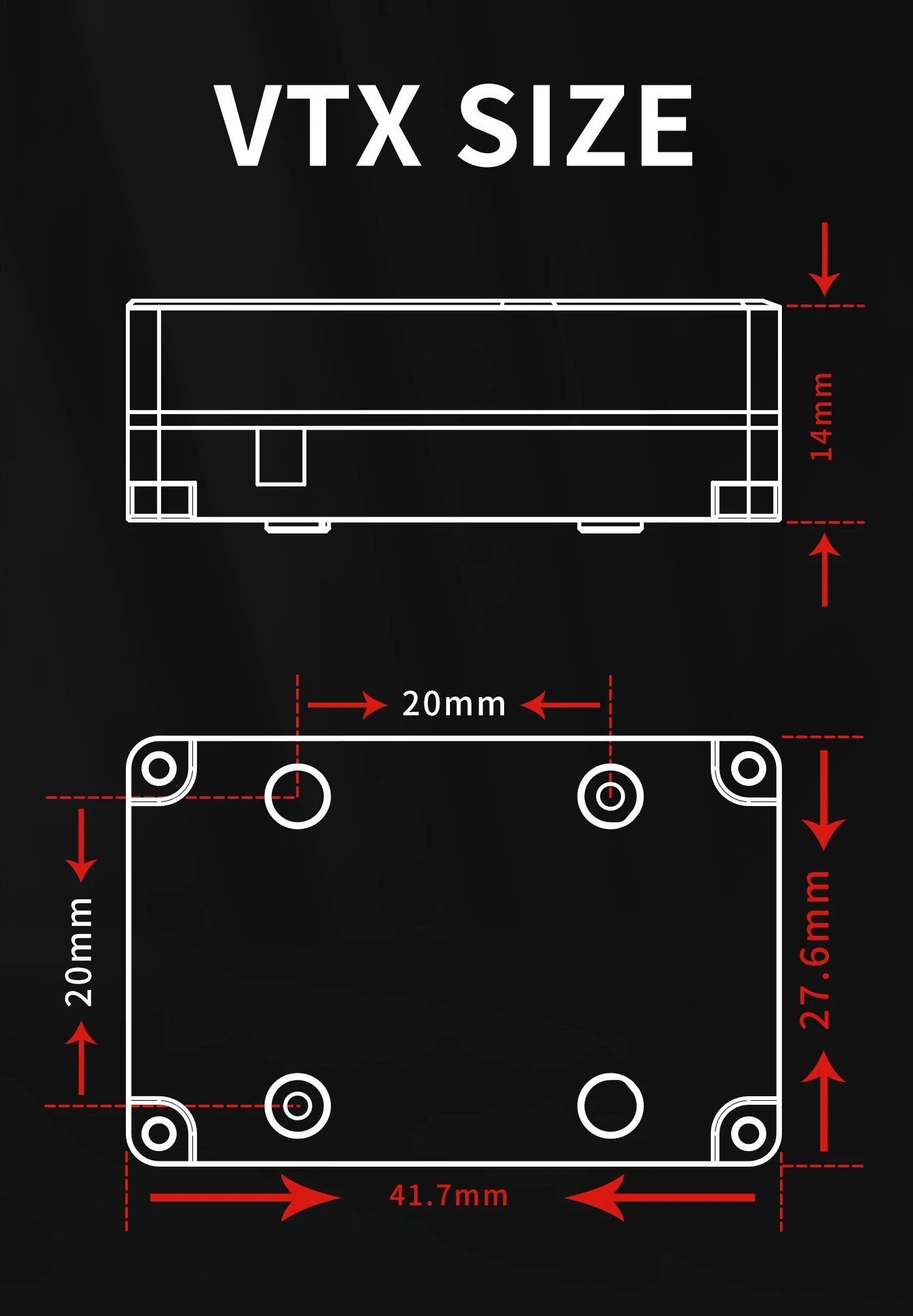

• Dimensions: 41.7 x 27.6 x 14mm

• Weight: 23g

• Mounting: 20 x 20mm, M2

Never power it without an antenna attached, and leave the fan an unobstructed airflow path. Check the transmit power permitted for your location before flying at the higher settings.
