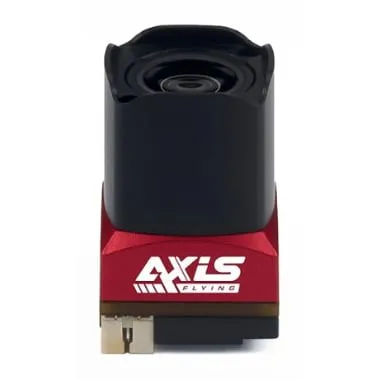

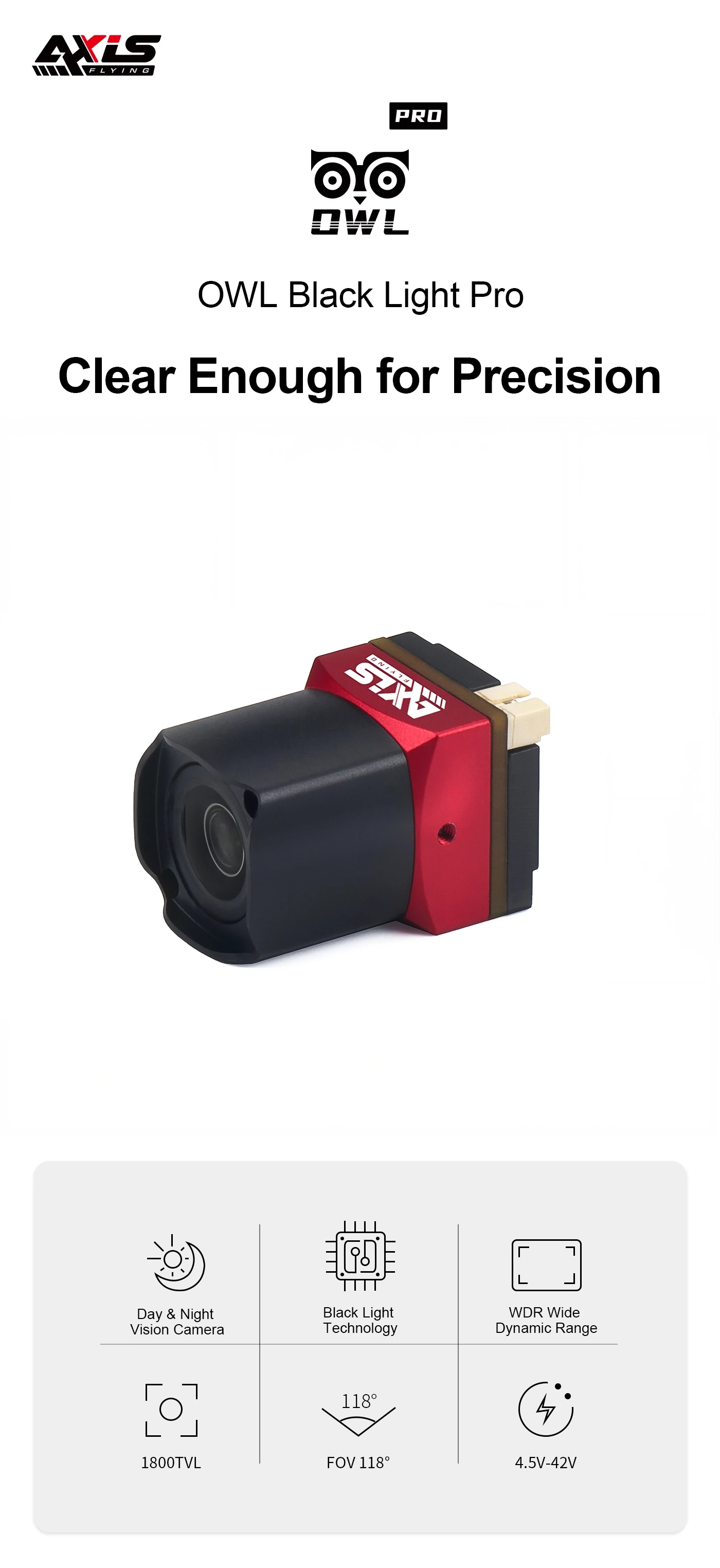

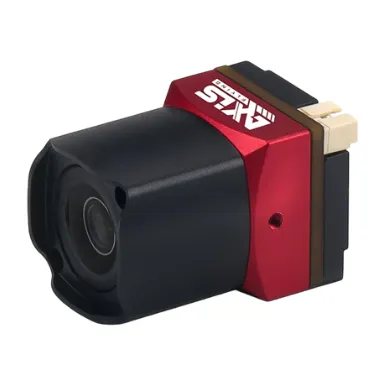

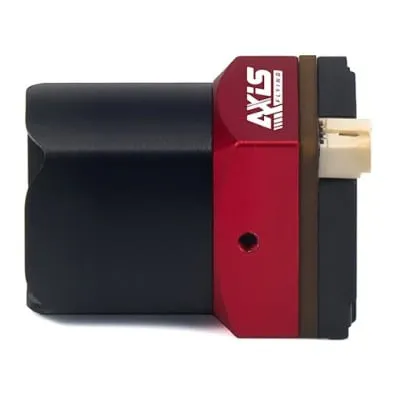

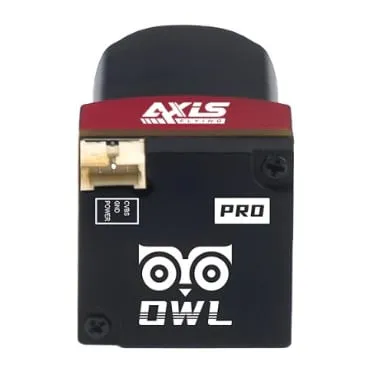

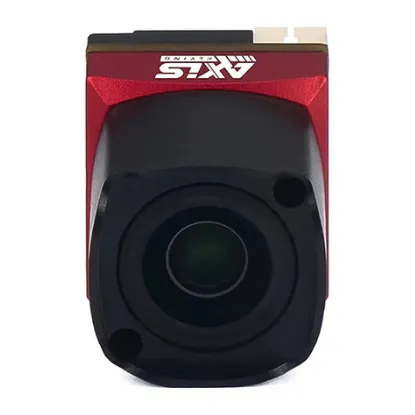

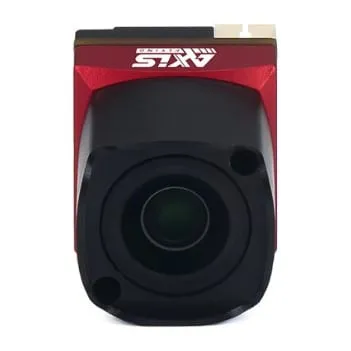

Axisflying OWL Pro 1800TVL Black Light FPV Camera

The OWL Pro is Axisflying's higher-end analog black-light camera: a 1/1.8" sensor rated to 0.00001 lux behind an F1.0 lens gives a usable picture in near darkness without IR illumination. It sits above the standard OWL Black Light and suits night freestyle, long-range and other analog builds that keep flying after sunset.

Key features

• 1800TVL: 1/1.8" CMOS with 1928 x 1088 effective pixels and large 4.0µm pixels for light gathering.

• Night vision without IR: 0.00001 lux minimum illumination through a 3.3mm F1.0 lens with a 118° total field of view.

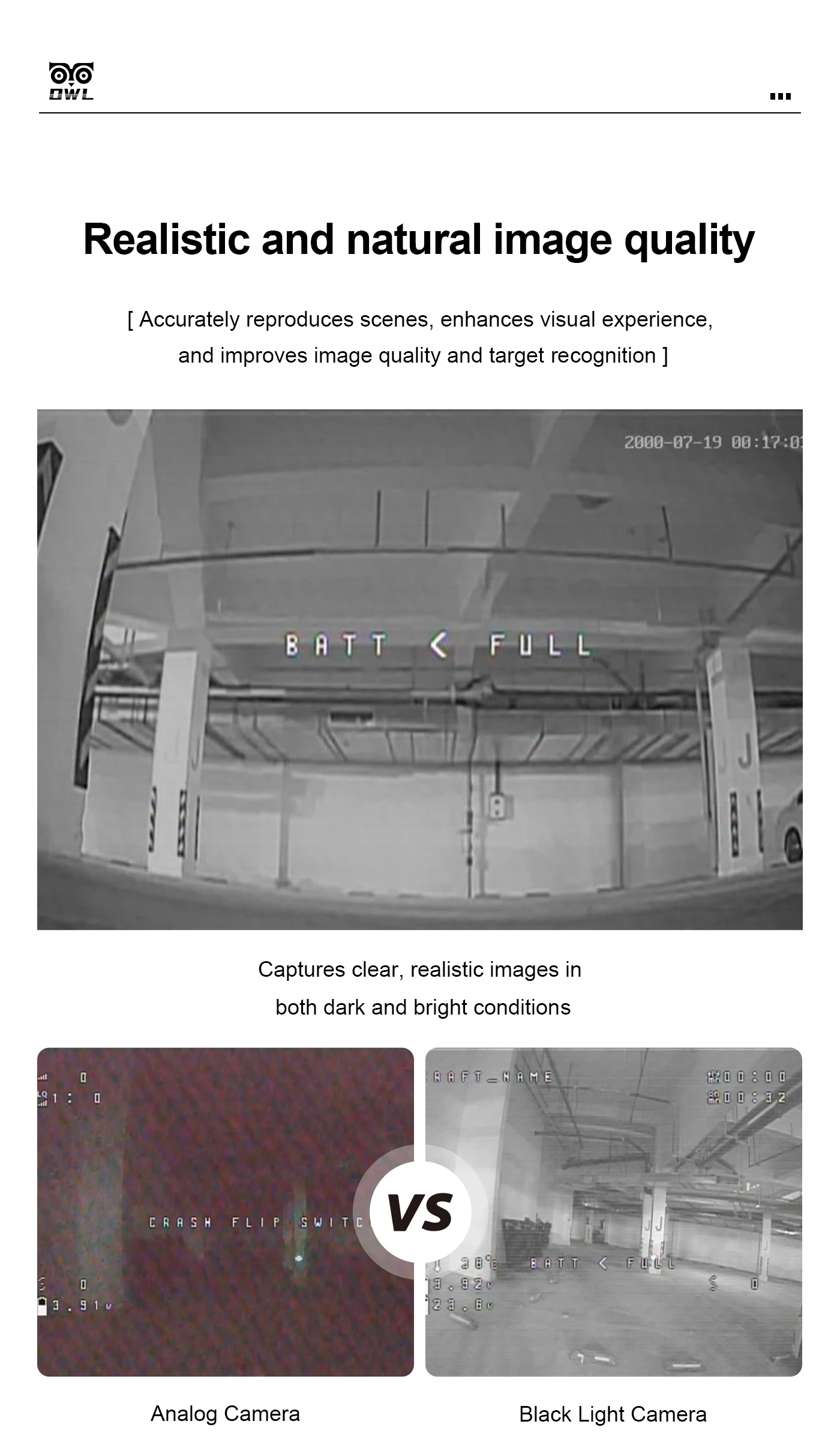

• 100dB WDR: holds detail in bright sky and dark ground in the same frame, with a 43dB signal-to-noise ratio.

• Day/night modes: external control (default), auto, colour or black-and-white.

• 4.5-42V input: draws 80mA at 12V and runs from a 5V rail or directly from high-voltage packs.

• OSD menu: brightness, exposure mode, gain, digital WDR and auto or manual white balance.

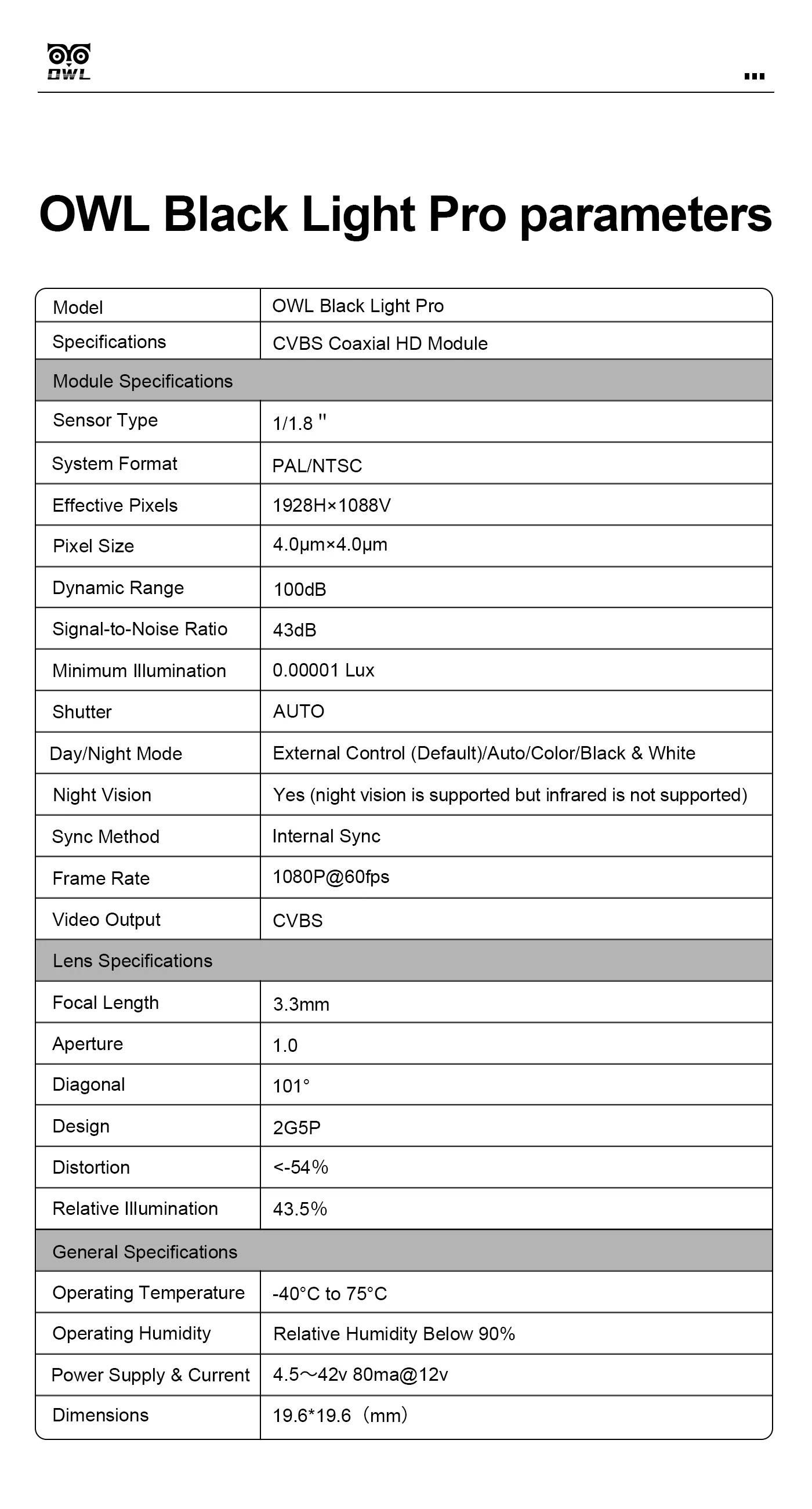

Specifications

• Sensor: 1/1.8" CMOS

• Resolution: 1800TVL

• Effective pixels: 1928 x 1088

• Pixel size: 4.0 x 4.0 µm

• Sensor frame rate: 1080p at 60fps

• Video output: CVBS, PAL/NTSC

• Lens: 3.3 mm, F1.0

• Field of view: 118° total

• Dynamic range: 100dB

• Signal-to-noise ratio: 43dB

• Minimum illumination: 0.00001 lux

• Power: 4.5-42V, 80mA at 12V

• Operating temperature: -40°C to 75°C

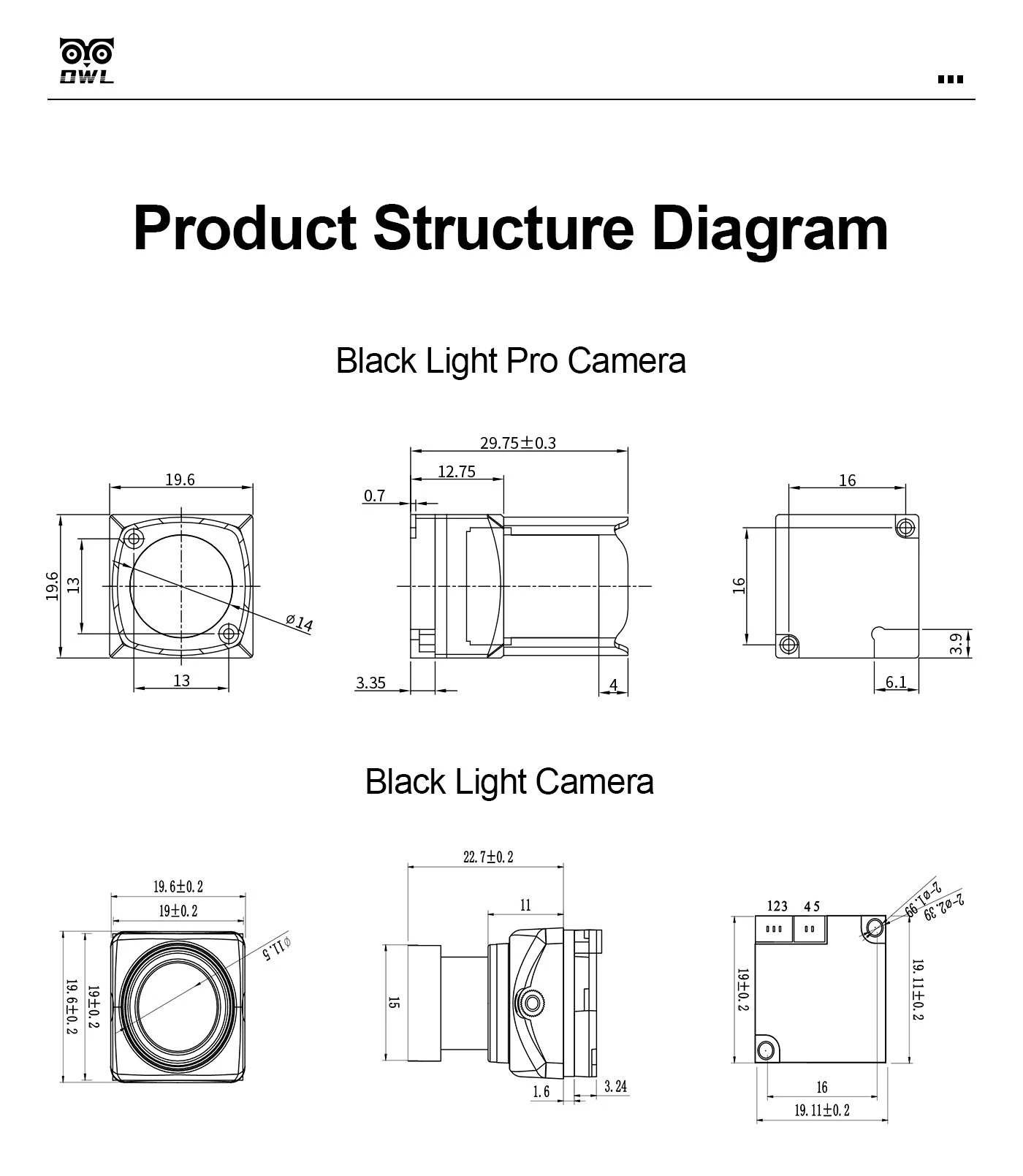

• Dimensions: 19.6 x 19.6 mm

Output is CVBS, so it needs an analog VTX; the micro-size 19.6 x 19.6mm body suits frames and pods built around 19mm cameras.
