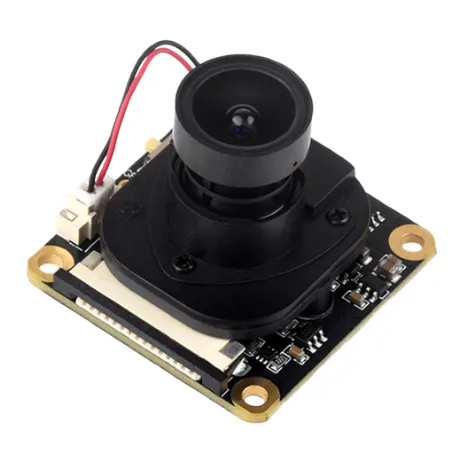

IMX290-83 IR-CUT 1080p Camera Module

The IMX290-83 is a 2MP colour camera module built on Sony's 1/2.8" IMX290, a sensor from Sony's STARVIS low-light line, paired with an IR-CUT filter and an 83° fixed-focus lens. It is a bare sensor module for digital video and onboard imaging builds rather than a boxed analog FPV camera.

Key features

• Full HD sensor: 1920 x 1080 resolution from the 1/2.8" IMX290 CMOS.
• IR-CUT filter: blocks infrared in daylight so colours stay natural instead of washing out pink or purple.
• Low-distortion optics: 3.95mm F2 lens with an 83° field of view and under 33% distortion, giving a flatter frame than ultra-wide FPV lenses.
• Rolling shutter: soft-mount the module on airframes with strong vibration to keep jello out of the image.

Specifications

• Sensor: Sony IMX290, 1/2.8" CMOS
• Resolution: 2MP (1920 x 1080)
• Aperture: F2
• Focal length: 3.95 mm
• Field of view: 83°
• Distortion: under 33%
• Focus: Fixed
• Shutter: Rolling
• Camera type: Colour

Because this is a sensor module rather than an analog FPV camera, check that your video board or companion computer supports the IMX290 and its camera interface before ordering.
