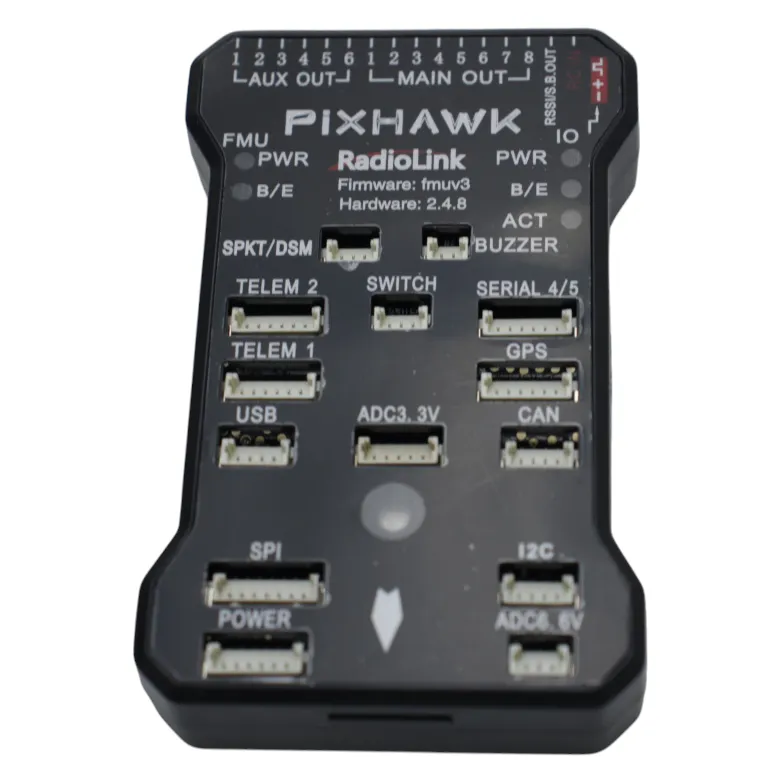

Radiolink Pixhawk Flight Controller

Radiolink's version of the Pixhawk autopilot, with a reworked PCB layout and MS5611 barometer altitude hold for steadier flight at speed. It runs ArduPilot for multirotors, fixed-wings, helicopters and ground vehicles, and suits GPS quadcopters and hexacopters from F450 size up to survey and payload builds.

Key features

• 32-bit STM32F427 Cortex-M4 at 168 MHz (2 MB flash, 256 KB RAM) with an STM32F103 failsafe co-processor
• MPU6000 IMU, IST8310 compass and MS5611 barometer; FM25V02 FRAM stores up to 718 multicopter waypoints
• 14 PWM outputs: 8 main with failsafe and manual override, plus 6 auxiliary for gimbals, lights or servos

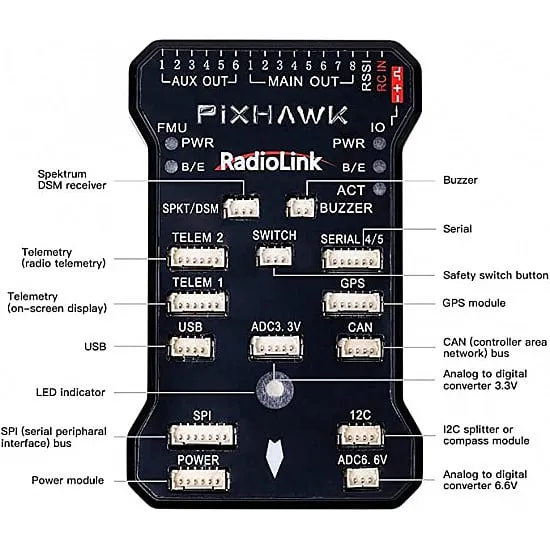

• SBUS, PPM and DSM Spektrum receiver inputs; two telemetry ports with CTS/RTS, GPS, CAN, I2C and SPI

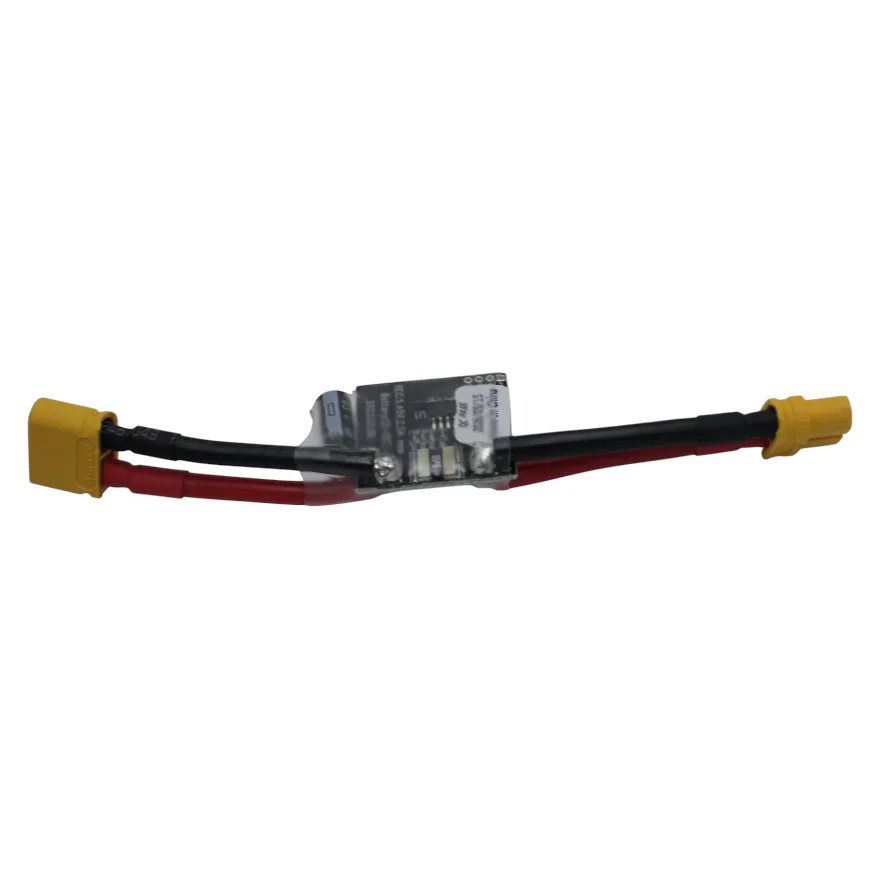

• Power module accepts 2–12S LiPo, measures up to 90 A and supplies the board with 5.3 V at 2 A
• microSD slot for flight logs, with a 4 GB card included

Specifications

• Processor: STM32F427 Cortex-M4, 168 MHz
• Co-processor: STM32F103
• IMU: MPU6000
• Compass: IST8310
• Barometer: MS5611
• PWM outputs: 14 (8 main + 6 auxiliary)
• Board supply: 4.8–5.4 V
• Power module input: 2–12S LiPo (7.4–50.4 V)
• Dimensions: 81.5 × 45.3 × 15.5 mm
• Weight: 38 g (controller only)

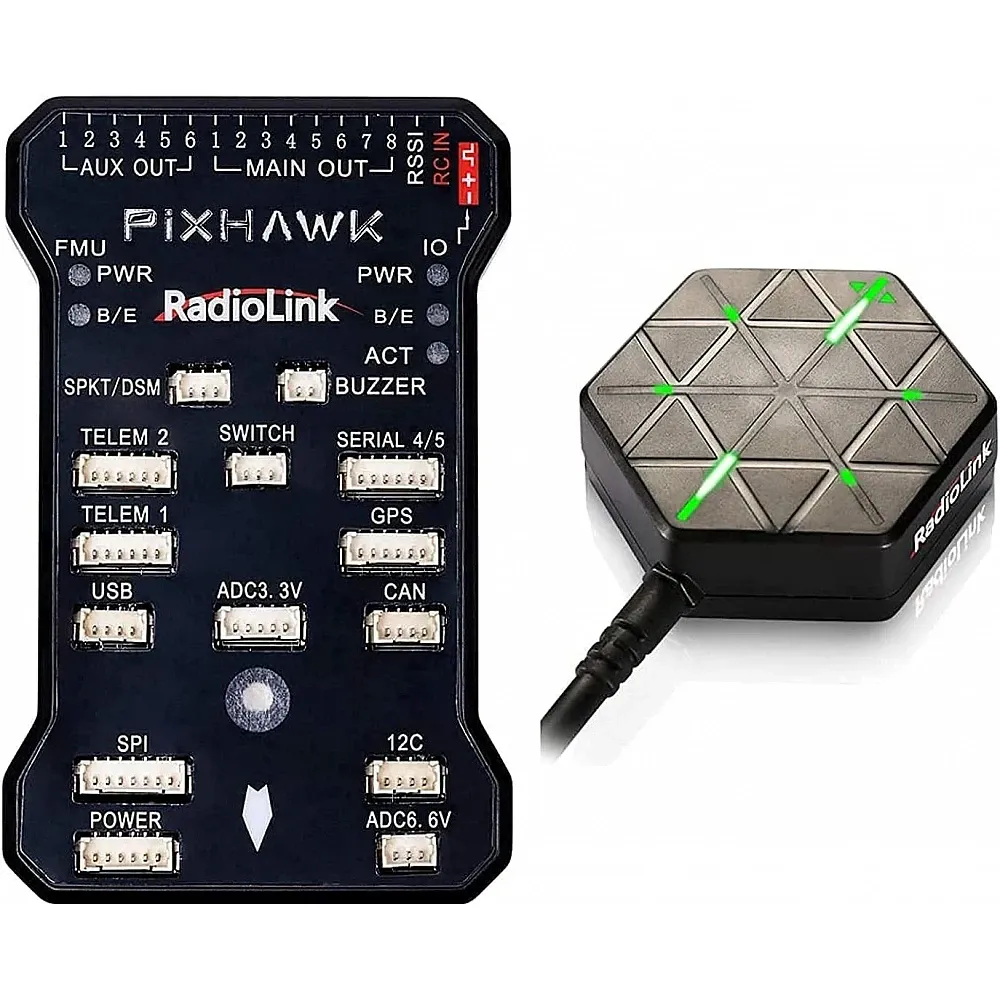

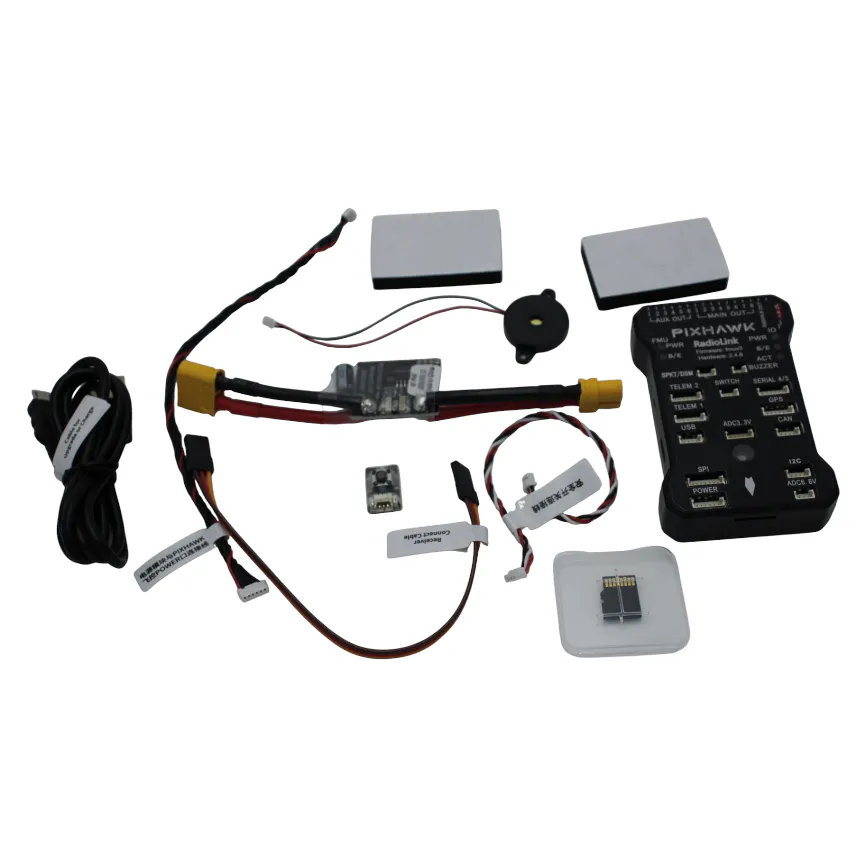

Standard includes the controller, power module, safety switch, buzzer, microSD card, connecting cables and USB lead. Full Kit with GPS adds the Radiolink SE100 M8N GPS with built-in QMC5883L compass, its mast and a shock-absorber set, giving you a complete autopilot package for a first ArduPilot build.
