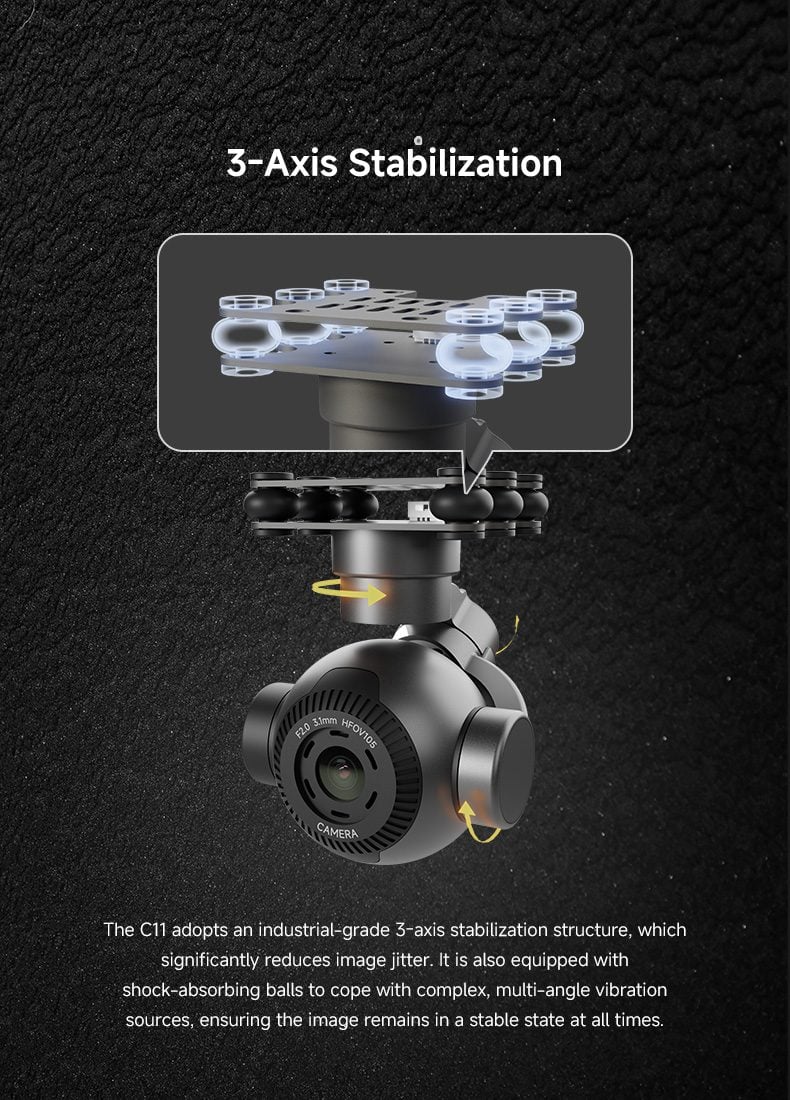

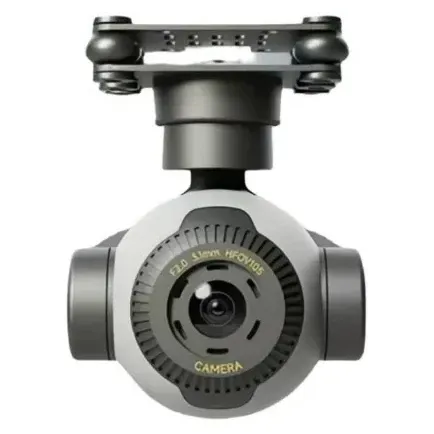

Skydroid C11 4K 30x Digital Zoom 3-Axis Gimbal Camera

The Skydroid C11 is a compact 3-axis gimbal camera that records 4K video on board while streaming a live 720p feed over Ethernet. At 106 g with a 12–80 V input, it fits inspection, mapping and security drones and runs straight from packs between 4S and 19S without a separate regulator.

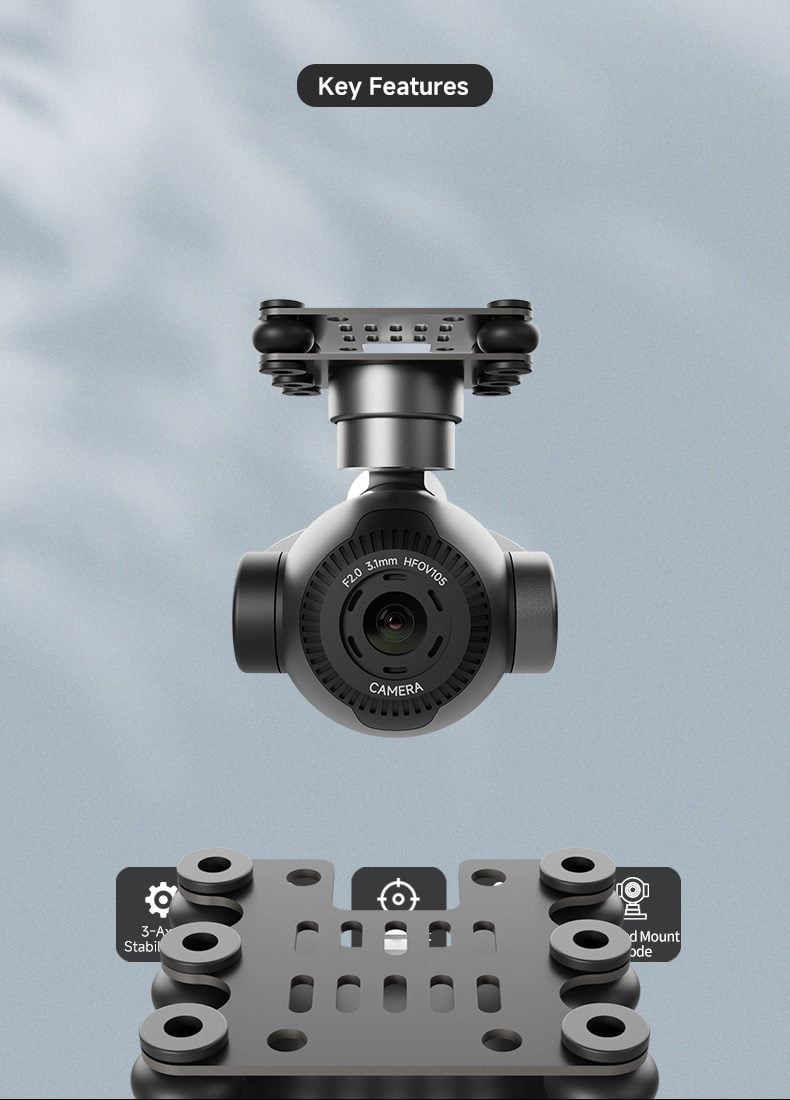

Key features

• 8 MP 1/2.8-inch sensor behind a 3.1 mm F2.0 wide-angle lens: 105° horizontal and 122° diagonal field of view

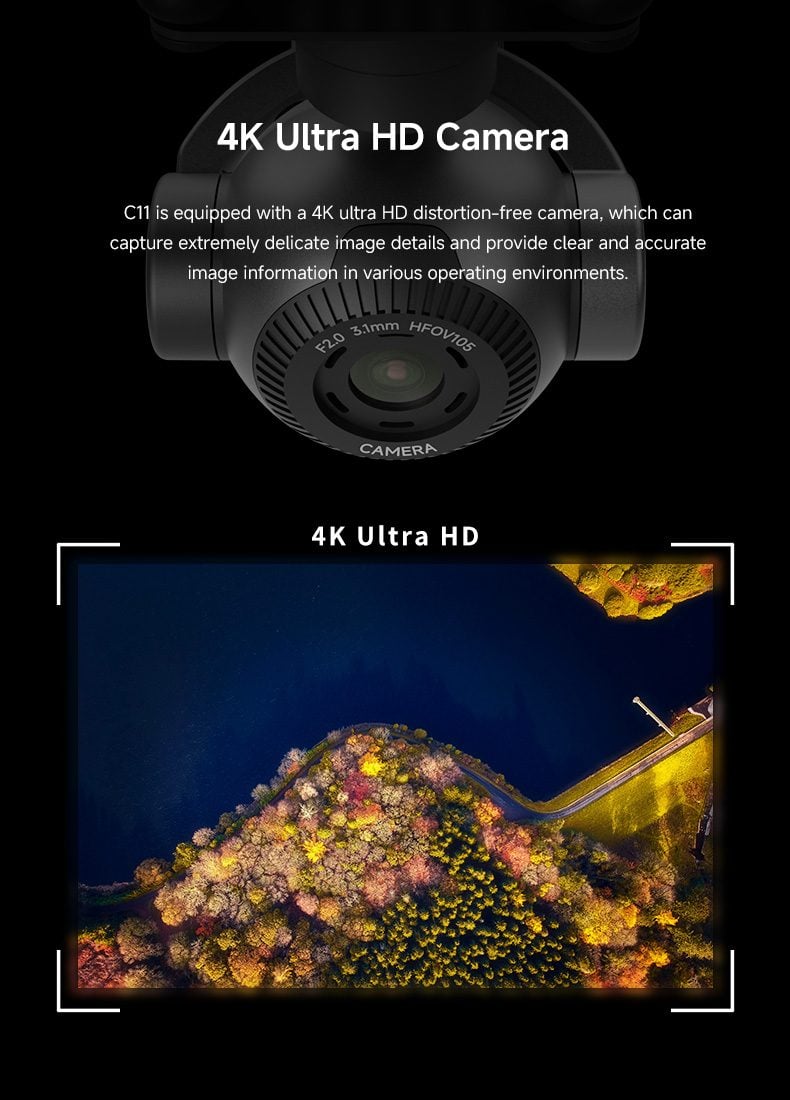

• Records 3840 × 2160 video at 30 fps and 3840 × 2160 stills to a memory card

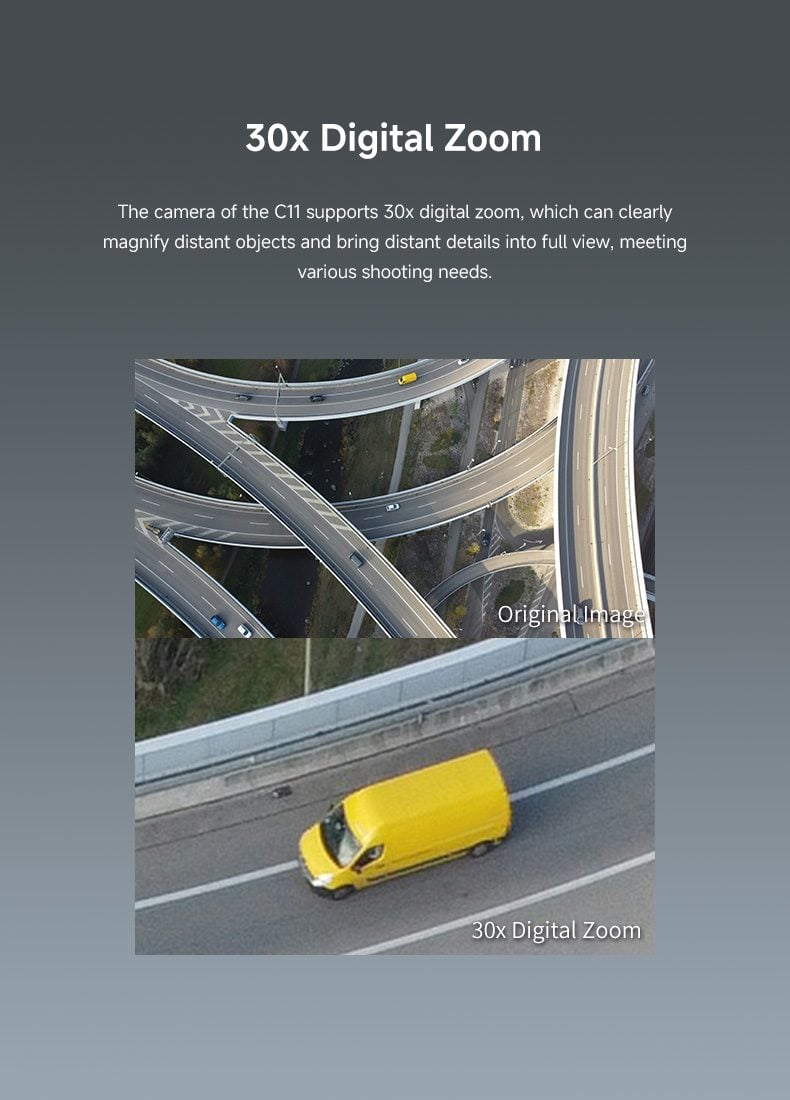

• 30x digital zoom for a closer look without repositioning the aircraft

• Live 1280 × 720 H.265 RTSP stream and camera control through a single LAN port

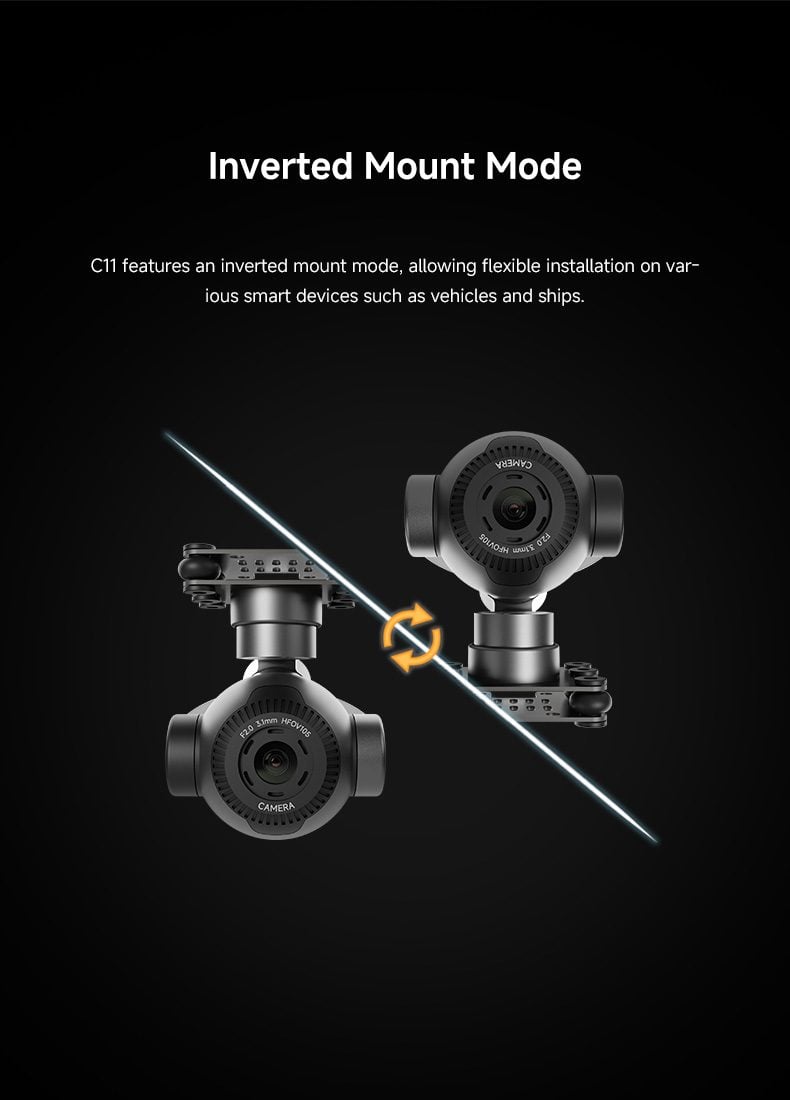

• Pitch −90° to +10° and yaw ±90°; works hung below the airframe or mounted upside down

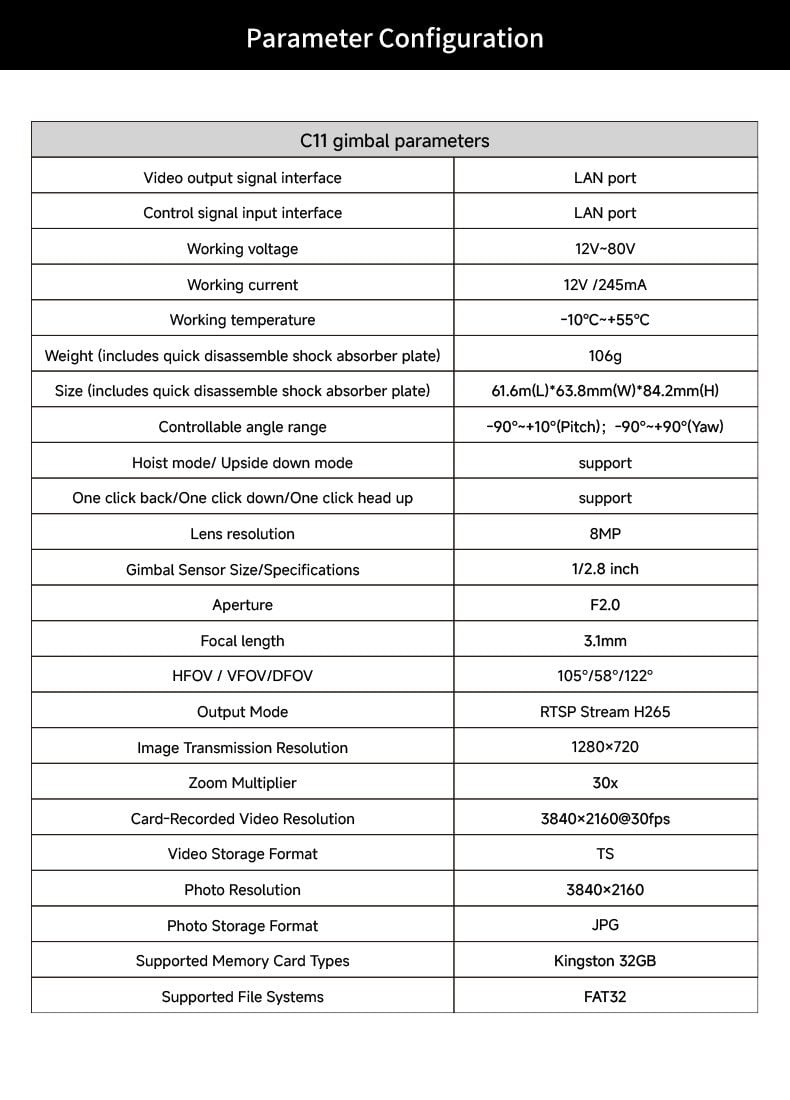

Specifications

• Sensor: 1/2.8-inch, 8 MP

• Lens: 3.1 mm, F2.0

• Field of view: 105° H / 58° V / 122° D

• Zoom: 30x digital

• Recording: 3840 × 2160 at 30 fps (TS video, JPG photos)

• Live stream: 1280 × 720 RTSP, H.265

• Interface: LAN (Ethernet)

• Pitch range: −90° to +10°

• Yaw range: −90° to +90°

• Input voltage: 12–80 V

• Current draw: 245 mA at 12 V

• Operating temperature: −10 °C to +55 °C

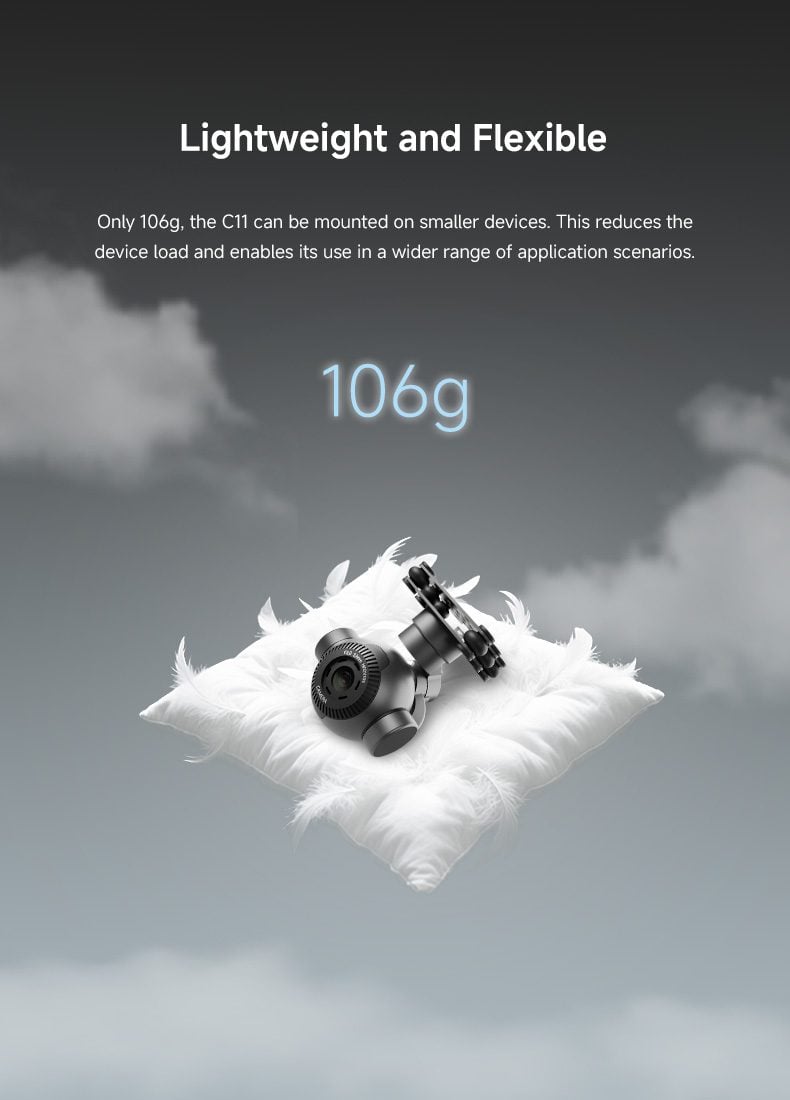

• Weight: 106 g including damping plate

• Dimensions: 61.6 × 63.8 × 84.2 mm

• Memory card: tested with 32 GB, FAT32

Plan the install around an air unit or companion computer with an Ethernet input, since both video and control run over LAN. For thermal imaging in the same 61.6 × 63.8 × 84.2 mm footprint, step up to the Skydroid C12 Pro.
