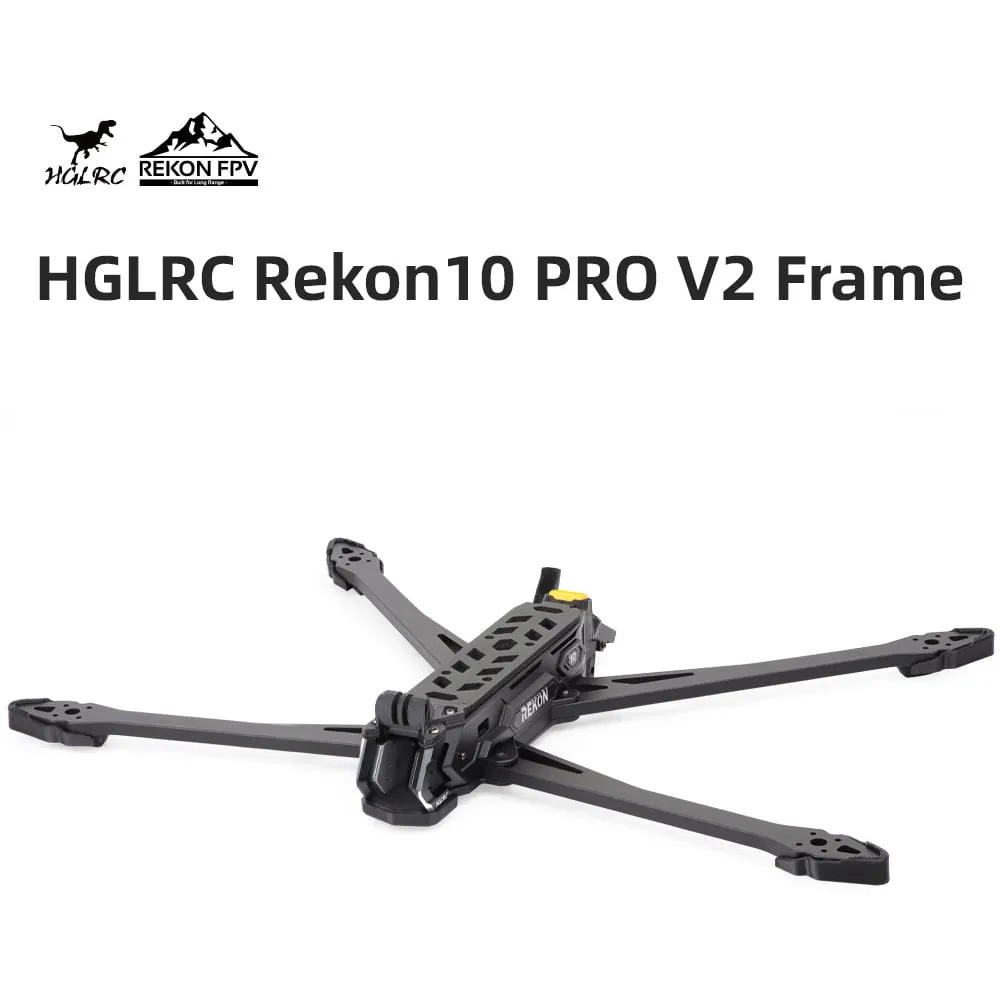

HGLRC Rekon10 Pro V2 10-Inch Long Range Frame Kit
SKU REKON10-PRO-V2-FRAME
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Rekon10 Pro V2 is a 10-inch long-range frame kit machined from 3K carbon fibre, built for high-speed mountain surfing and extended-range missions with dual battery mounting.
Key features
8mm front and rear arms with a 3mm top plate, 3mm bottom plate and 2mm mid plate for a stiff, low-resonance airframe.
Wide, extended deck supports top-and-bottom dual battery mounting for maximum range.
19x19mm motor mounting pattern and a 30.5x30.5mm flight controller bay.

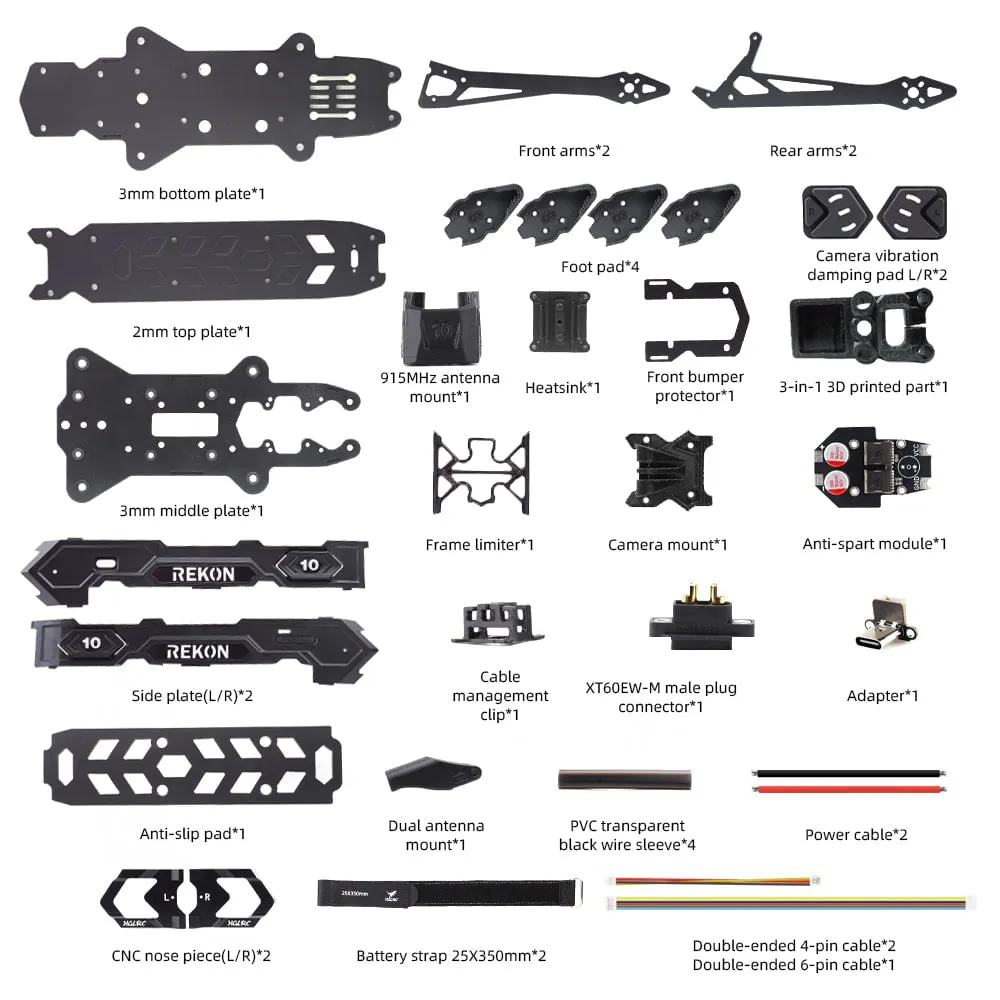

Comes with TPU mounts for a GoPro, GPS, buzzer, antennas and a DJI O3/Air Unit block.
Specifications
Wheelbase: 455 mm
Frame dimensions: 476 x 298 mm
Arm thickness: 8 mm
Top / bottom / mid plate thickness: 3 mm / 3 mm / 2 mm
FC mounting: 30.5x30.5 mm
Motor mounting: 19x19 mm
Weight: 396.7 g
Recommended build: a Zeus F722 flight controller, 31xx/32xx motors, a 60A ESC and a 6S 2000-5100mAh pack for maximum endurance.
| Prop Size | 10" |
|---|---|
| Brand | HGLRC |
| Weight | 386 g |
| Made in India | No |
| Mounting Size | 30.5x30.5 |
| Motor Mount | 19x19mm |
| Camera Size | 20mm |
| Wheelbase | 455 mm |
| Arm Thickness | 8 mm |
