GEPRC Pulsar LR11 Frame

The GEPRC Pulsar LR11 is a carbon-fibre frame for custom 11-inch long-range and heavy-lift builds, with a wide 473mm wheelbase and reinforced arms for extended-range flying. Its large fuselage leaves room for GPS, long-range video gear and other electronics that smaller frames can't fit.

Key features

• 473mm wheelbase and an 11-inch propeller mount suit long-range motor and propeller combinations.
• 7mm arm plates with 3mm arm splints add durability for large, heavy-lift builds.
• TPU-printed camera mount structure helps reduce vibration-induced video jello.
• Stack area supports 30.5 x 30.5mm flight-controller mounting, with VTX mounting at 20x20mm, 25.5x25.5mm or 30.5x30.5mm.

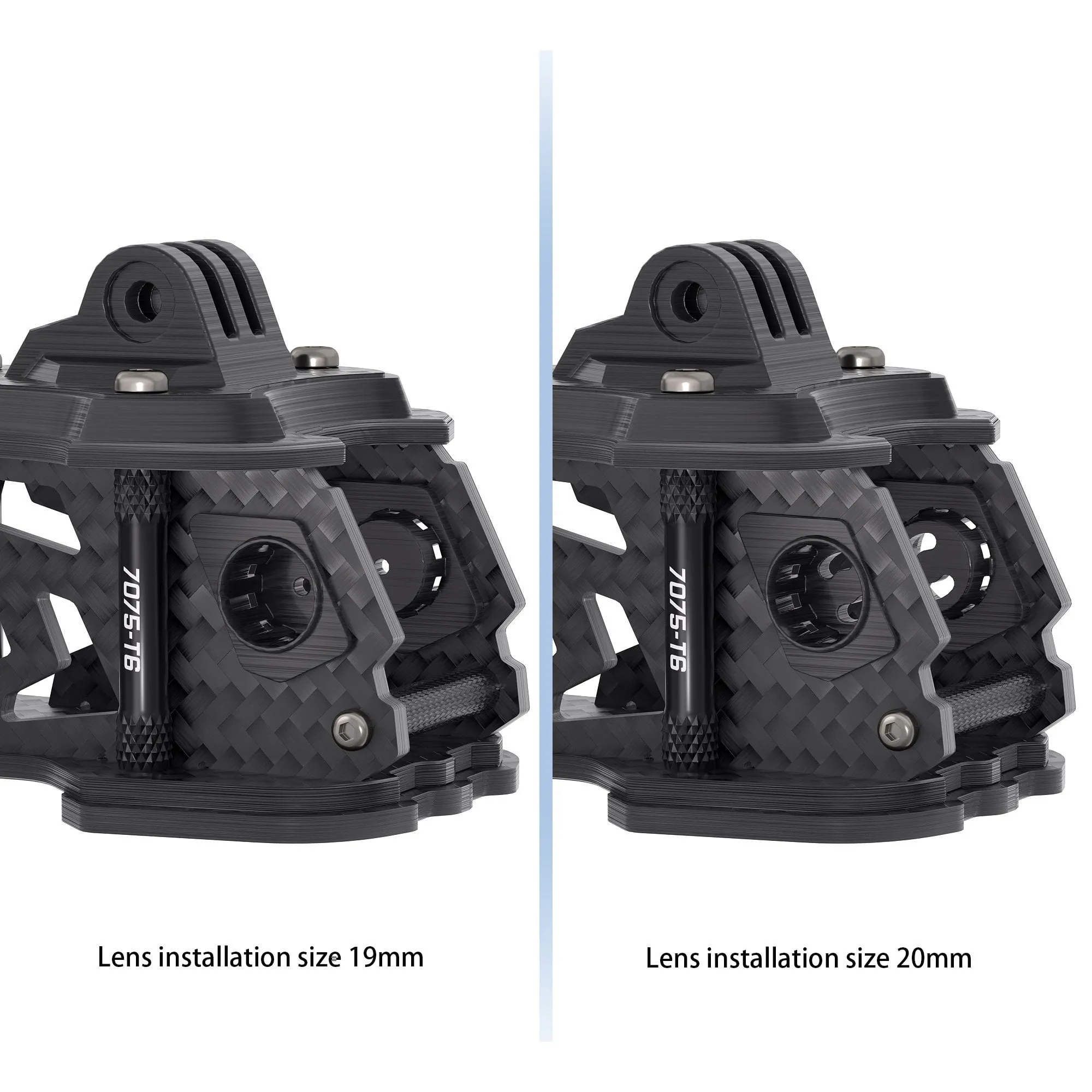

• Camera mount fits 19mm or 20mm cameras, and a bold aviation-grade 7075-T6 aluminium centre column adds strength without excess weight.
• Weighs 587.2g and ships with battery straps, non-slip pads, a 3D-printed accessory kit and three L-shaped screwdrivers.

Specifications

• Wheelbase: 473mm
• Propeller size: 11 inch
• Weight: 587.2g
• Arm plate thickness: 7mm
• FC mounting: 30.5 x 30.5mm
• Camera mount: 19mm / 20mm

Suits pilots building a dedicated long-range or heavy-lift 11-inch quad who need room for extra batteries, GPS and long-range video gear, plus the hardware to mount them.
