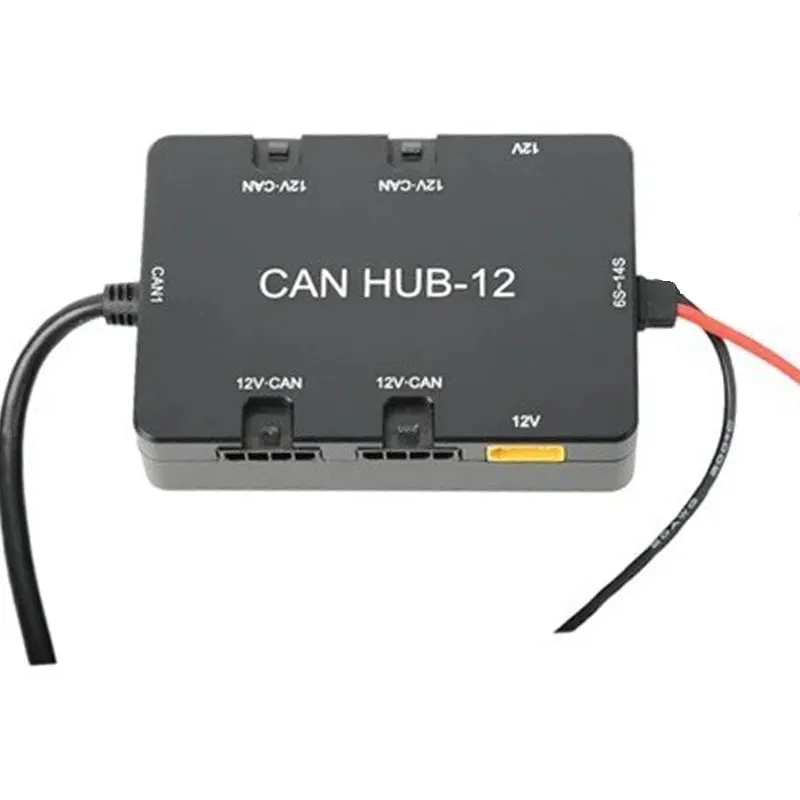

JIYI CAN HUB-12 CAN Expansion Module for K++ Flight Controller

The JIYI CAN HUB-12 turns a single CAN port on a K++ or K3A Pro flight controller into twelve, and feeds a regulated 12 V rail to everything plugged into it. On a spraying or survey drone that means the radar, GNSS unit, flow meter, spray controller and camera all share one tidy hub instead of a bundle of splices.

Key features

• Twelve CAN ports from one flight controller connection, for radar, GNSS, spray control and camera modules
• Direct 6-14S battery input, so no separate step-down is needed to feed the hub
• Regulated 12 V output on the ports, keeping peripheral voltage steady as the pack sags
• Carbon fibre bodied housing sized to sit on the centre plate of an agricultural airframe
• Integrated power and signal expansion in one board, cutting wiring runs across the frame

Specifications

• Input: 6-14S
• Output: 12 V, CAN
• Devices supported: up to 12
• Compatibility: JIYI K++ and K3A Pro flight control systems
• Body material: carbon fibre

Do not power the flight controller itself from the 12 V output, and connect or disconnect devices only with the pack unplugged, as the hub is not designed for hot swapping.
