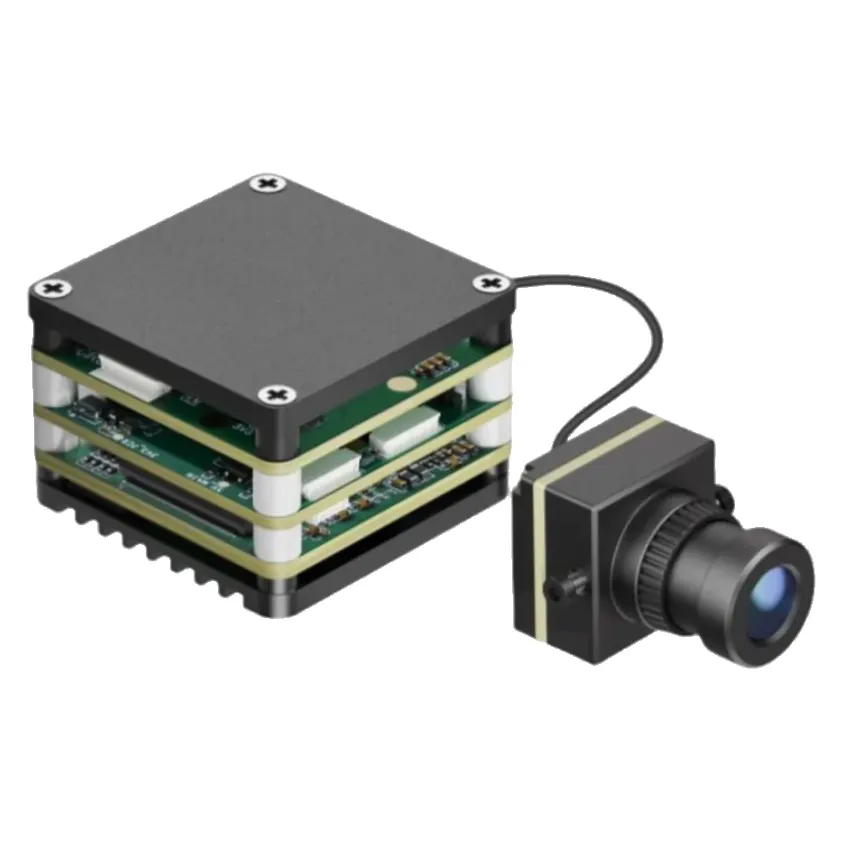

AI VisionCube Max Plus FPV Target Tracking & Lock Guidance Module — Version: Visible Light

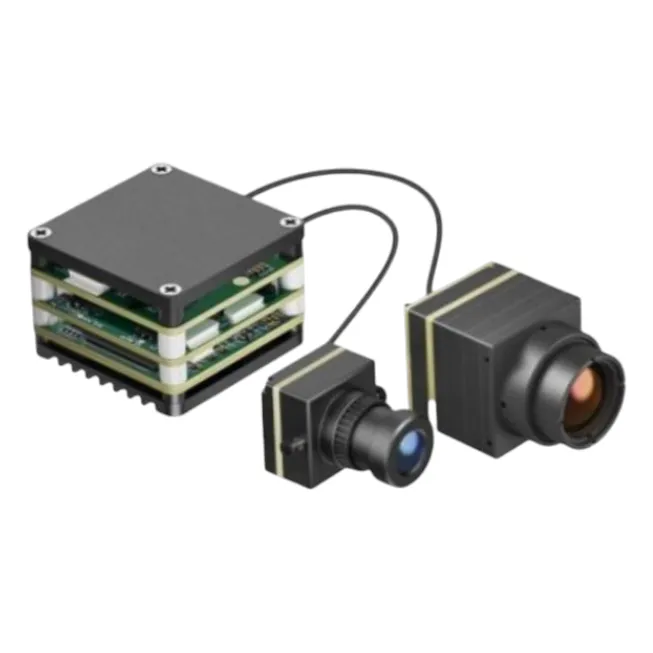

AI VisionCube Max Plus FPV Target Tracking & Lock Guidance Module — Version: Visible + Thermal
AI VisionCube Max Plus FPV Target Tracking & Lock Guidance Module
Companion Computers & Carrier Boards

AI VisionCube Max Plus FPV Target Tracking & Lock Guidance Module

₹52,099Incl. GST

SKU VISIONCUBE-MAXPLUS-VIS

Version: Visible Light

Made in India: NoSupported Firmware: BetaflightMounting Size: 25.5x25.5Input Voltage: 3S
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

AI VisionCube Max Plus is an onboard target-tracking and lock-guidance module for FPV drones and UAVs. Its AI image-processing board recognises people and vehicles from the air in the camera feed, locks onto the target you pick and keeps tracking it through the flight. Choose the Visible Light version for daytime work, or Visible + Thermal, which adds a long-wave infrared camera for night and low-visibility flying.

Key features

  • Air-to-ground recognition of people and vehicles by default, out to 170 m for a person and 450 m for a vehicle.
  • Fast-target tracking of targets as small as 16 x 16 pixels moving at up to 80 km/h, with up to 50 targets recognised at once.
  • Trajectory prediction and feature-memory tracking, plus crosshair fuzzy locking for close-range tracking.
  • Analog video output to your VTX, with picture-in-picture supported.
  • CRSF link to a Betaflight flight controller, on a 25.5 x 25.5 mm mounting pattern.

Specifications

  • AI computing power: 1 TOPS
  • Flight controller link: CRSF, Betaflight
  • Operating voltage: 9–16 V DC
  • Mounting holes: 25.5 x 25.5 mm
  • Processing board: 38 x 38 x 29 mm, 43.8 g
  • Video: analog, picture-in-picture
  • Detection range: vehicle up to 450 m, person up to 170 m
  • Minimum target size: 16 x 16 pixels
  • Tracking speed: up to 80 km/h
  • Targets recognised: up to 50
  • Thermal camera (Visible + Thermal version): 384 x 288 at 25 Hz, 12 µm pixel pitch, 8–14 µm LWIR
  • Thermal lens: 9.1 mm, 20.3° x 15.2° field of view
  • Thermal module: 26 x 26 x 32.85 mm, 32.4 g

The 9–16 V input runs from a 12 V BEC or directly from a 3S pack; a fully charged 4S or larger battery exceeds it, so use a regulator on bigger builds.
