AKK Alpha 8 5.8GHz 8W 80CH Analog VTX

Name: AKK Alpha 8 5.8GHz 8W 80CH Analog VTX
Brand: AKK
SKU: AKK-ALPHA8-58G-8W-80CH
Price: 10399 INR
Availability: InStock

₹10,399Incl. GST

SKU AKK-ALPHA8-58G-8W-80CH

VTX Power: 8000 mWMounting Size: 30.5x30.5Antenna Connector: SMAMade in India: No

Ships within 3–4 business days — quality-checked in Gurugram before dispatch

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

100% genuine parts
GST invoice with every order
Secure payments — cards, UPI & net banking via Razorpay
7-day returns on wrong or damaged items

The AKK Alpha 8 is a high-power 5.8GHz analog video transmitter for extreme long-range FPV, mountain surfing and heavy-lift builds, with switchable output up to 8000mW (8W) across 80 channels.

Key features

Output power switches between 25mW, 1W, 3W, 5W and 8W, so you can dial back power for local flights and step up for maximum range.
Smart Audio support lets you change power level and channel from your OSD or radio without touching the VTX.

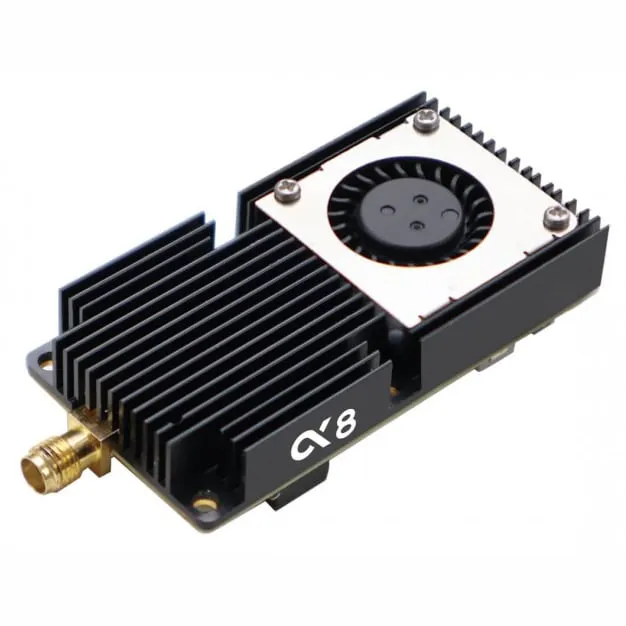

A fan-embedded heatsink actively cools the module at high power, with stable output and no frequency drift.
LED nixie-tube display shows the active channel and power setting at a glance.

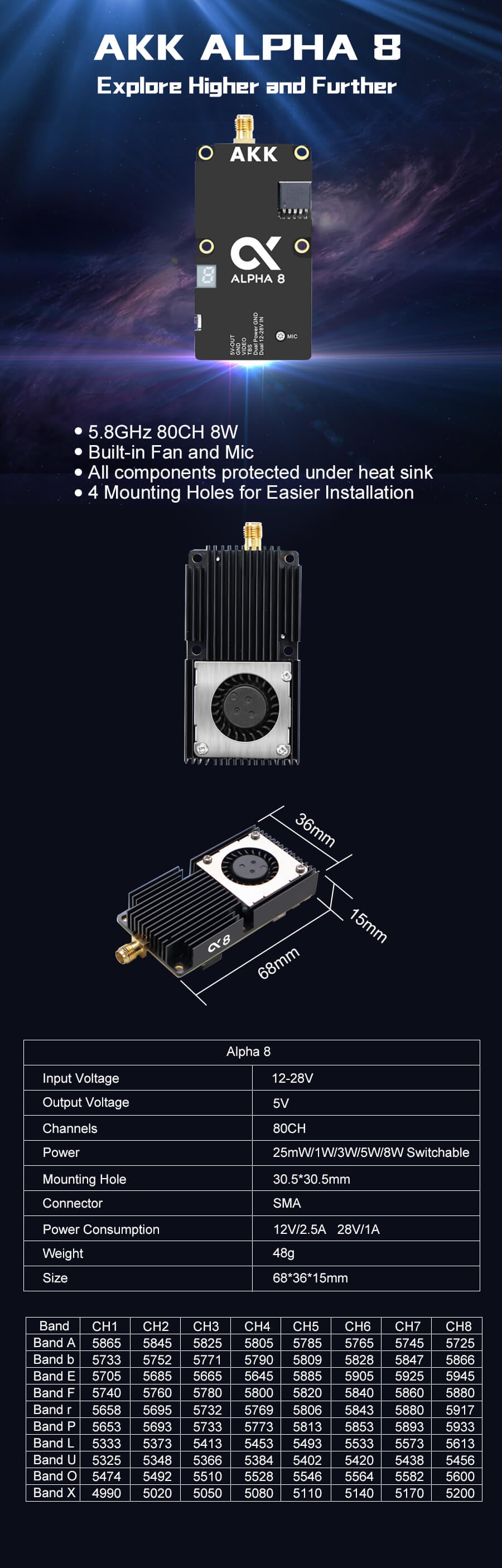

Specifications

Frequency band: 5.8 GHz
Channels: 80
Maximum output power: 8000 mW
Power levels: 25 mW / 1 W / 3 W / 5 W / 8 W
Mounting size: 30.5x30.5 mm
Antenna connector: SMA

Suited to X-Class quads, fixed-wing platforms and other large builds that can support the higher current draw of 8W operation; always fit a properly rated antenna before powering up at high output.
