TBS Unify EVO 5.8GHz Video Transmitter

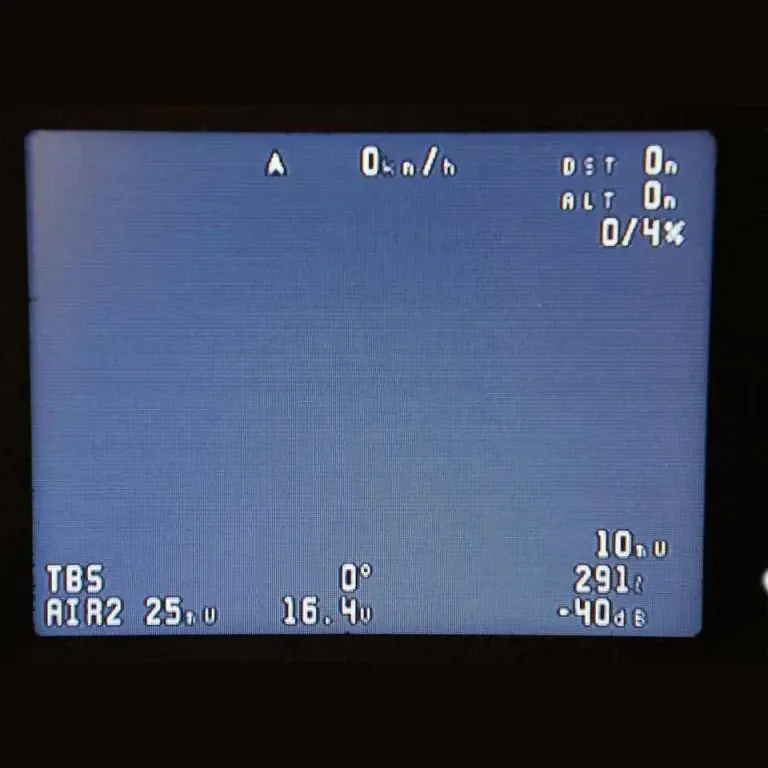

The TBS Unify EVO 5.8GHz is an analog video transmitter specifically engineered for fixed-wing FPV aircraft and minimalist quadcopters. Unlike standard VTX modules, it integrates an onboard graphical OSD. This allows pilots to overlay essential telemetry, such as battery voltage and current consumption, directly onto the video feed without requiring a dedicated flight controller.

Key features

• Selectable output power from 25mW up to 800mW for reliable long-range signal penetration.

• Integrated graphical OSD and built-in microphone for standalone flight diagnostics and real-time audio.

• Native TBS Crossfire (CRSF) integration allows direct VTX control and telemetry routing through your receiver.

• CleanSwitch technology guarantees glitch-free powering on and band switching without interfering with active channels.

• Supports SmartAudio V2.1 and TBS barcode configuration for rapid, button-free race-day setup.

• PWM control input lets any radio switch channels or power, and an onboard USB port takes firmware updates.

Specifications

• Input voltage: 6-26V (2-6S LiPo)

• Output power: 25mW, 100mW, 400mW, 800mW

• Supply current: approx. 0.11 A (25mW) to 0.24 A (full power)

• Supported protocols: SmartAudio V2.1, CRSF, PWM

• Camera power output: 5V

• Video format: NTSC/PAL

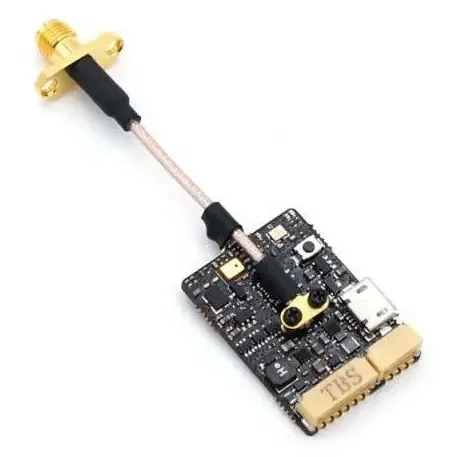

• Antenna connector: U.FL (u.FL-to-SMA pigtail included)

• Dimensions: 30 x 23 x 5.5 mm

• Weight: 7g

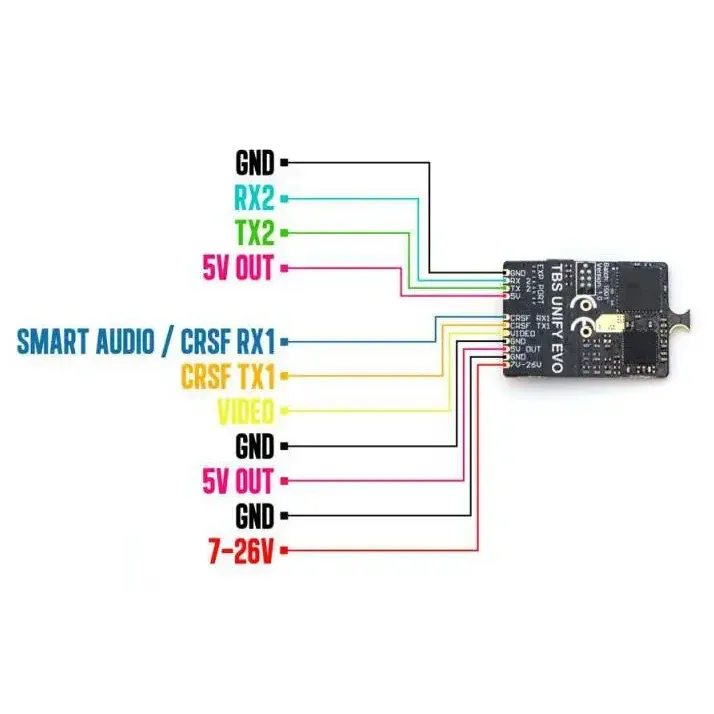

Ideal for custom wings or older builds lacking a modern OSD chip, the EVO drastically streamlines your wiring layout by acting as the central hub between your camera, power source, and RC receiver.
