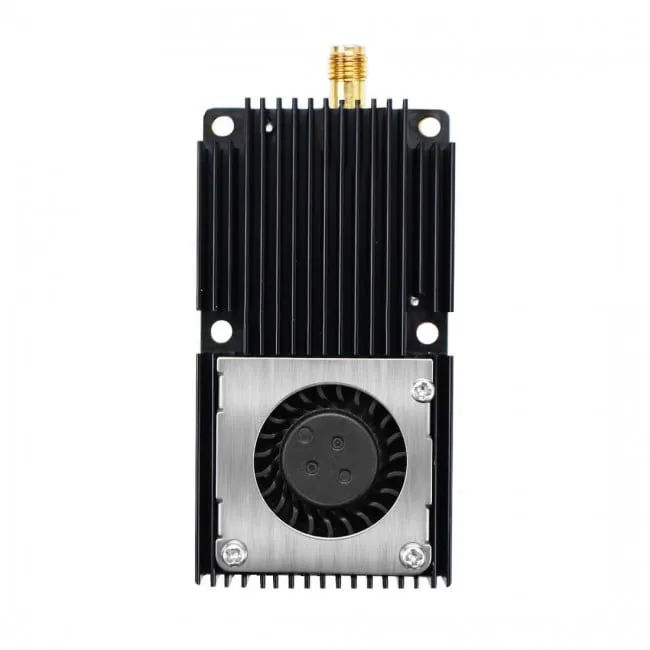

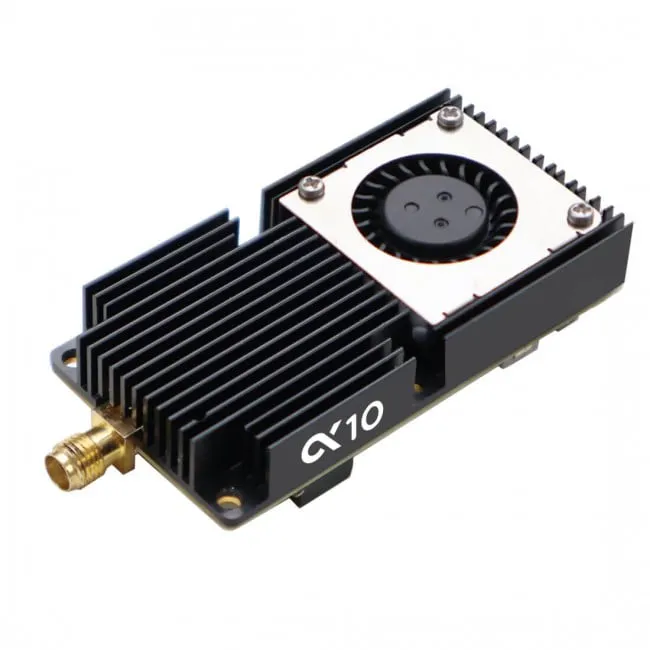

AKK Alpha 10 5.8GHz 10W 80CH VTX

The AKK Alpha 10 is an ultra-high-power analog video transmitter designed for extreme long-range FPV, large fixed-wing platforms, and heavy-lift UAVs requiring maximum signal penetration. Delivering up to 10 watts (10,000mW) of RF output, this VTX is built to push video through dense physical obstructions and maintain clear reception at massive distances where standard transmitters drop out.

Key features

• Colossal 10W maximum output power for boundary-pushing range and penetration.

• Expanded 80-channel spectrum coverage to help bypass local 5.8GHz interference.

• Active cooling system with a built-in high-speed fan and CNC aluminium heatsink to sustain continuous high-power transmission.

• SmartAudio support for remote channel, band, and power configuration directly via your flight controller.

• Wide 7-36V voltage input, allowing the VTX to be powered directly from 2S to 8S LiPo batteries.

• LED numeric display shows the active channel and power level.

Specifications

• Input Voltage: 7-36V (2-8S)

• Output Power: Up to 10W (10,000mW)

• Power Levels: 1W / 3W / 5W / 7W / 10W

• Frequency Band: 5.8GHz (80 Channels)

• Antenna Connector: SMA

• Protocol: SmartAudio

• Video Format: NTSC / PAL

Due to the extreme 10W output, this VTX draws substantial current and generates significant heat. Ensure adequate in-flight airflow over the heatsink and absolutely never power the unit without a high-quality 5.8GHz antenna securely fastened to the SMA port to prevent permanently damaging the RF amplifier.
