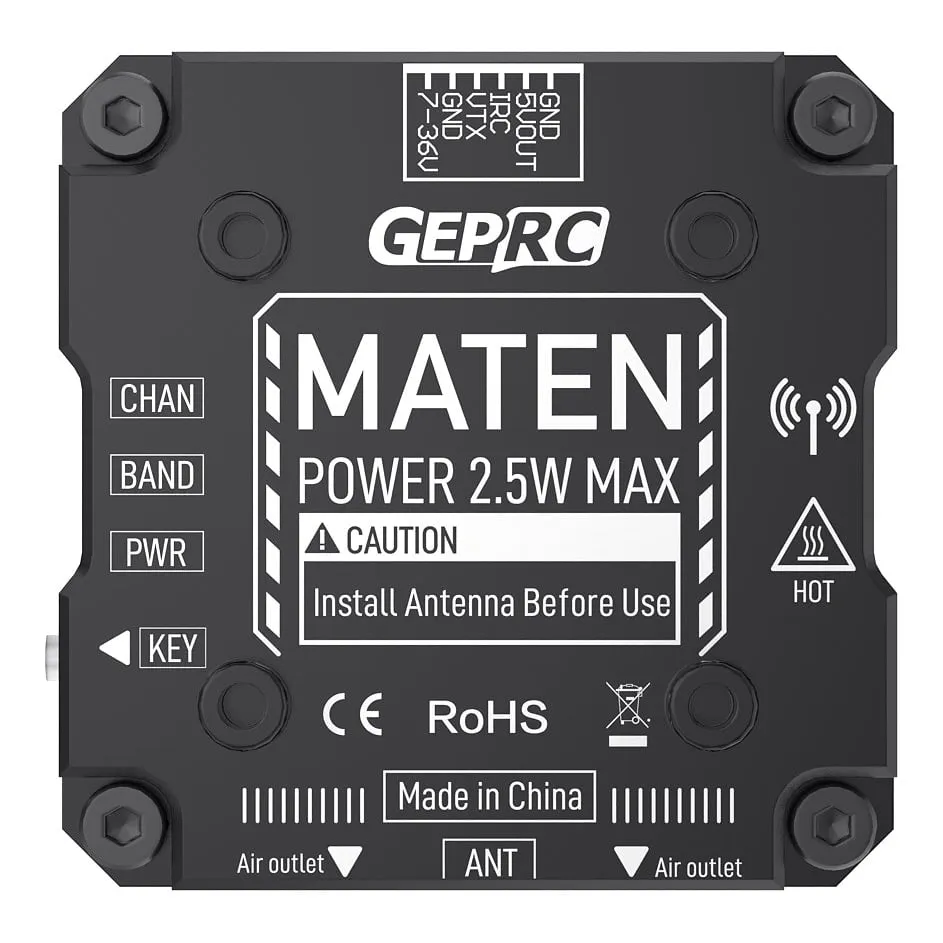

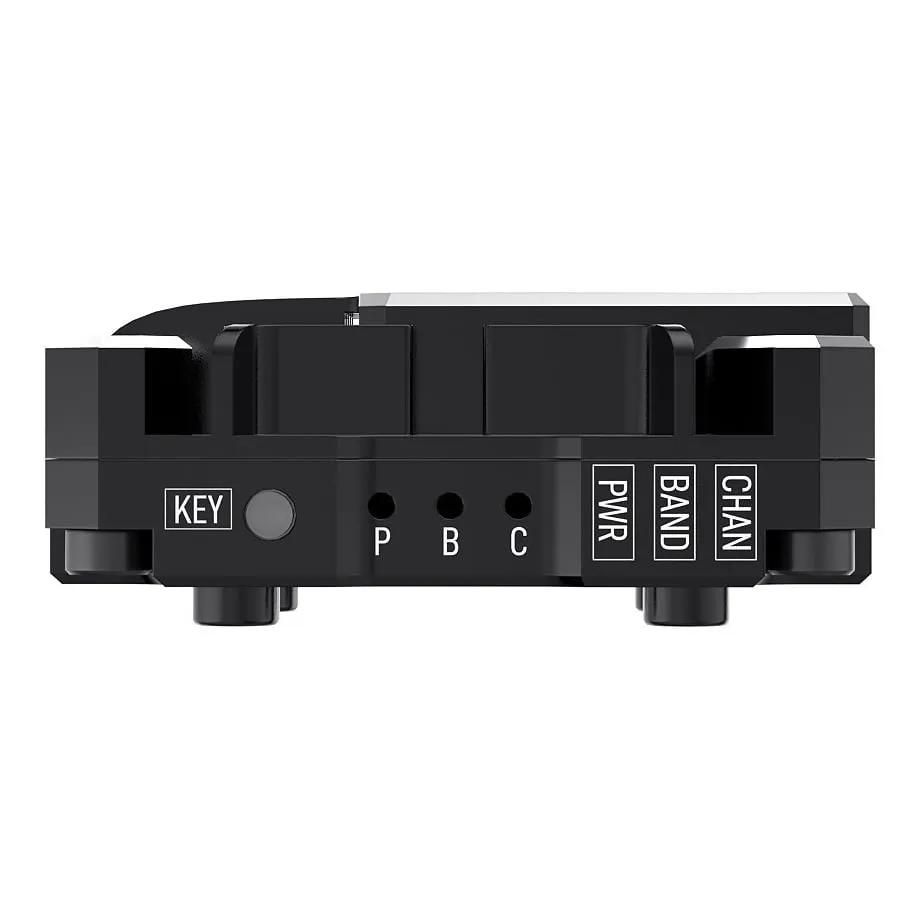

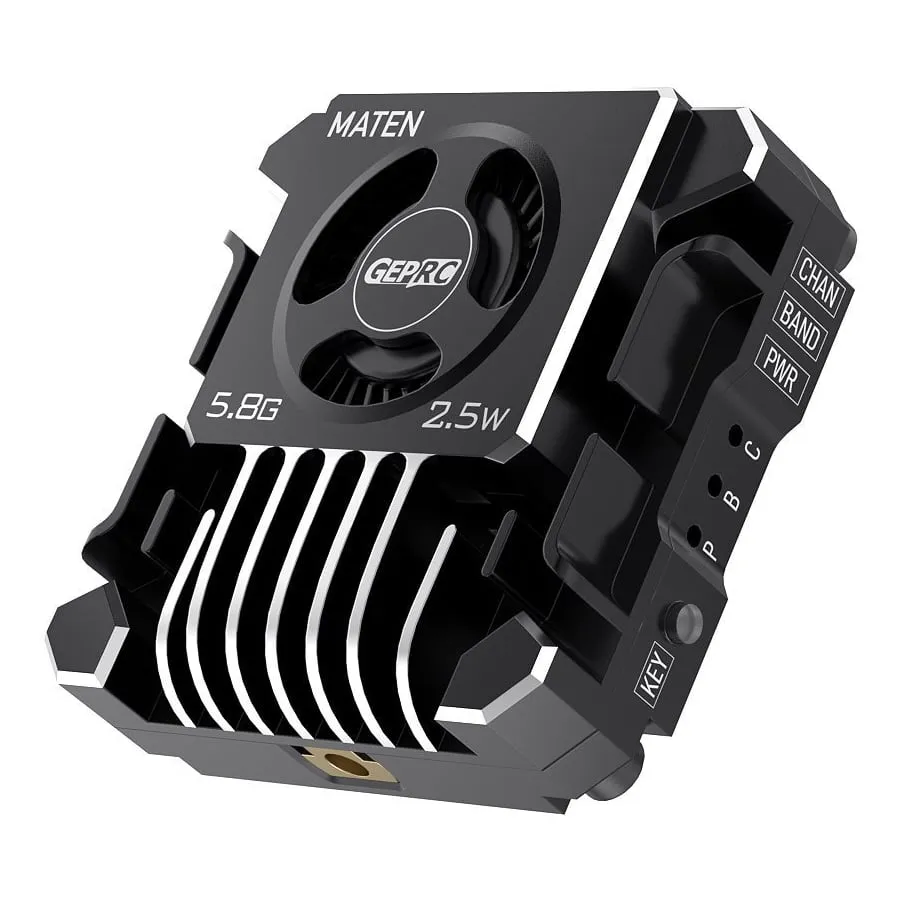

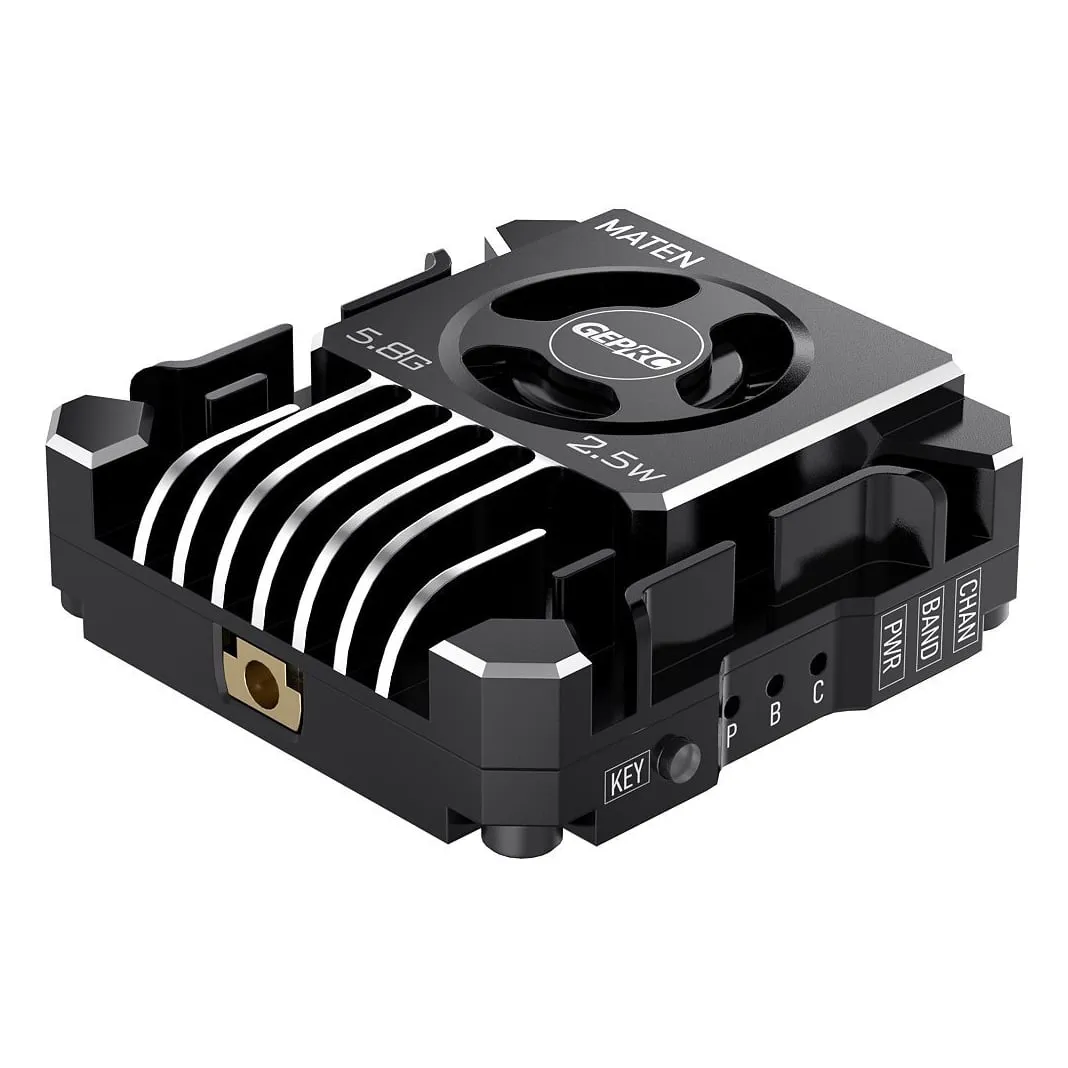

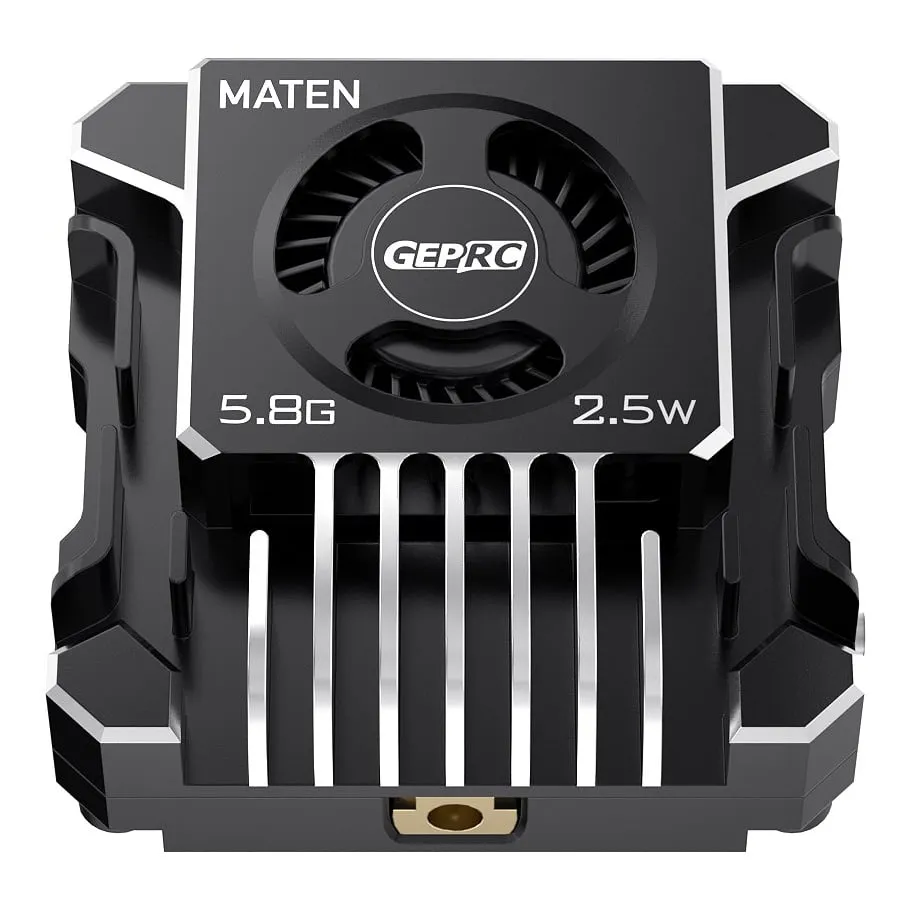

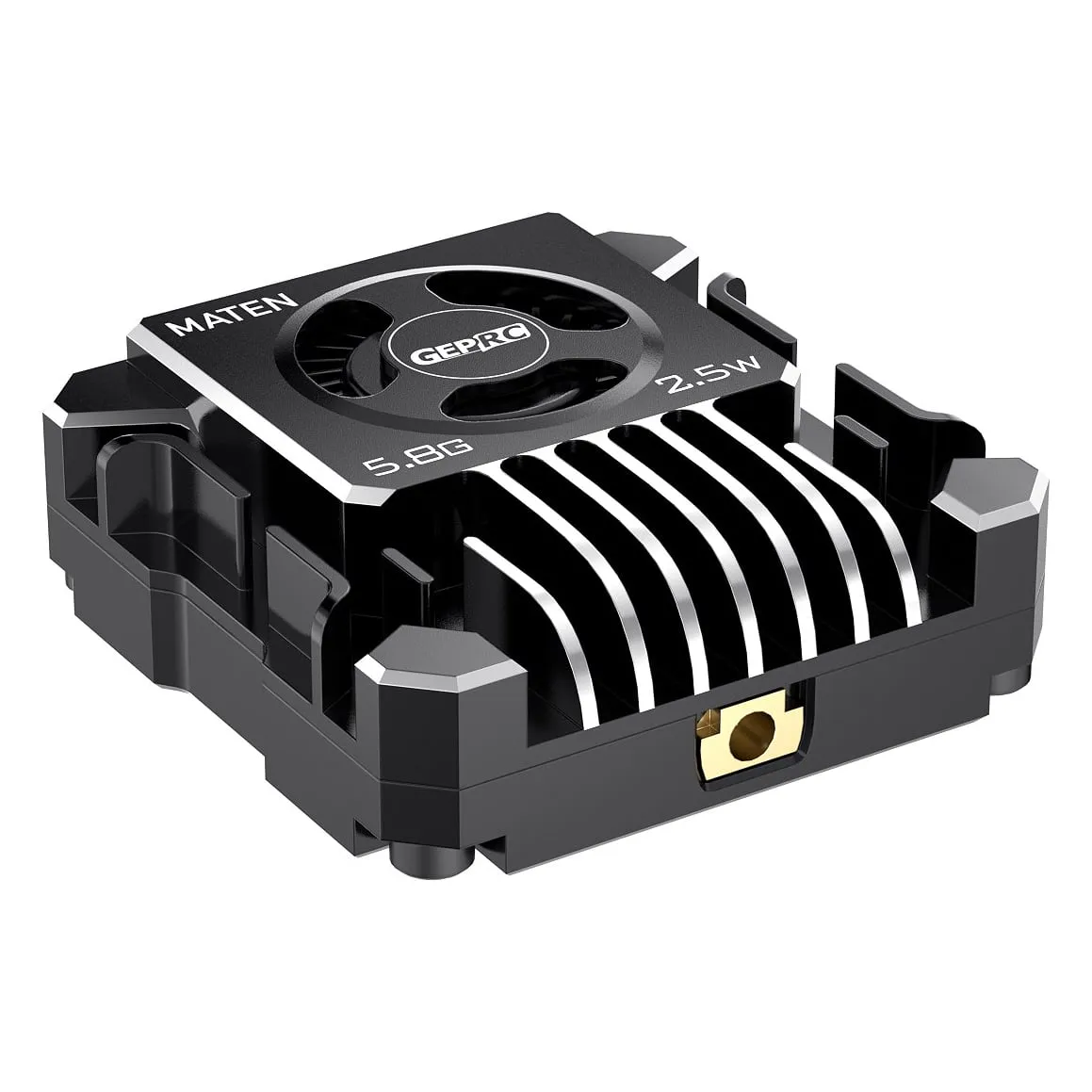

GEPRC Maten 5.8GHz 2.5W VTX Pro

The GEPRC Maten 5.8GHz 2.5W VTX Pro is a high-power analog video transmitter built for long-range mountain surfing, heavy-lift cinelifters, and deep signal penetration in dense bando environments. To manage the high thermal load generated by a 2500mW transmission, the VTX is enclosed in a CNC-machined aluminium alloy heatsink and equipped with a dedicated active cooling fan, preventing thermal throttling during bench setup or low-speed flights.

Key features

• Selectable output power levels from Pit mode up to 2500mW for extended range.
• Active cooling system with a CNC aluminium shell and micro fan to sustain high output power safely.
• Dual mounting patterns accommodate both 20x20mm and 30.5x30.5mm stacks.
• Accepts 7–36V direct battery voltage with a dedicated 5V/600mA BEC to power an analog FPV camera.
• Built-in microphone for onboard audio transmission.

Specifications

• Input Voltage: 7–36V (2–8S LiPo)
• Camera Output Voltage: 5V at 600mA
• Output Power: Pit / 25 / 200 / 600 / 1600 / 2500 mW
• Frequency: 4884-6184 MHz, 80 channels including the 4.9 GHz X band (units built before November 2025: 5.8 GHz, 72 channels)
• Protocol: IRC Tramp
• Video Format: PAL / NTSC
• Antenna Connector: MMCX
• Cable Connector: SH1.0 6-pin
• Mounting Size: 20x20mm, 30.5x30.5mm (M2)
• Dimensions: 36.3 x 36.3 x 15.1 mm
• Weight: 20 g (excluding antenna)

With support for the IRC Tramp protocol, you can adjust power levels and channels directly through Betaflight or INAV OSD. Thanks to its dual mounting options, this VTX slots easily into large 7-to-10-inch macro frames as well as standard 5-inch freestyle builds.
