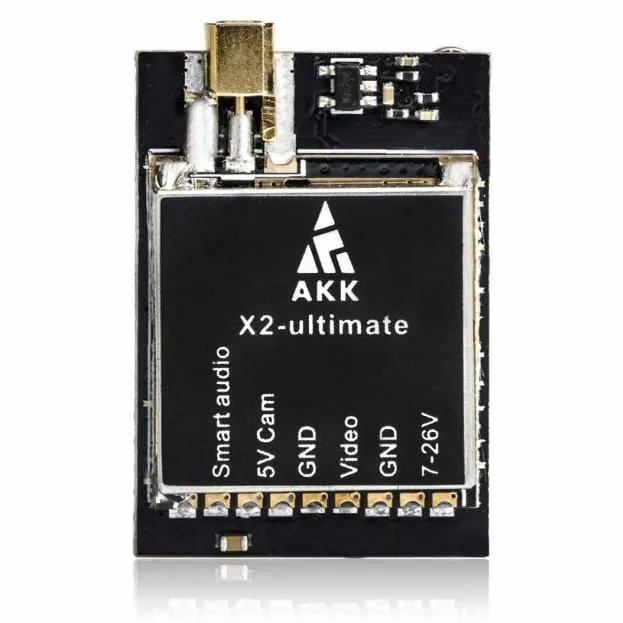

AKK X2-Ultimate 1W/1.2W VTX (5.8GHz)

The AKK X2-Ultimate is a compact analog video transmitter for 5.8GHz FPV builds, switchable between low power for bench testing and full output for long-range flying. It ships in two power tiers so pilots can match the VTX to local regulations or racing rules.

Key features

• Switchable output across 25mW, 200mW, 600mW and up to 1000mW (1W variant) or 1200mW (1.2W variant) for bench-safe testing through to long-range flights
• Smart Audio support lets you change power, channel and band from the Betaflight OSD without touching the VTX
• Single-button control changes channel, band and power directly on the unit when Smart Audio isn't wired up

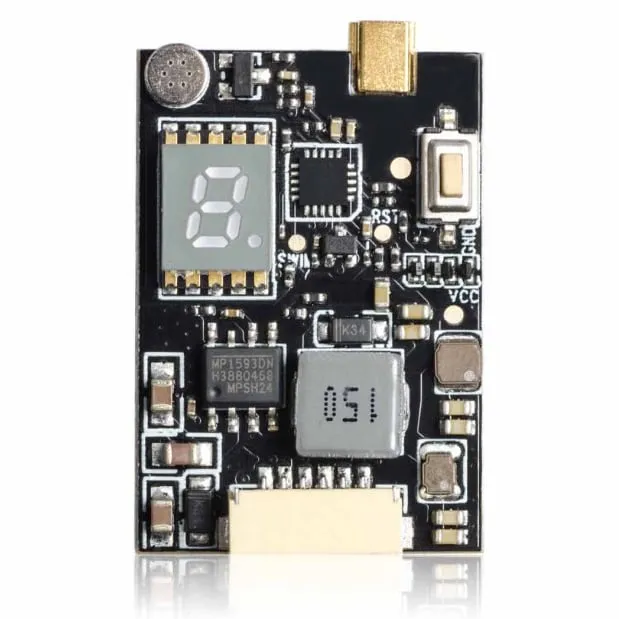

• Onboard LED panel shows the current channel, band and power setting at a glance

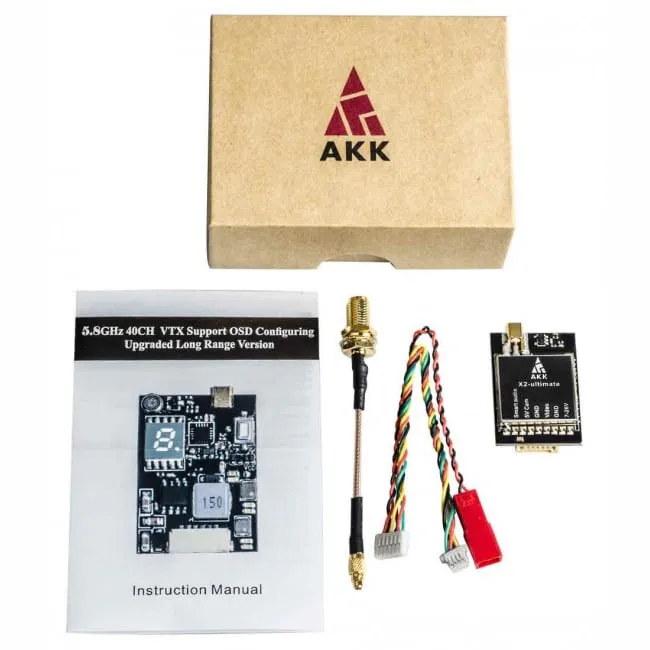

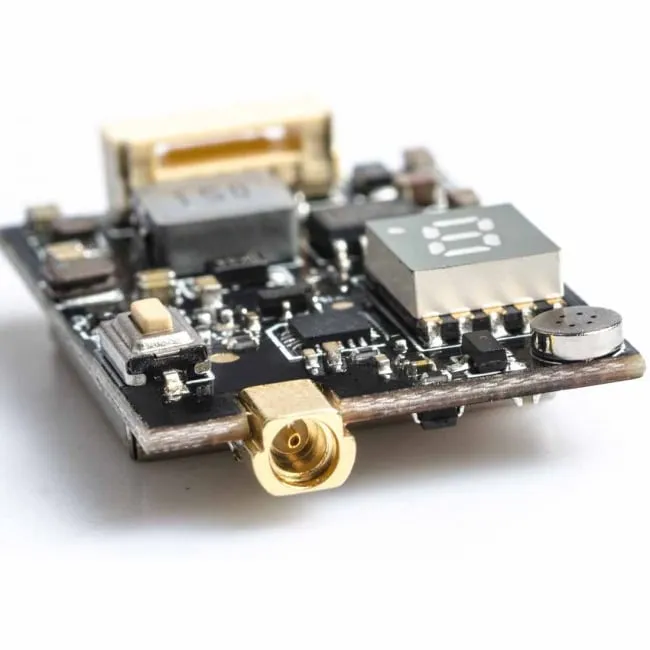

• MMCX antenna connector, paired with an included MMCX-to-SMA/RP-SMA adapter and cable
• Wide 7-26V input covers 2S to 6S LiPo packs directly, with a 5V output to power an analog FPV camera

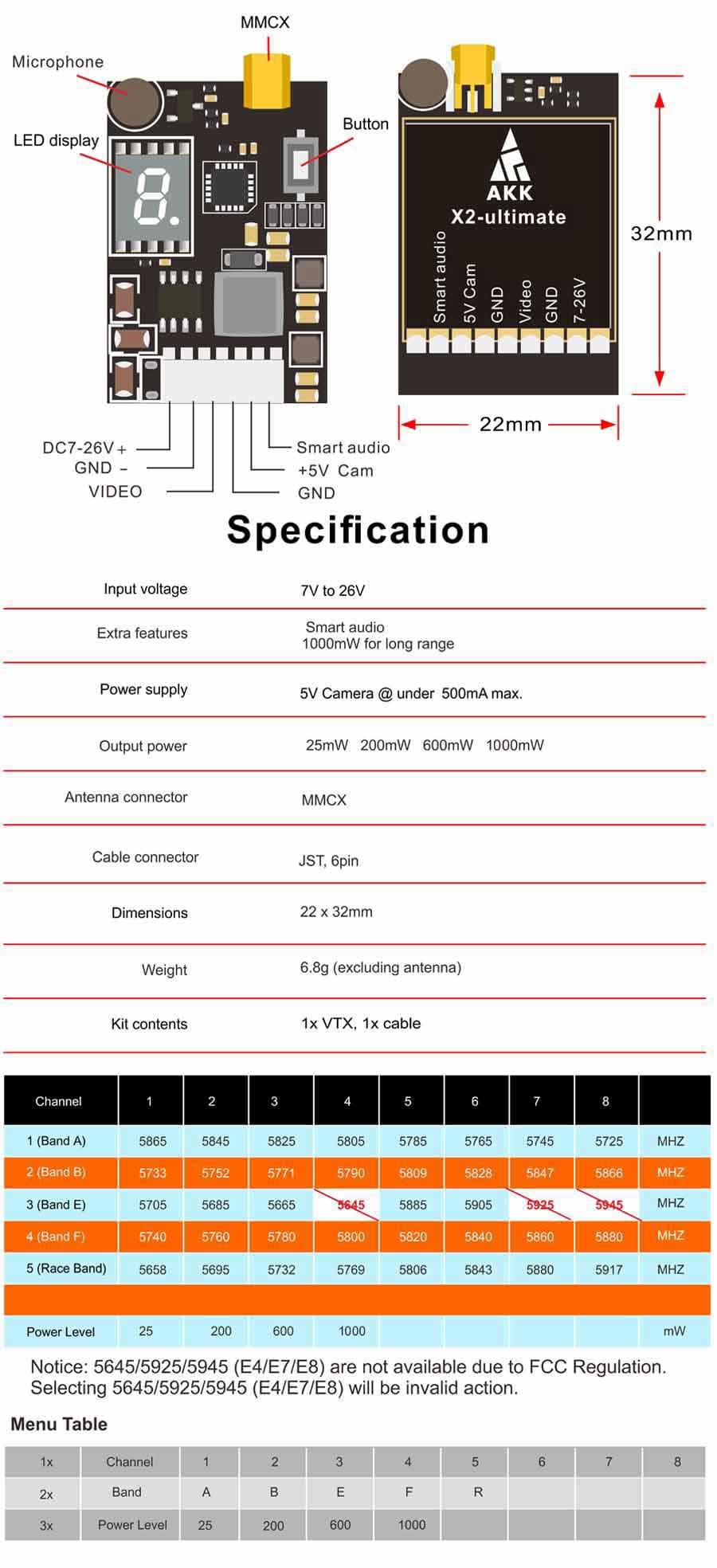

Specifications

• Frequency: 5.8GHz analog
• Max power: 1000mW (1W) or 1200mW (1.2W variant)
• Power levels: 25/200/600/1000(1200)mW switchable
• Antenna connector: MMCX
• Input voltage: 7-26V (2-6S LiPo)
• Camera output: 5V

Wire the 5V output straight to an analog FPV camera, and keep the VTX on a low power setting for bench tuning before switching up for the field.
