1.2GHz 2W FPV Audio/Video 8CH Transmitter and 12CH Receiver Set

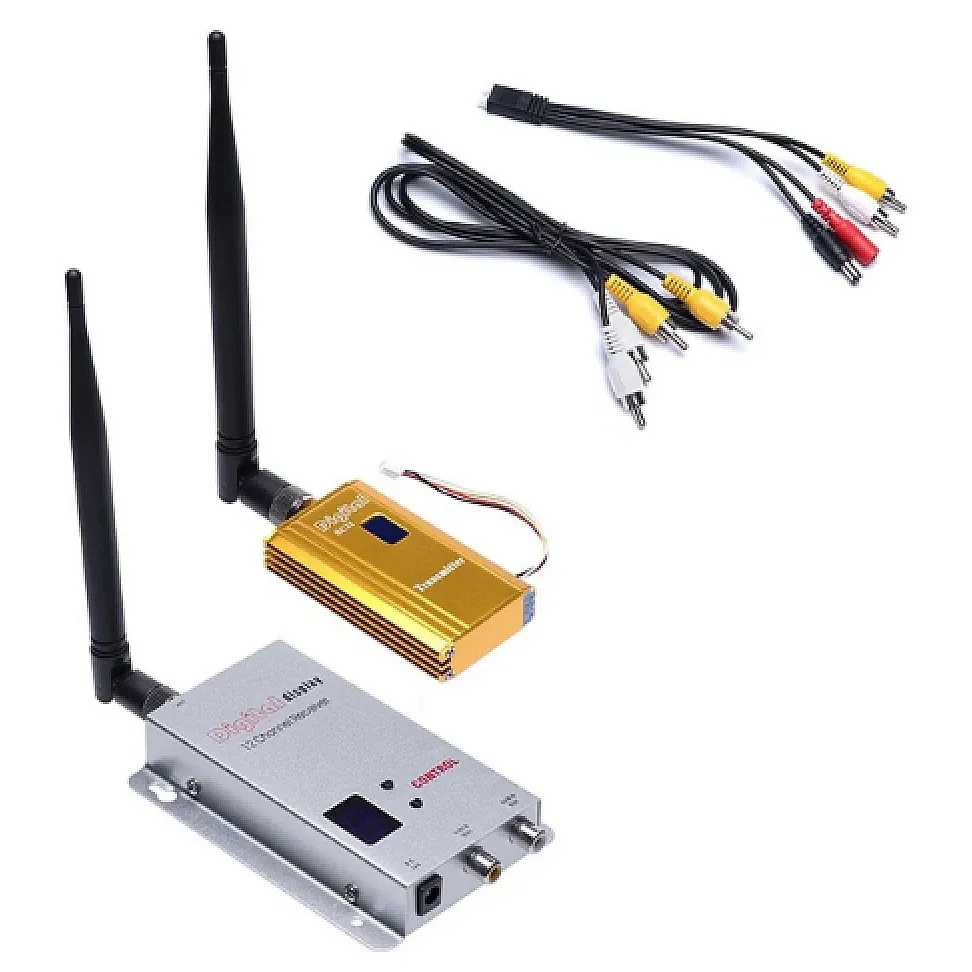

Matched 1.2GHz analog audio/video link made up of a 2W transmitter and a 12-channel receiver that work as a pair on the same channel. It suits long-range FPV planes and multirotors, ground-station video feeds and wireless camera links, where the lower band gets through foliage and obstacles better than 5.8GHz.

Key features

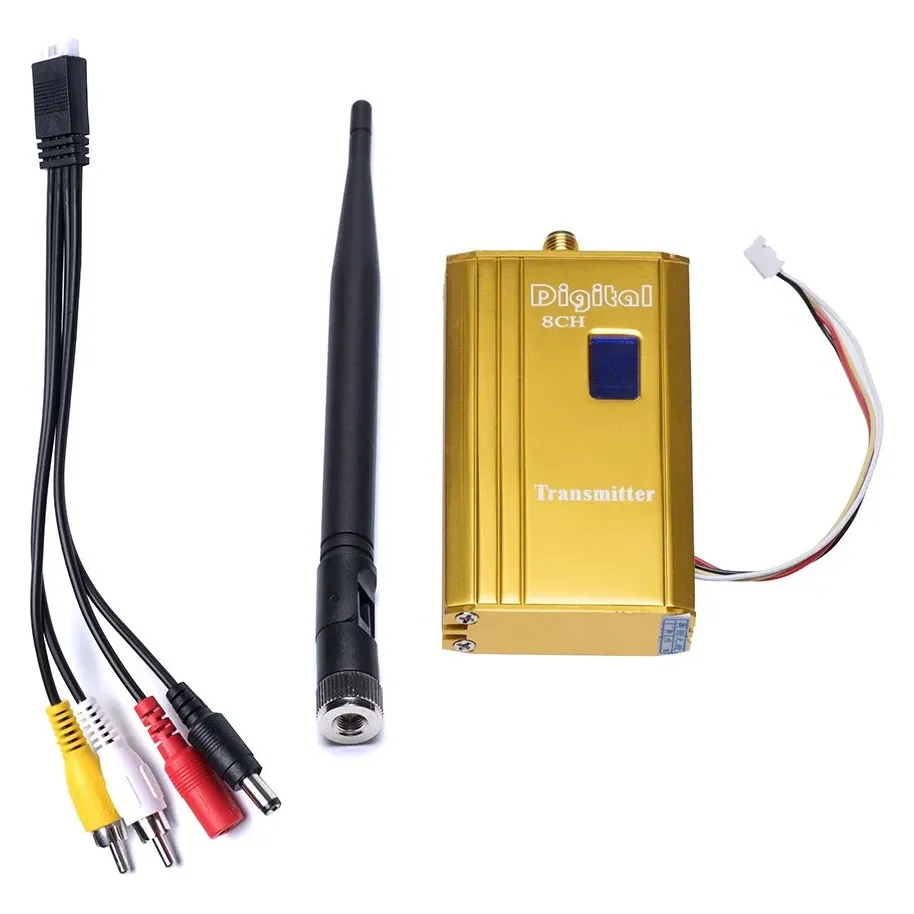

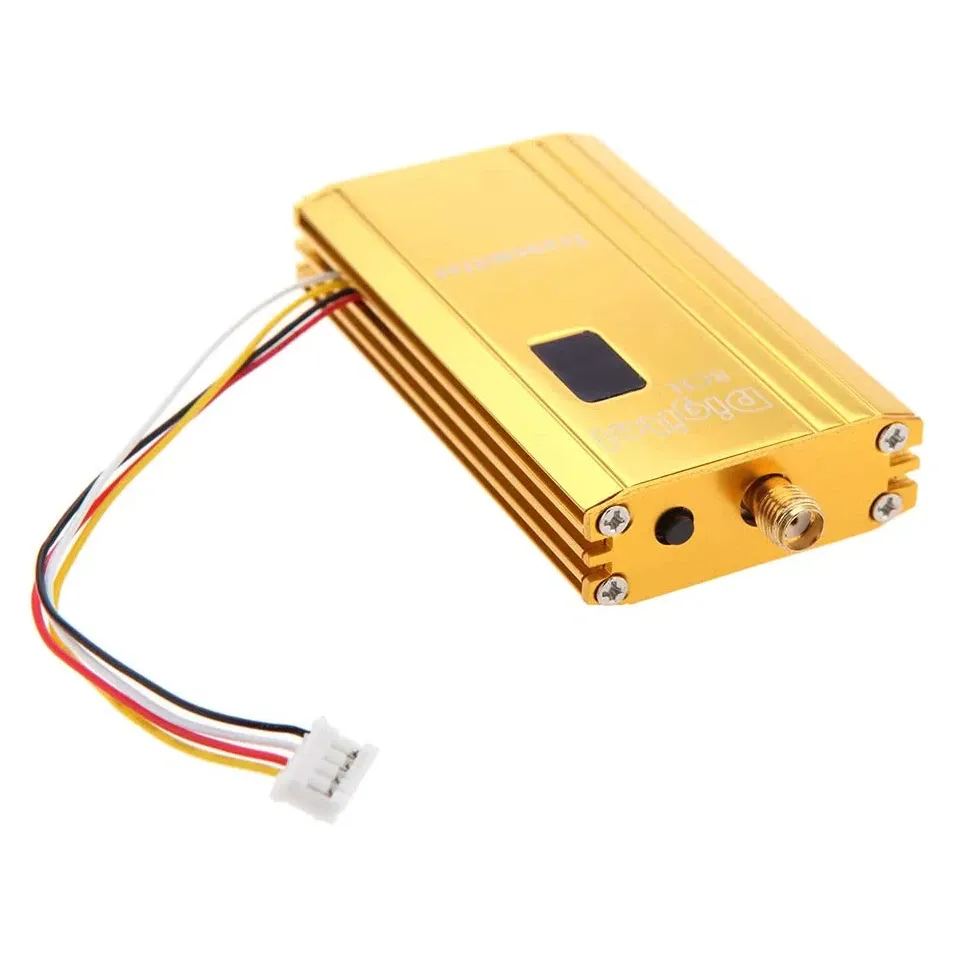

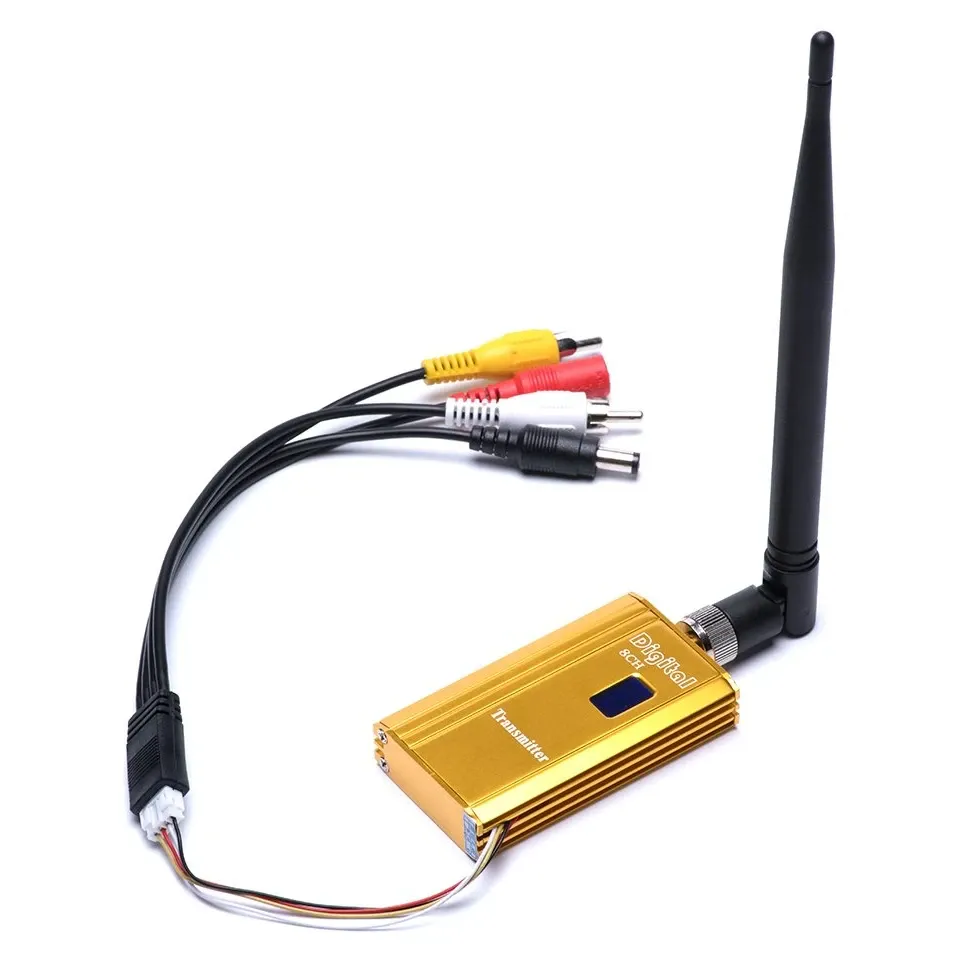

• 2W (2000mW) transmitter with 8 channels from 1080 to 1360 MHz, held by a digital frequency-locked loop

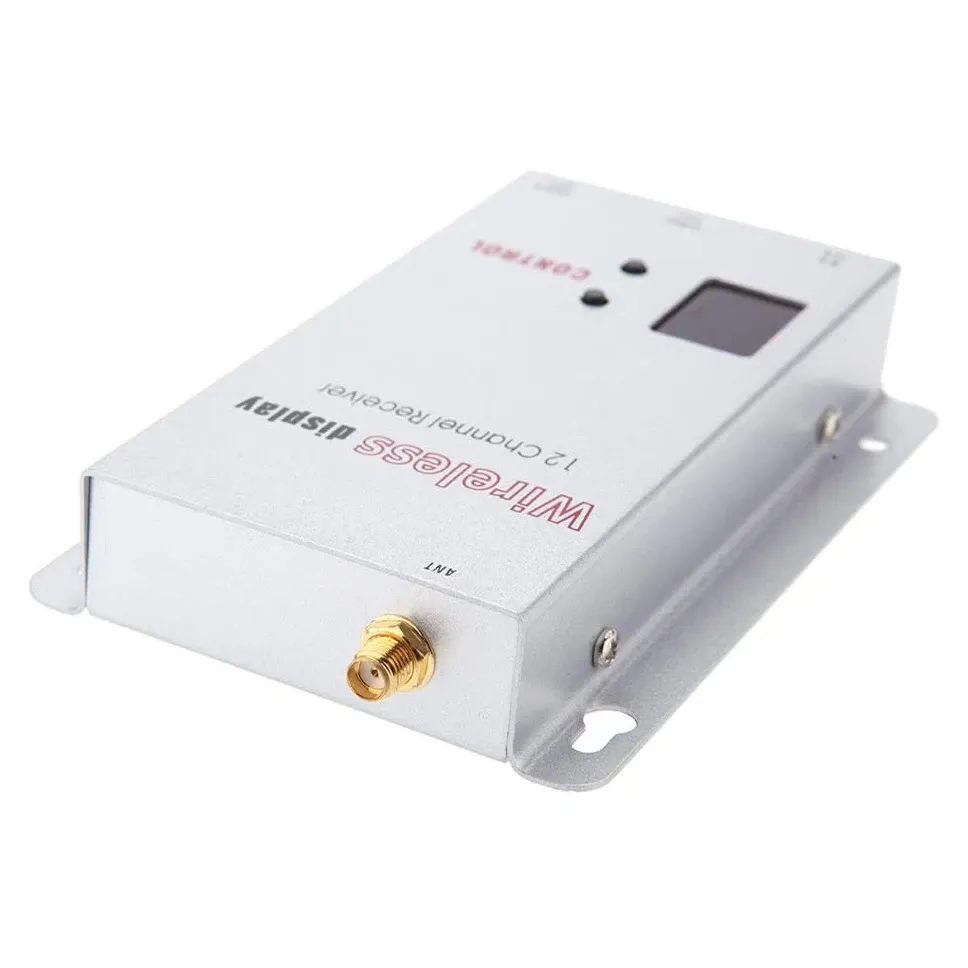

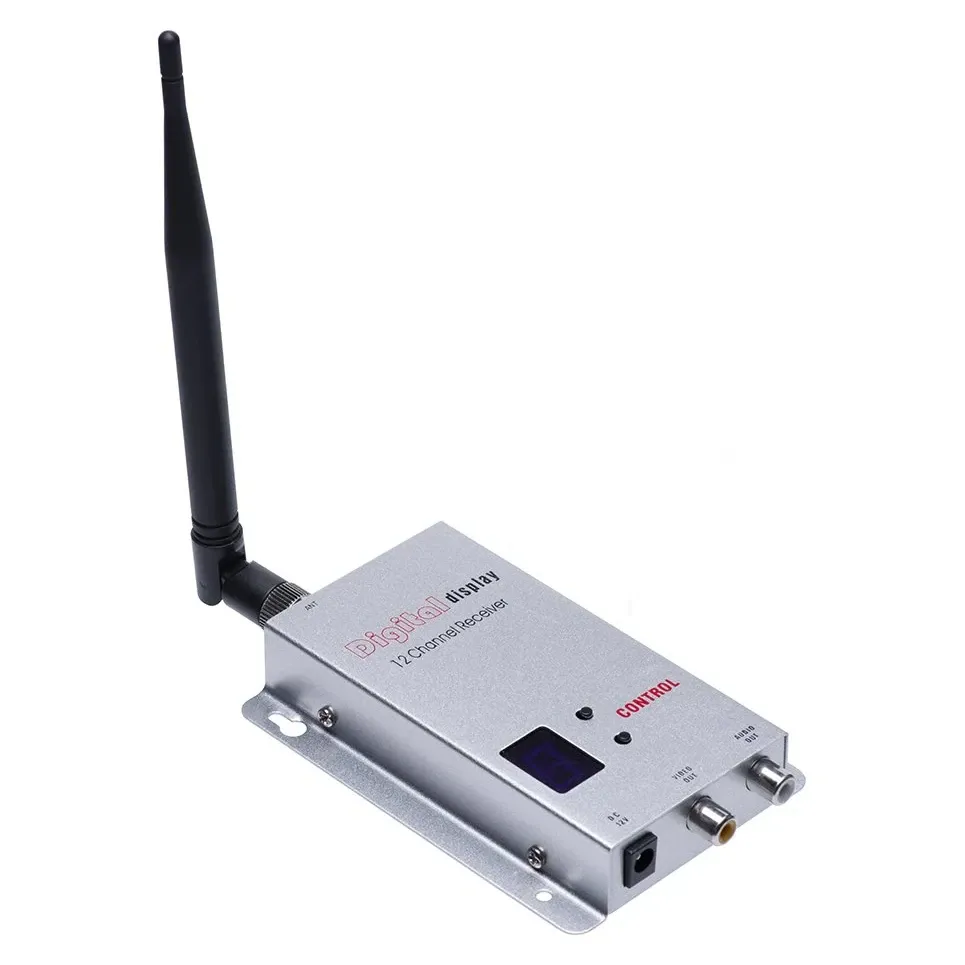

• 12-channel receiver covering 0.9–1.2GHz with –85 dBm sensitivity
• Carries composite video plus audio at 1Vp-p, so it takes CCD and FPV cameras, DVRs and other AV sources
• Both units run on 12V DC: the transmitter draws 500mA, the receiver up to 2A

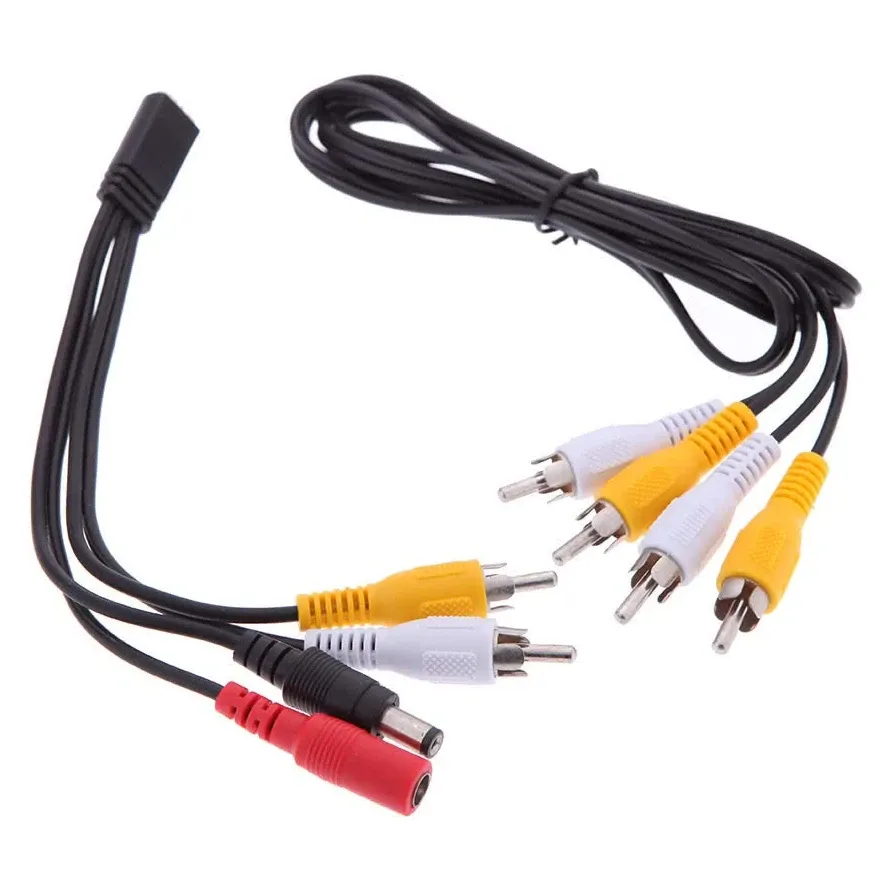

• Complete set with two antennas and an AV conversion cable for each unit

Specifications

• Transmitter power: 2W (2000mW)
• Transmitter channels: 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360 MHz
• Transmitter input: 12V DC, 500mA
• Transmitter size / weight: 73 × 41 × 14 mm, 115 g
• Receiver frequency: 0.9–1.2GHz, 12 channels
• Receiver sensitivity: –85 dBm
• Receiver input: 12V DC, 2A
• Receiver size / weight: 115 × 60 × 20 mm, 173 g
• Video / audio level: 1Vp-p
• Antenna connector: SMA
• Operating temperature: –40 °C to +80 °C
• Operating humidity: up to 85% RH
• In the box: transmitter, receiver, 2 antennas, 2 AV conversion cables

Run the transmitter from a 3S pack or a regulated 12V rail, and never power it without its antenna fitted. Mount it well away from the GPS module: the 1.2GHz channels sit close to the GPS L2 band at 1227.6 MHz and can upset satellite lock.
