GEPRC Maten 5.8G 1.6W VTX

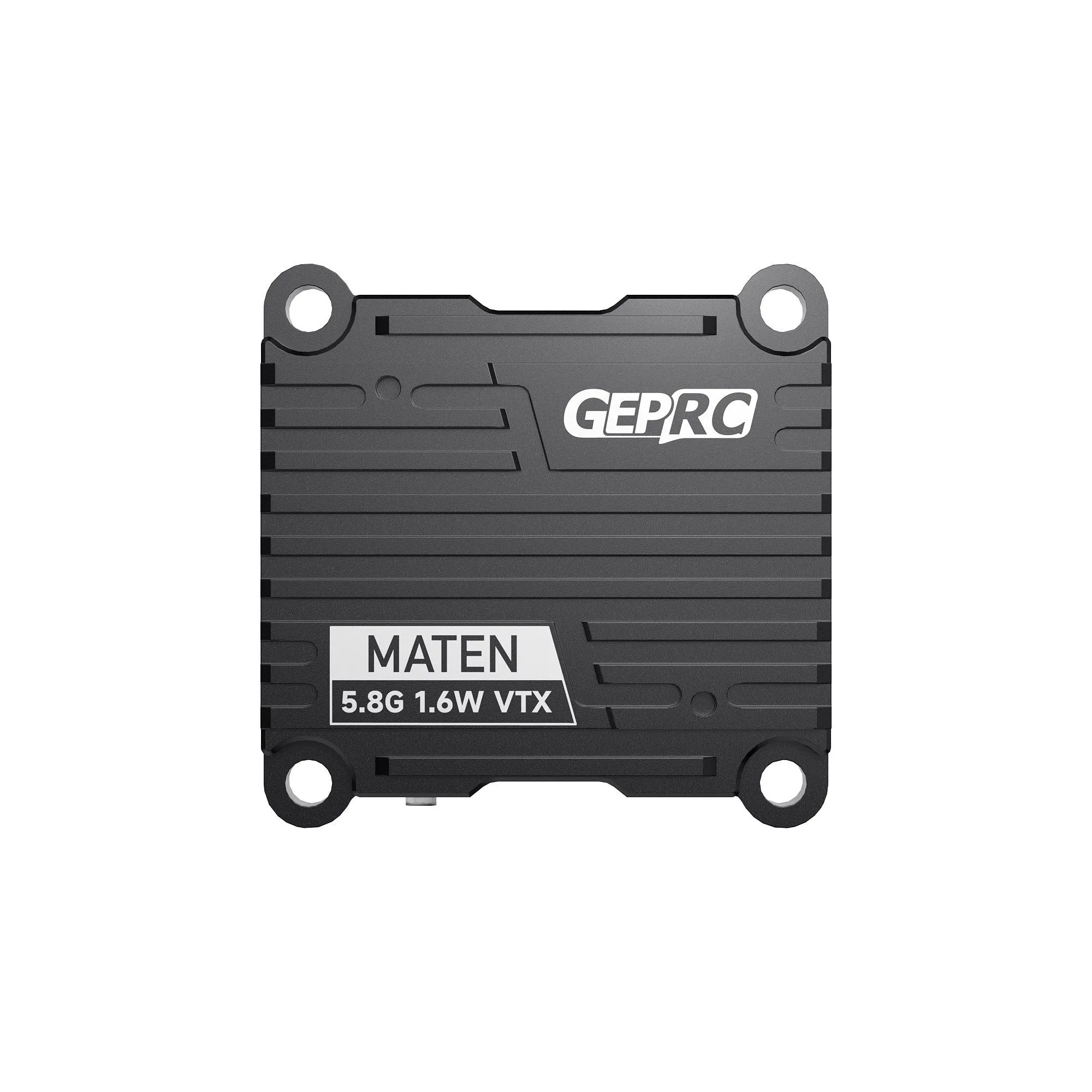

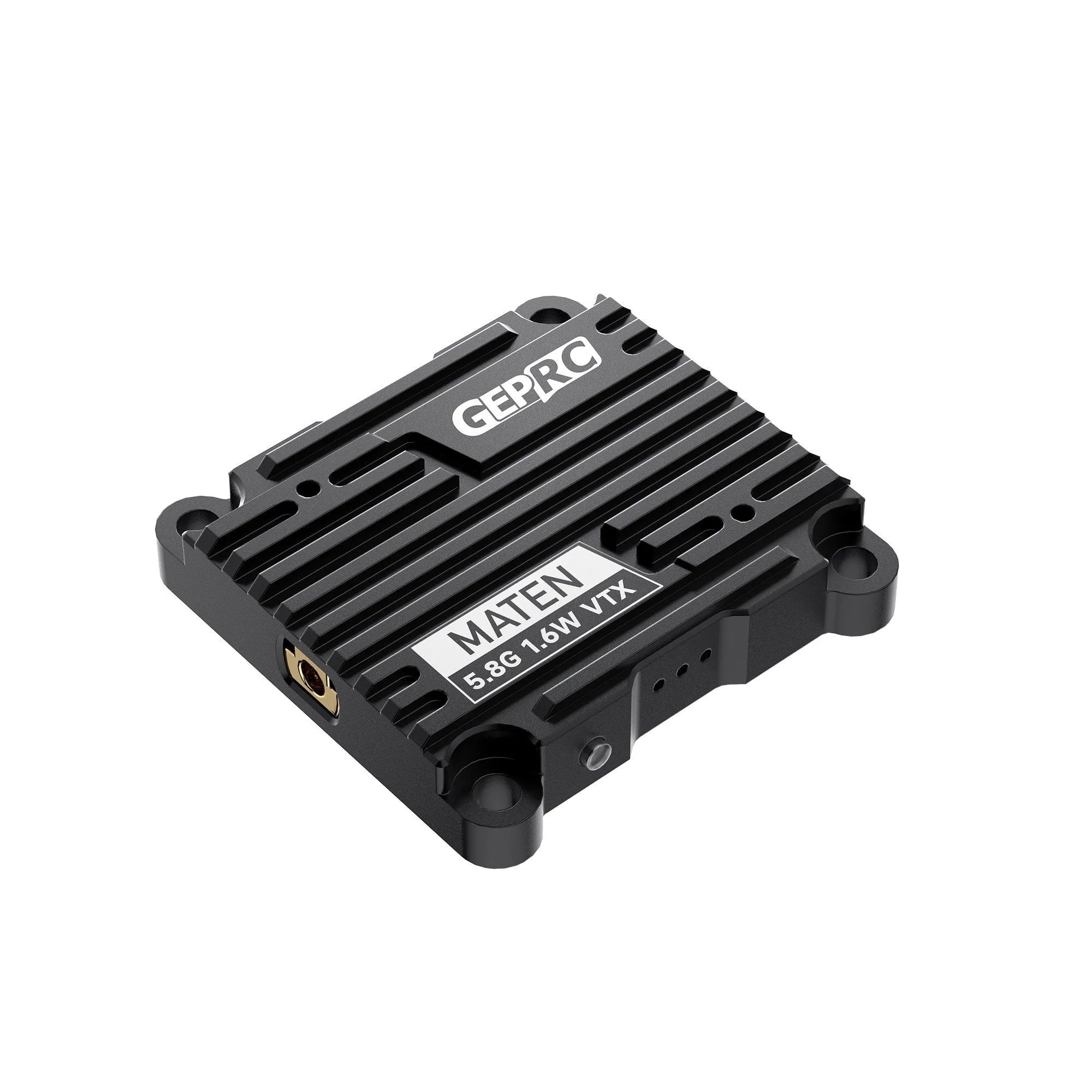

The GEPRC MATEN 5.8G 1.6W is an analog video transmitter for long-range and freestyle builds that need more punch than a standard low-power VTX, housed in a CNC aluminium shell that doubles as a heatsink.

Key features

• Four power steps plus Pit mode (25/200/600/1600mW) let you match output to the airspace, from park flying to long-range penetration.
• Wide 7-36V input runs directly off 2-8S LiPo, with a 5V/600mA output for the camera.
• IRC Tramp protocol supports OSD-based power, channel and band changes without a separate remote.
• Built-in microphone adds onboard audio to the video feed for goggle playback or DVR capture.

Specifications

• Output power: Pit / 25 / 200 / 600 / 1600 mW
• Frequency: 5.8GHz, 72 channels
• Input voltage: 7-36V (2-8S LiPo)
• Camera output: 5V @ 600mA
• Protocol: IRC Tramp
• Antenna connector: MMCX
• Mounting: 30.5x30.5mm (M3)
• Dimensions: 36.4 x 36.4 x 7.9 mm
• Weight: 17.5 g

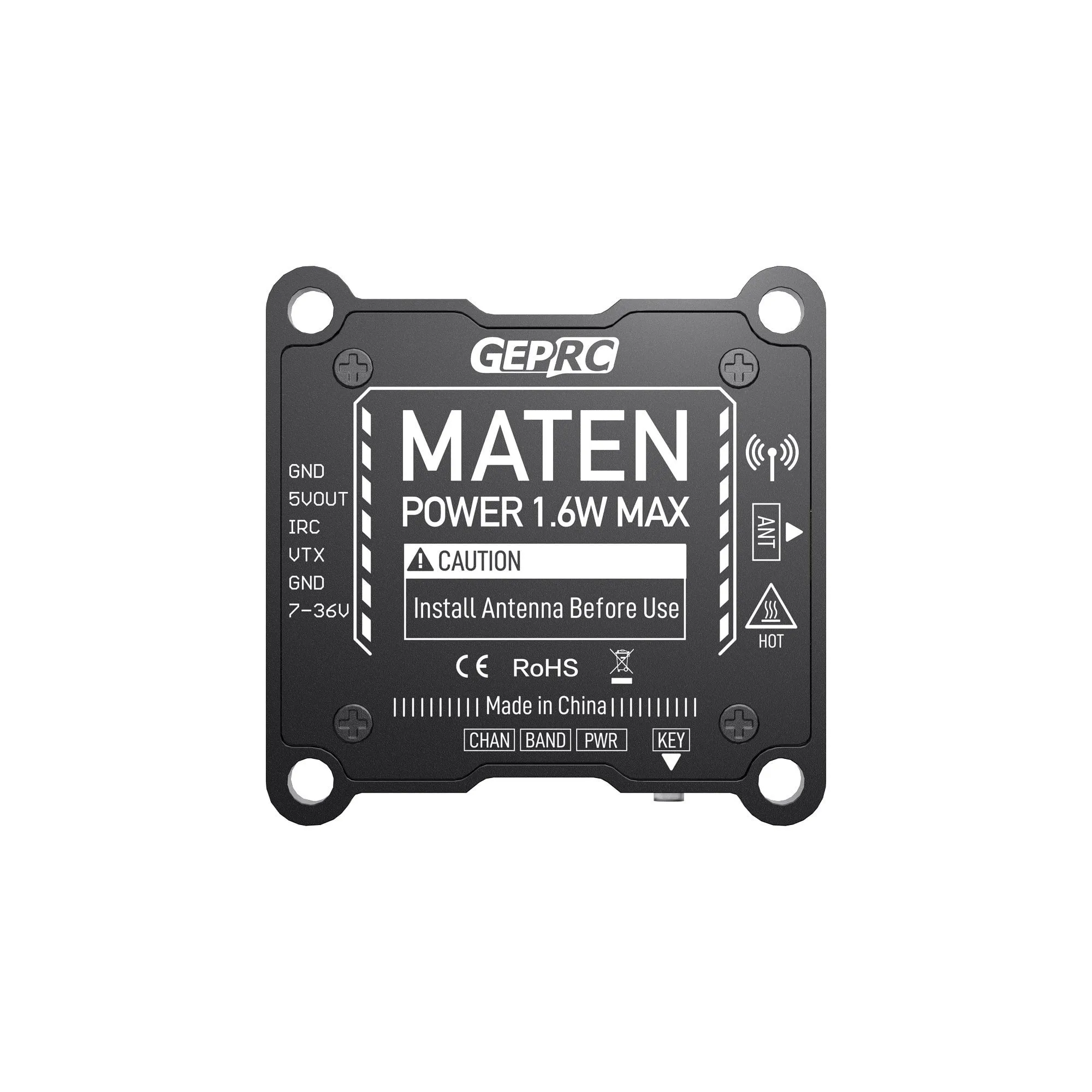

The single 30.5x30.5mm mounting pattern drops straight into the rear-stack position on most 5-inch to 10-inch frames; always connect a 5.8GHz antenna to the MMCX port before powering the VTX to protect the amplifier.
