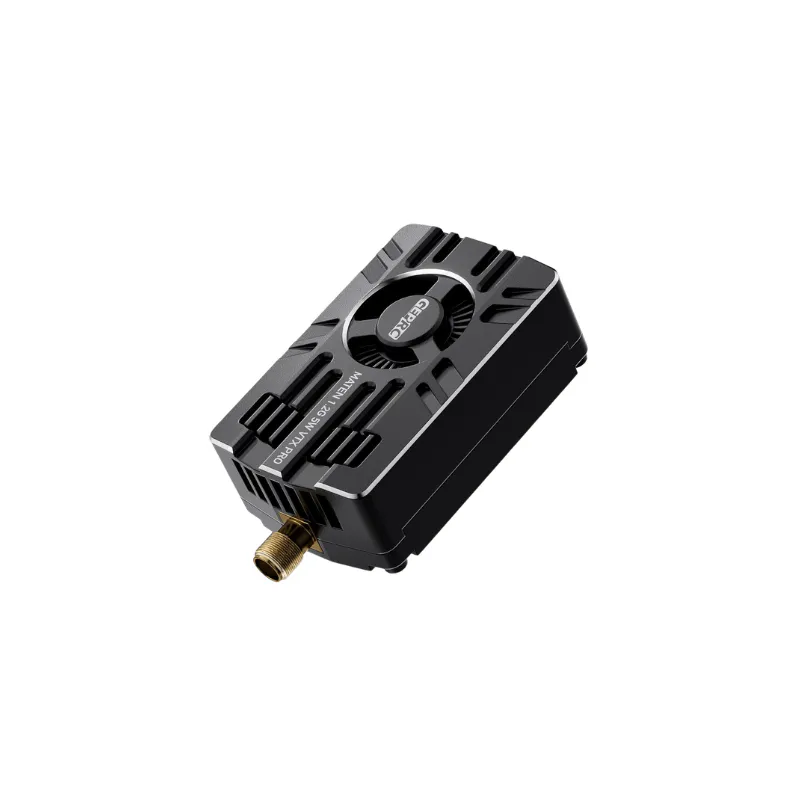

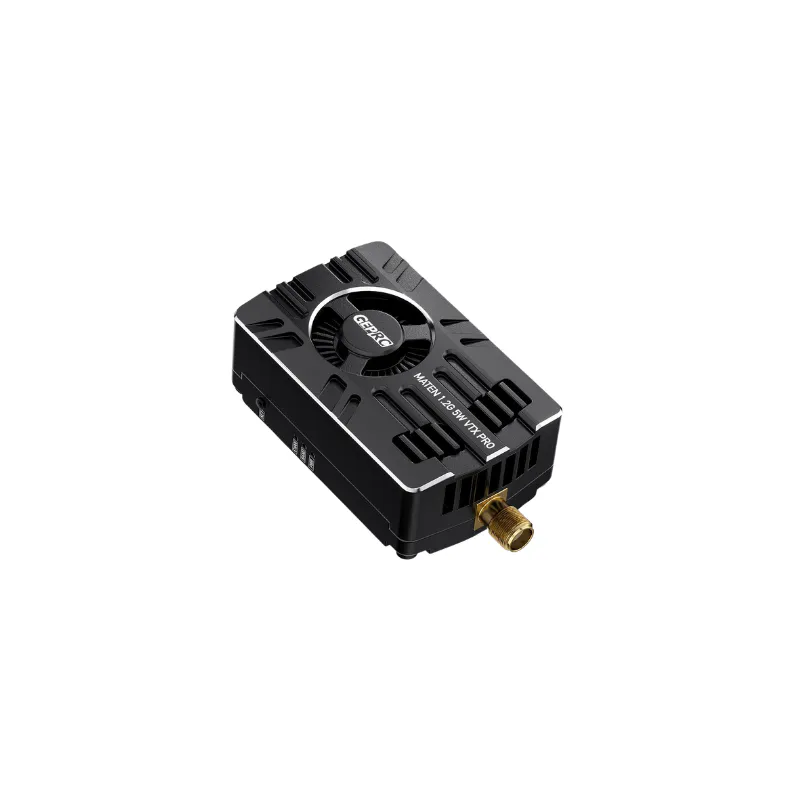

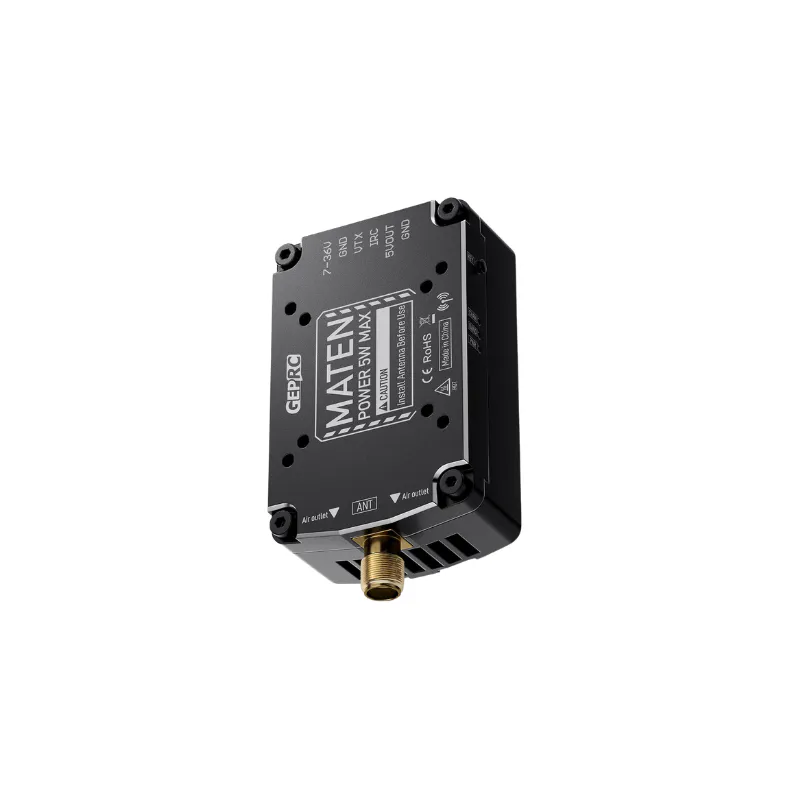

GEPRC Maten 1.2G 5W VTX Pro
SKU GEPRC-MATEN-1-2G-5W-VTX-PRO
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
GEPRC Maten 1.2G 5W VTX Pro is a high-power analogue video transmitter for pilots running a 1.2GHz link, aimed at long-range or heavy-lift builds that need more punch through obstacles than a typical 5.8GHz setup. It suits larger freestyle quads, cinelifters and fixed-wing platforms built around a 1.2GHz-only video chain.
Key features
- Four selectable power levels — 25mW, 400mW, 800mW and up to 5000mW — plus a pit mode for bench setup.
- IRC Tramp protocol support for on-screen power and channel adjustment from the goggles.
- CNC-machined aluminium alloy shell improves heat dissipation and impact resistance at high power.
- Wide 7-36V (2-8S) input range with a 5V/600mA accessory output.
- Single-button operation with three status LEDs for quick power and channel checks in the field.
Specifications
- Frequency band: 1080-1360MHz
- Output power: 25/400/800/5000mW
- Protocol: IRC Tramp
- Antenna connector: SMA
- Input voltage: 7-36V (2-8S)
- Mounting: 20x20mm (M2)
- Weight: 48g (VTX only)
- Dimensions: 60 x 33.2 x 19.1mm
Match your ground receiver, antenna and local RF rules to the 1.2GHz band before buying — this VTX only works as part of a 1.2GHz analogue video chain.
| VTX Power | 5000 mW |
|---|---|
| Mounting Size | 20x20 |
| Antenna Connector | SMA |
| Made in India | No |
| Brand | GEPRC |
| Frequency | 1.2GHz/1.3GHz, 1.2GHz |
| Weight | 48 g |
| Input Voltage | 2–8S |
| VTX Control | Tramp |
